Description and materials
- New Echo TR hydraulic rim brake, updated for the 2015 season.

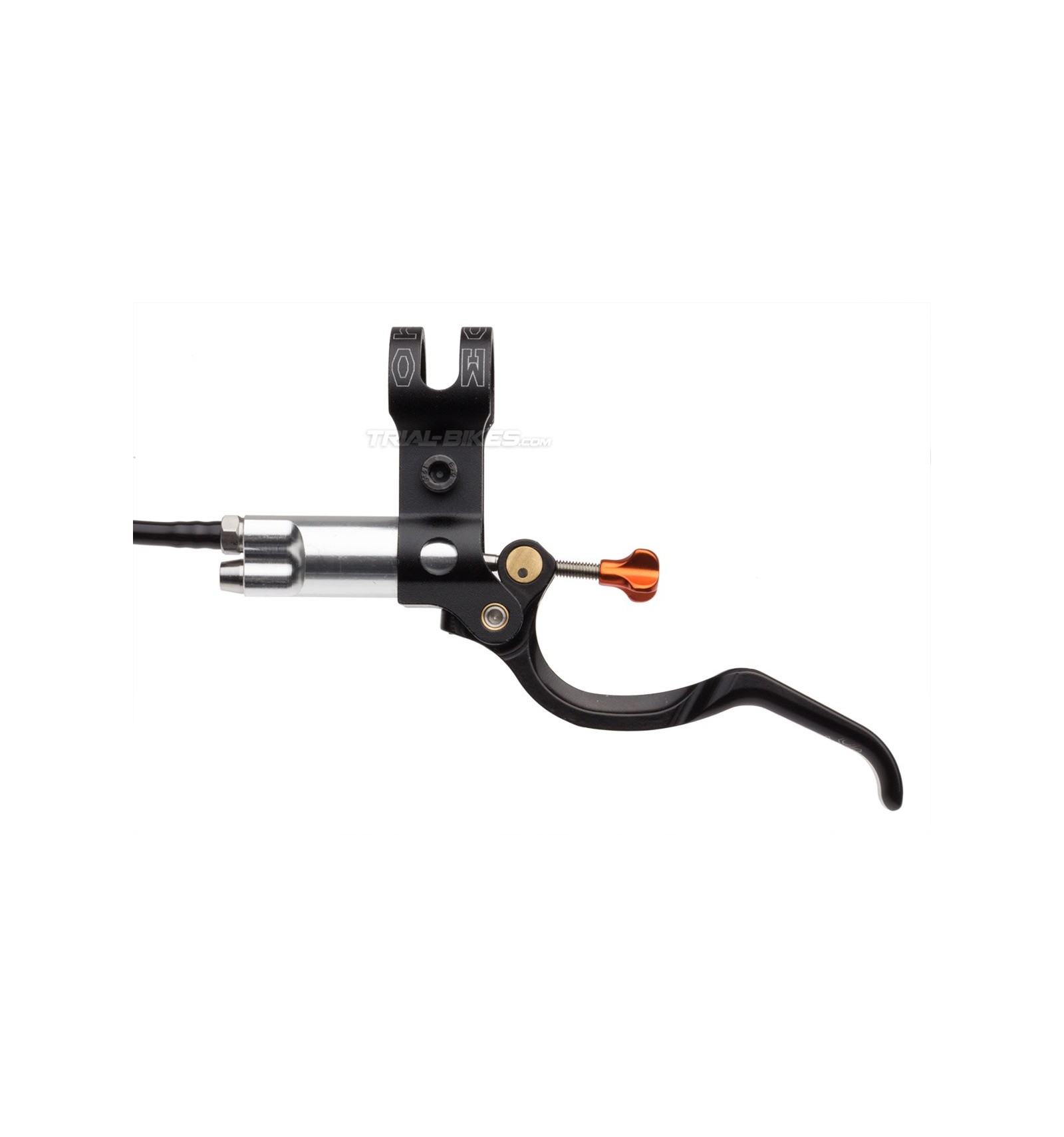

- Exclusive Echo TR lever design, made from a single piece of high quality 6061-T6 CNC aluminium alloy.
- Features a reversible lever, so it can be used as a right-hand or left-hand brake.
- The TPA adjuster is also made from CNC mechanized aluminium, in anodized orange color, located between the lever blade and handlebar to ease its use.
- 2-finger lever blade (85mm long), now stiffer and more comfortable, in anodized black color.

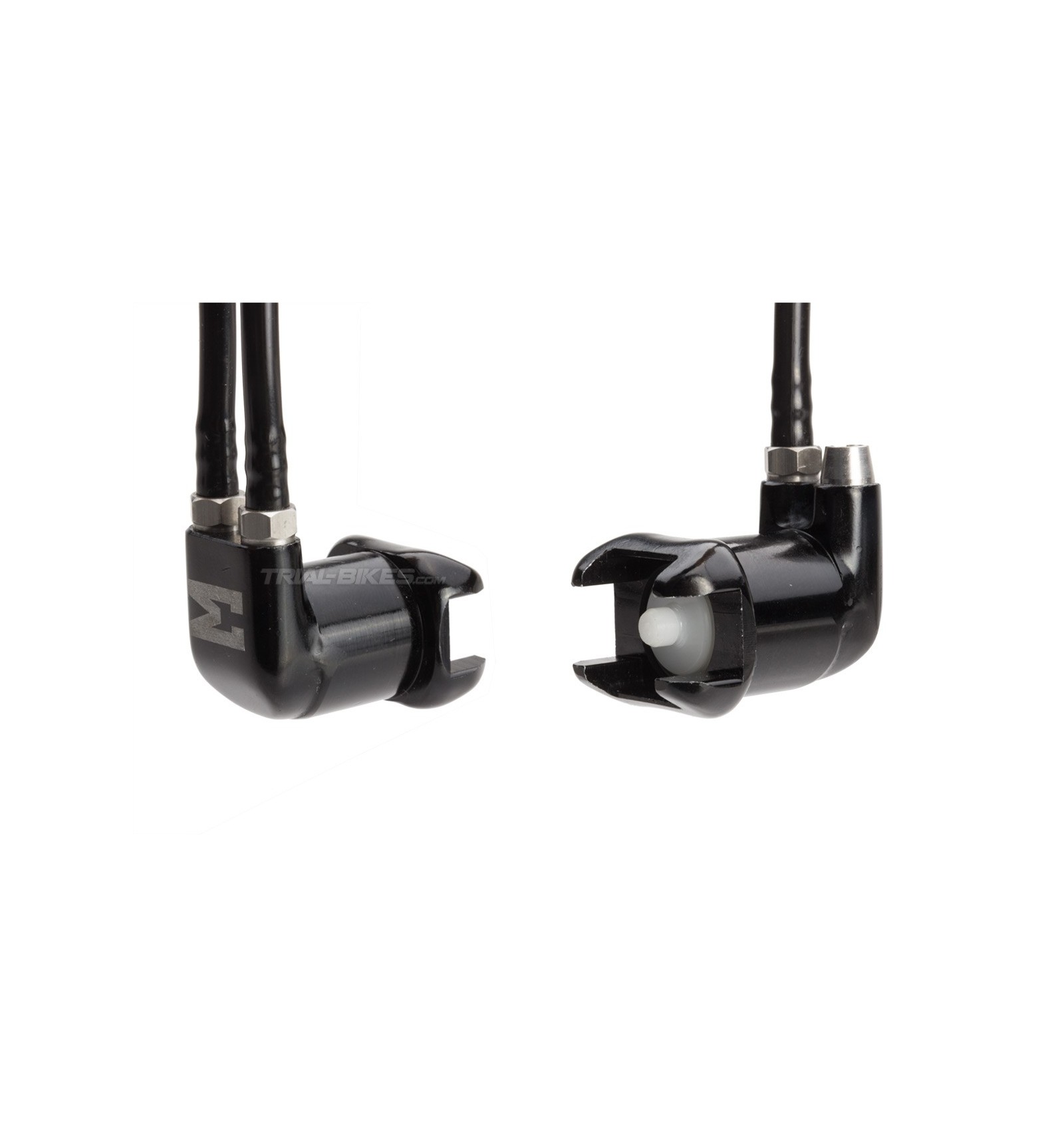

- The cylinders are smaller and more compact than those in standard Magura HS brakes, to help avoid them from being hit with the ankles.
- Note: due to these characteristics, the adjustment range is limited, so a 42mm-or-wider rim must be used (in case the frame has a 100mm space between mounts).
- The brake comes already bled with mineral oil, ready to use.
- Available as a front brake (with an 805mm long main hose) or as a rear brake (with a 1200mm long main hose).

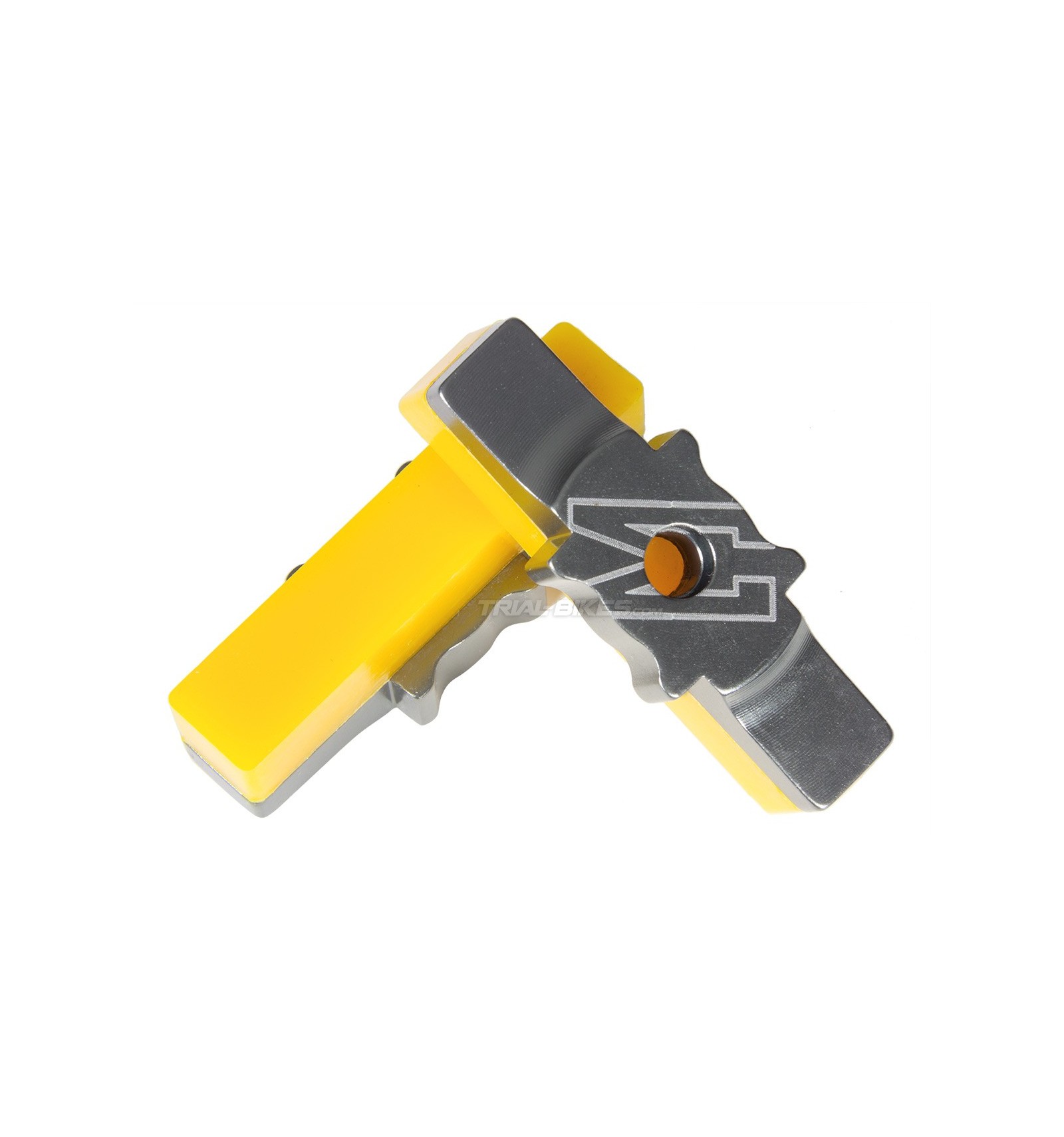

- Supplied with Echo TR CNC Yellow brake pads (also available here).
- Does not include brake clamps, which can be purchased separately here.
- Only available in anodized black color, with the TPA adjuster in orange.
Essential information for an adequate use
The following pictures detail how the TPA adjuster must be used. Picture A) shows a correct position of the adjuster, with the piston inside the piston bore (with a 2mm gap approximately). Picture B) shows an inadequate position of the adjuster, with the piston not fully inserted into the piston bore, which may cause the brake to start leaking. Using the brake incorrectly (as shown in picture B)) will invalidate the leak warranty.
Includes

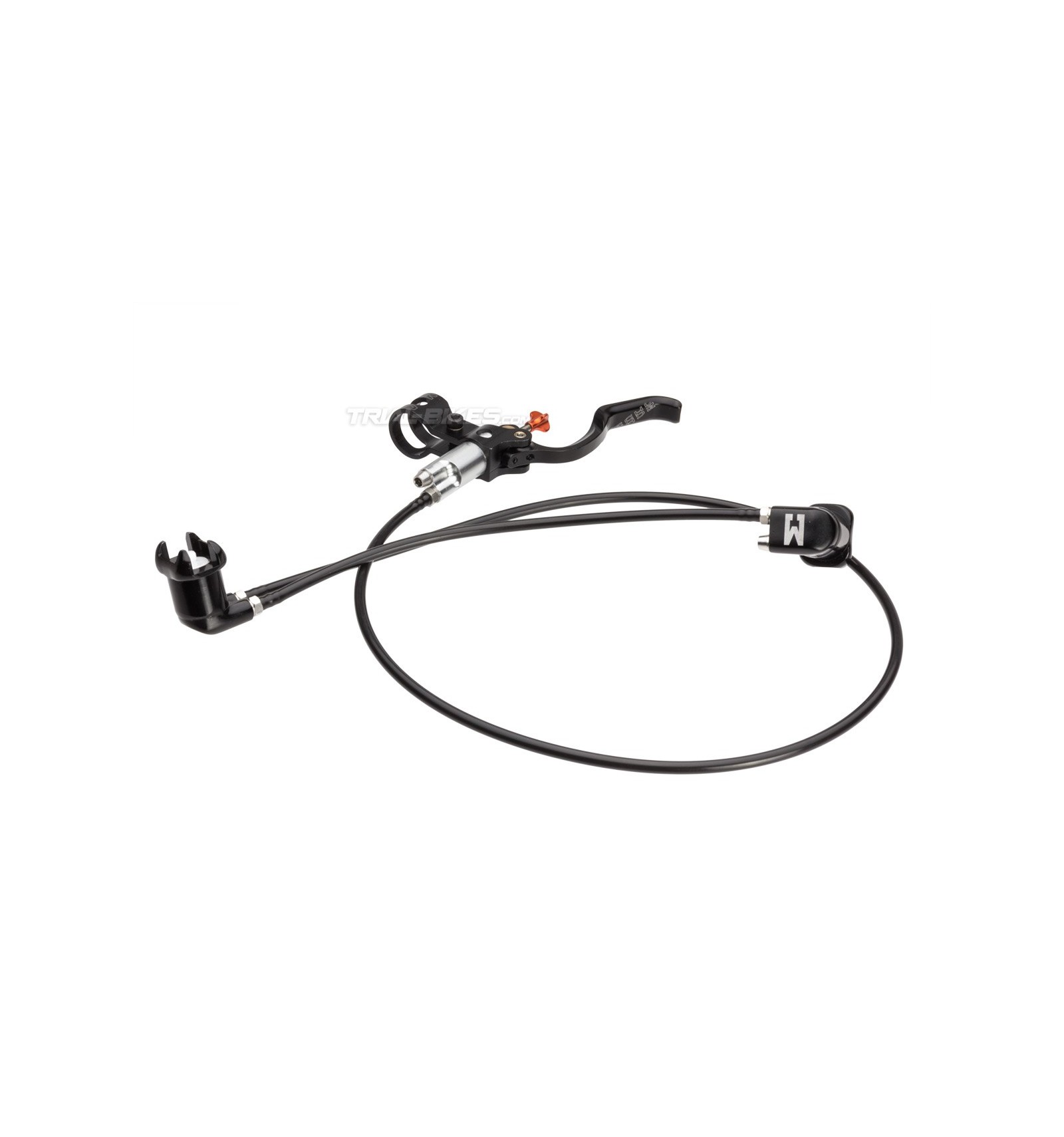

- Complete Echo TR hydraulic rim brake
Finishes
- Only available in anodized black color, with the TPA adjuster in orange.
Weight
- 196g
Additional Information
The brake must be bled with mineral oil only (never with DOT oil).
This brake is supplied with a 6-month warranty, which covers manufacturing defects. Any damage caused by an inadequate use, bleeding or unsealing the brake will invalidate the warranty immediately.
If you want us to shorten the hose to a specific length, let us know and we will do the job! (The order might be delayed between 24 and 48 hours).
| WEIGHT | 0.196 |
