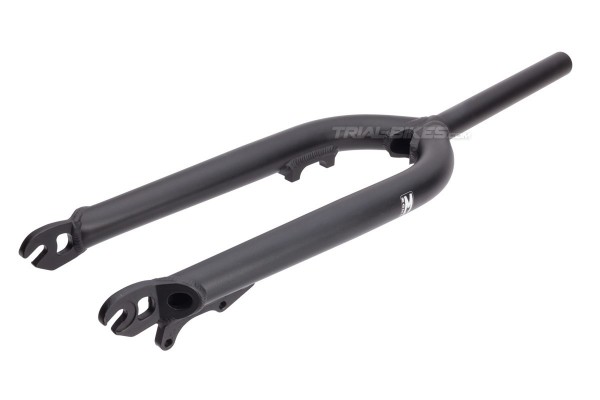

Echo Urban 2015 24'' Fork

Description and materials
- New Echo Urban 2015 fork, designed for 24” bikes.
- This is one of the strongest forks available, having suffered many updates, as used by most of  the top street riders (Damon Watson, Borisevich Pavel, etc.).
- The Echo Urban range was created to offer stronger, more durable components, in contrast with the evolution of some other brands’ products, increasingly weaker and crack-prone.

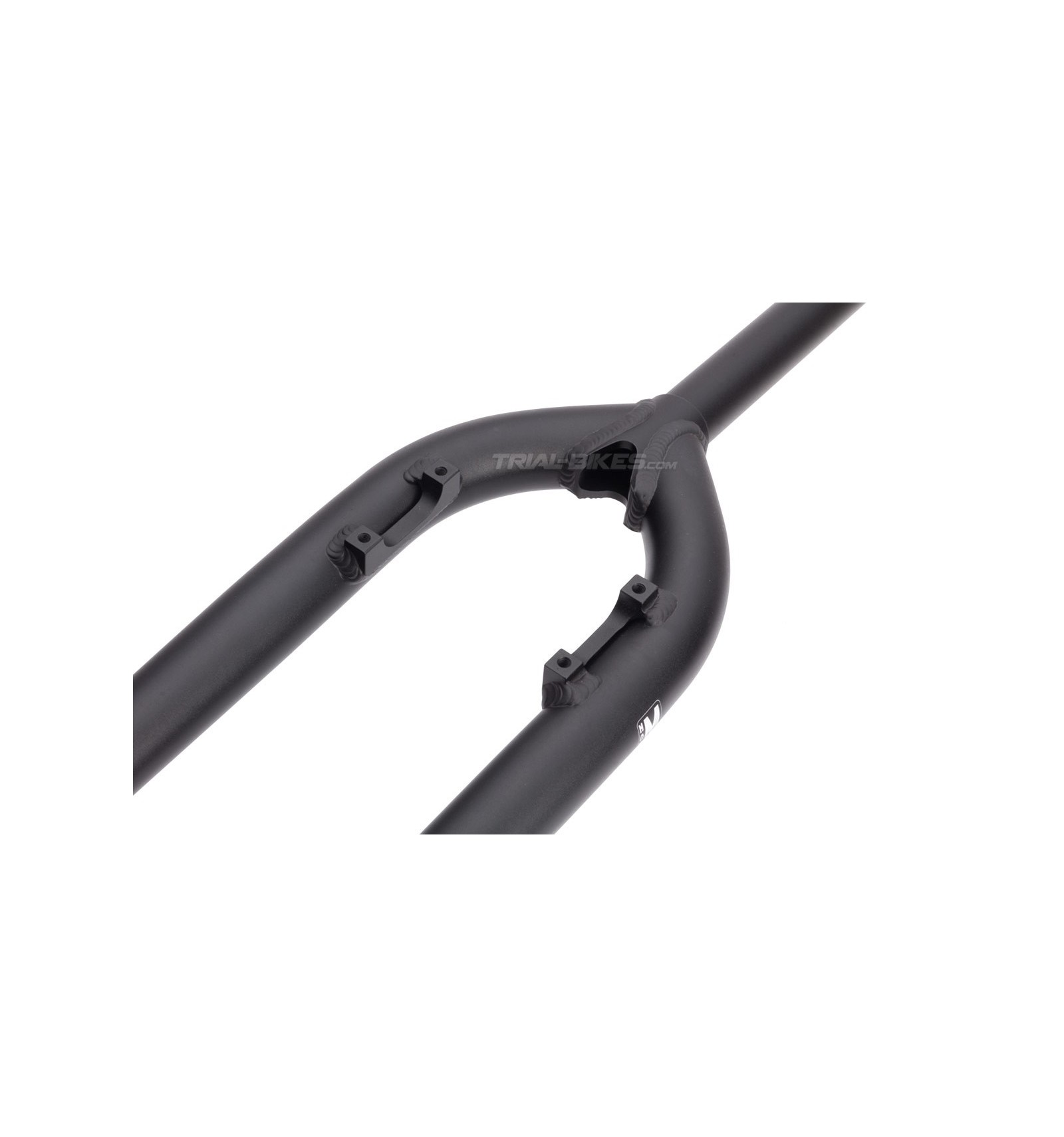

- Unique Urban design, with a one-piece steerer tube, which means it’s stronger and simpler than welded steerer tubes.
- Made from high quality aluminium alloy.
- Innovative head tube design, which does not require a crown race anymore: just put the lower bearing into it!
- Thicker tubing improves overall strength considerably, with little effect on weight.

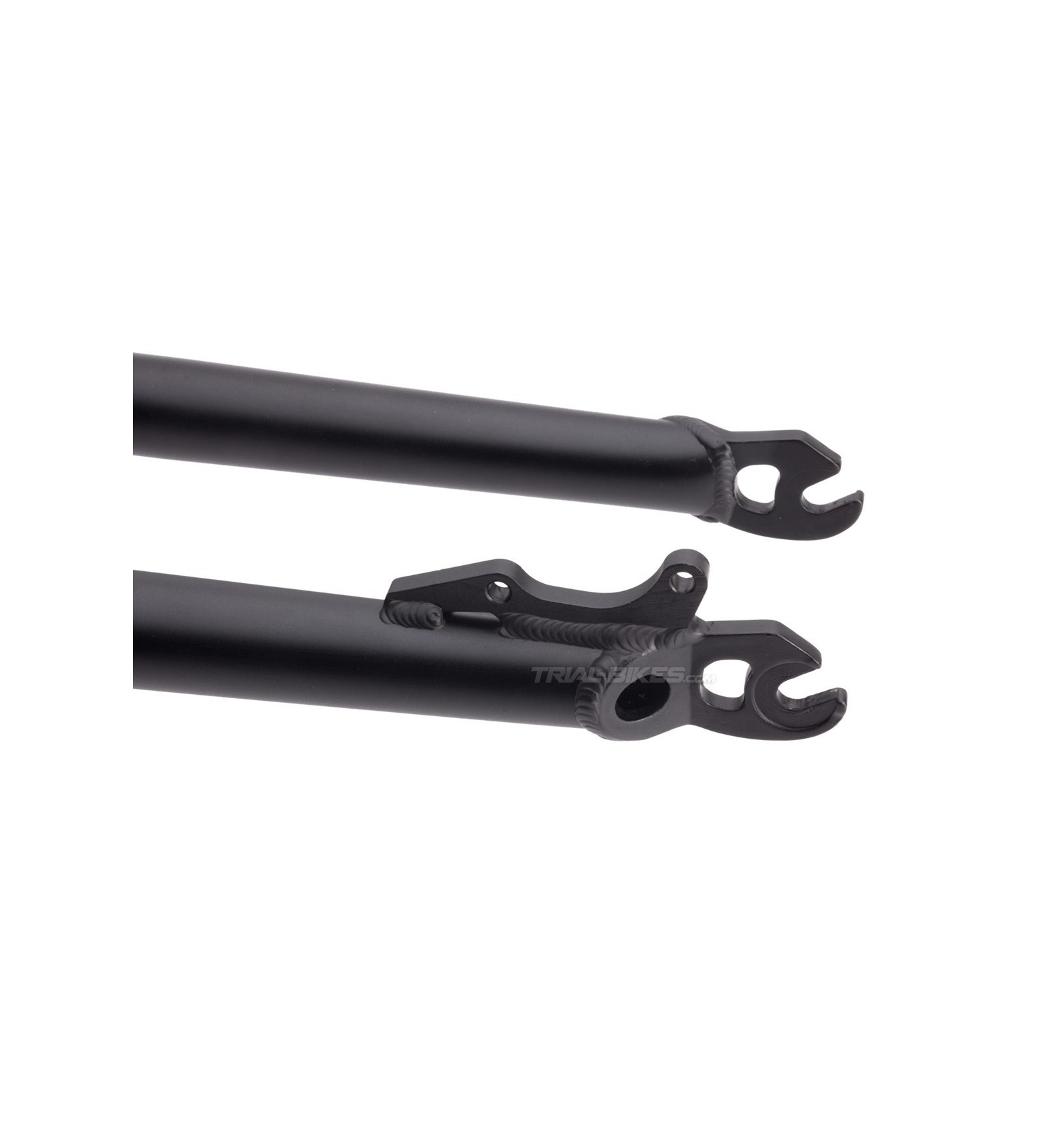

- Features drilled dropouts, with a neat minimalistic design to reduce unnecessary weight.
- Only available with both 4-bolt rim brake mounts and IS disc brake mounts (Disc+4-bolt).
- International Standard (IS) 3D-CNC-machined disc brake mount, for Ø160mm rotors, now with a large weld to stiffen this critical area.
- The 4-bolt brake mounts are also 3D CNC machined, spaced at 95mm.
- Supplied with a star nut.
- Two finishes available: in anodized black or silver.

Dimensions
- Length: 405mm
- Offset: +30mm
- Steerer tube length: 220mm

Finish
- Anodized black or silver finish
- White Echo graphics (black version)

Weight
- 844g

Additional information
This fork comes with a 3 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
