Echo Urban 4-bolt Booster Expand

Echo Urban 4-bolt Booster

ECHO ECHO

New

Description and materials

More details

This product is no longer in stock

32,23€

Color .

 Black


 Silver


 Red

Ask a question
rating Ver la opinión
Valoración media: 10/10 - Nº valoraciones: 1

Description and materials

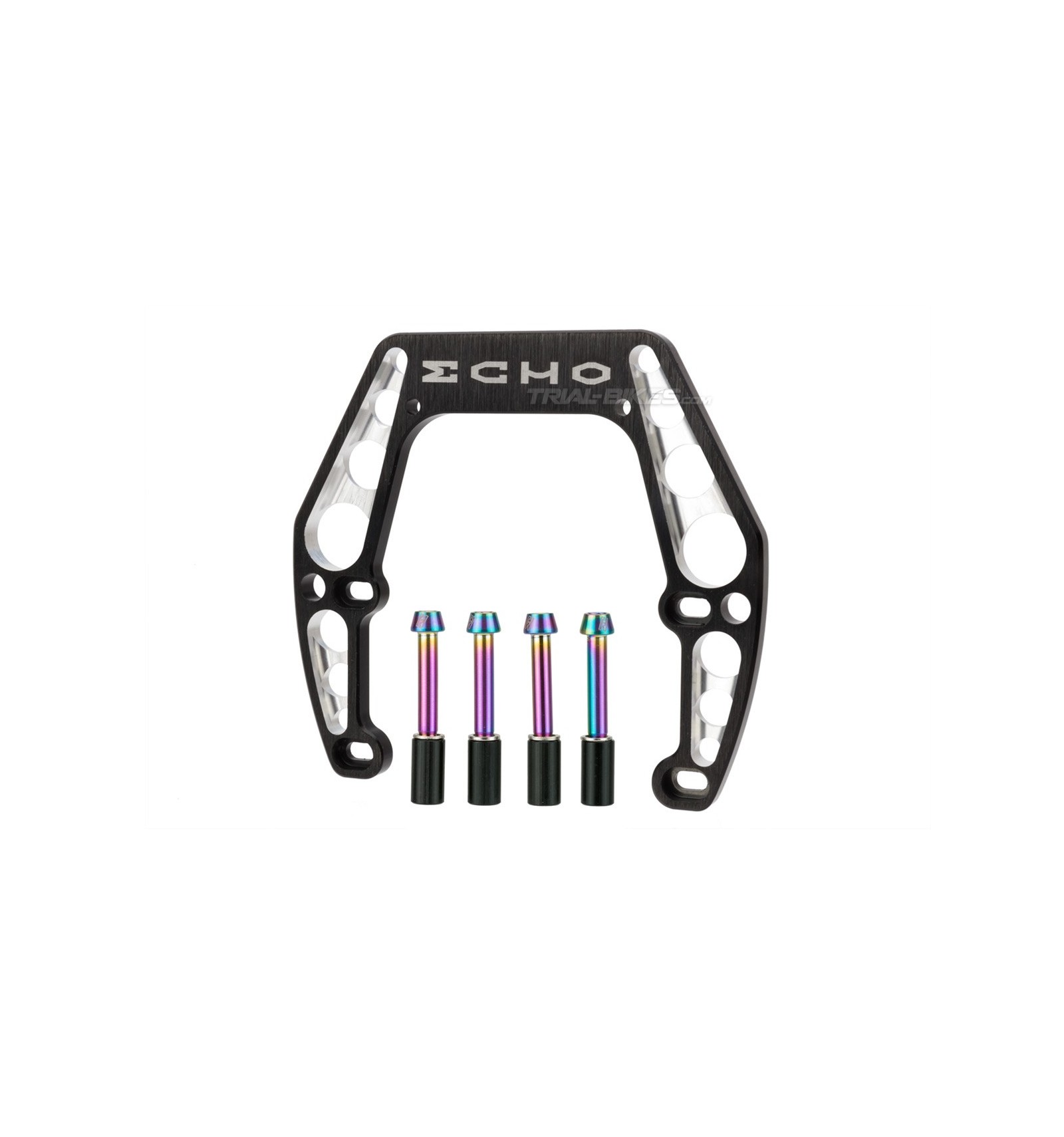

- Popular 4-bolt brake booster from Asian manufacturer Echo.
- CNC machined from a single piece of high quality 6061-T6 aluminium alloy.
- Its 4-bolt design increases stiffness considerably, improving overall braking performance.
- Furthermore, its large profile helps protect the cross-over pipe.
- Several holes machined in the booster arms help save unnecessary weight.
- Only suitable for those frames with a 95mm to 102mm spacing between mounts.
- Its 50mm vertical clearance ensures it fits 20”, 24” and 26” wheels.
- Supplied with 4 high-quality titanium bolts, as well as the spacers needed for the setup.

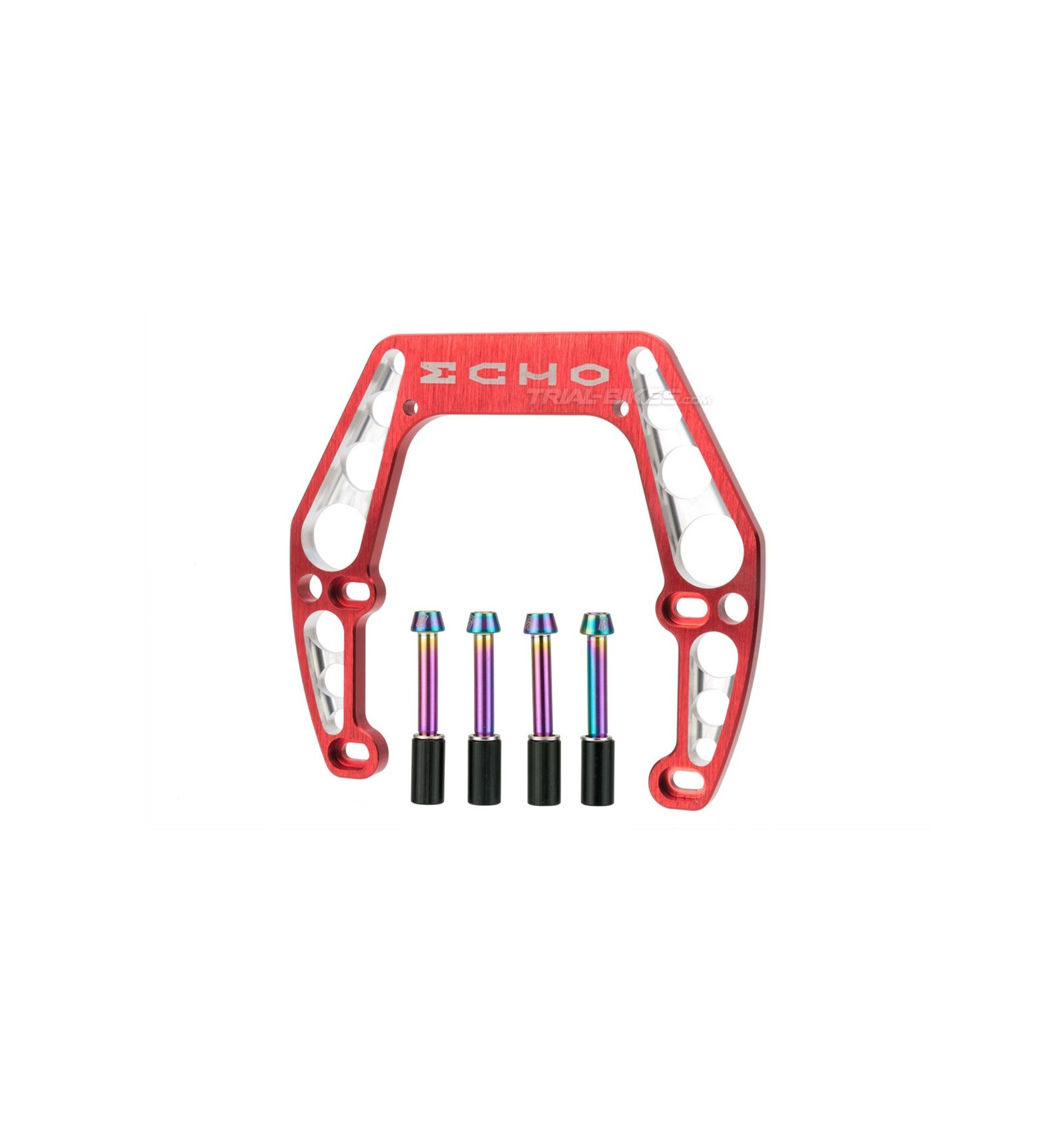

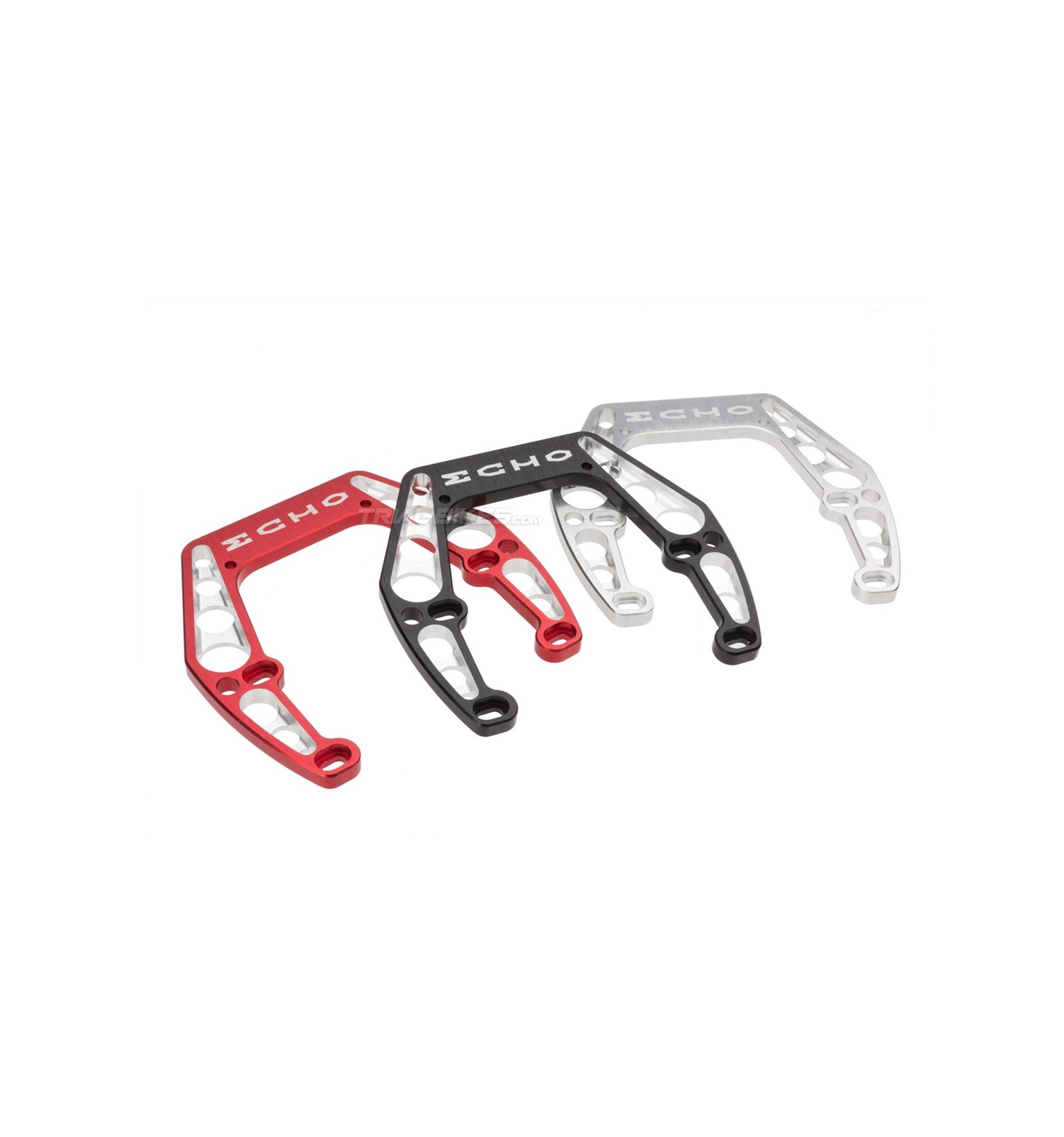

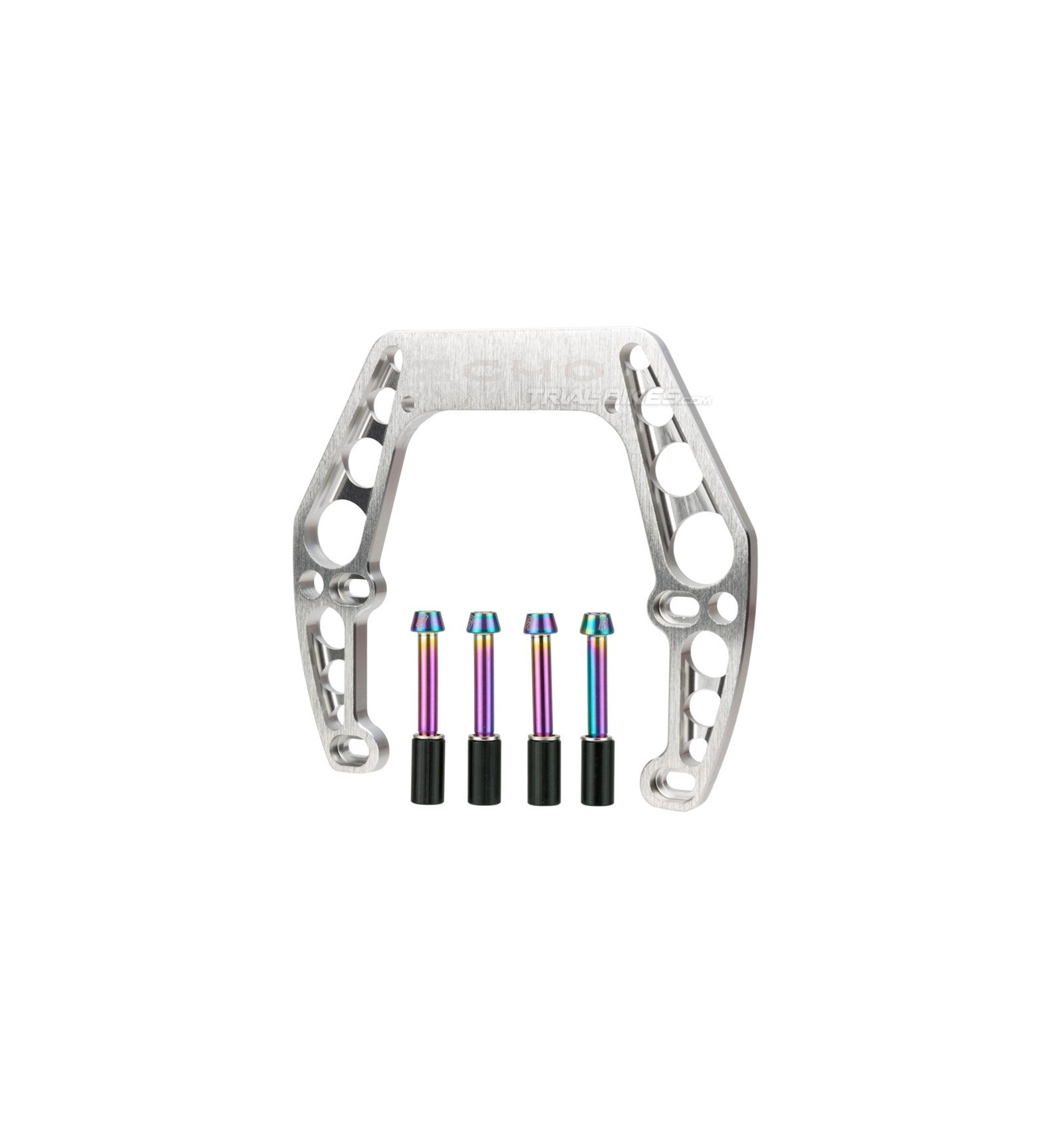

- Three finishes available: in anodized black, silver or red.
- Please note: the bolts supplied (M5 x 42mm) are suitable for the Echo brake clamps, so they might be too short to use with other brands’ brake clamps.

Dimensions
- Minimum/maximum horizontal spacing between bolts: 95-102mm
- Vertical clearance from top bolt: 50mm

Finishes
- Three finishes available: in anodized black, silver or red.

Weight
- 83g (including 4 bolts and spacers)

WEIGHT 0.083
