GW 32H Disc Front Hub

Reference: 539199

Condition: New

Ask a question

Pídalo antes de 50 horas y 53 minutos y recíbalo del Tue 21 January con GLS EXPRESS 14 HORAS

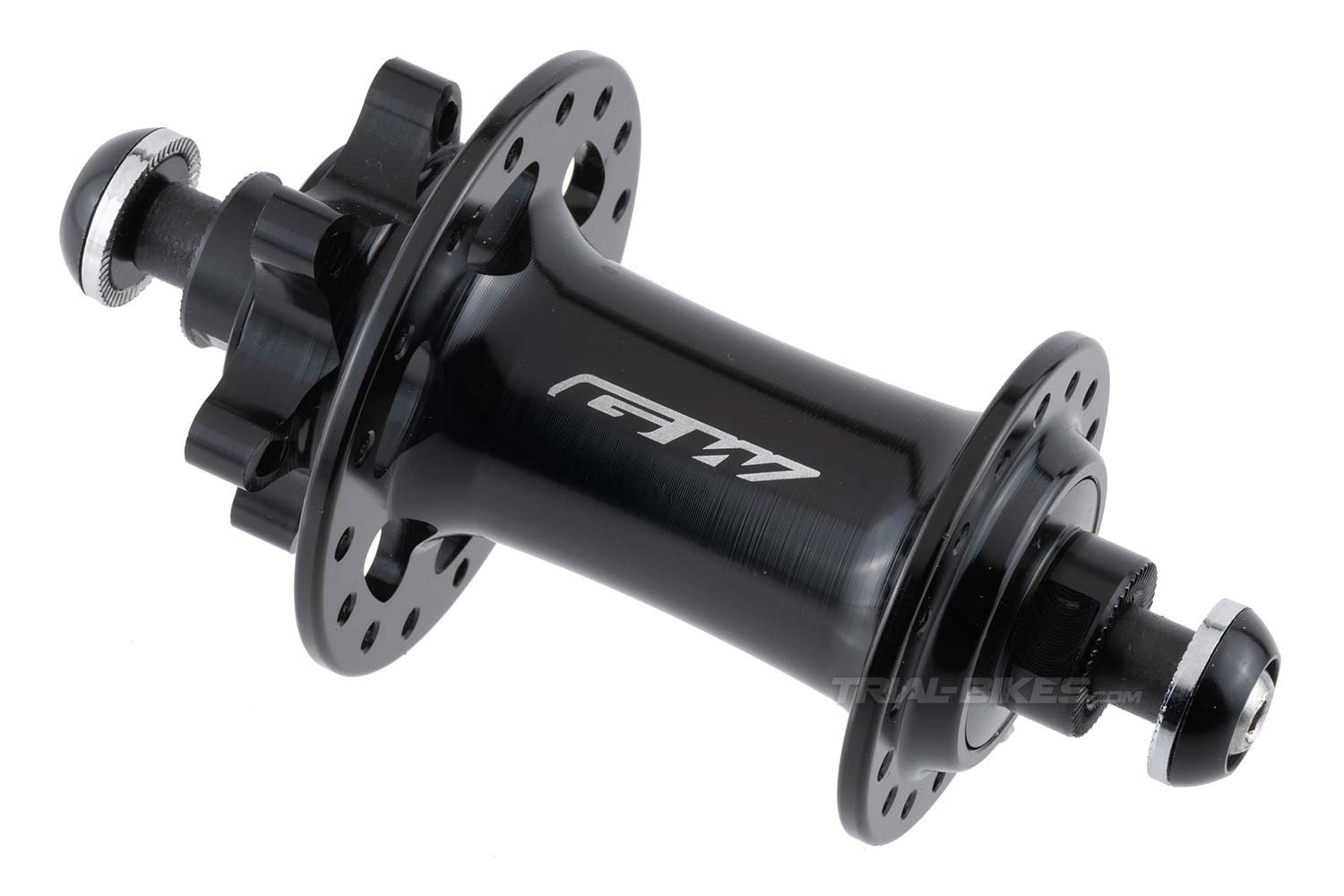

GW 32H Disc Front Hub

Front hub from the renowned GW brand, designed for use with disc brakes in both BMX and bike trials.

- High-strength aluminium shell, engineered to withstand the demands of biketrials.
- The hollow steel axle features a 10 mm diameter and an internal M6 thread.
- Compatible with 32-hole front rims, ensuring versatility and a perfect fit.
- Equipped with high-quality, replaceable sealed bearings for smooth, reliable, and long-lasting performance.
- Includes IS standard mounts for 6-bolt disc brakes, allowing quick and precise installation.
- Supplied with bolts and washers, ready for immediate assembly.

Compatibility:
- Compatible with those forks that have 100 mm spacing between the inner side of the dropouts.
- Compatible with rims that have 32 spoke holes.
- Compatible with those disc brake rotors with standard IS 6-bolt fitting

Dimensions:
- Spacing length: 100 mm.
- Axle diameter: 10 mm.
- Number of spoke holes: 32 (32H).

- Flange Diameters: Disc side: 56 mm / Non disc side: 44 mm
- Distance between flanges: 56 mm.

- Allen bolts: M6x25 mm.
- Spacers: 9 mm.
- Bearing reference: 16001RS.

Colour:
- Black, with white GW screen-printed graphics.

Weight:
- 234.62 g (+ 21.46 g for bolts and spacers).
