Hashtagg H2O HS Rim Brake

Overall Description
- High quality Hashtagg H2O HS hydraulic rim brake.
- This brake features a Hashtagg H2O rim brake lever and Magura slave cylinders, and it’s been attached and professionally bled by our TrialBikes team.
- 1200mm long PVC hose (standard rear hose length for 20”, 24” and 26” bikes).
- Includes an additional olive, so that you don’t have to re-bleed the brake when cutting down the hose (the standard front hose length for 20”, 24” and 26” bikes is 750mm).
- If you’d prefer us to shorten the hose to a specific length, please write it down in the Comments box when placing the order (the order might be delayed 24/48 hours).
- Sold individually: 1 complete brake (does not include brake pads, clamps or cylinder washers), and it’s already bled with hydraulic rim brake fluid, ready for use.
- You can find the best bike trials brake pads available here.

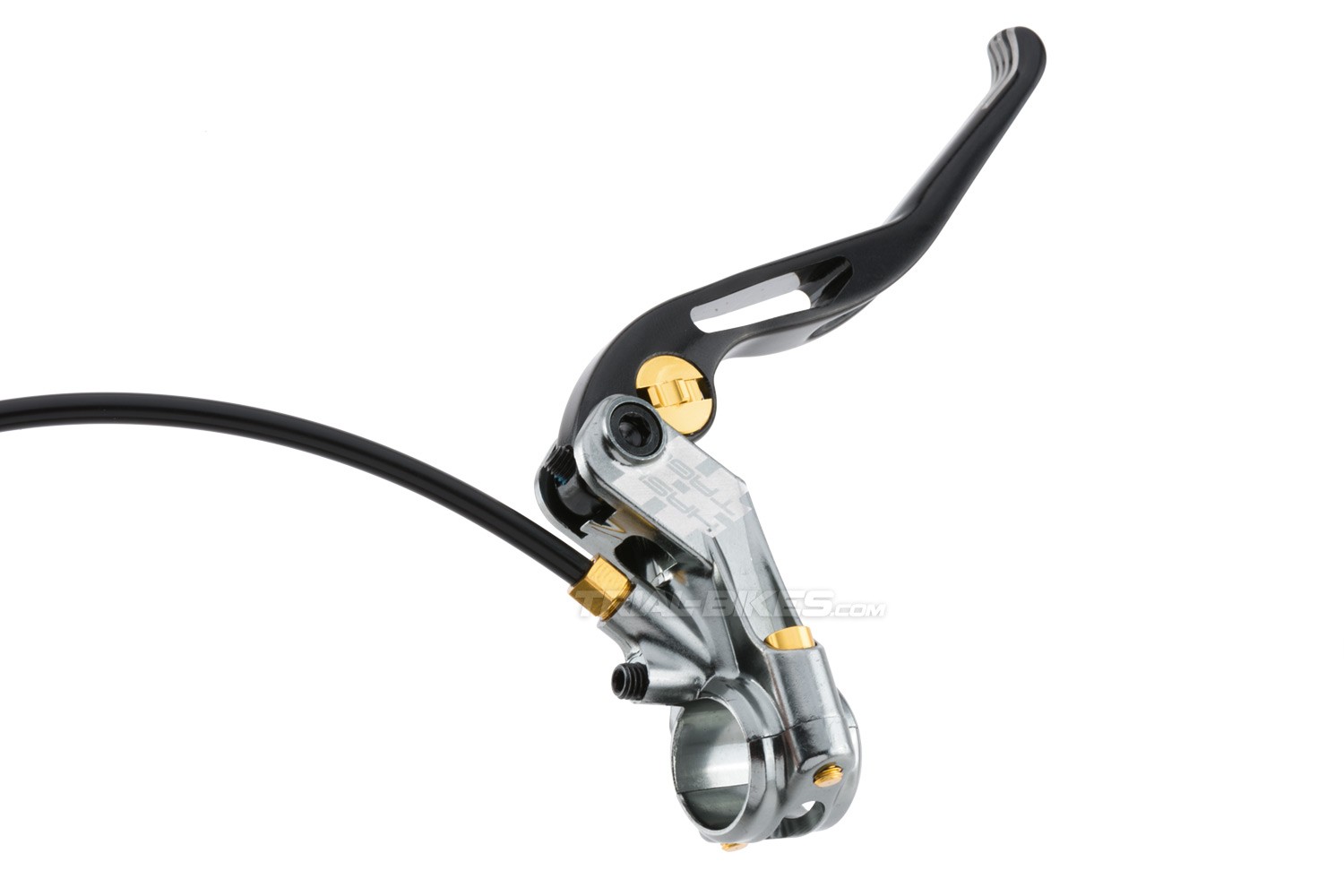

Main features of Hashtagg’s H2O lever
- CNC-machined from a single billet of high quality 6061-T6 aluminium alloy.
- 14mm diameter piston, made of stainless steel for high wear resistance.
- CNC-machined, 6061-T6 aluminium TPA wheel and pin.
- Reversible design.
- 120mm long, CNC-machined Hashtagg lever blade.
- Lever reach can be adjusted thanks to a bolt located at the front of the lever blade, using an Allen key.
- 2-bolt handlebar clamp, with the bolts facing backwards to prevent leg damage and allow brake removal without removing the grips.
- Ultralight aluminium bolts and connectors.
- More details here.

Main features of Magura’s HS33 slave cylinders
- Manufactured from high-strength aluminium alloy.
- Each cylinder has an M6 port and an M8 port (M6/M8).
- Official Magura connectors, made of super-strong steel.
- More details here.

Compatibility
- The brake can be bled with mineral brake fluid (do not use DOT fluids!).
- Compatible with most rim brake pads: PowerPad, TNN, Heatsink, Racing Line and those with similar backings.
- Compatible with most brake clamps.

Colours
- Dark grey lever, with Red bits, black lever blade and white laser etched Hashtagg graphics.
- Black slave cylinders, with white Magura graphics.

Weight
- 221g (with 1200mm long hose)
