Description and materials

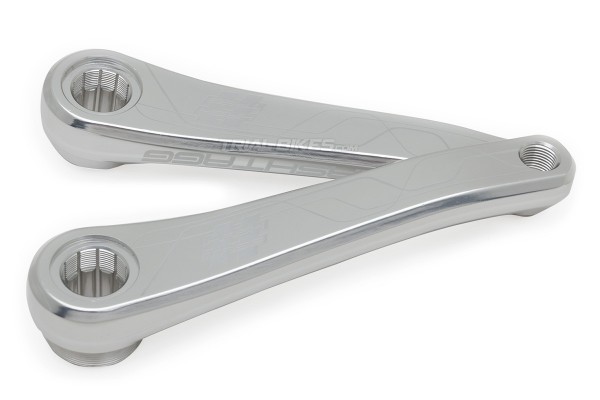

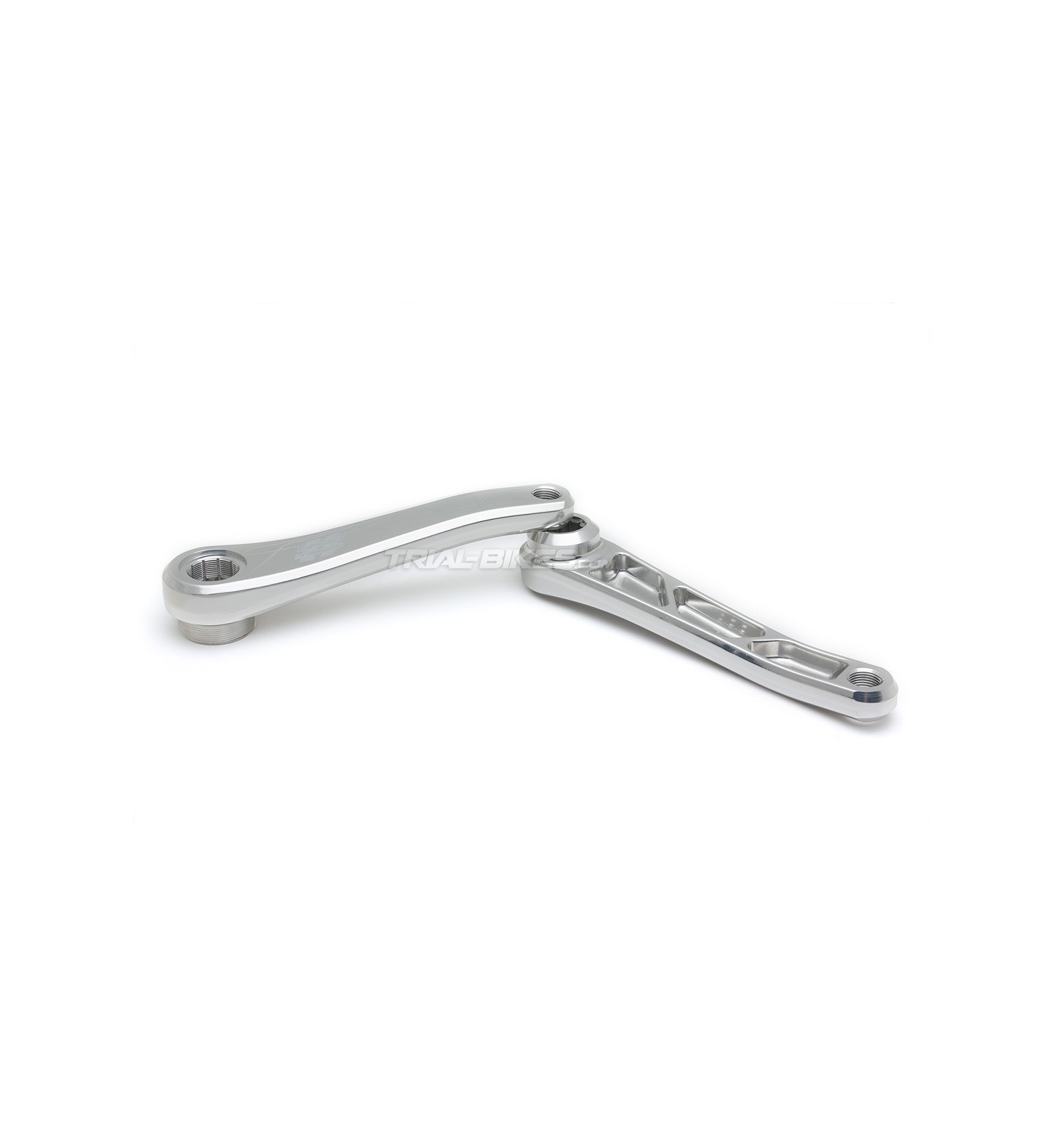

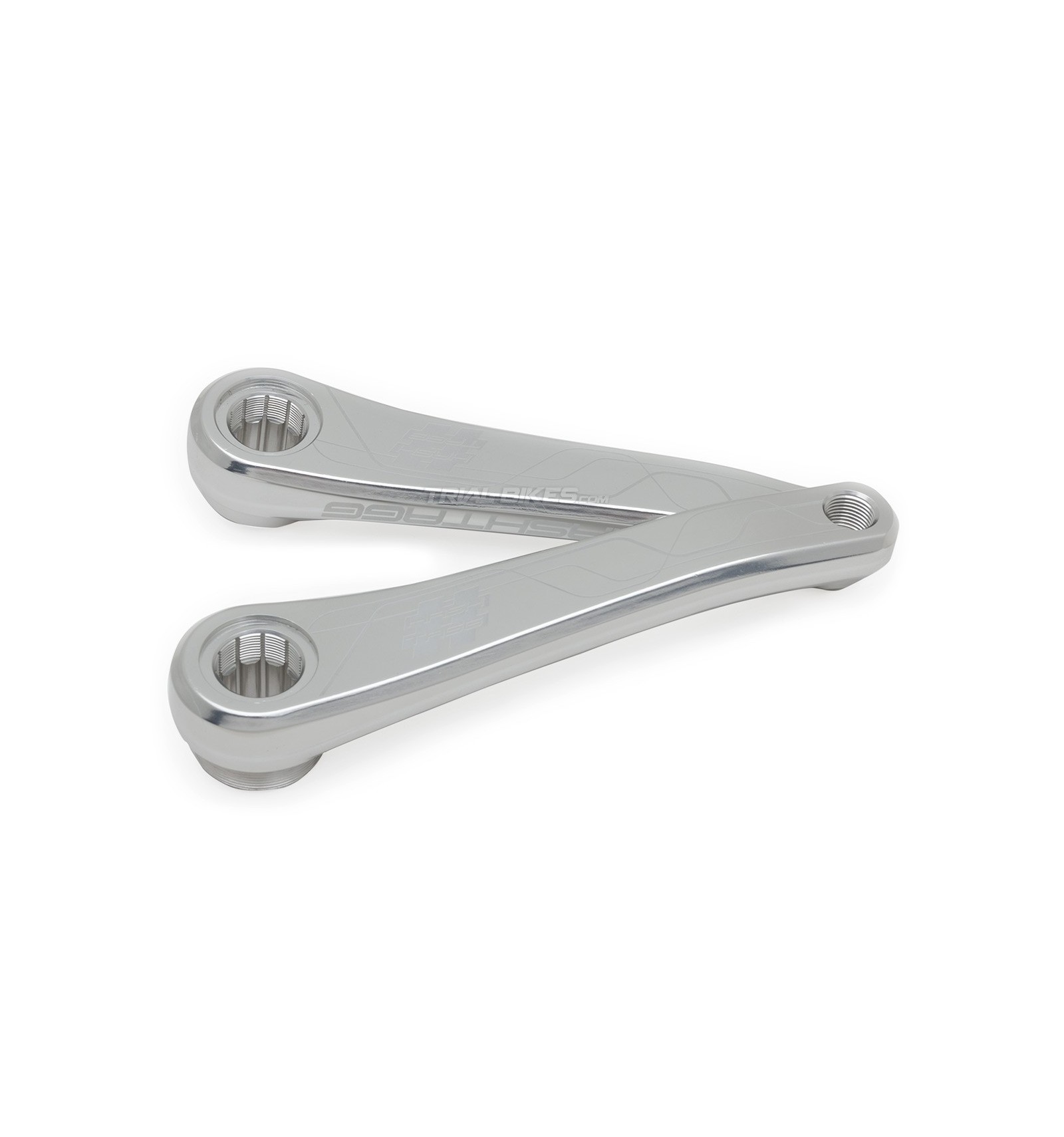

- New ISIS cranks from innovative French brand Hashtagg for the 2015 season.
- Exclusively designed by Hashtagg, based around the BB30 bottom bracket system, but now suitable for most ISIS BB’s.

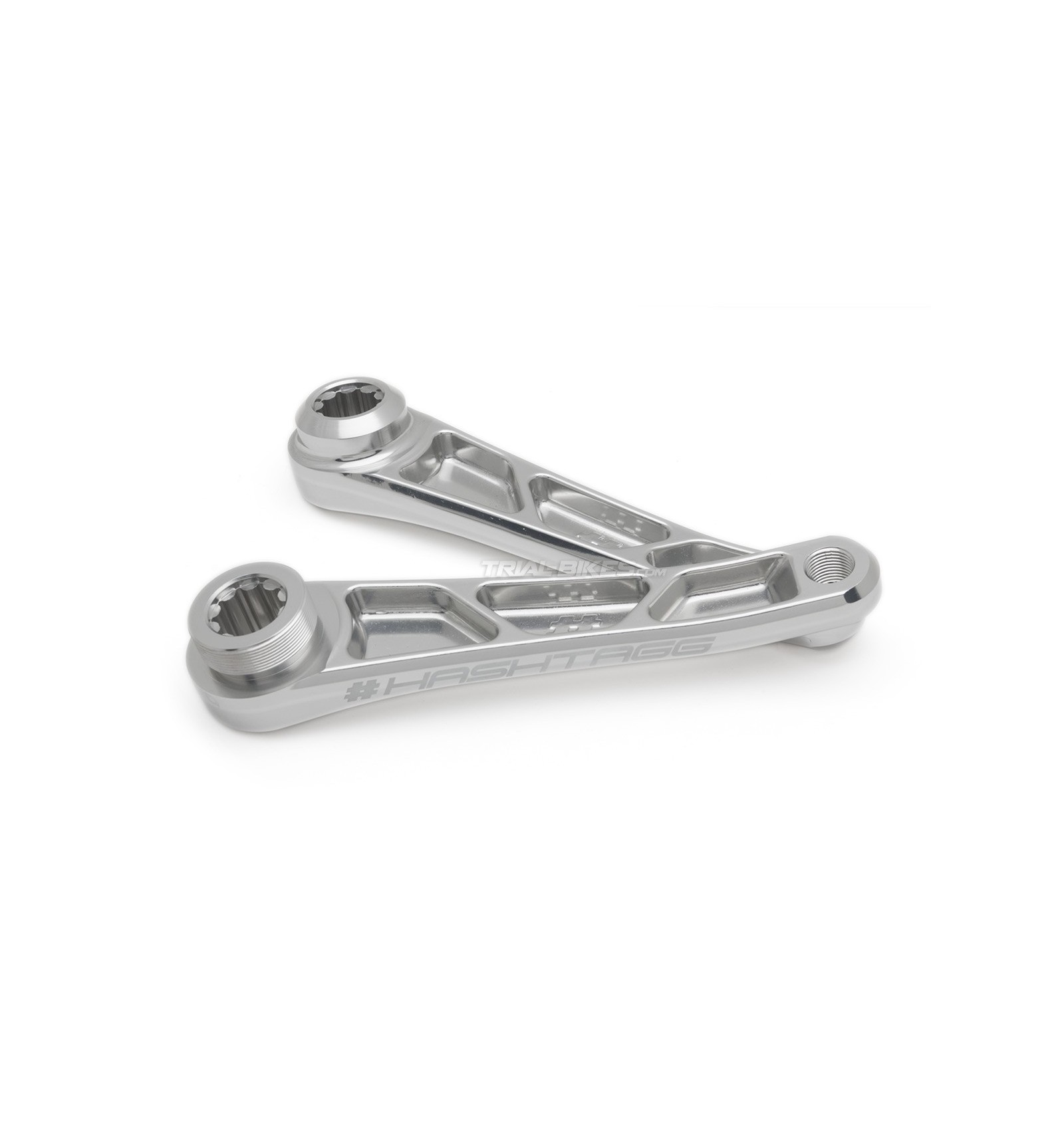

- Huge cutouts at the outer profile and back of the arms help save a lot of weight without compromising overall strength.
- Standard 1.37”x 24tpi thread, suitable for most freewheels and sprockets.
- Wide threaded section (13mm) allows you to run a bashring together with the freewheel/sprocket.
- Suitable for most ISIS bottom brackets.
- 35mm offset to provide more than enough clearance.
- Anodized silver finish, with silver laser etched Hashtagg graphics.
- Available in 160mm, 170mm and 175mm.
Sizes
- Lengths available: 160mm, 170mm and 175mm.
- Offset: 35mm
Finishes
- Anodized silver finish, with silver laser etched Hashtagg graphics
Weight
- 418g (160mm), 438g (170mm) and 449g (175mm)
Additional information
- Please bear in mind that there must be at least a 7mm thread in contact between freewheel and crank. Furthermore, a 1.37” freewheel/sprocket must be used with a maximum internal diameter of 33.8mm (and not the 1.375” ones). Not following these instructions may lead to thread damage (not under warranty).
WEIGHT | 0.418 |
LENGTH | 175mm |
LENGTH | 160mm |
