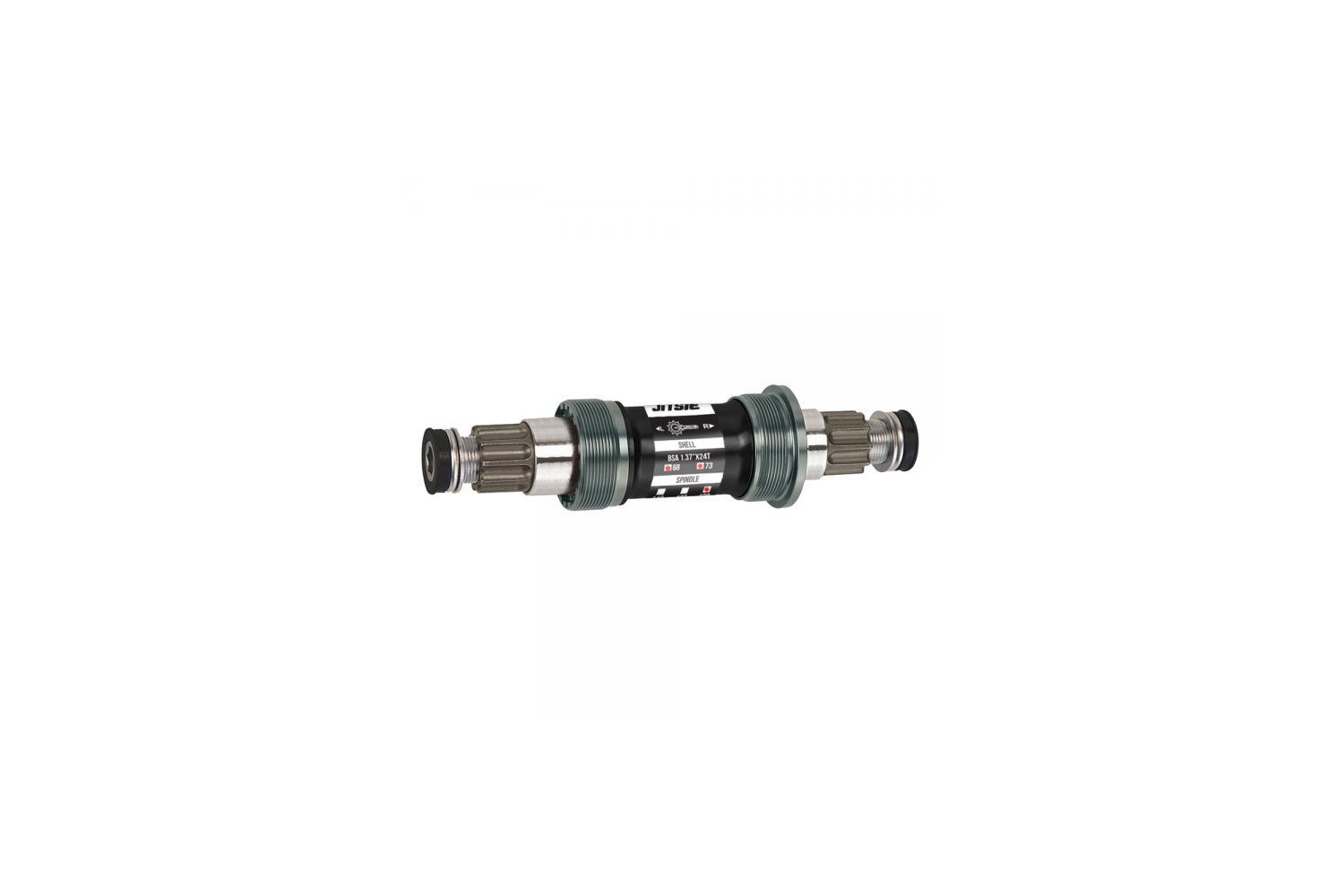

- New ISIS-type bottom bracket from the Belgian brand Jitsie.
- High-quality manufacturing with excellent tolerances and precision finishing.
- One-piece machined axle made from lightweight Cr-Moly (Chromoly) steel, with M12 or M15 thread depending on the version.
- Features CNC-machined aluminium spacer cups, positioned between the bottom bracket body and the cranks to ensure perfect alignment.
- High-quality, sealed, and replaceable bearings, ensuring smooth, reliable, and long-lasting performance.
- Standard 1.37x24T thread and 68 mm width, compatible with most bike trials frames.
- Includes silver M12 steel bolts (128 mm version) and M15 bolts (118 mm version).
- Available with a 118 mm or 128 mm axle width.
Dimensions
- Body width: 68 mm
- Axle length: 118 mm or 128 mm
- Steel bolts: M12 (128 mm version) and M15 (118 mm version).
Finish
- Silver body with black Jitsie decals (128 mm version) and dark blue (118 mm version).
- Silver anodised cups (128 mm version) and dark blue (118 mm version).
- Silver spacers and bolts.
Weight
- 229.30 g (118 mm) and 322.83 g (128 mm).
- Bolts: 46.16 g (118 mm) and 39.02 g (128 mm).
Additional Information:
If you have any questions regarding compatibility with your frame or cranks, please feel free to contact us.
| WEIGHT | 0.241 |
| TYPE | Threaded |
| LENGTH AXLE | 128mm |
| 538159 | Choose Length: 123mm |
