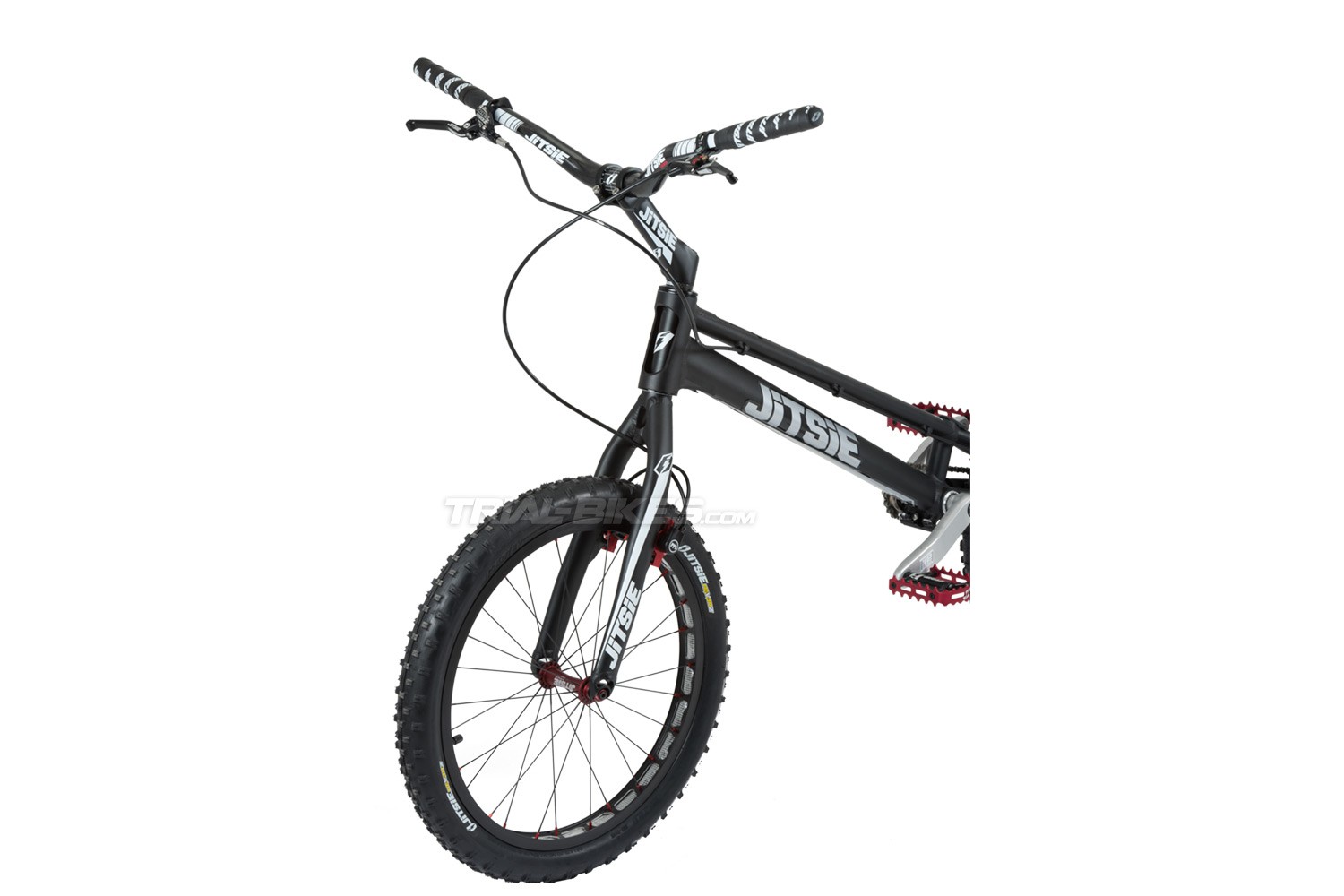

Jitsie Race TB 20" Bike

Frame and fork
- Frame: Jitsie Varial 20” 1010mm, with Post Mount disc brake mounts, in black with silver Jitsie Varial adhesives

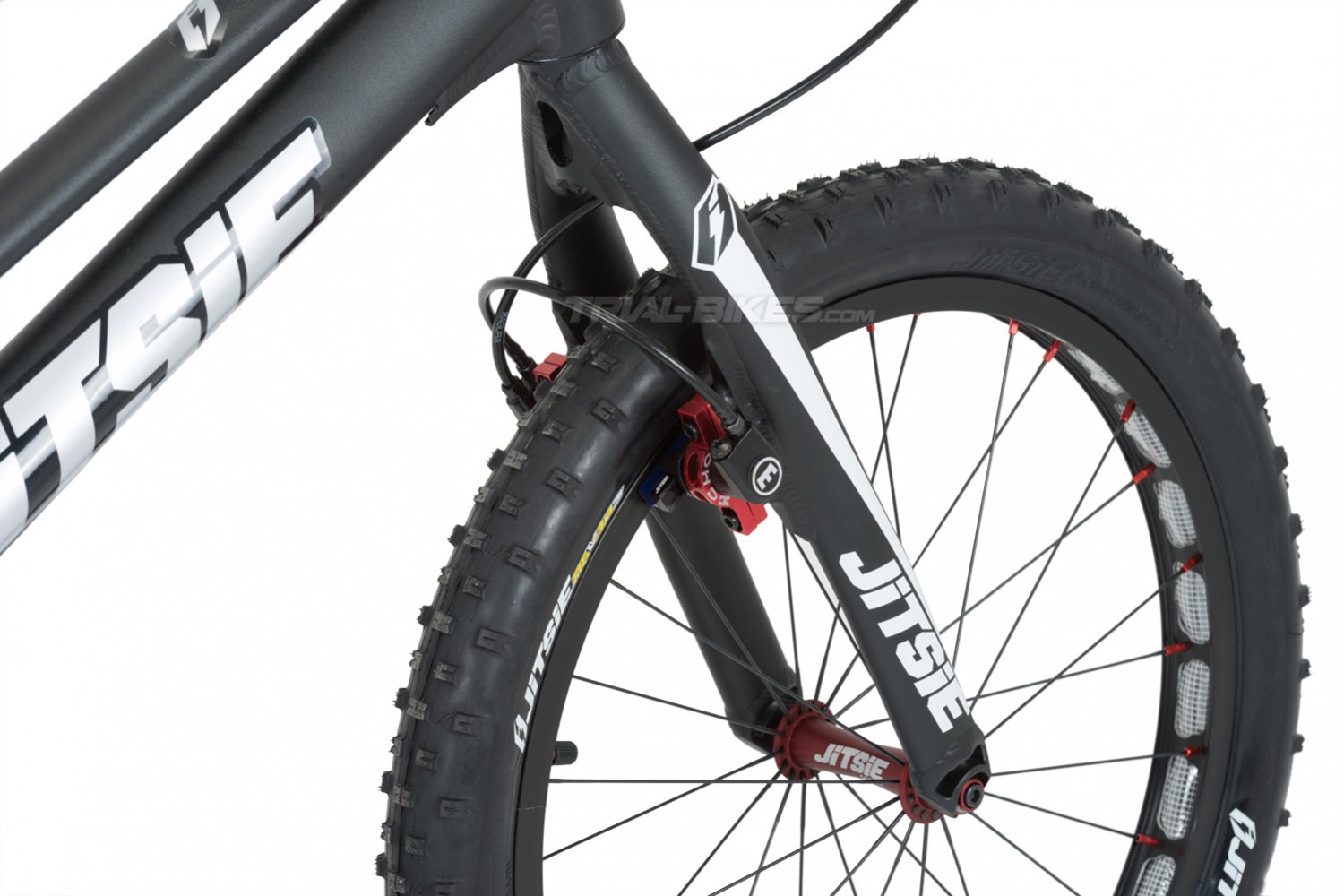

- Forks: Jitsie Varial 20” 370mm, with rim brake mounts, in black with white Jitsie graphics

Wheels
- Front hub: Jitsie Race 100HS 28 spoke holes, without rotor mounts, 100mm spacing, anodized red

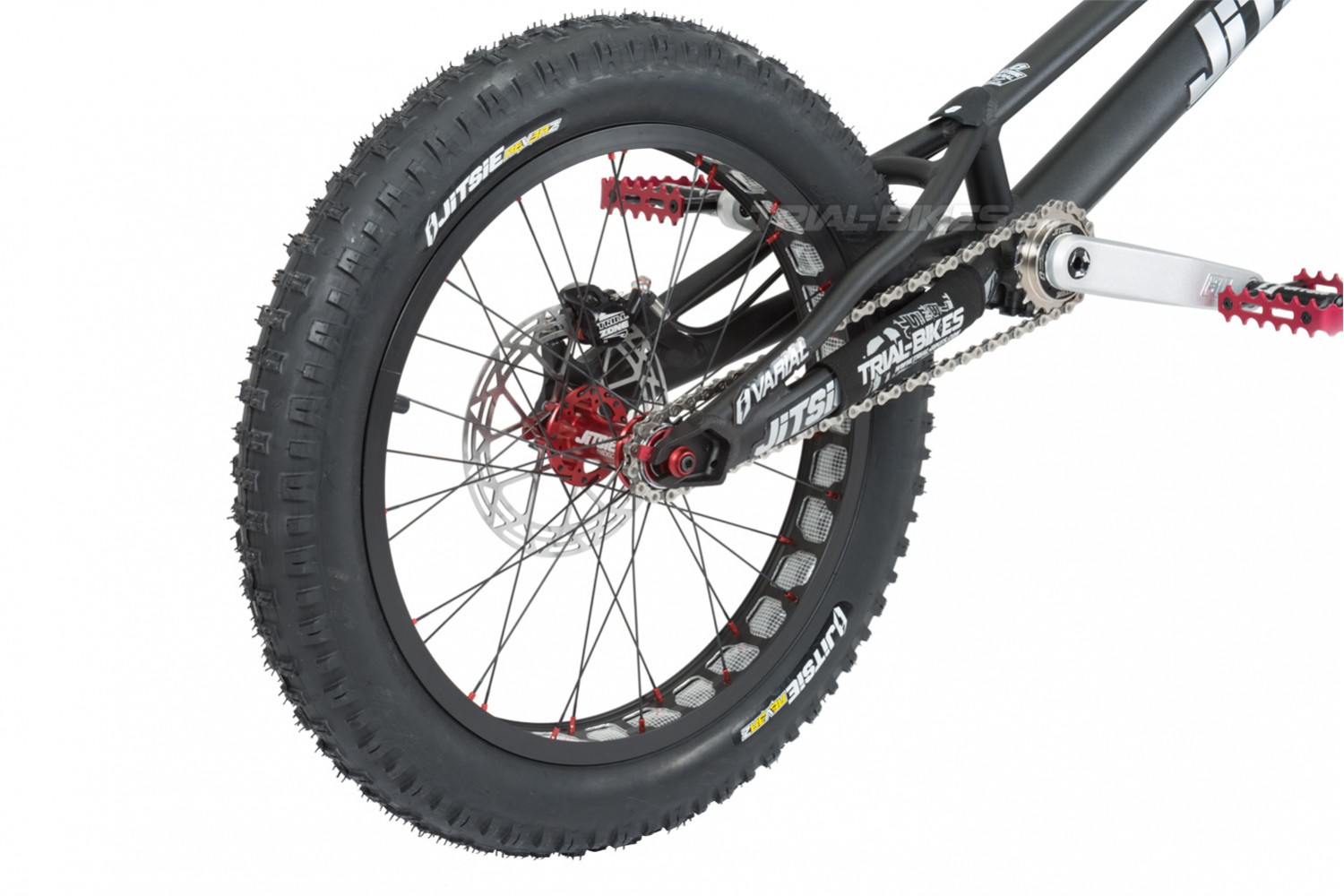

- Rear hub: Jitsie Race 116Disc 32 spoke holes, with rotor mounts, 116mm spacing, anodized red
- Chain tensioner: Monty snail cams, red
- Front rim: Hashtagg 20”, single wall, 32mm wide, 28 spoke holes, black
- Rear rim: Hashtagg 19”, single wall, 47mm wide, 32 spoke holes, black
- Spokes: Sapim Laser 2/1.5/2mm, black
- Spoke nipples: Sapim 14G Alu Polyax, anodized red
- Rim tape: TrialBikes Reinforced Ultralight
- Front inner tube: Jitsie Race Ultralight 20”
- Rear inner tube: Jitsie Race Ultralight 20”
- Front tyre: Jitsie Reverz 20”x2.00”
- Rear tyre: Jitsie Reverz 19”x2.60”

Brakes
- Front brake: Jitsie Race HS
- Rear brake: Hope Trial Zone Post Mount

- Front brake pads: Jitsie Race
- Front brake clamps: Echo TR, red
- Rear rotor: Clean X2 162.5mm

Drivetrain
- Cranks: Try-All ISIS 7075, 165mm long, silver
- Bottom bracket: Bonz Titanium
- Freewheel: Jitsie 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, silver
- Chain: KMC X9-73
- Rear sprocket: Jitsie 12T Screw-on, made of steel, silver
- Pedals: Jitsie single-cage, 7075-T6, anodized red
- Bashplate: Jitsie mini-bashplate, anodized black

Steering
- Headset: Rockman 1 1/8” internal headset, with sealed bearings, black
- Stem: Jitsie Race, 150mm x 35º, 31.8mm Oversized handlebar diameter, black
- Grips: Jitsie bar tape, black/white

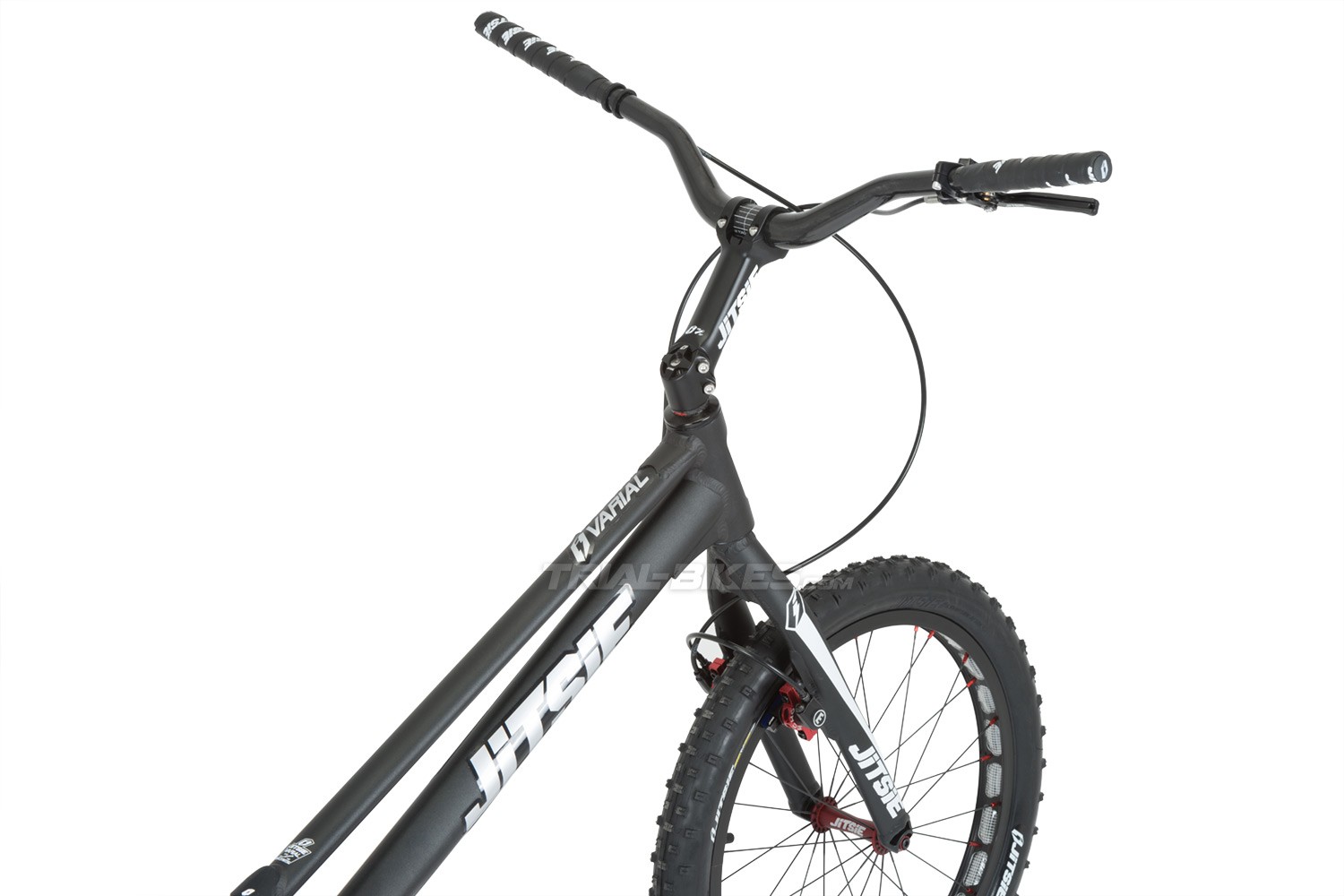

- Handlebar: Jitsie Carbon, 730mm long, 110mm rise, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics

Geometry (based on Jitsie Varial fork 370mm and +45mm offset)
- Wheelbase: 1010mm
- Chainstay length: 350mm
- Bottom bracket rise: +80mm
- Head angle: 71.5º

Weight
- 7.28Kg

Modifications
This bike is built with top-quality parts, but if you’d still like to modify some of them, just get in touch and we will customize the setup for you!
This bike’s weight with a Play KII Carbon fork is 7.08kg.

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

Watch the video below to see the key points of this new bike:
