Jitsie ST 105Disc Rear Hub

Reference: 537441

Condition: New

Description and materials

More details

Ask a question

Description and materials

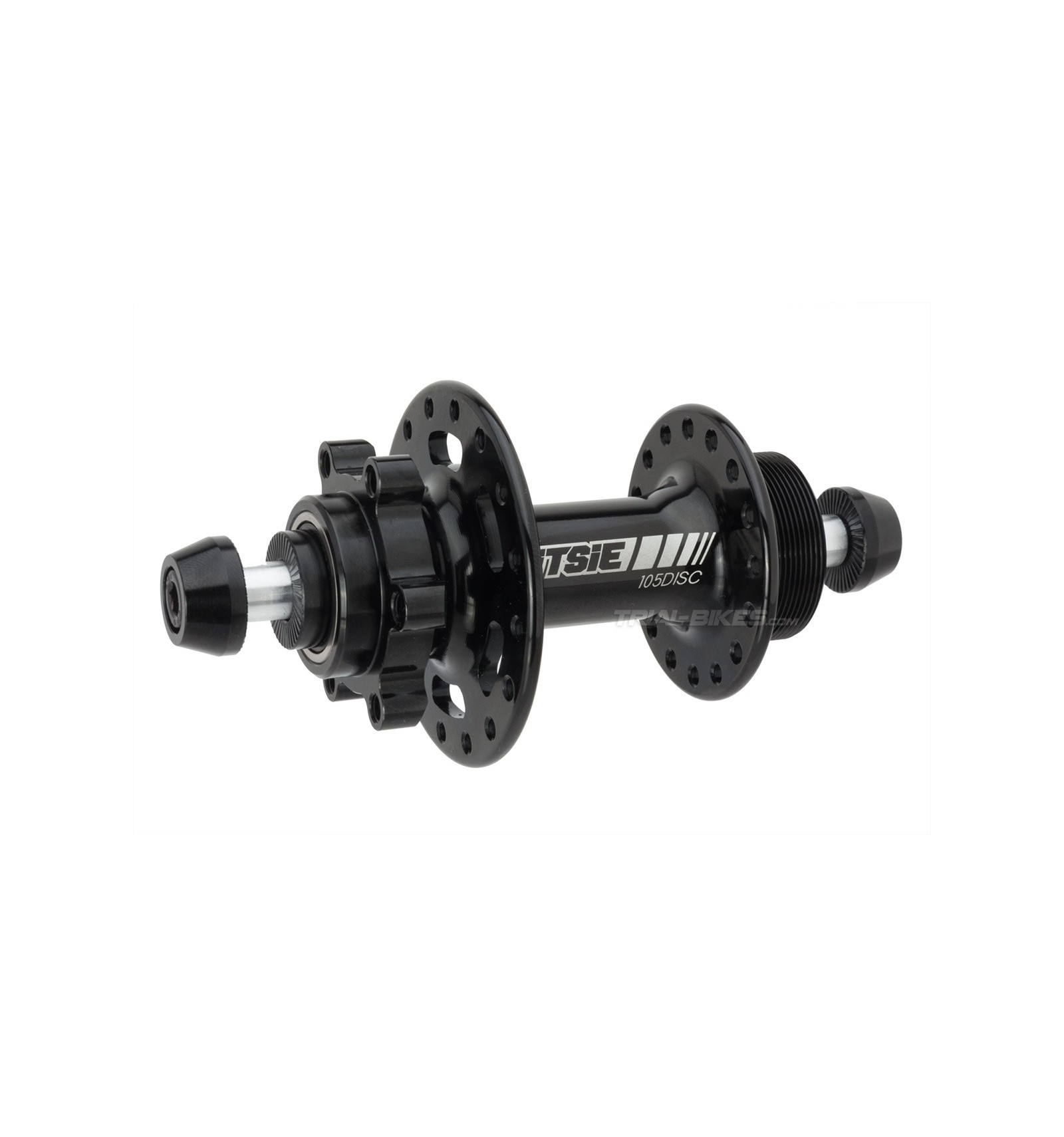

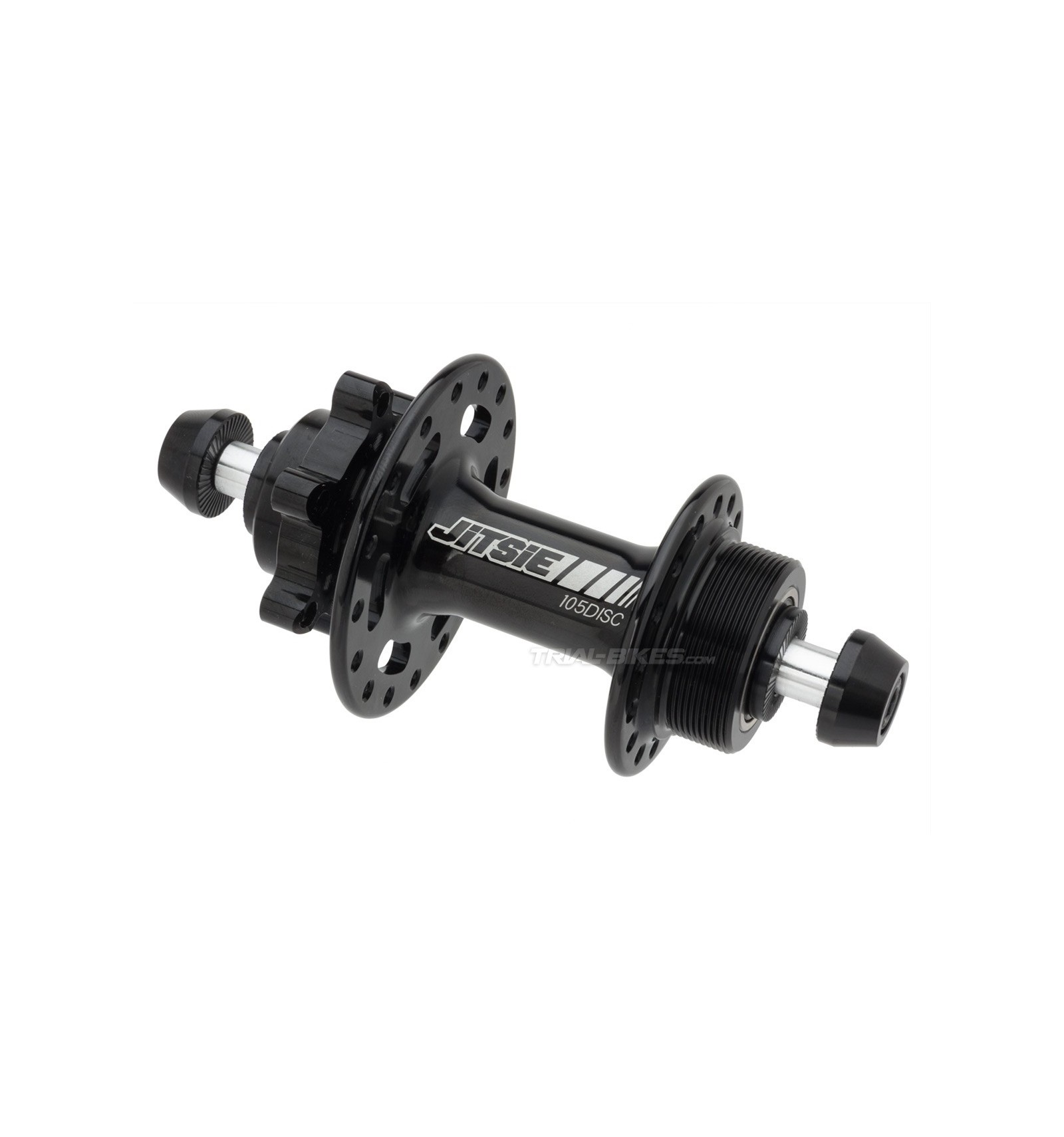

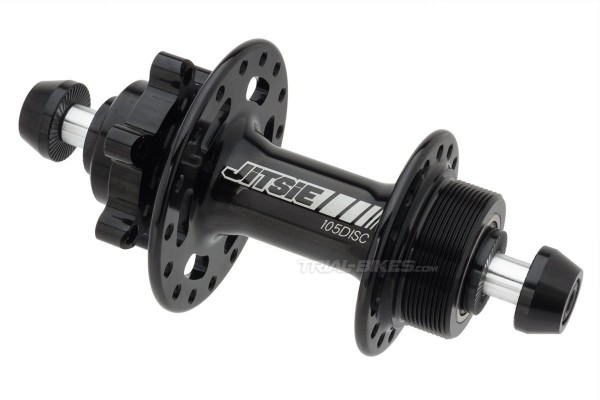

- New rear hub for disc brakes by Belgian brand Jitsie, specialized in Moto and Bike trials components.
- This is a special edition that features a 105mm spacing, specifically designed for using with Monty frames, which require narrower hubs.
- Tested and developed by the Jitsie Team riders Dani Comas, Rick Koekoek, Vincent Hermance, etc.
- Its simple, minimalistic design allows for weight and costs saving, while keeping a high strength.
- Both the hub shell and axle are CNC mechanized from a single piece of high quality aluminium alloy.
- 105mm spacing, suitable for most Monty frames and those that use this spacing (get in touch if you have any doubts!).
- Please note: this hub is supplied with a 5mm spacer for the non-drive side, which can be replaced by a 2mm one (not supplied) in case you want to run a Jitsie disc protector.
- Features high quality replaceable sealed bearings, which ensure a smooth running while keeping out all the dirt (mud, water, dust, etc.).
- The axle has a 10mm diameter and M6 thread, and is made from high quality 7075-T6 aluminium alloy.
- Standard 1,37 "x 24 tpi thread allows the use of screw-on freewheels and sprockets.
- M6x25mm bolts and serrated washers included.
- International Standard IS 6-bolt disc brake mount.
- Only available for rims with 32 holes, for disc brakes
- Anodized gloss black finish, with white laser etched JITSIE 105DISC graphics.

Dimensions
- 105mm long
- 32 holes

Finishes
- Anodized gloss black finish, with white laser etched JITSIE 105DISC graphics.

Weight
- Only 167g!! (+24g of bolts and washers)

Additional information
This hub is only suitable for Monty frames and 32H rims. If you have any doubts, please contact us!
