Description and materials

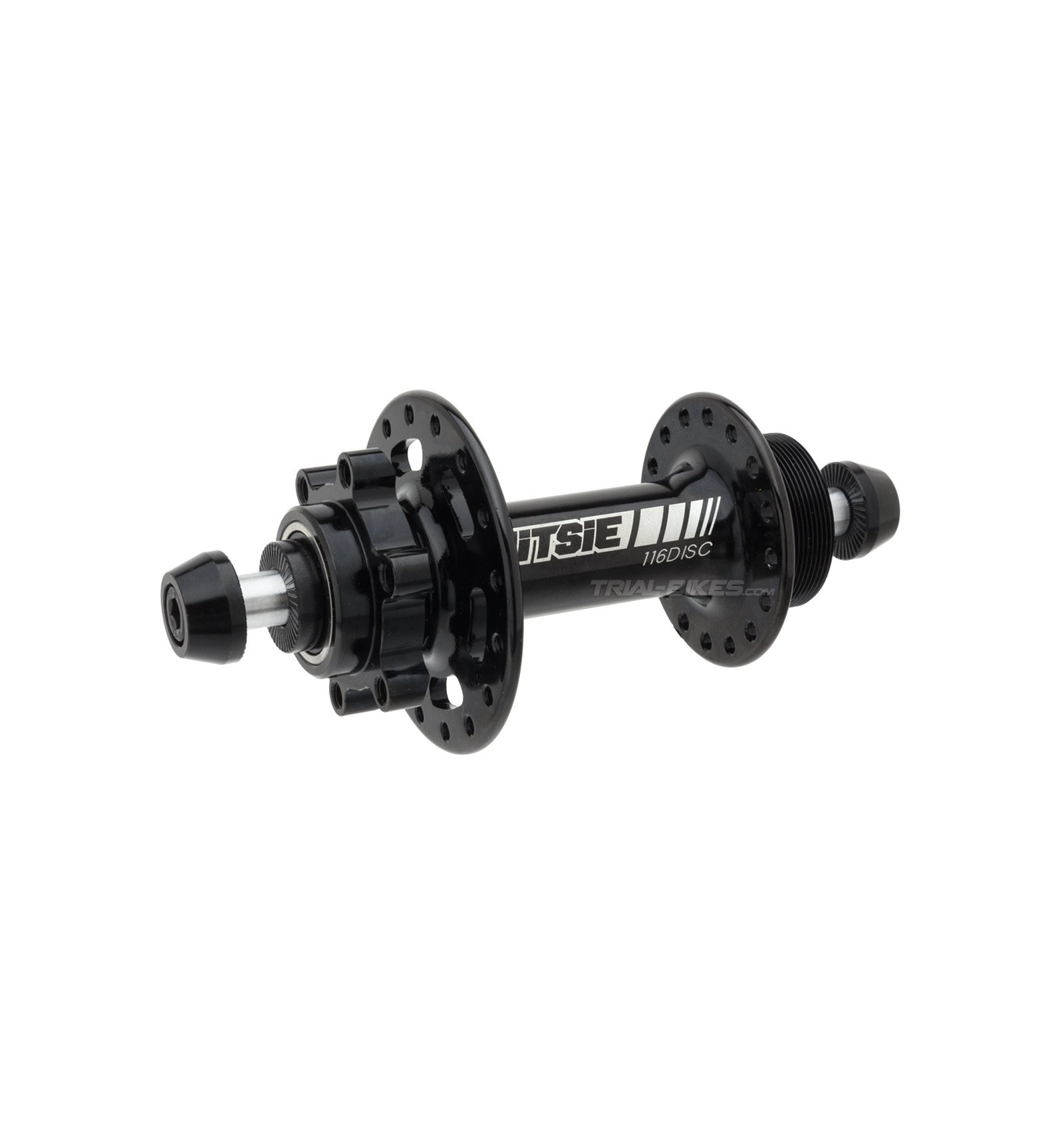

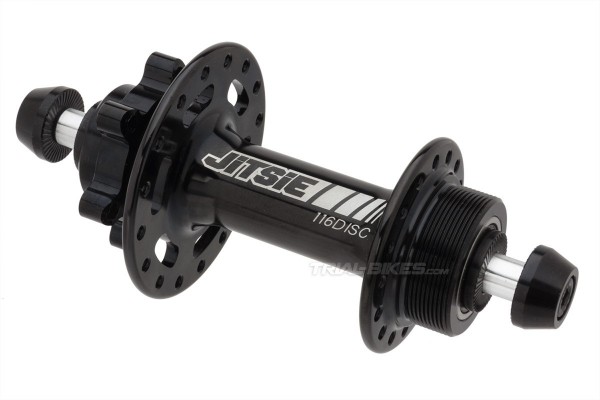

- New rear hub for disc brakes by Belgian brand Jitsie, specialized in Moto and Bike trials components.
- Tested and developed by the Jitsie Team riders Dani Comas, Rick Koekoek, Vincent Hermance, etc.
- Its simple, minimalistic design allows for weight and costs saving, while keeping a high strength.
- Both the hub shell and axle are CNC mechanized from a single piece of high quality aluminium alloy.
- 116mm spacing, suitable for most 20" bikes, as well as some new 24" and 26" bikes which use this spacing (in example, the Koxx Sky 2 26" bike)..
- Please note: this hub is supplied with a 5mm spacer for the non-drive side, which can be replaced by a 2mm one (not supplied) in case you want to run a Jitsie disc protector.
- Features high quality replaceable sealed bearings, which ensure a smooth running while keeping out all the dirt (mud, water, dust, etc.).
- The axle has a 10mm diameter and M6 thread, and is made from high quality 7075-T6 aluminium alloy.
- Standard 1,37 "x 24 tpi thread allows the use of screw-on freewheels and sprockets.
- M6x25mm bolts and serrated washers included.
- International Standard IS 6-bolt disc brake mount
- Only available for rims with 32 holes, for disc brakes
- Anodized matt black finish, with white laser etched JITSIE 116DISC graphics.
Dimensions
- Axle length:116mm
- 32 holes
Finishes
- Anodized matt black finish, with white laser etched JITSIE 116DISC graphics.
Weight
- Only 172g!! (+24g of bolts and washers)
Additional information
This hub is only suitable for 32H rims. If you have any doubts, please contact us!
| WEIGHT | 0.172 |
| COLOR | Black |
| SPOKE HOLES | 32 spokes |
| BRAKE MOUNTS | Disc |
