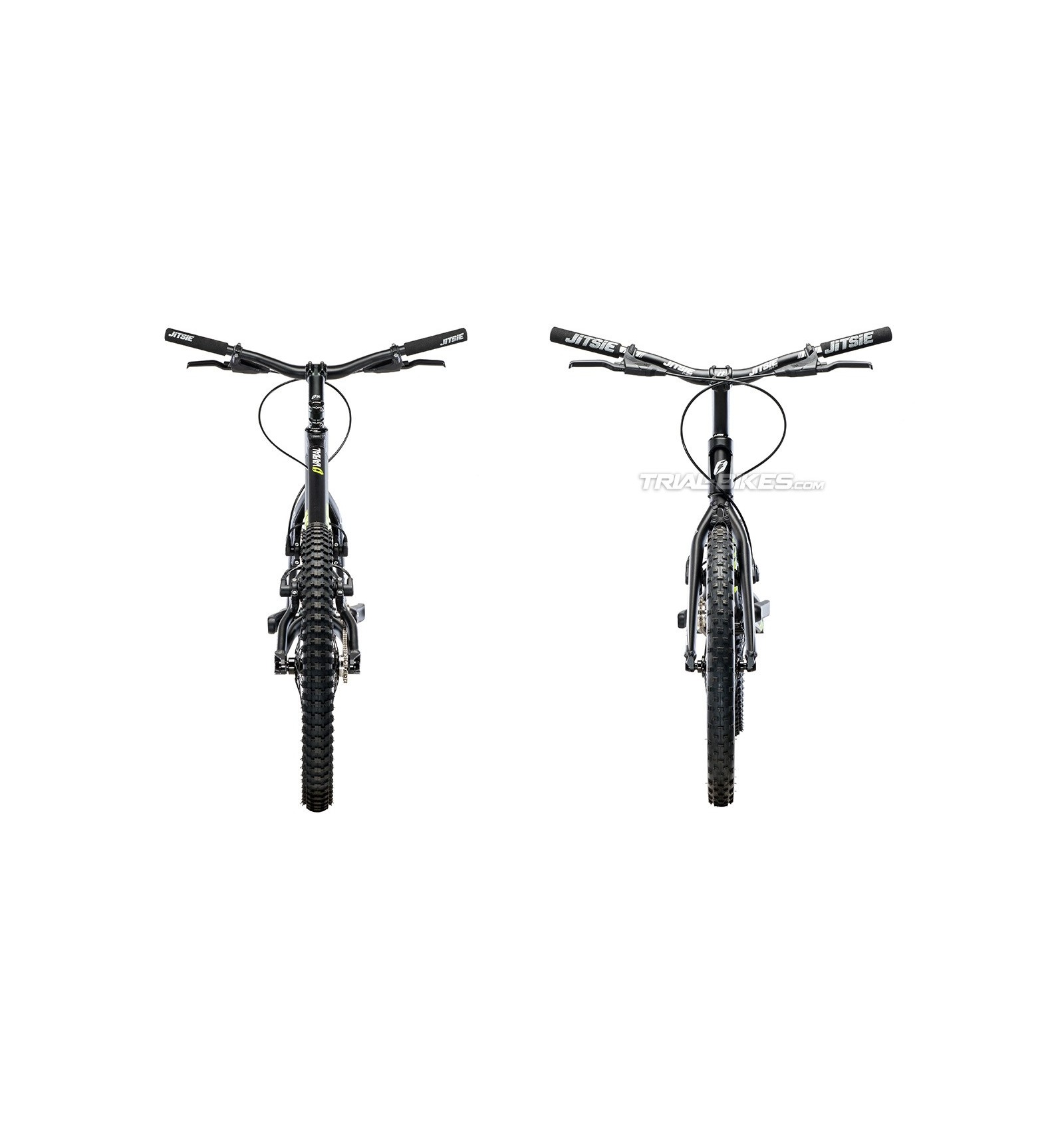

Jitsie Varial 20'' 920mm HS Bike

The new Jitsie Varial 20” 920mm bike combines essential features like its simple, functional design and quality manufacturing in order to produce a top-performance bike. Furthermore, this 920mm version is ideal for smaller riders thanks to its compact, short geometry that makes the bike more agile and easy to move.
And it’s been developed and tested for months by the official Jitsie team riders!

Frame and fork
- Frame: Jitsie Varial 20” 920mm, made from 6061-T6 aluminium alloy, with 4-bolt rim brake mounts, in black with white and fluro yellow Jitsie Varial adhesives
- Forks: Jitsie Varial 350mm, with 4-bolt rim brake mounts, in black with white Jitsie graphics

Wheels
- Front hub: Jitsie ST 100HS 28 spoke holes, without rotor mounts, 100mm spacing, anodized black
- Rear hub: Jitsie ST 116HS 32 spoke holes, without rotor mounts, 116mm spacing, anodized black
- Chain tensioner: Jitsie snail cams, black
- Front rim: Jitsie 20”, single wall, 32mm wide, 28 spoke holes, anodized black
- Rear rim: Jitsie 20”, single wall, 32mm wide, 32 spoke holes, anodized black
- Spokes: Jitsie 1.8mm, made of steel, black
- Rim tape: Jitsie Ultralight, silver
- Front inner tube: Jitsie Light 0.9mm 20”
- Rear inner tube: Jitsie Light 0.9mm 20”
- Front tyre: Jitsie Reverz 20”x2.00”
- Rear tyre: Jitsie Ziggy 20”x2.25”

Brakes
- Front brake: Magura HS11
- Rear brake: Magura HS11

- Brake pads: Magura
- Brake clamps: Magura

Drivetrain
- Cranks: Jitsie ISIS 7075, 160mm long, black with white Jitsie graphics
- Bottom bracket: Jitsie ISIS, 123mm axle, silver
- Freewheel: Jitsie 108.9 16T, with 108 engagement points, 9 pawls and 16 teeth, silver
- Chain: KMC Z610HX, silver
- Rear sprocket: Jitsie 13T Screw-on, made of steel, silver
- Pedals: Plastic pedals (we recommend replacing them for some higher quality pedals)
- Bashplate: Jitsie mini-bashplate, anodized black

Steering
- Headset: Jitsie 1 1/8” internal headset, with sealed bearings, 5mm aluminium spacer, anodized black
- Stem: Jitsie 120mm x 35º, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics
- Grips: Jitsie foam, black with white Jitsie graphics
- Handlebar: Jitsie 7075, 640mm long, 80mm rise, 31.8mm Oversized handlebar diameter, black with white Jitsie graphics

Geometry: (based on Jitsie Varial fork 350mm and +45mm offset)
- Wheelbase: 920mm
- Chainstay length: 380mm
- Bottom bracket rise: +55mm
- Head angle: 71.5º

Weight
- 7.2Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com .

Watch the video below to see the key points of this new bike:
