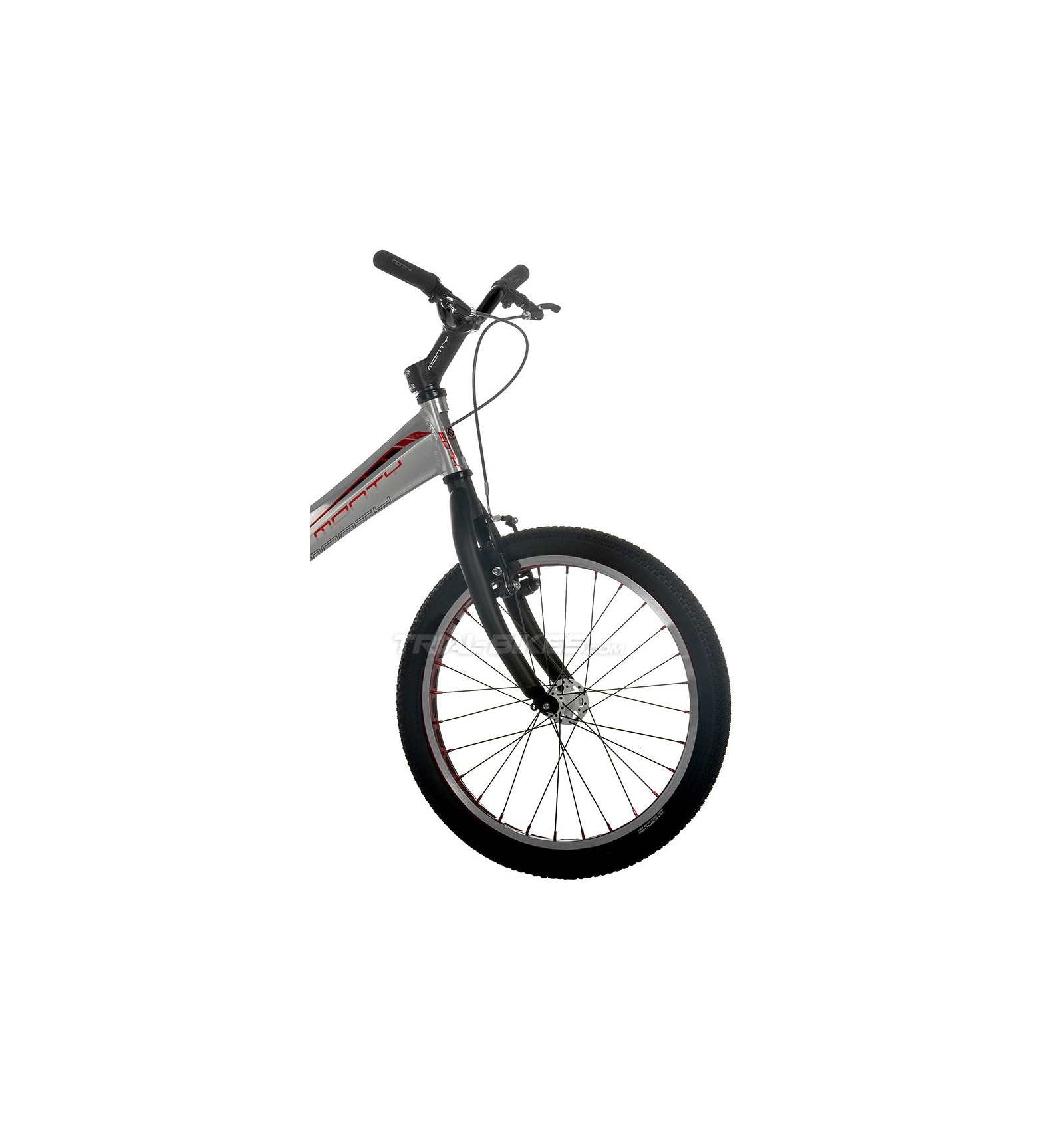

Monty 207 Kamel 2015 20'' Bike

The new Monty 207 Kamel 2015 trials bike is ideal for riders from 7 to 12 years old who want to take their first steps in Biketrial or to continue their improvement. This new version features the monocoque design inspired on the Monty M5, made from high quality aluminium as many other components. In addition, its geometry and low weight  make this an ideal bike for learning the basics of BikeTrial riding.


Frame and Fork
- Frame: Monty 207 Kamel Monocoque 2015, 6061-T6 aluminium. V-Brake mounts, silver
- Fork: Monty Hi-Ten 6061 T6 aluminium, V-brake mounts, 70mm wide, anodized black

Wheels
- Front hub: Monty 28H, silver
- Rear hub: Monty  28H, silver
- Front rim: Monty 20" 28H drilled, anodised red with CNC mechanized sidewalls
- Rear rim: Monty 20” 28H drilled, anodised red with CNC mechanized sidewalls
- Spokes: Monty Inox
- Front inner tube: Monty
- Rear inner tube: Monty
- Front tyre: Kenda Small Block 20"x1.95
- Rear tyre: Monty Pro Race 20”x2.0

Brakes
- Front brake: V-Brake Monty, Aluminium, black
- Rear brake: V-Brake Monty, Aluminium, black

Drivetrain
- Cranks: Monty 6061-T6 alu, square taper, 152mm long, with 21t front sprocket, black
- Freewheel: Monty 16 teeth, 6 pawls, stainless steel, silver
- Sprocket: Monty 21 teeth, stainless steel, black
- Chain: KMC
- Bottom bracket: Monty square taper, 127mm long axle, black
- Bashplate: Monty Saw shaped exclusive design, silver

Steering
- Headset: Ahead 1 1/8” external, sealed bearings, black
- Grips: Monty foam, black
- Handlebar: Monty 6061-T6, 620mm long. 25.4mm handlebar diameter, black
- Stem: Monty Hi-Ten 6061 T6, 110mmx25º, 25.4mm handlebar diameter, black

Frame geometry
- Wheelbase: 923mm
- Chainstay length: 340mm
- BB Height: +55mm
- Head Angle: 71.5º

Finishes
- Silver frame finish
- Black and red Monty 207K 2015 graphics

Weight
- 8.50 Kg

Additional information
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact us on info@trial-bikes.com
