Monty 209 Kaizen 20" Bike

Monty 209 Kaizen 20" Bike

Monty 209 Kaizen bike sets a new benchmark for Monty kids bikes! Featuring 100% kid-specific components and geometry that make riding considerably easier for all riders up to 140cm (4.6ft) tall: its ideal for taking the first steps in bike trials!

Frame and fork

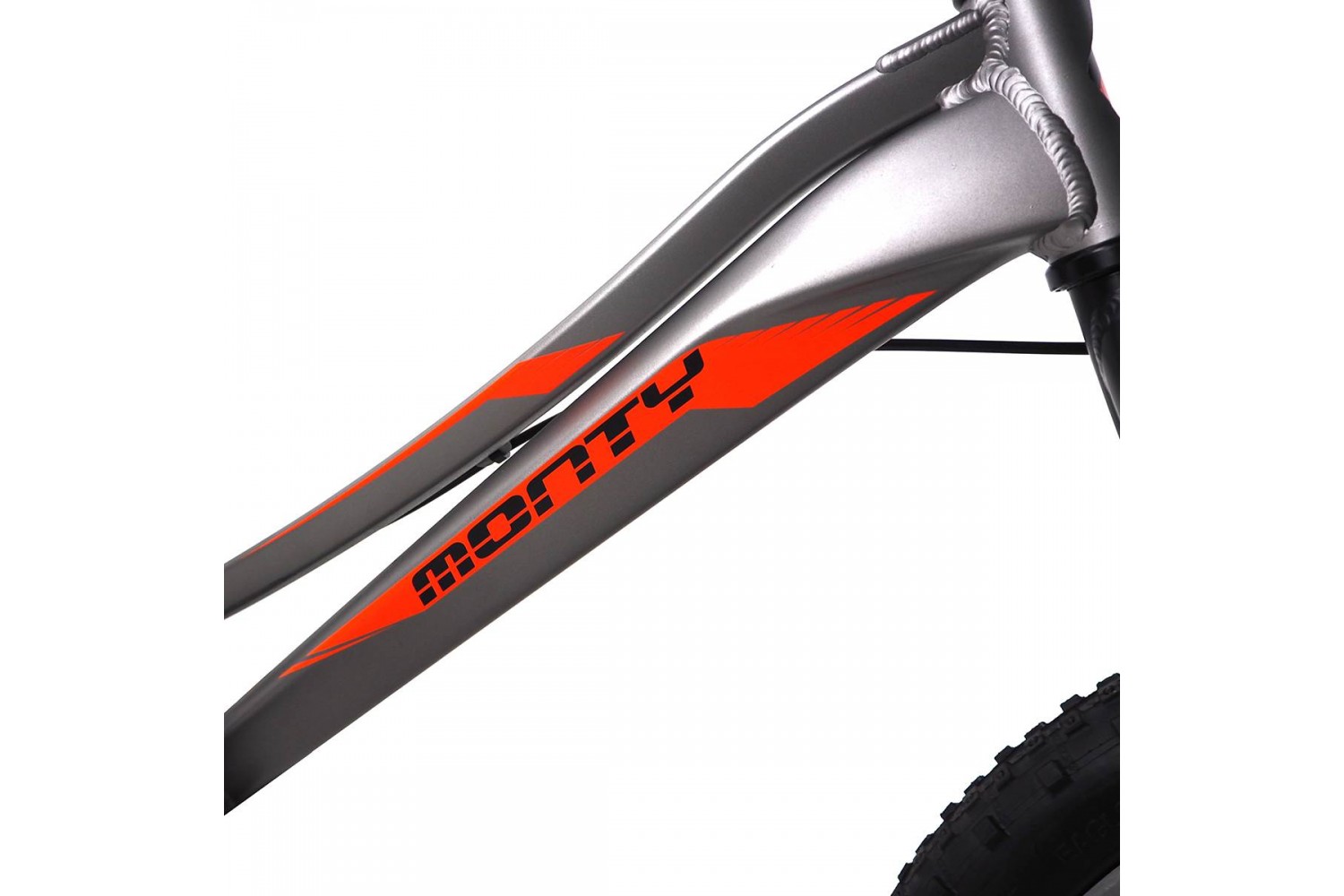

- Frame: Monty 209 Kaizen 20, made from 6061-T6 aluminium alloy, with V-brake and Post Mount brake mounts, in grey color with orange and black Monty Kaizen graphics
- Forks: Monty 219 Kaizen Alu 20, with HS mounts, black

Wheels
- Front hub: Monty, 32 spoke holes, without rotor mounts, 100mm spacing, black
- Rear hub: Monty, 32 spoke holes, without rotor mounts, 110mm spacing, black
- Front rim: Monty 20, 1.75 wide, 32 spoke holes, black
- Rear rim: Monty 19, 1.75 wide, 32 spoke holes, black
- Spokes: Monty, black
- Rim tape: Monty Ultralight
- Front inner tube: Monty 20
- Rear inner tube: Monty 20
- Front tyre: Monty Pro Race 20”x2.00”
- Rear tyre: Monty Pro Race 20”x2.00”

Brakes
- Front brake: Magura HS33

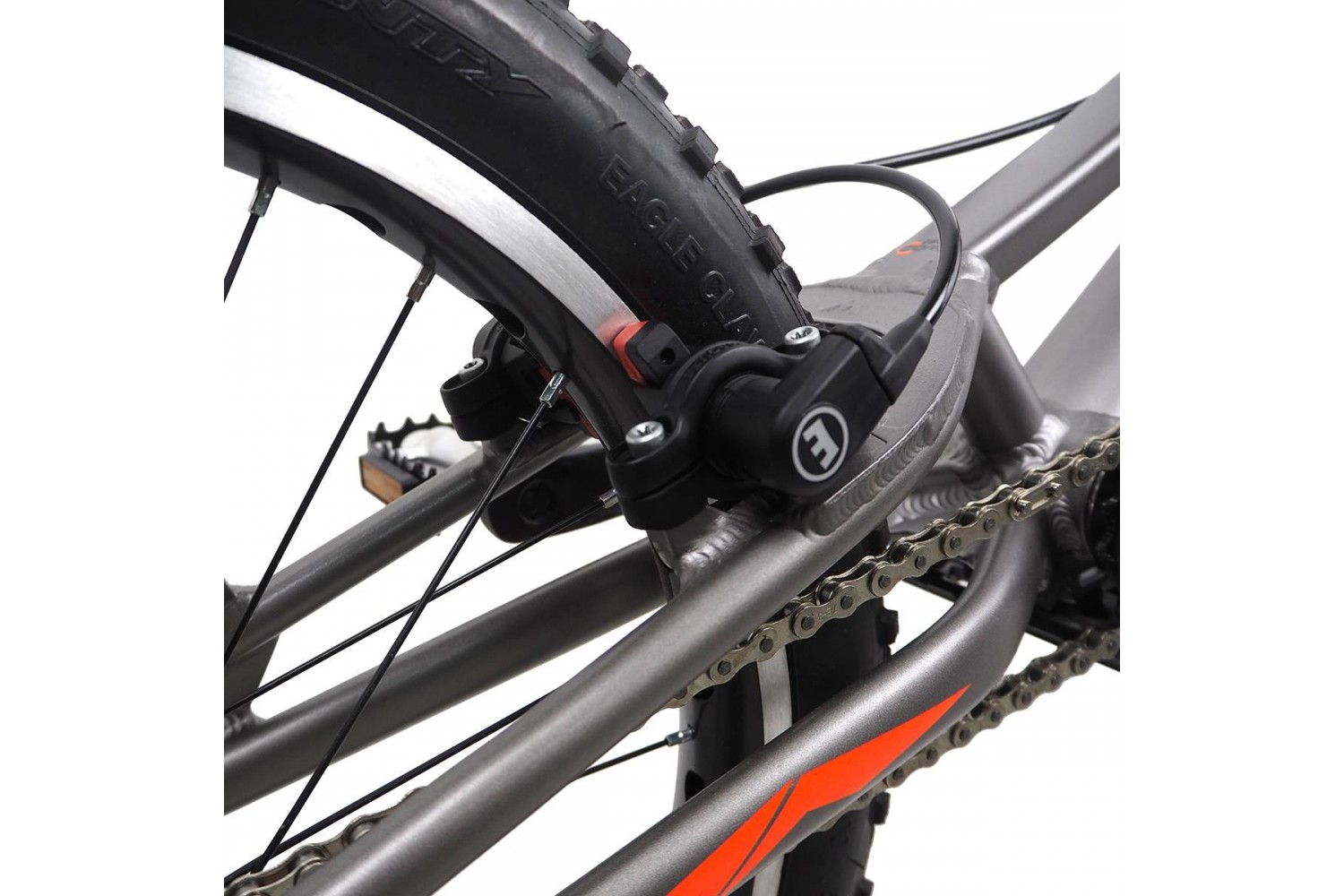

- Rear brake: Magura HS33

- Pads: Magura

Drivetrain
- Cranks: Monty JIS, 152mm long, black with white Monty graphics
- Bottom bracket: Monty JIS, 122mm long axle, 68mm wide and standard 1.37x24tpi thread
- Freewheel: Monty ProRace 135.9 16T, with 135 engagement points, 9 pawls and 16 teeth, silver and black
- Chain: KMC 3/32, silver
- Rear sprocket: Monty Screw-on
- Pedals: Monty Alu 9/16"

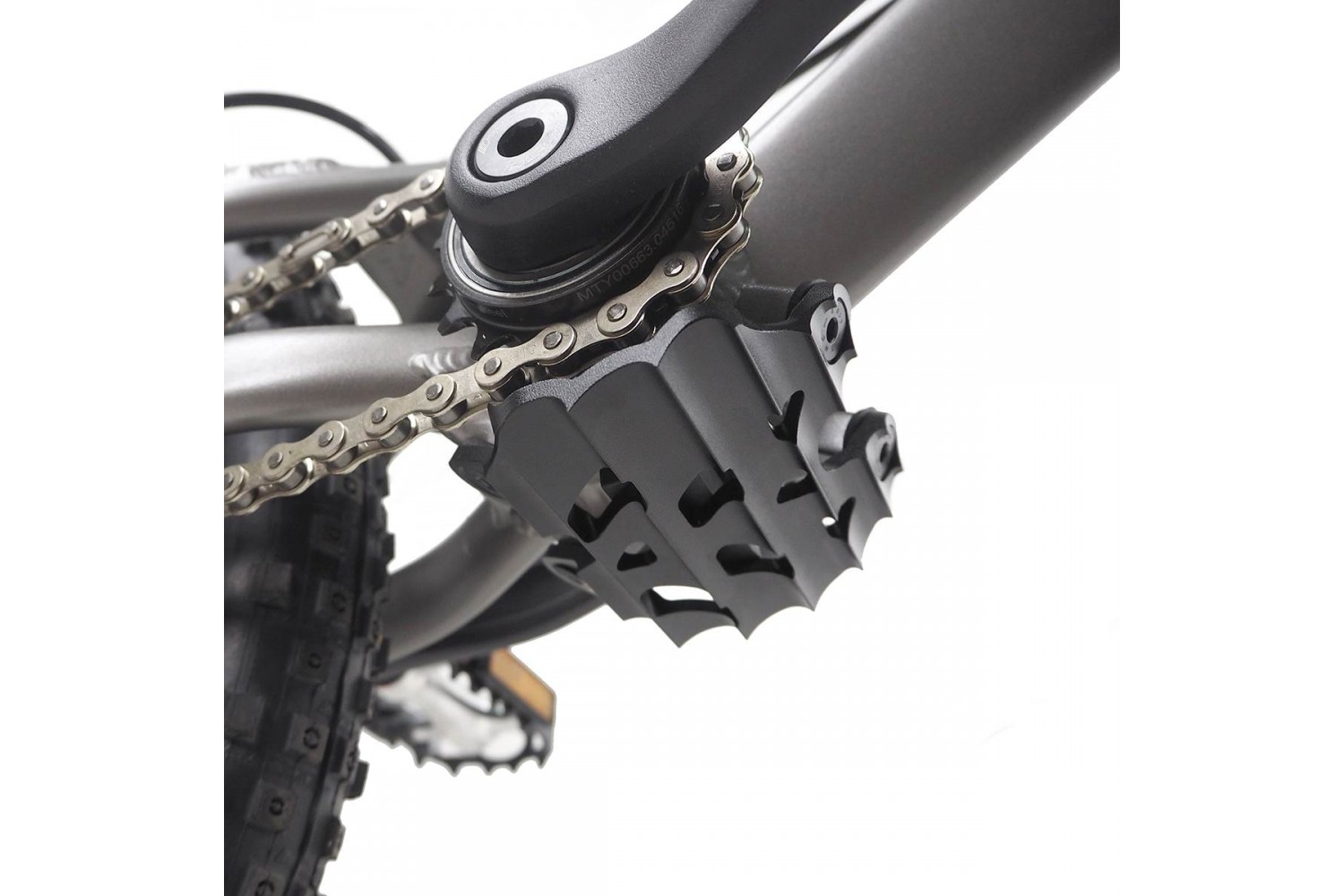

- Bashplate: Monty mini-bashplate, anodized black

Steering
- Headset: Monty Ahead 1 1/8 external headset, with sealed bearings, black
- Stem: Monty, 110mm long and 25º rise, 25.4mm handlebar diameter, black
- Grips: Monty foam 110mm

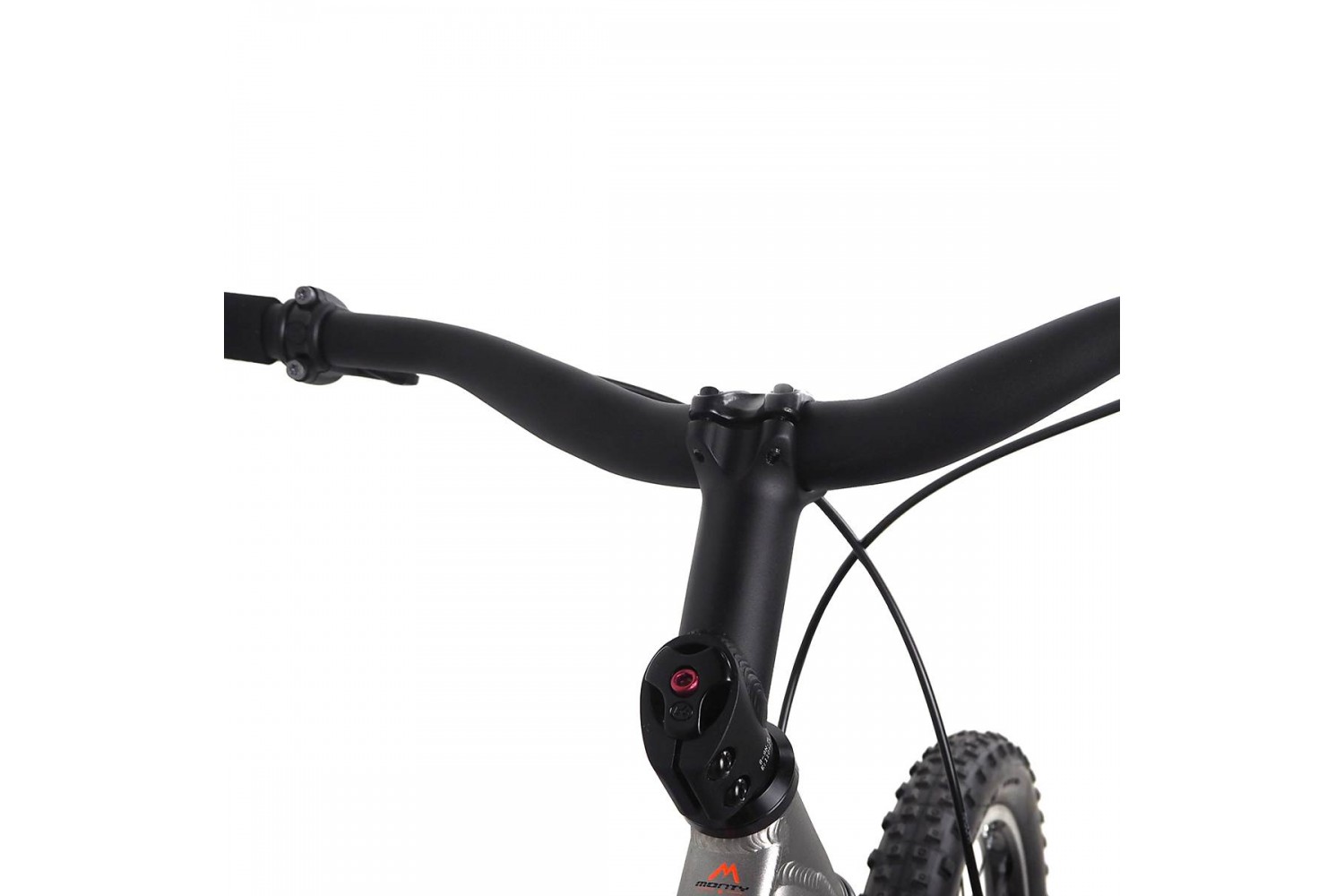

- Handlebar: Monty Alu, 620mm long, 25.4mm handlebar diameter, black with white Monty graphics

Geometry
- Wheelbase: 923mm
- Chainstay length: 340mm
- Bottom bracket rise: +55mm
- Head angle: 71.5º

Weight
- 7,77kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.

This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.

If you have any doubts, please contact to info@trial-bikes.com .
