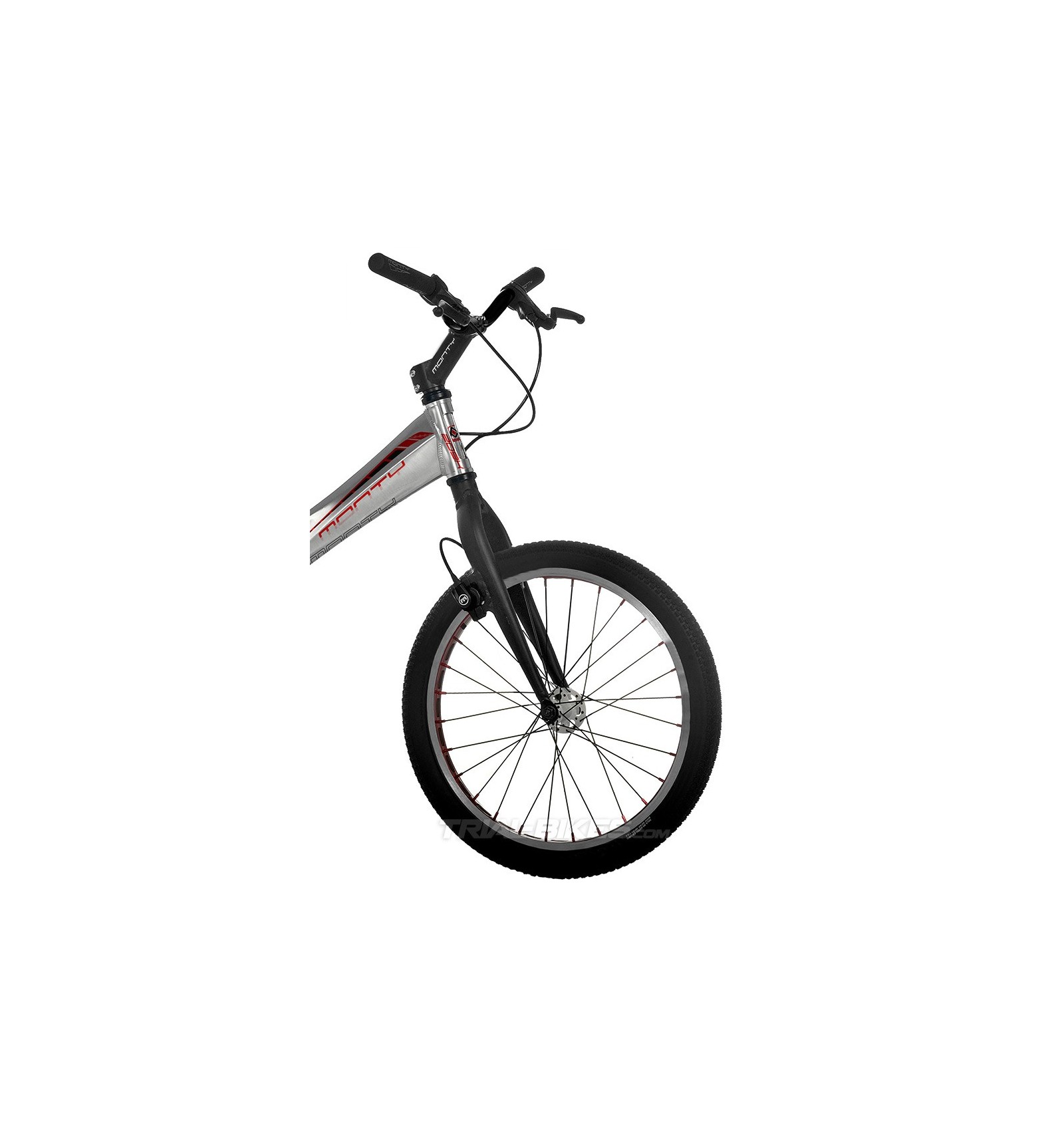

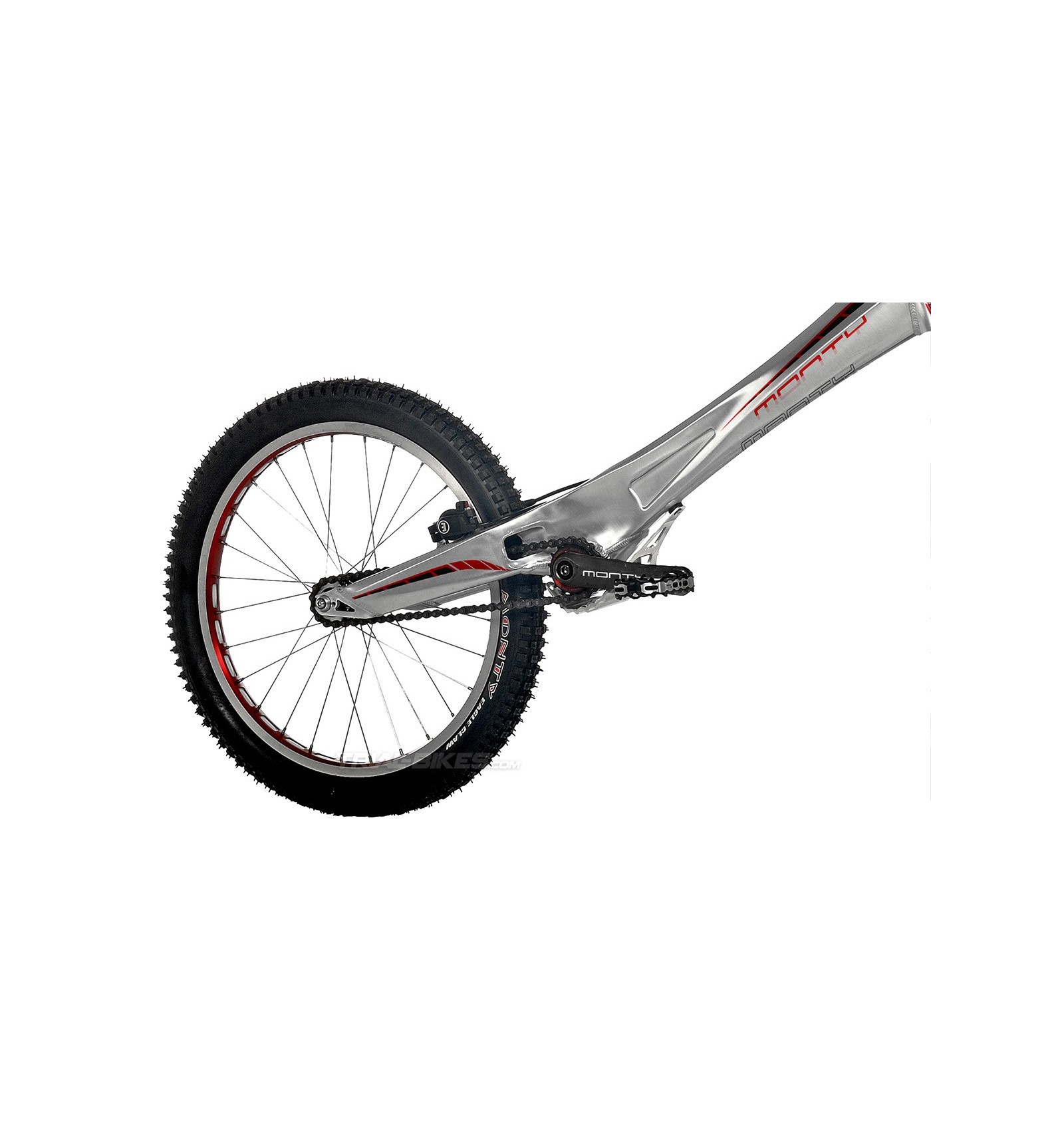

Monty 209 Kamel 2015 20'' Bike

The new Monty 209 Kamel 2015 trials bike is ideal for riders from 7 to 12 years old. With this bike you’ll be able to start from zero and reach a high level of technique, thanks to its high quality components (Magura 2014 hydraulic brakes, 6-pawl Monty freewheel, etc.), low weight and specific geometry. Furthermore, this new version features the monocoque design inspired on the Monty M5, made from high quality aluminium as many other components.

Frame and Fork
- Frame: Monty 209 Kamel Monocoque 2015, 6061-T6 aluminium. 4-bolt mounts, silver
- Fork: Monty Hi-Ten 6061 T6 aluminium, 4-bolt mounts, 70mm wide, anodized black

Wheels
- Front hub: Monty 28H, silver
- Rear hub: Monty  32H, silver
- Front rim: Monty 20" 28H drilled, anodised red with CNC mechanized sidewalls
- Rear rim: Monty 20” 32H drilled, anodised red with CNC mechanized sidewalls
- Spokes: Monty Inox
- Front inner tube: Monty
- Rear inner tube: Monty
- Front tyre: Kenda Small Block 20"x1.95
- Rear tyre: Monty Pro Race 20”x2.0

Brakes
- Front brake: Magura HS33 2014, black
- Rear brake: Magura HS33 2014, black

Drivetrain
- Cranks: Monty 6061-T6 alu, square taper, 152mm long, black
- Freewheel: Monty 16 teeth, 6 pawls, stainless steel, red
- Sprocket: Monty, stainless steel, black
- Chain: KMC
- Bottom bracket: Monty square taper, 127mm long axle, black
- Bashplate: Monty Eagle Claw design, silver

Steering
- Headset: Ahead 1 1/8” external, sealed bearings, black
- Grips: Monty foam, black
- Handlebar: Monty 6061-T6, 620mm long. 25.4mm handlebar diameter, black
- Stem: Monty Hi-Ten 6061 T6, 110mmx25º, 25.4mm handlebar diameter, black

Frame geometry
- Wheelbase: 923mm
- Chainstay length: 340mm
- BB Height: +55mm
- Head Angle: 71.5º

Finishes
- Silver frame finish
- Black and red Monty 209K 2015 graphics

Weight
- 7.90 Kg

Additional information
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact us on info@trial-bikes.com
