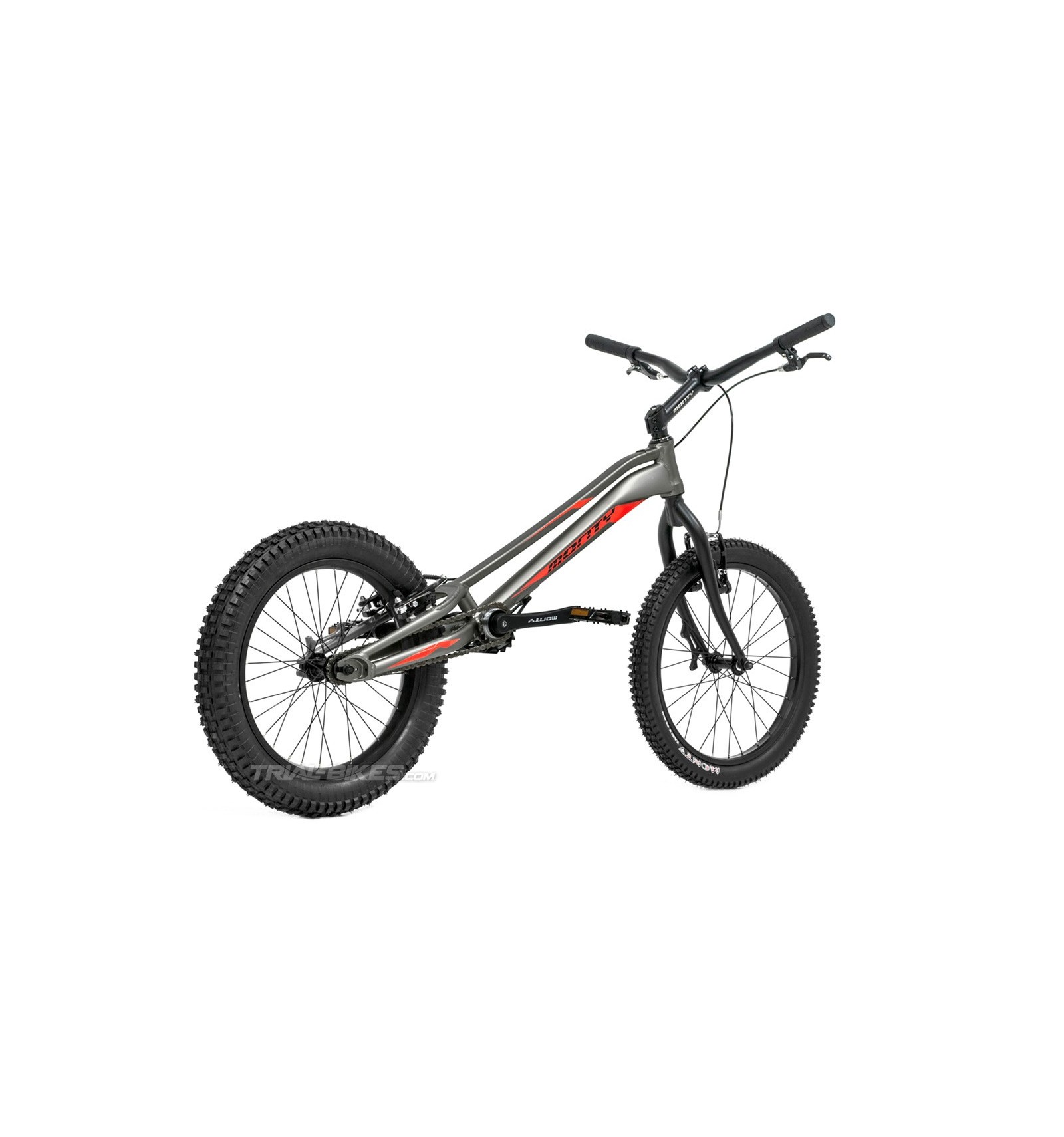

Monty 218 Kaizen 20'' Bike

The new Monty 218 Kaizen 20” trials bike is Spanish brand Monty’s trials welcome for +12 years old riders. featuring unbeatable value for money, with high quality components like the TrialCORE 108.9 freewheel, Eagle Claw bashplate, etc.
Furthermore, the Kaizen range has been developed and tested for months by the official Monty rider Ion Areitio, until achieving the optimal design and geometry for a mid-range bike like the Monty 218 Kaizen 20’’ trials bike.

Frame and fork

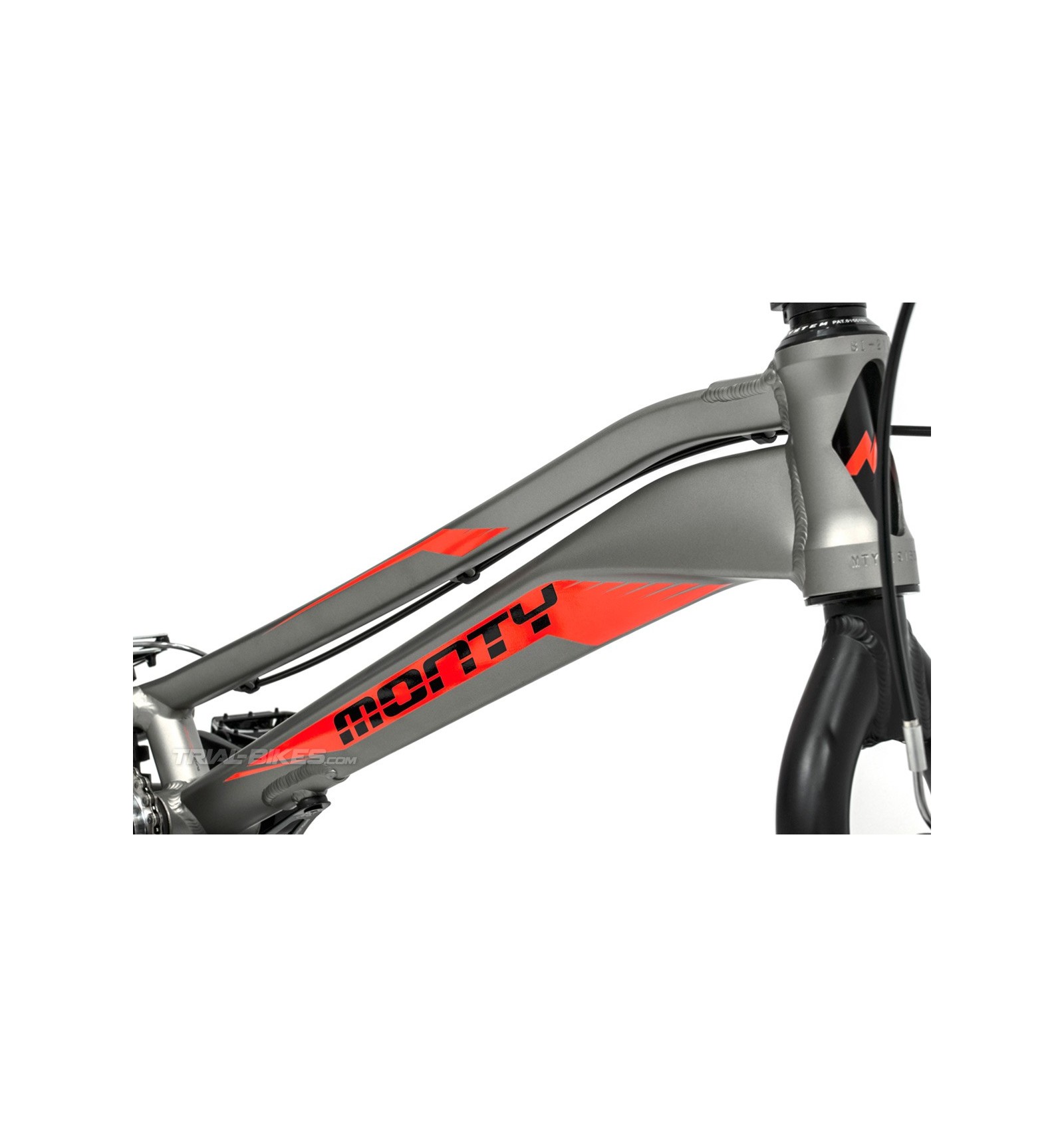

- Frame: Monty Kaizen 20”, made from 6061-T6 aluminium alloy, with 4-bolt rim brake mounts and Post Mount disc brake mounts, in grey color with orange and black Monty Kaizen graphics
- Forks: Monty 6061 20’’, with V-brake mounts, black

Wheels
- Front hub: Monty 6061, 36 spoke holes, without rotor mounts, 100mm spacing, anodized black
- Rear hub: Monty 6061, 36 spoke holes, without rotor mounts, 116mm spacing, anodized black
- Front rim: Monty 6061 20”, 36 spoke holes, anodized black
- Rear rim: Monty 6061 19”, 36 spoke holes, anodized black
- Spokes: Monty, made of steel, black
- Rim tape: Monty, black
- Front inner tube: Monty 20”
- Rear inner tube: Monty 20”
- Front tyre: Monty Endurance 20”x2.00”
- Rear tyre: Monty Endurance 19”x2.70”

Brakes

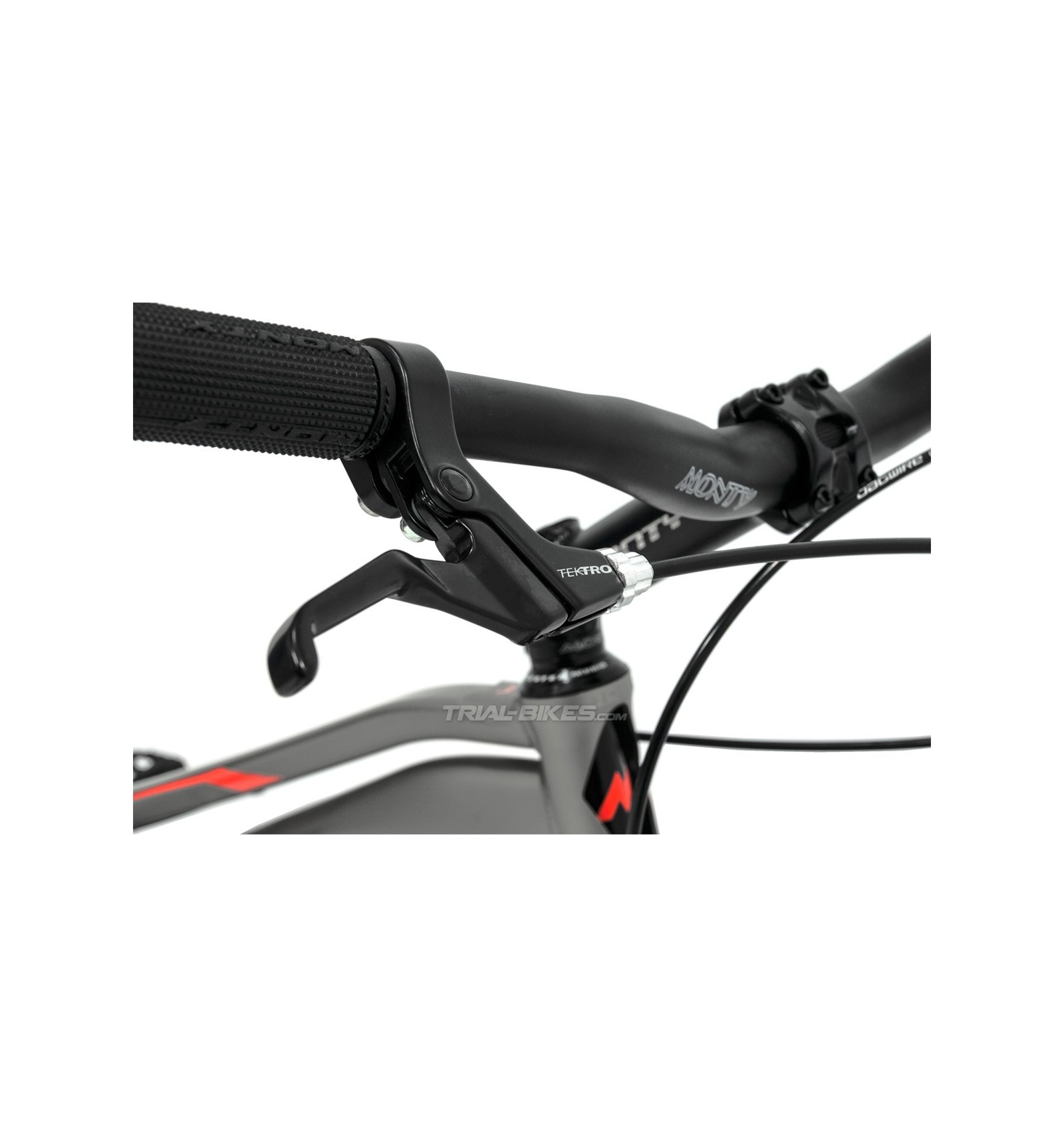

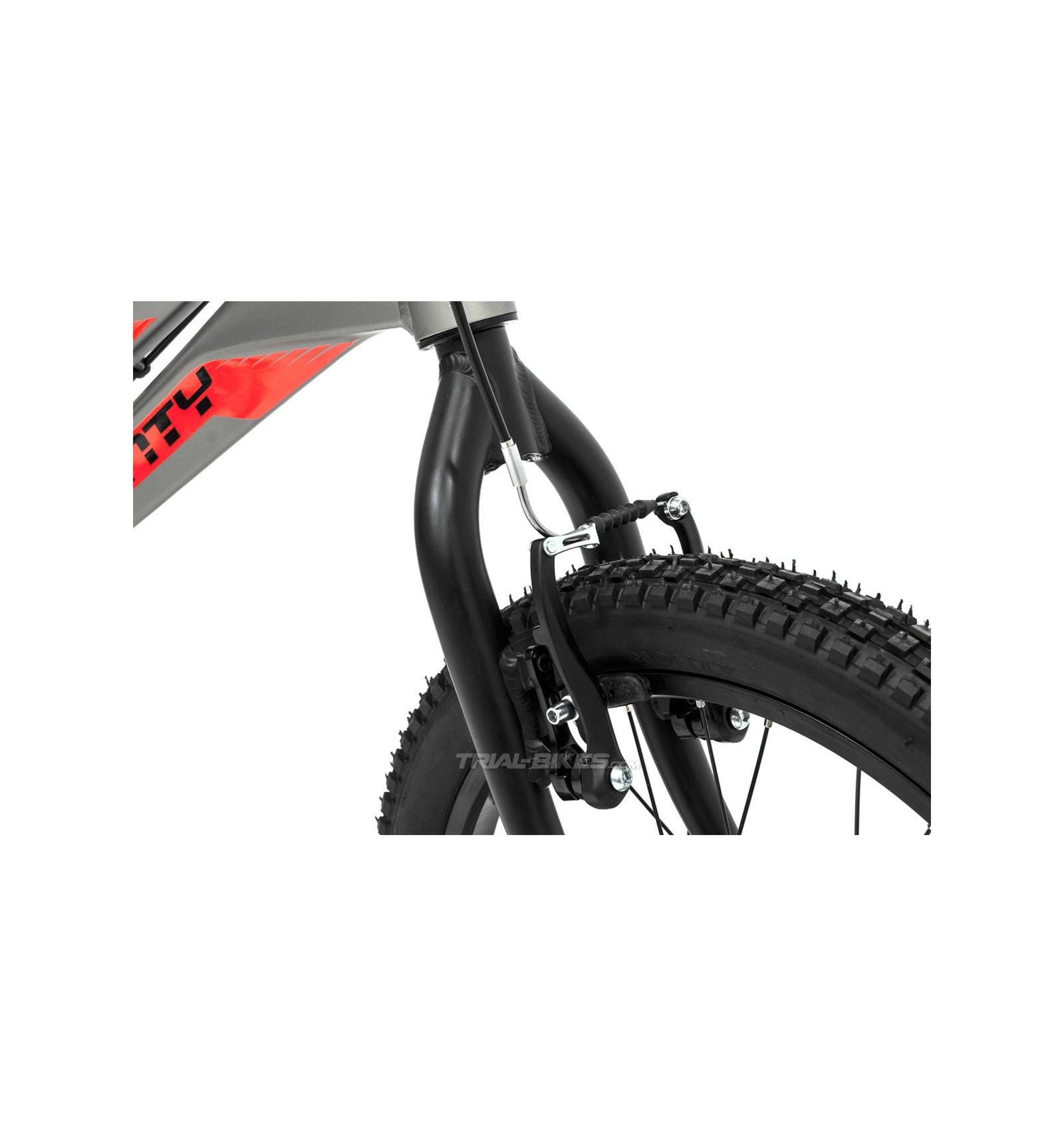

- Front brake: Monty V-Brake

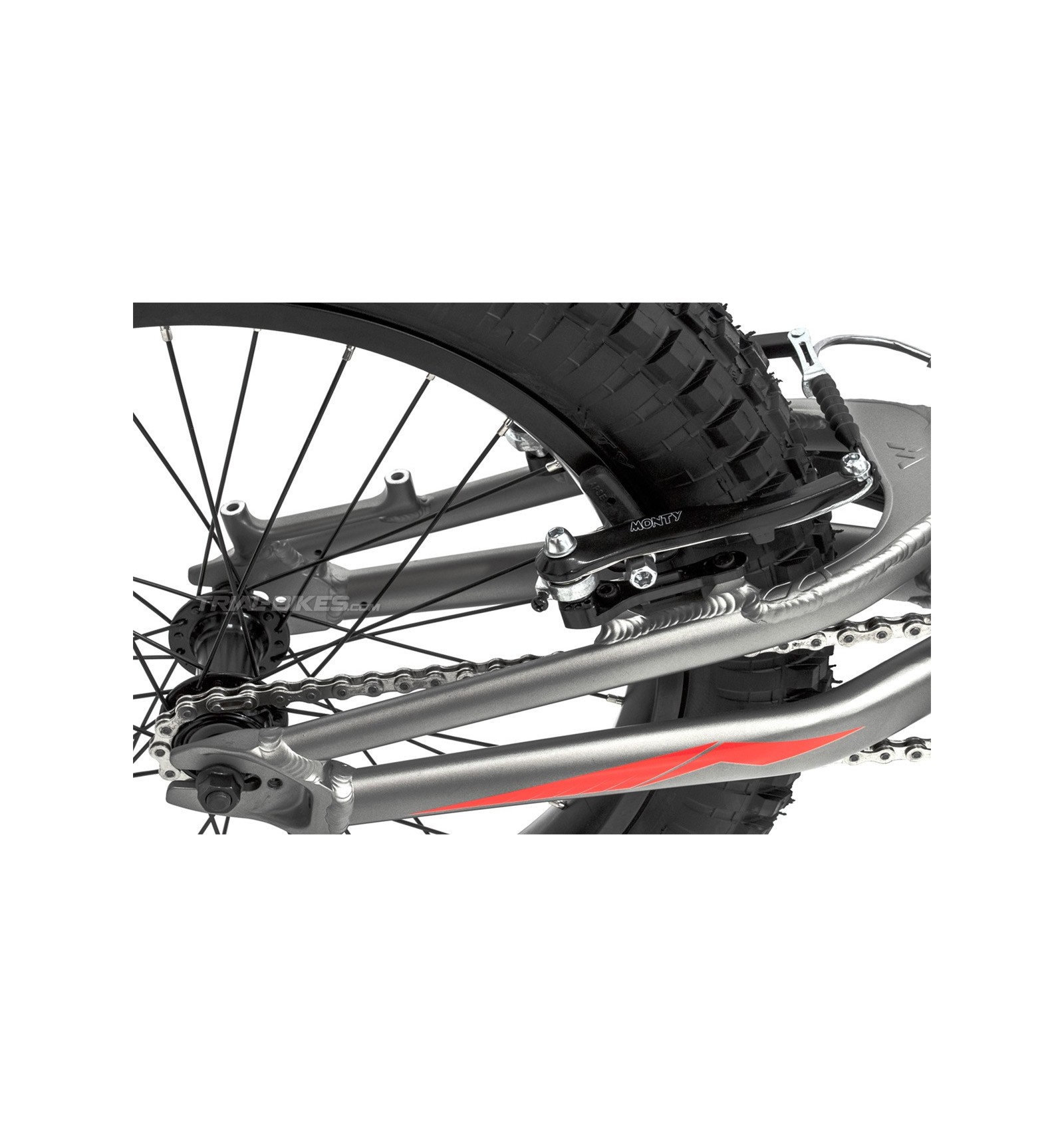

- Rear brake: Monty V-Brake, with HS-V-brake adaptor

Drivetrain
- Cranks: Monty 6061, 158mm long, 35mm offset, black with white Monty graphics
- Bottom bracket: Monty, 127mm long axle, 68mm wide and standard 1.37’’x24tpi thread, silver

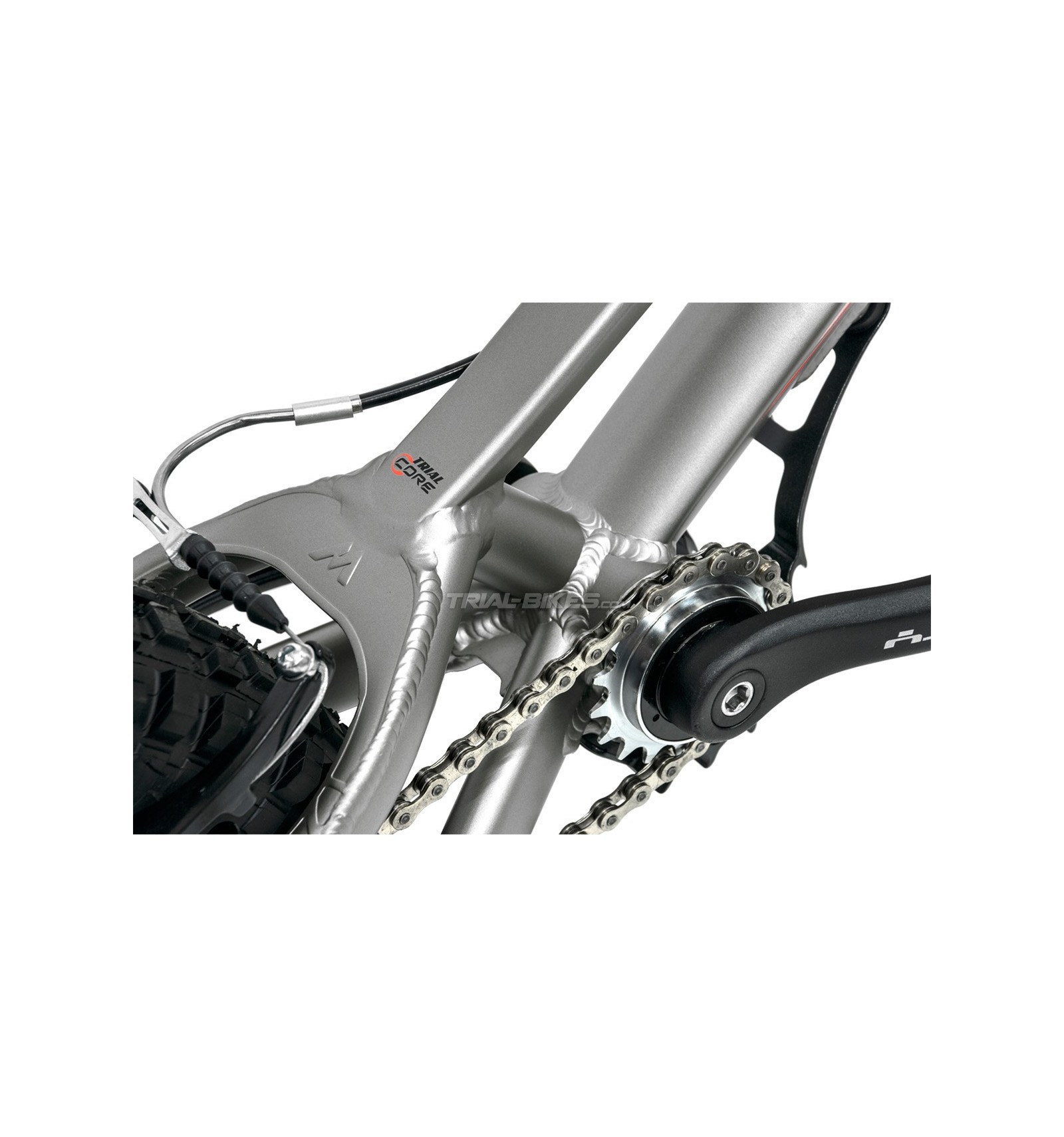

- Freewheel: Monty TrialCORE 108.9 18T, with 108 engagement points, 9 pawls and 18 teeth, silver and black
- Chain: KMC Z610HX, silver
- Rear sprocket: Monty 12T Screw-on, made of steel, silver
- Pedals: To be determined
- Bashplate: Monty Eagle Claw 6061 bashplate, anodized black

Steering

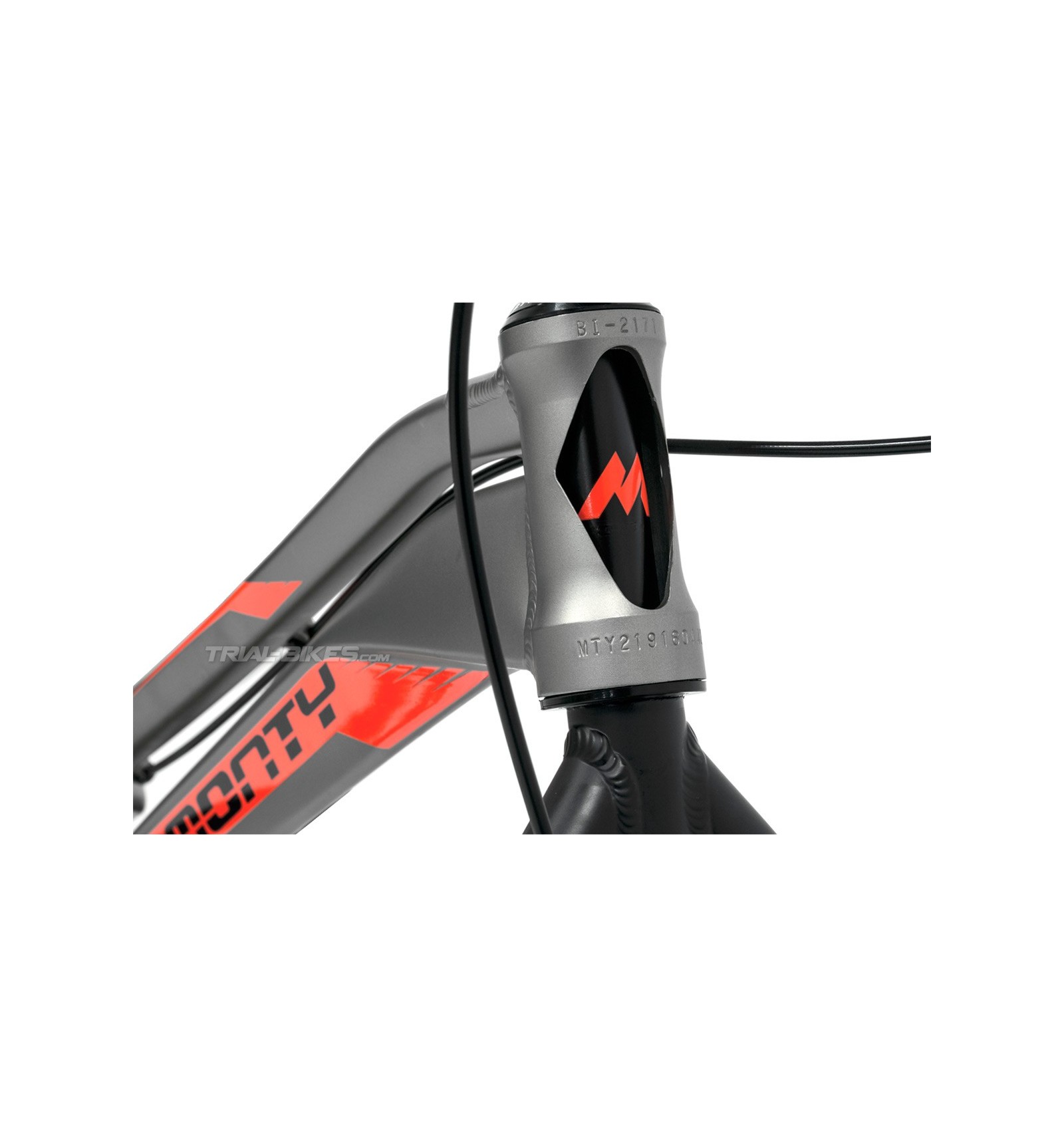

- Headset: Monty 1 1/8” internal headset, with sealed bearings, anodized black
- Stem: Monty 6061, 160mm long and 24º angle, 31.8mm Oversized handlebar diameter, black with white Monty graphics
- Grips: Monty foam, black with white Monty graphics

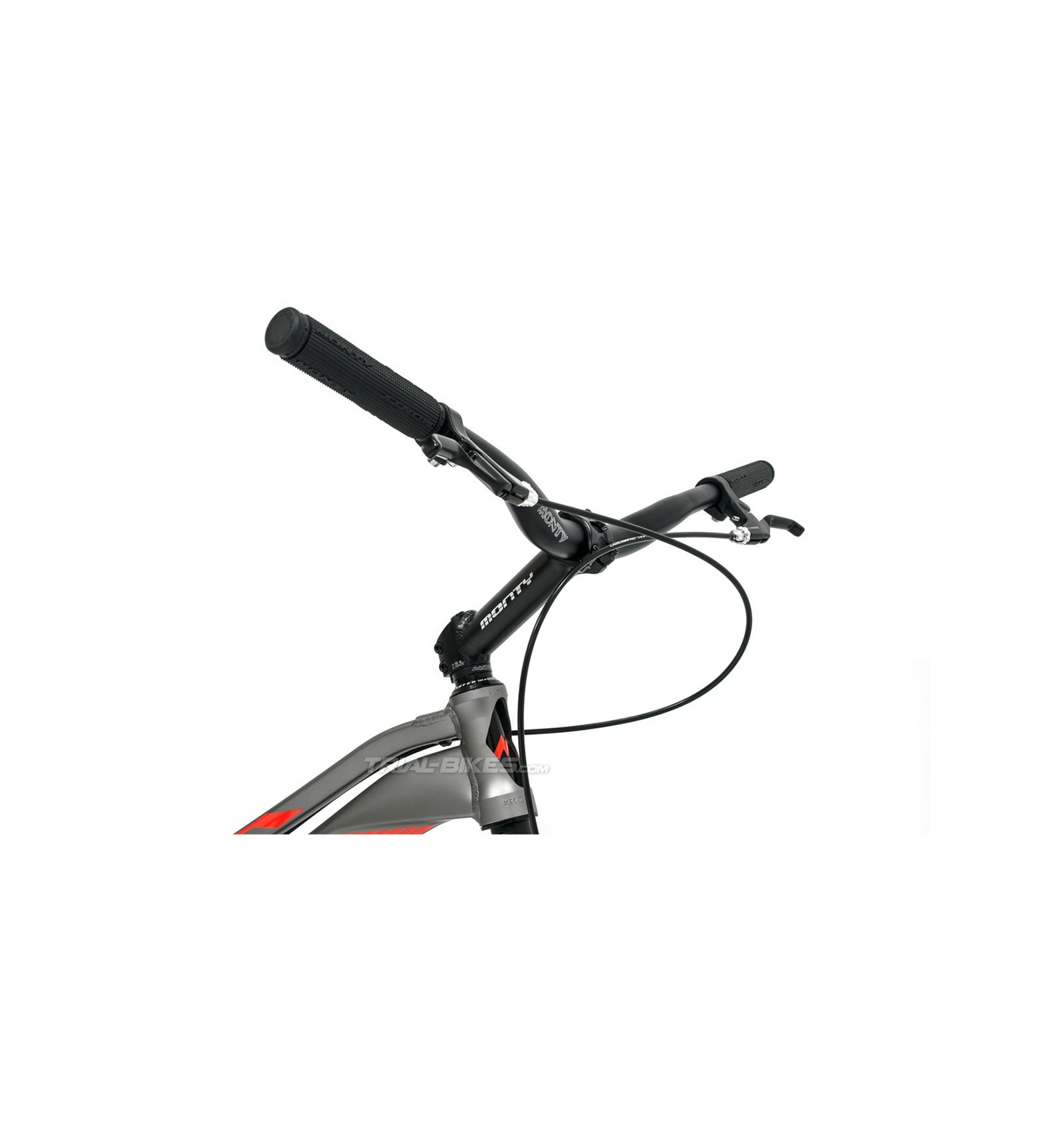

- Handlebar: Monty 6061, 680mm long, 10º upsweep, 31.8mm Oversized handlebar diameter, black with white and red Monty graphics

Geometry
- Wheelbase: 1008mm
- Chainstay length: 349mm
- Bottom bracket rise: +85mm
- Head angle: 71.5º

Weight
- To be determined

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact us on info@trial-bikes.com .

Below you can watch the video of the new Monty Kaizen 20’’ range
