Frame and forks
- Frame: Monty 221 Kamel Monocoque 2015, 6061-T6 aluminium. 4-bolt mounts and IS disc mounts, silver

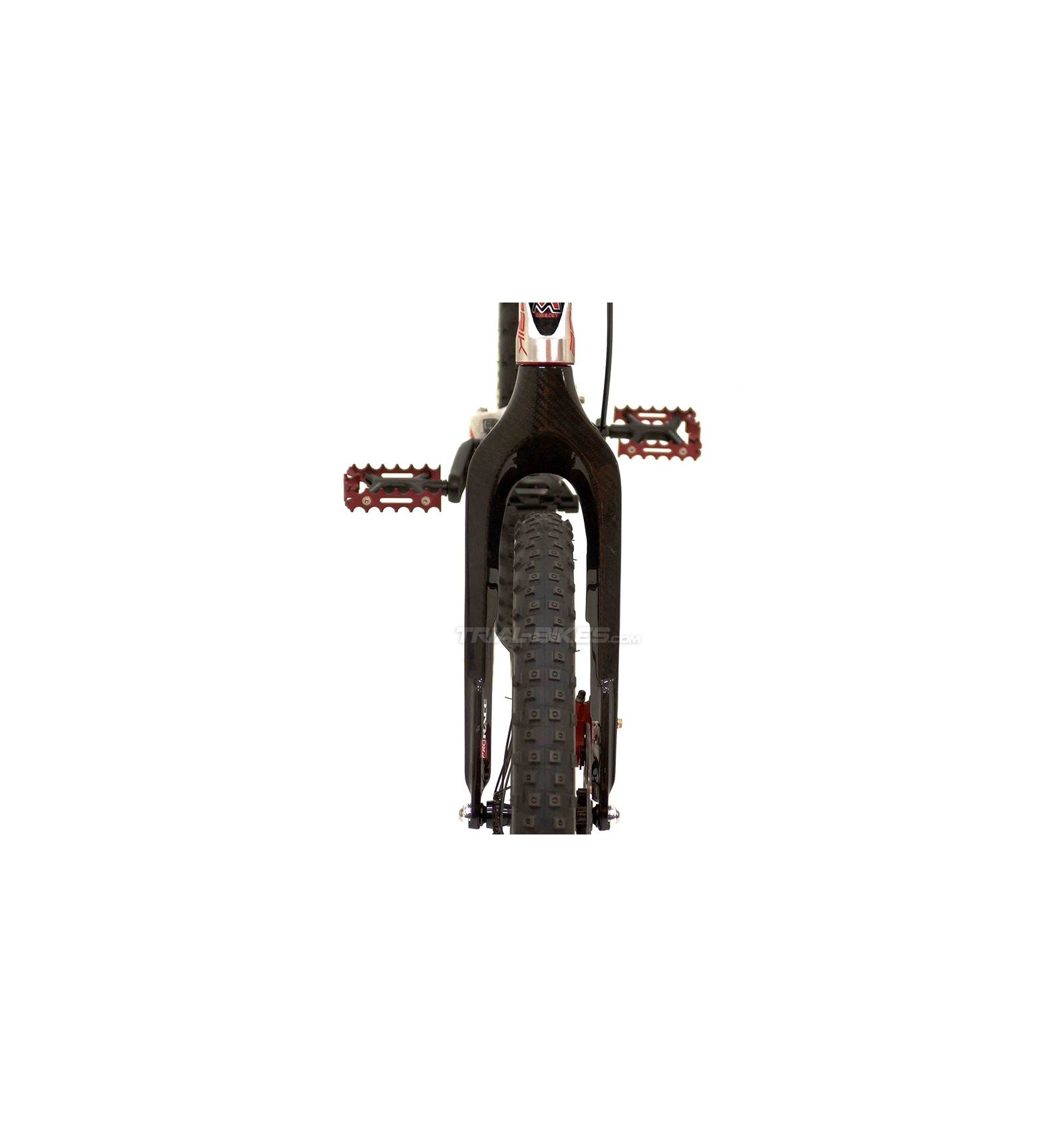

- Forks: Monty M5 Monocoque, Carbon fiber, Post mount Disc + Rim Brake drop
Wheels
- Front hub: Monty ProRace disc 28H, 100mm
- Rear hub: Monty ProRace disc 32H, 105mm
- Chain tensioner: Monty snail cams, black
- Front rim: Monty ProRace 20" single-walled 30mm, 28H, anodised black finish
- Rear rim: Monty ProRace 19'' single-walled 46mm, 32H, anodised black finish
- Spokes: Monty Inox, black
- Rim tape: Monty Black
- Front inner tube: Monty 20'' Ultra light
- Rear inner tube: Monty 20'' Ultra light
- Front tyre: Monty Eagle Claw ProRace 20x2.00
- Rear tyre: Monty Eagle Claw ProRace 20x2.00
Brakes

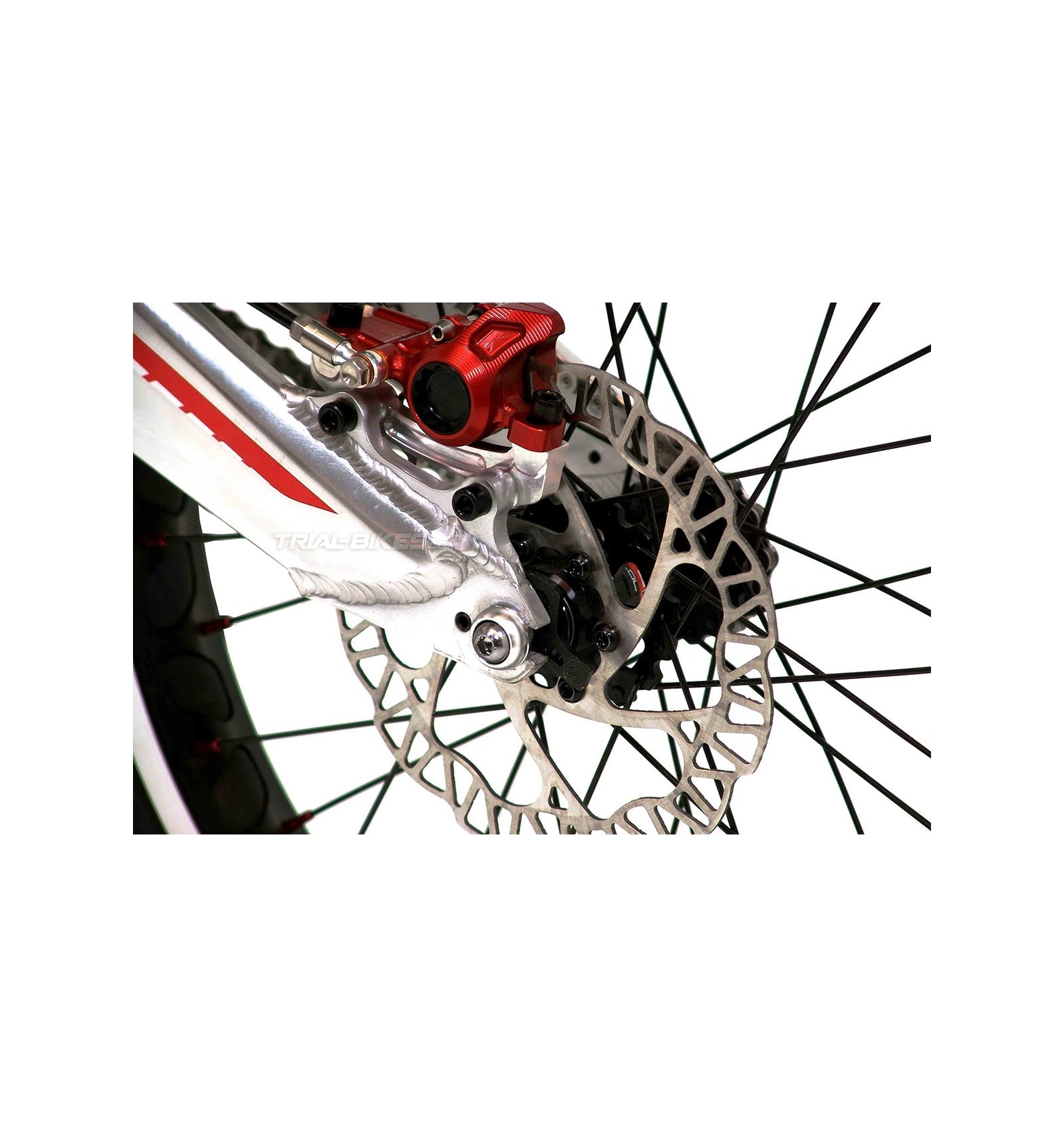

- Front brake: Hope Trial Zone by Monty, 160mm rotor
- Rear brake: HopeTrial Zone by Monty, 160mm rotor
Drivetrain

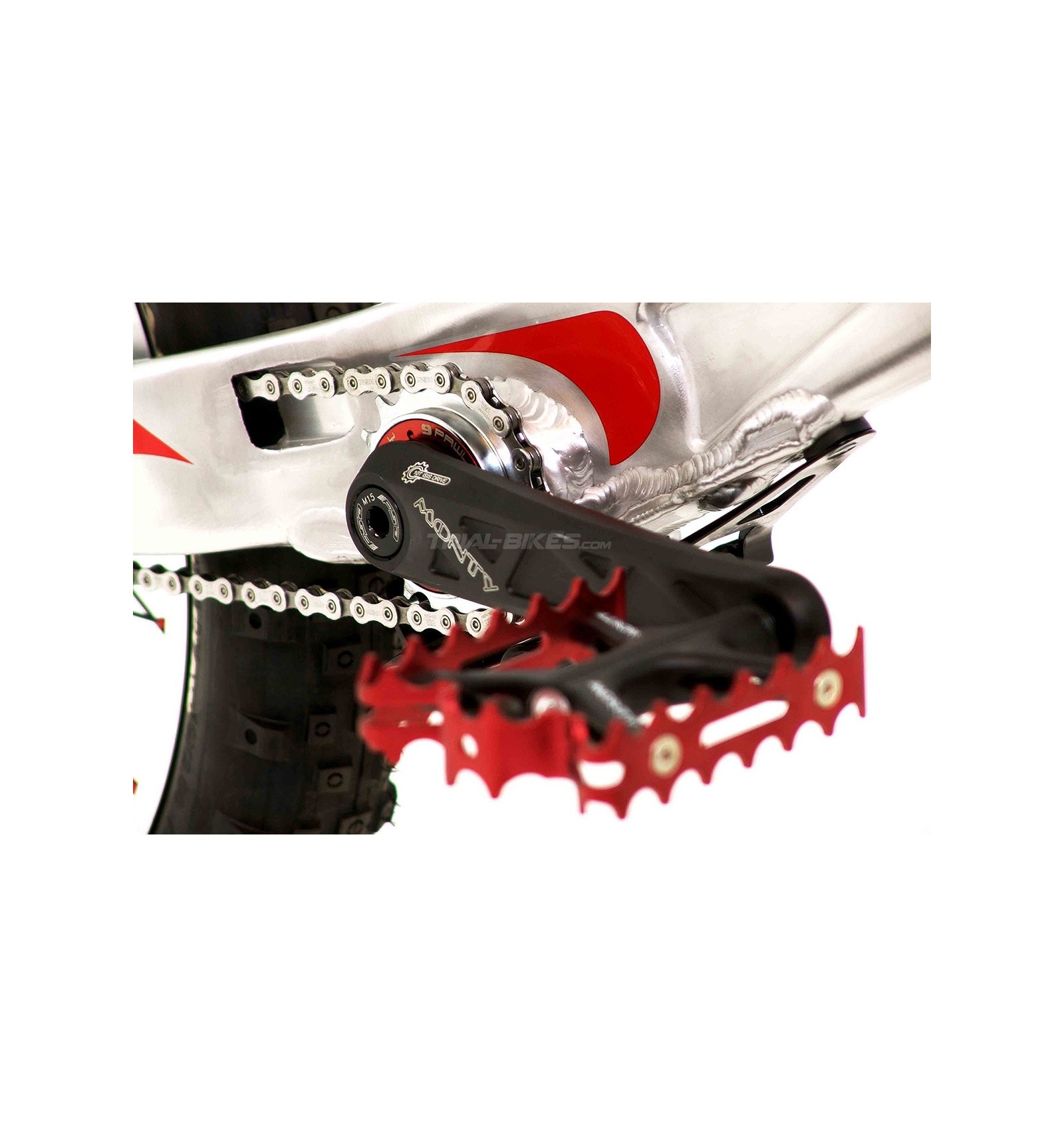

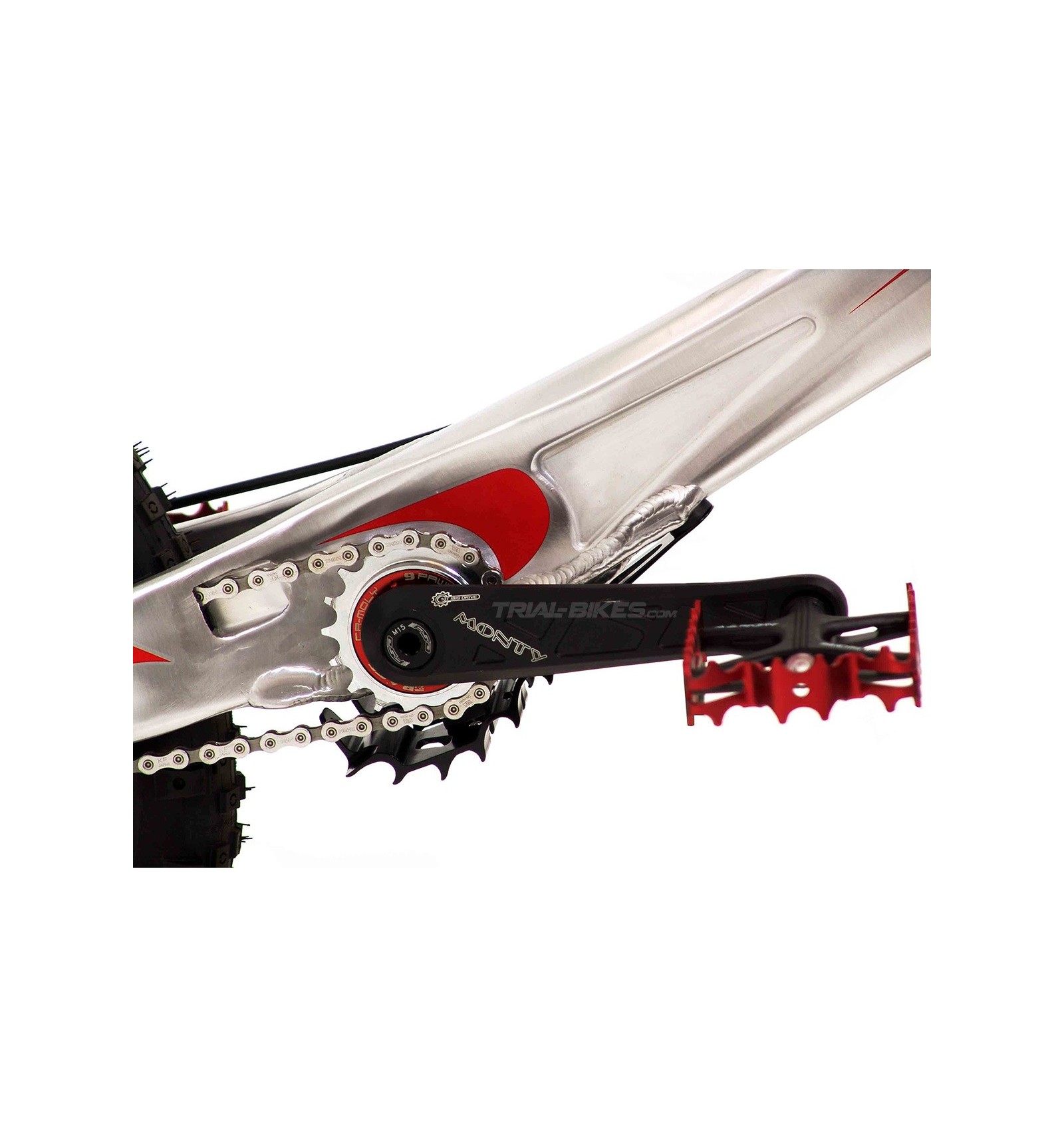

- Cranks: Monty 7075-T6 ISIS, forged, 158mm long. 1.37x24 tpi thread, black
- Freewheel: Monty ProRace 9 Pawls (108 Engagement points) 18T
- Chain: Conex light 3/32'', silver
- Rear sprocket: Monty 12 teeth
- Pedals: Monty Ultralight ’12, Single cage 7075, Red
- Bottom bracket: FSA Platinum ISIS, Cr moly axle and aluminium cups, 124mm long.
- Bashplate: Monty, Eagle Claw exclusive design.
Steering
- Headset: Monty ProRace Internal. 7075-T6 cups, with sealed bearings, Red.
- Grips: Monty foam, black
- Handlebar: Monty ProRace Carbon, 720mm long. O.D.31.8mm
- Stem: Monty 6061 T6, 170mm, 24º, 31.8mm handlebar diameter.
Â
Geometry:
- Wheelbase: 1008mm
- Chainstay length: 349mm
- Bottom bracket rise: +85mm
- Head angle: 71,5º
Weight
- confirmed
Additional information:
Some pictures may not match the Ãtem described, so please read the description carefully.
This bike is partially set up by our workshop, the customer will only have to set both the front wheel and the headset up.
If you have any doubts, please contact to info@trial-bikes.com.
| WEIGHT | 0.000 |
| FRONT BRAKE | Disc |
| REAR BRAKE | Disc |
