Description and materials

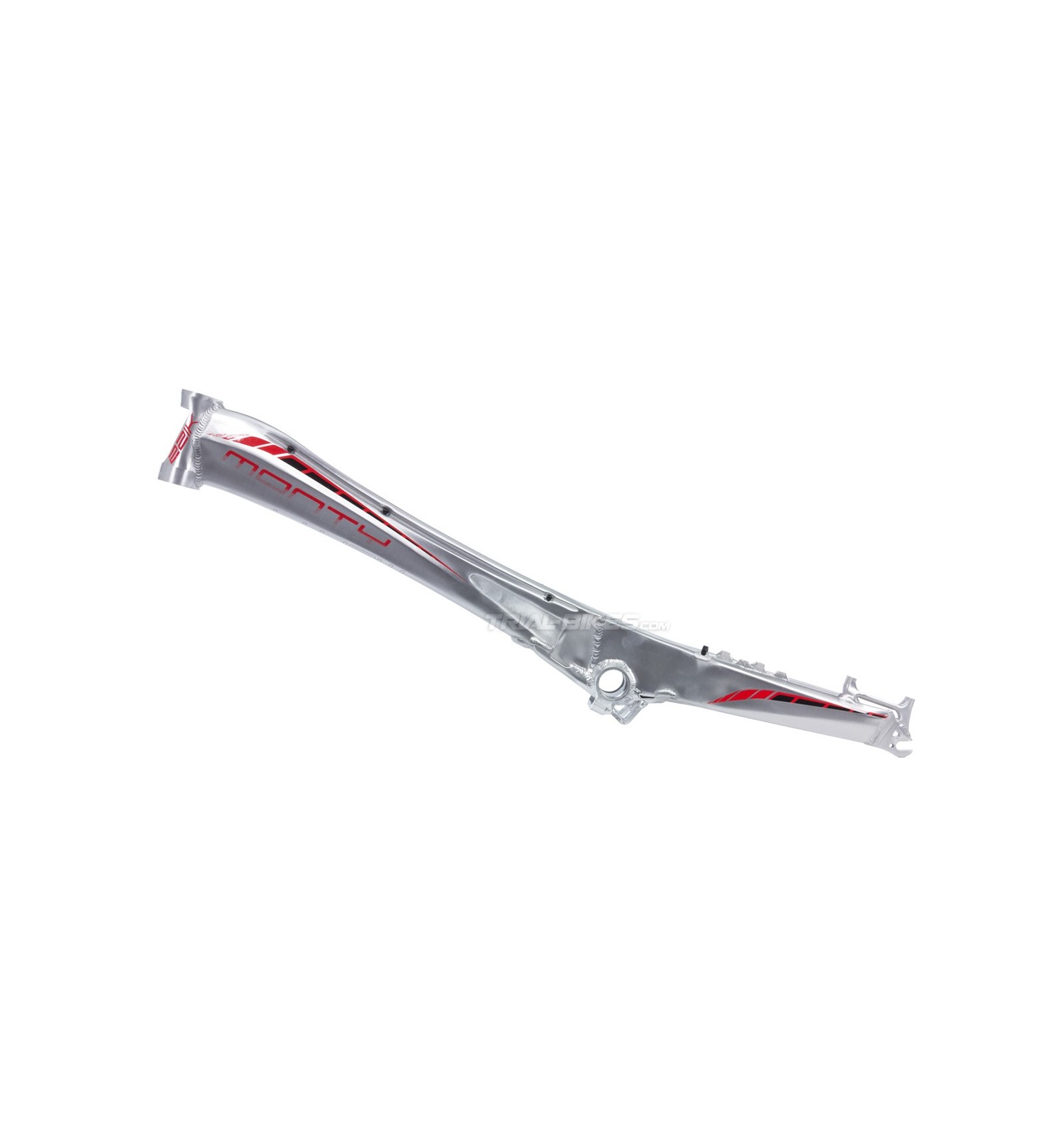

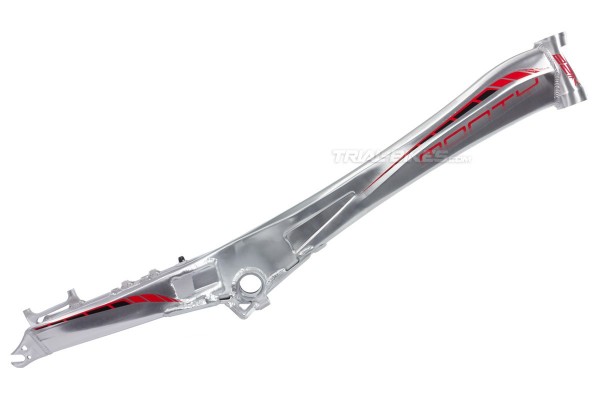

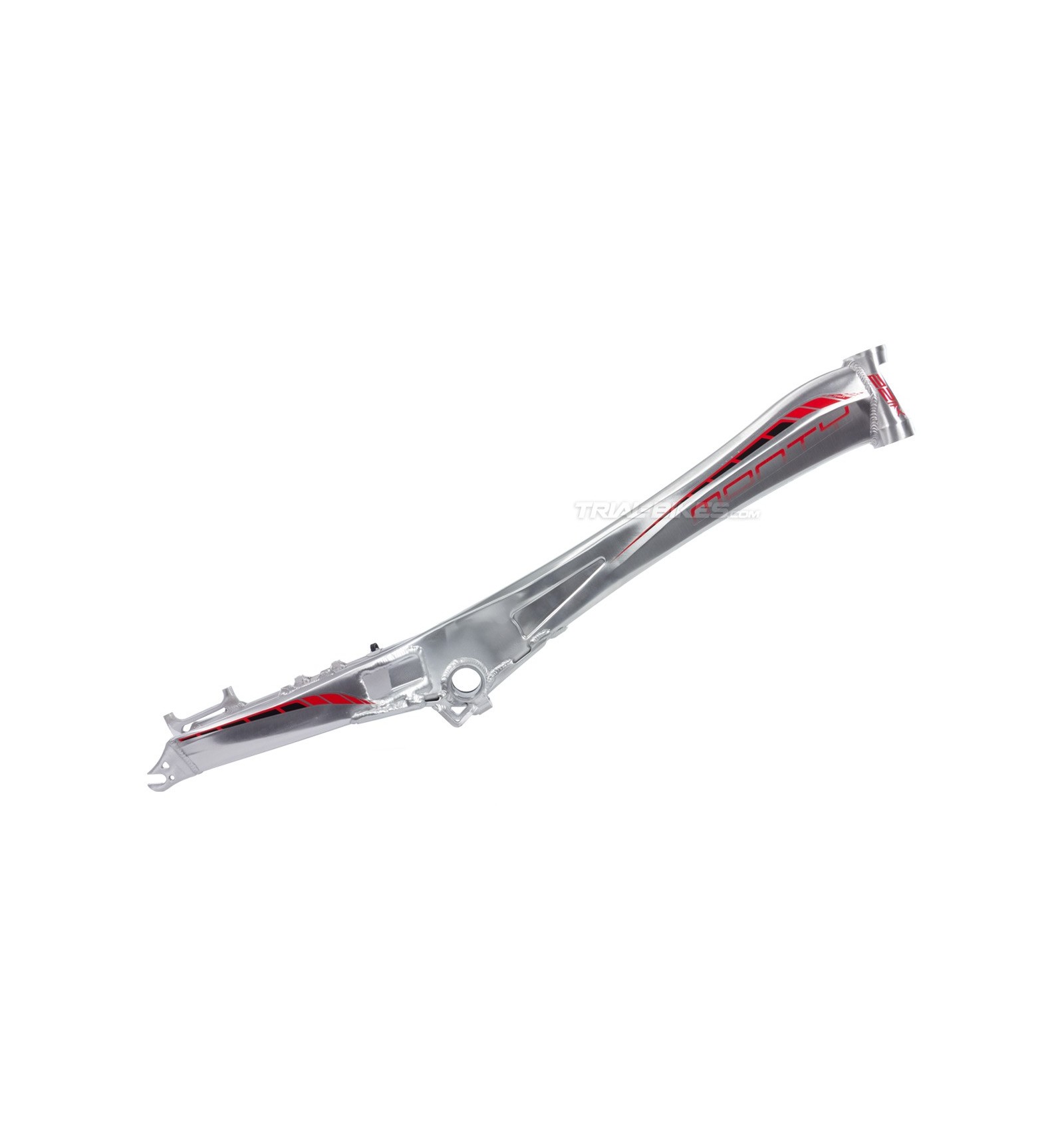

- New edition of the popular Monty 221K 20” frame, updated for the 2016 season.
- It keeps the monocoque design, based on the Monty M5 Carbon frame, but this being made from high quality 6061-T6 aluminium alloy.

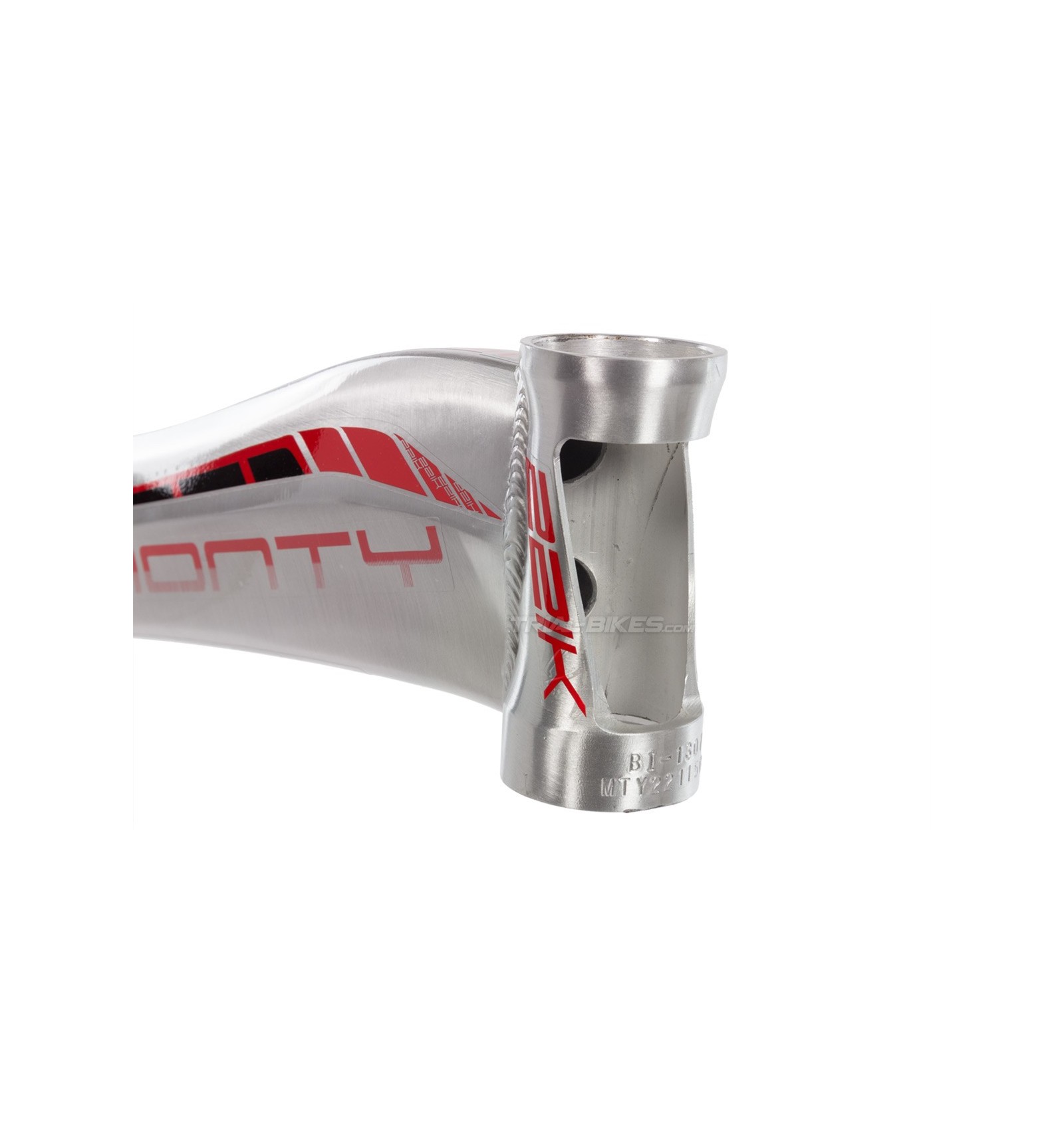

- CNC machined, 110mm long head tube, designed for use an internal headset (not supplied with the frame), and with a large hole on front to remove unnecessary material.

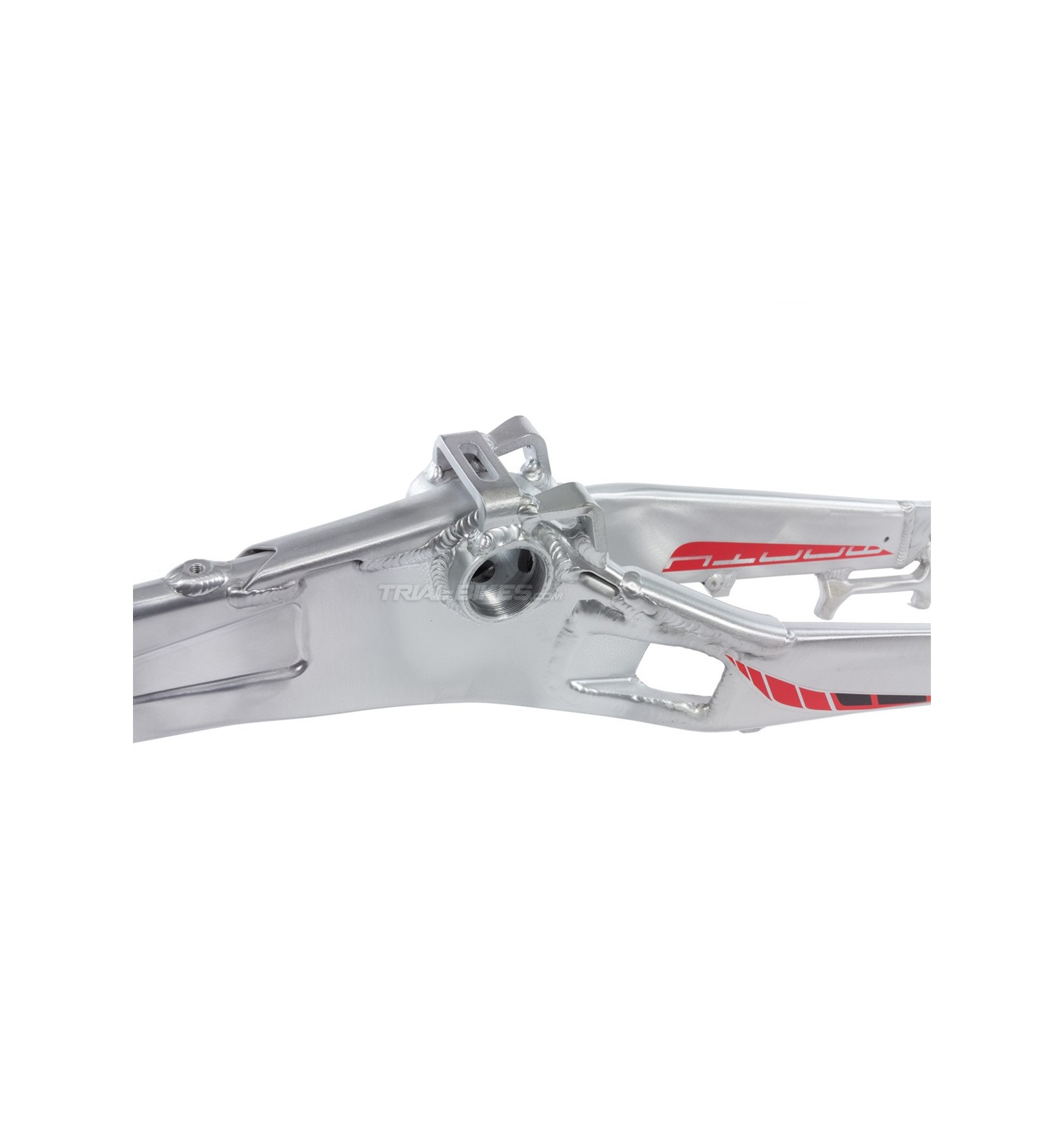

- 68mm bottom bracket shell, suitable for 127mm or wider BBs.
- The frame has both 4-bolt rim brake mounts (spaced at 105mm) and Post Mount disc brake mounts.
- Redesigned 4-bolt brake mounts, now with extra material that ensures increased stiffness and durability.

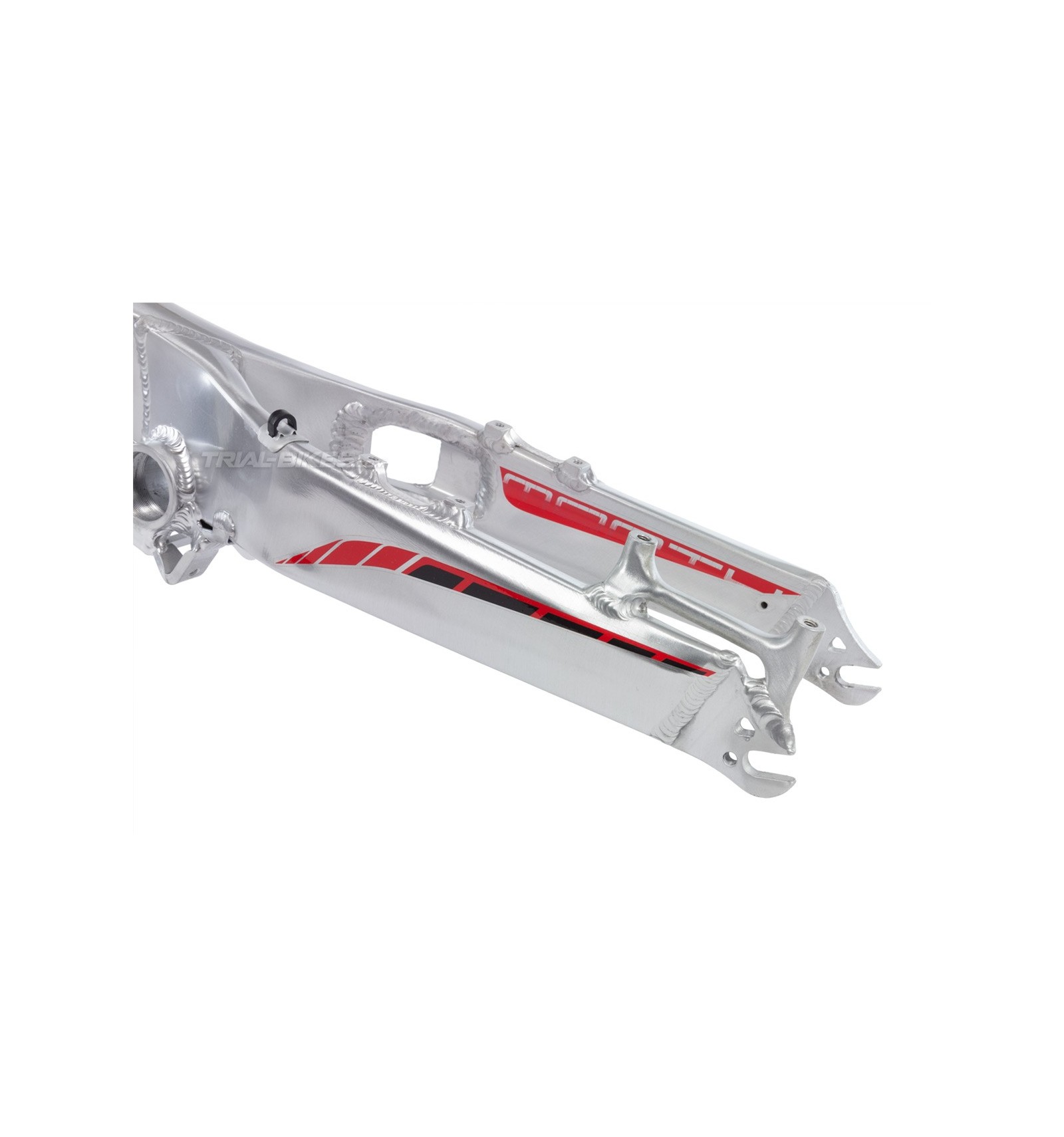

- CNC machined dropouts, designed for using snail cams.
- 111mm hub spacing, so a 105mm rear hub must be used (i.e., Monty or Jitsie 105 hubs) along with 3mm snail cams, to obtain a total spacing of 111mm.
- The bashplate is not supplied (the bashplate mounts on this frame are only compatible with the 2010 Monty Eagle Claw bashplate).
- Available in polished silver finish, with red and black Monty stickers.
- Please note: this frame requires the use of cranks with an offset of +29mm or higher when using rim brake; otherwise, they will likely rub against the brake cylinders. Also, if you’d like to run the original Monty cranks, they’d have to be modified so that they don’t rub.
Geometry
- Space between dropouts: 111mm
- Bottom bracket shell: 68mm
- Head tube: 110mm
- Wheelbase: 1008mm
- Chainstay Length: 349mm
- BB Rise: +85 mm
- Head Angle: 71.5º
Finishes
- Available in polished silver finish, with red and black Monty stickers.
Weight
- 1538g
Additional information
This frame comes with a 12-month warranty, covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us at info@trial-bikes.com
WEIGHT | 1.538 |
BRAKE MOUNTS | Post Mount Disc |
BRAKE MOUNTS | HS |
TYPE OF HEADSET | Standard 1 1/8" |
