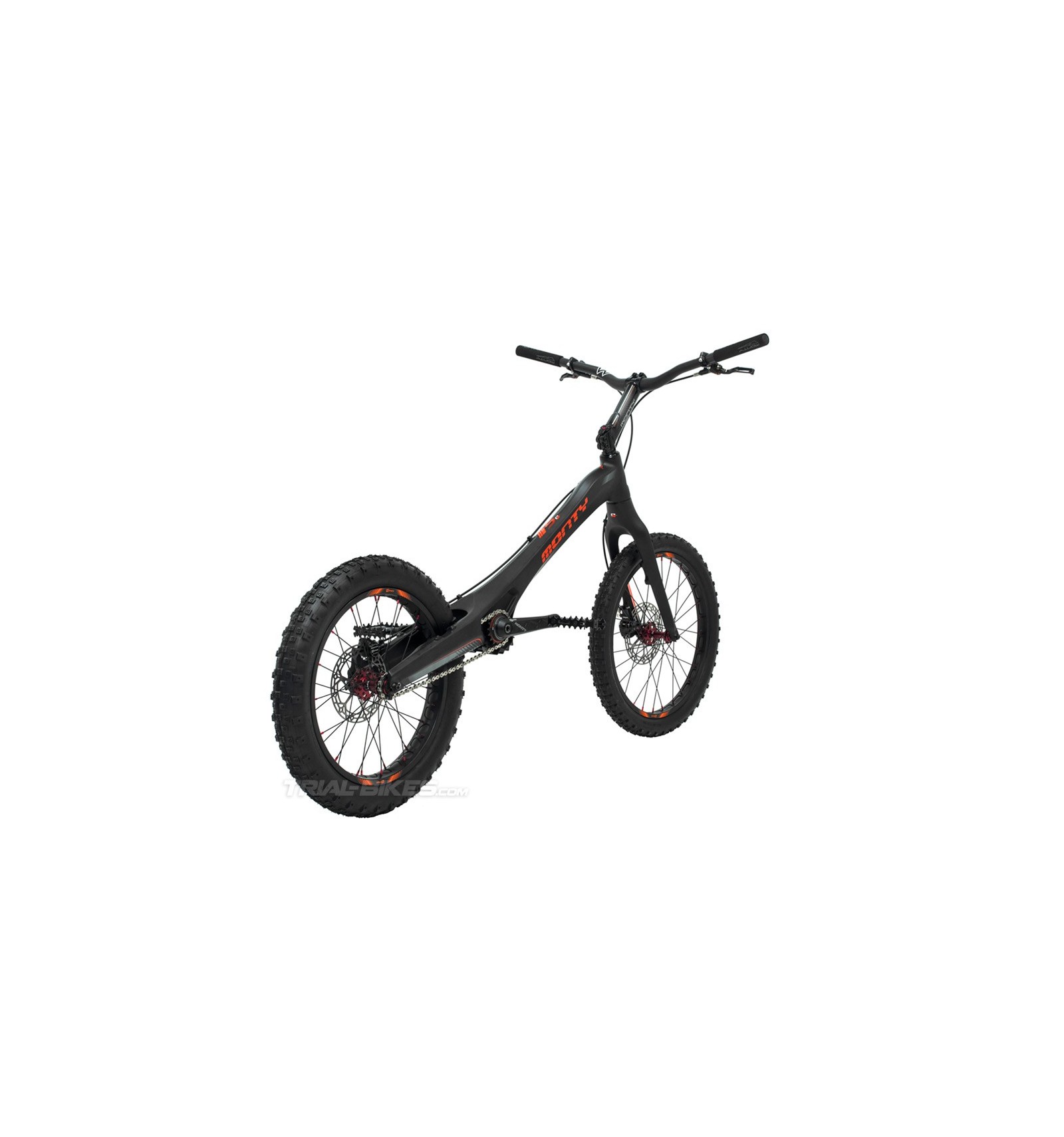

Monty M5 OS 2016 Carbon 20''

The new 2016 Monty M5 OS bike comes with lots of updates! Features reinforced UD carbon fiber construction both on the frame and fork, which guarantees higher durability and better overall performance. Furthermore, it features a tapered headtube design, which allows you to run a larger OverSized 1.5” bearing at the bottom, increasing its durability and overall frame’s front stiffness compared to other headtubes.
Some other updates include new Monty ProRace rotors and brake pads, which help improve braking performance by 20%.

Frame and forks

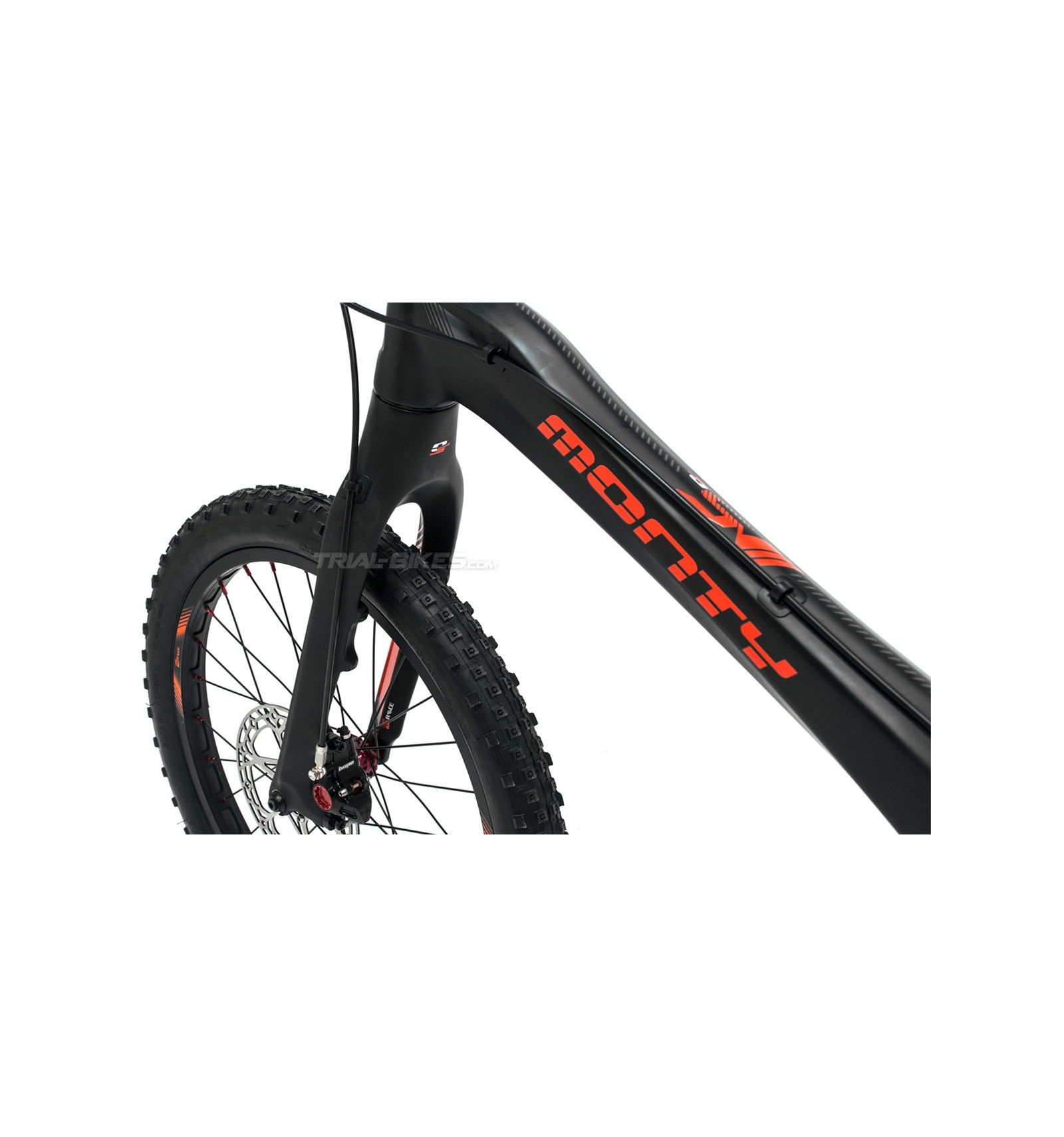

- Frame: Monty M5 OS Monocoque 2016, made from reinforced carbon fiber, with  Post Mount disc brake mounts and 4-bolt rim brake mounts
- Forks: Monty M5 OS 2016, made from reinforced carbon fiber, with  Post Mount disc brake mounts and 4-bolt rim brake mounts

Wheels

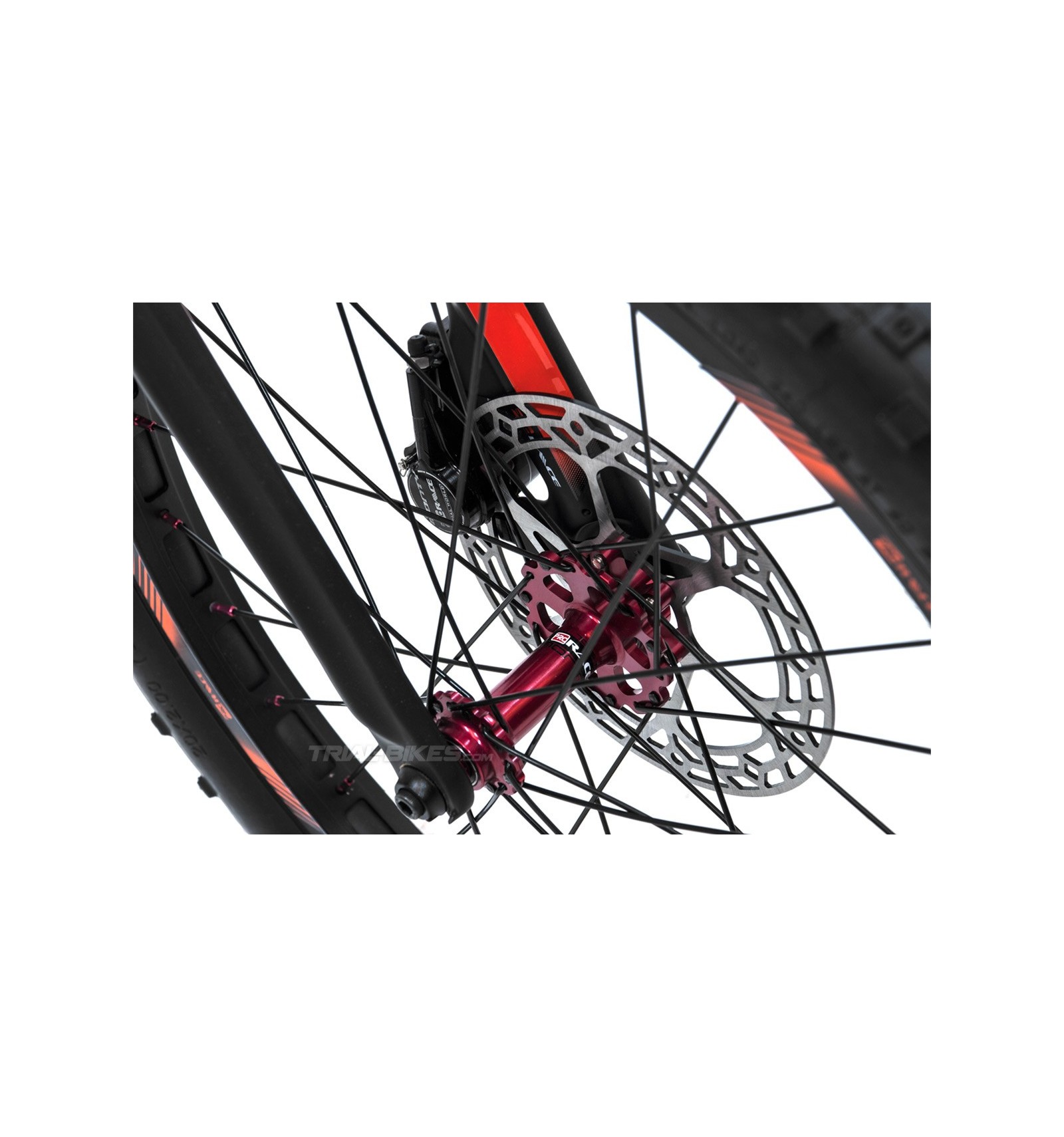

- Front hub: Monty ProRace disc 28H, 100mm, in anodized red
- Rear hub: Monty  ProRace disc 32H, 105mm, in anodized red
- Chain tensioner: Monty snail cams, in anodized black
- Front rim: Monty ProRace 20" 2016, with single-walled design, 30mm wide, 28H, in anodized black with orange Monty ProRace graphics
- Rear rim: Monty ProRace 19" 2016, with single-walled design, 46mm wide, 32H, in anodized black with orange Monty ProRace graphics
- Spokes: Monty Inox, black
- Rim tape: Monty Black
- Front inner tube: Monty 20'' Ultra light
- Rear inner tube: Monty 20'' Ultra light
- Front tyre: Monty Eagle Claw  ProRace 20”x2.00”
- Rear tyre: Monty Eagle Claw  ProRace 19”x2.60”

Brakes

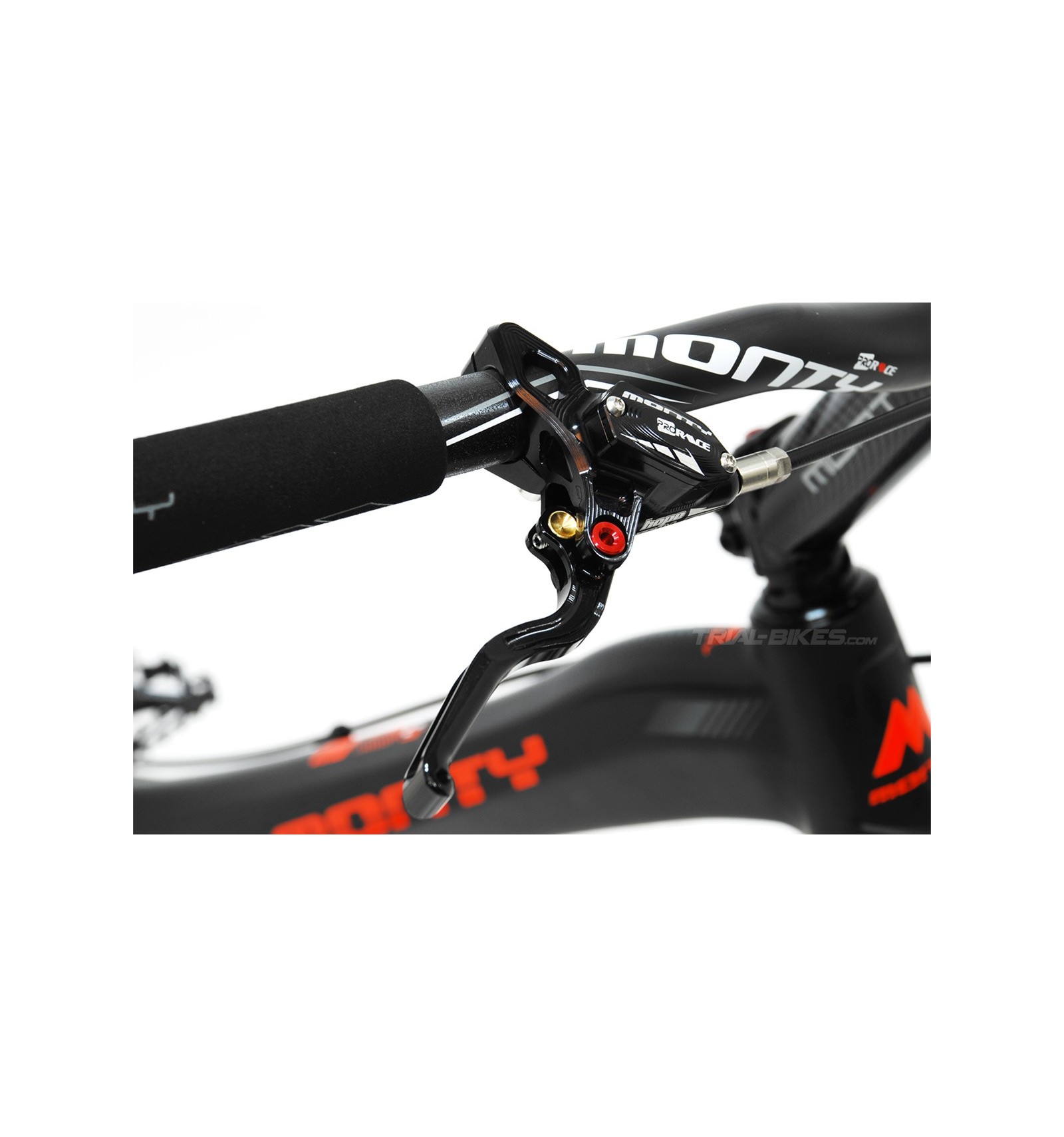

- Front brake: Hope Trial Zone Monty ProRace 2016 Edition, Post Mount

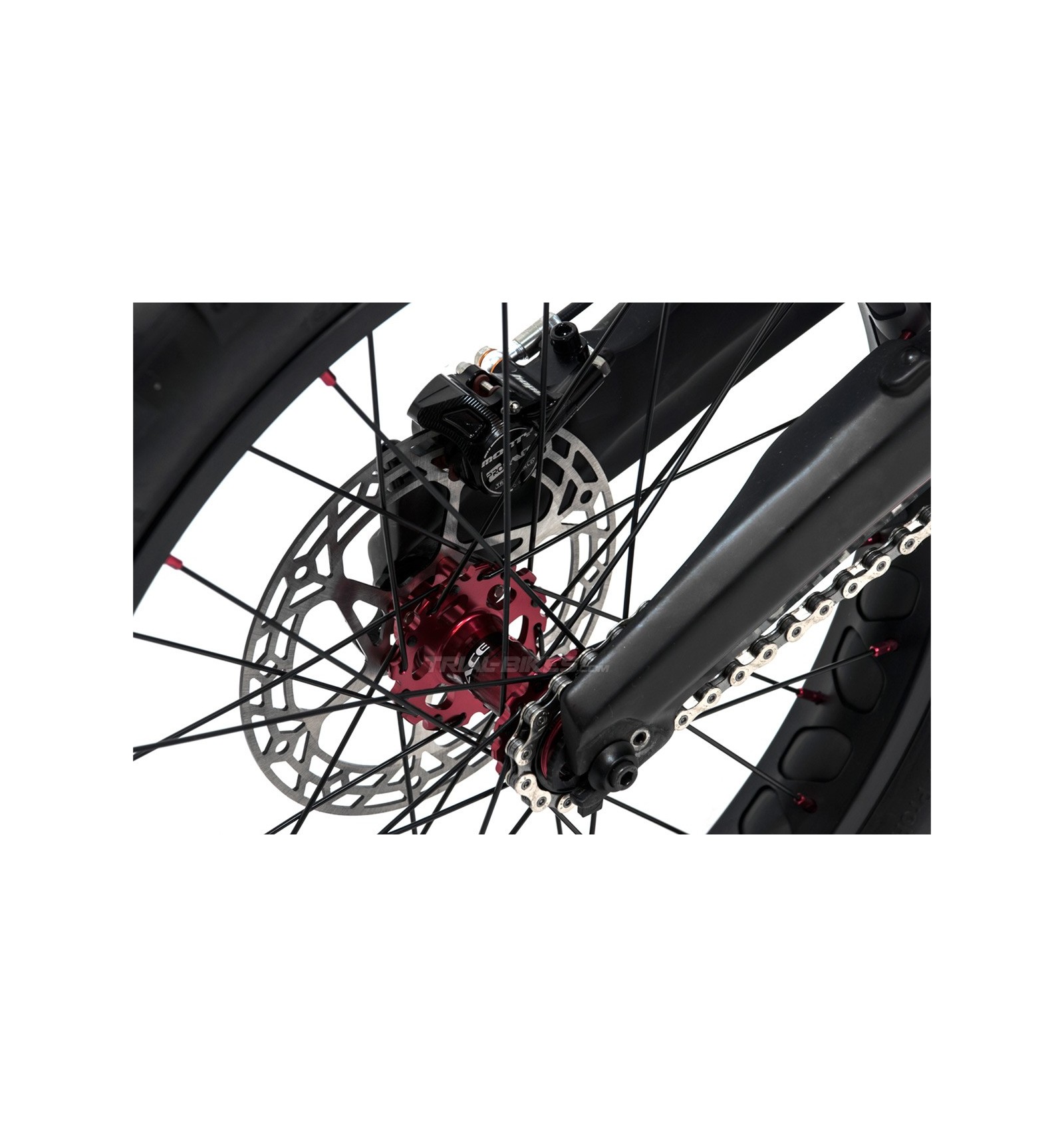

- Rear brake: Hope Trial Zone Monty ProRace 2016 Edition, Post Mount
- Rotors: Monty ProRace 2016
- Brake pads: Monty ProRace 2016

Drivetrain
- Cranks: Monty 7075-T6 ISIS, 158mm long, with standard 1.37x24T thread, in anodized black
- Freewheel: Monty ProRace 135.9 2016, with 135 engagement points, 9 pawls and 18 teeth, in black with orange ProRace graphics

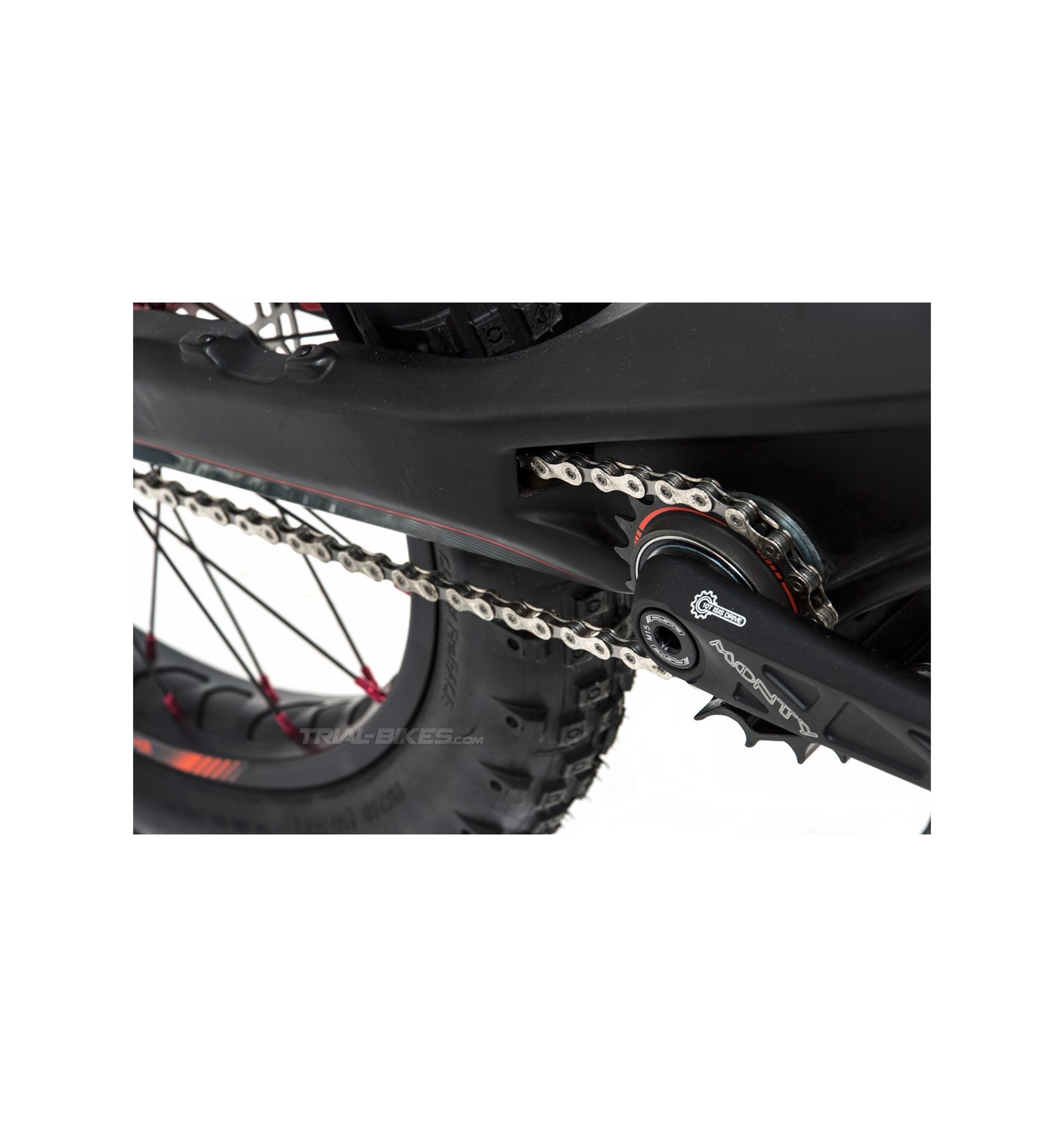

- Chain: KMC 3/32'', silver
- Rear sprocket: Monty 12T Screw-on, in black
- Pedals: Monty Ultralight Single cage, 7075-T6, anodized black
- Bottom bracket: FSA Platinum ISIS, 128mm long.

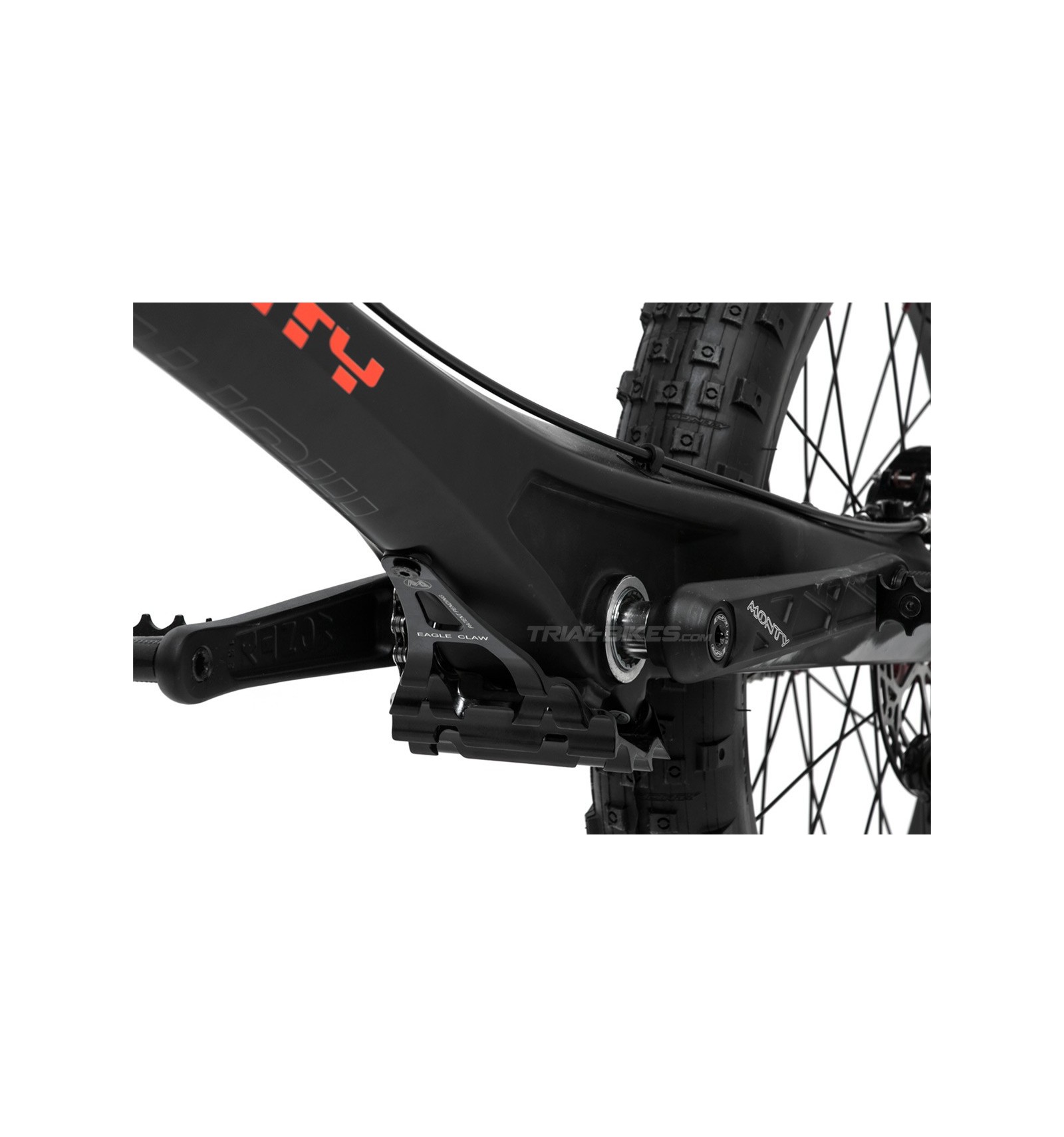

- Bashplate: Monty Eagle Claw

Steering
- Headset: Monty ProRace Internal 1-1/8” Tapered 1.5”, with 7075-T6 aluminium cups, sealed bearings, in anodized black
- Stem: Monty ProRace 6061-T6, 174mm x 24º, 31.8mm Oversized handlebar diameter, carbon black finish
- Grips: Monty foam, black
- Handlebar: Monty ProRace UD Carbon 2016, 730mm long, 31.8mm Oversized handlebar diameter, matt black finish

Geometry:
- Wheelbase: 1010mm
- Chainstay length: 349mm
- Bottom bracket rise: +85mm
- Head angle: 71,5º

Weight
- 7.20 Kg

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, the customer will only have to set both the front wheel and the headset up.
