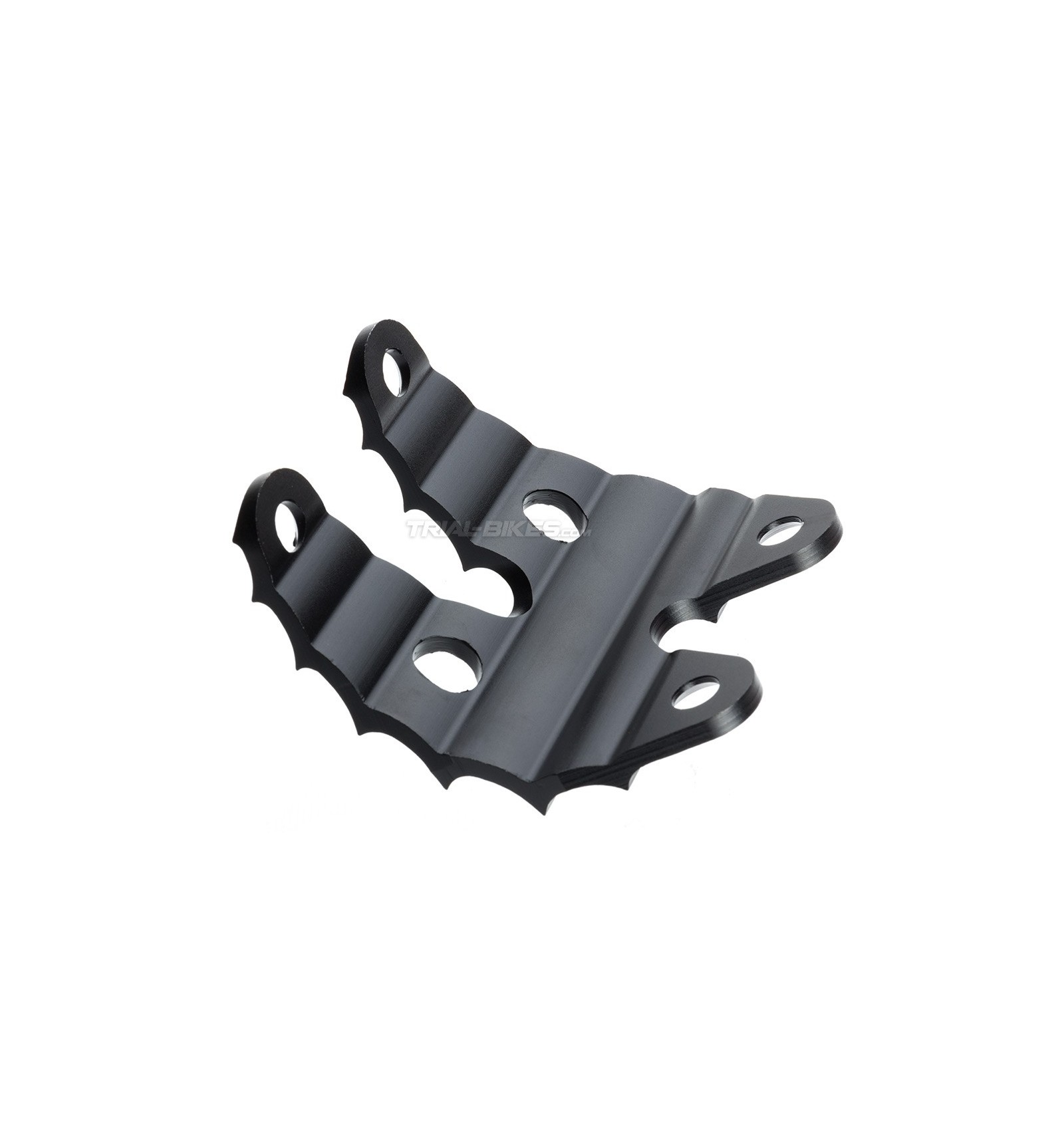

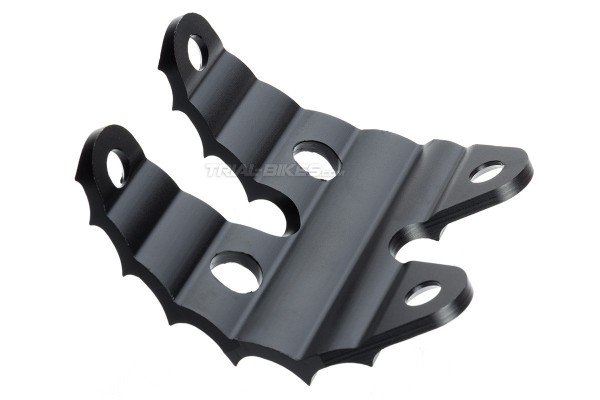

Neon Mini Bashplate

Description and materials
- New ultralight mini-bashplate from Asian manufacturer Neon.
- Features the original “mini” design recently introduced by Koxx, which is catching on in the Trials market.
- With this design, the bashplate goes attached to the bottom bracket tube instead of the down tube, which avoids damage transmission to the down tube, one of the main breakage problems seen historically in trials frames.
- Furthermore, it’s a much more compact design, thereby reducing the weight by almost half of a traditional plate.
- Made from high quality 6061-T6 aluminium.
- Its particular design is only suitable for “mini” bashplate 4-bolt mounts, as the ones in recent Neon Wing, Play, Koxx, Breath, Hashtagg and other frames. Some thicker washers might be needed (get in touch if you have any doubts!).
- Two CNC mechanized holes help reduce unnecessary weight without compromising overall strength.
- The external profile is saw-shaped, with deep teeth that ensure maximum grip on any surface when on the bashplate.

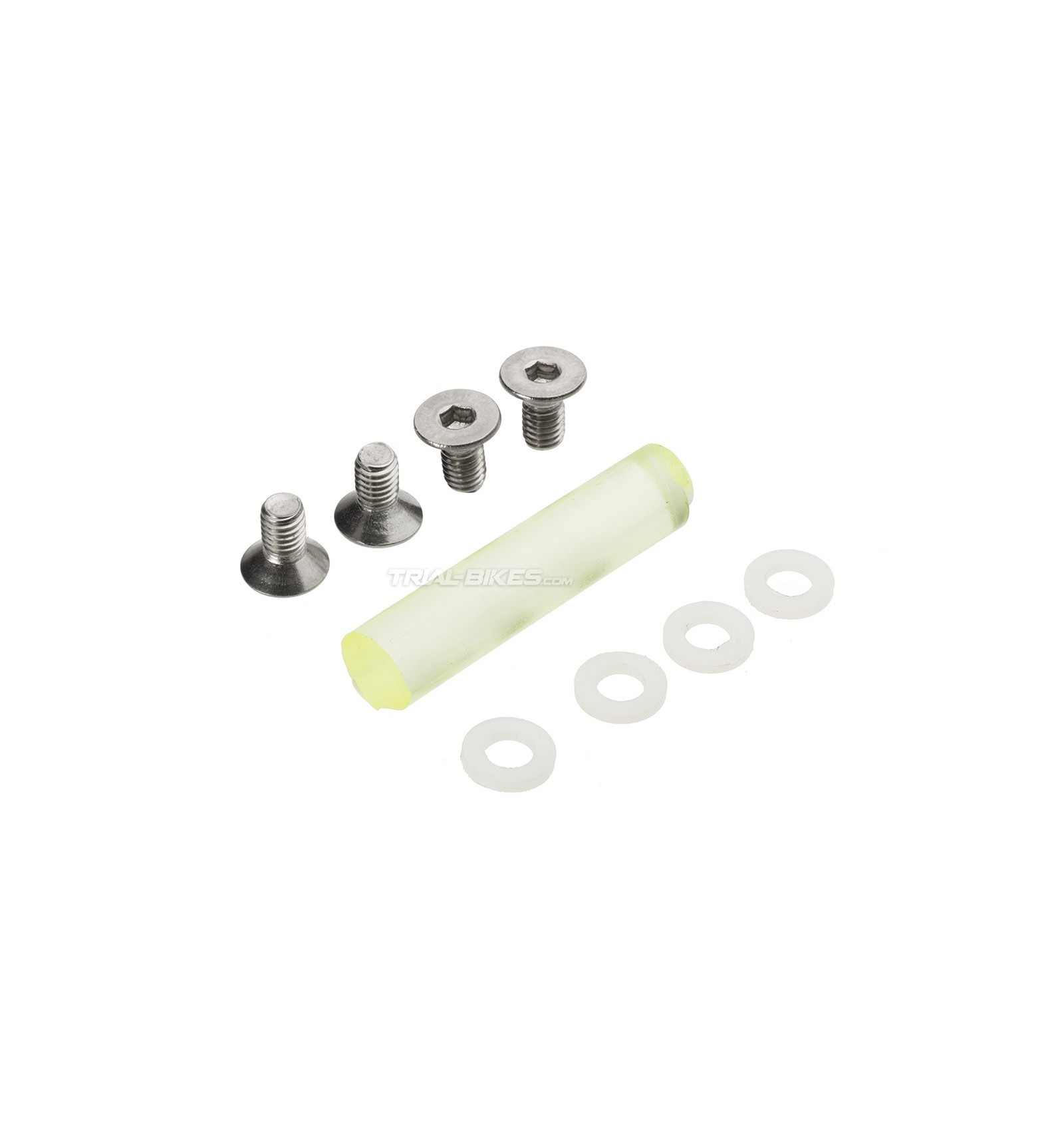

- Supplied with 4 steel bolts, rubber and nylon washers.

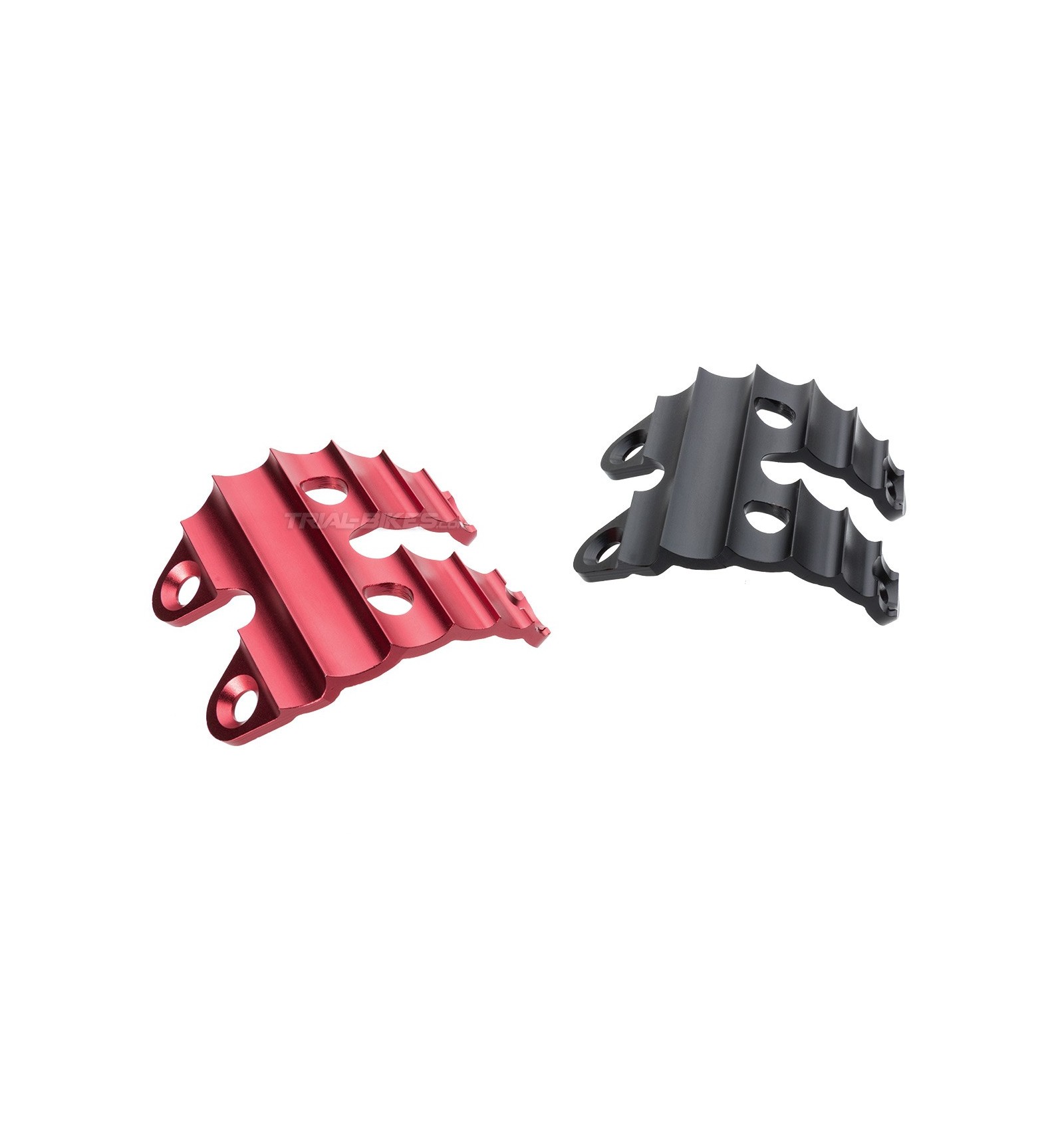

- Anodized red or black finish.

Dimensions
- Length: 76.5mm (from the front bolts to the rear holes)
- Width: 80mm
- Thickness: 4mm

Finishes
- Anodized black or red finish

Weight
- 62.9g (+bolts, rubber and washers at 19.5g)
