Description and materials

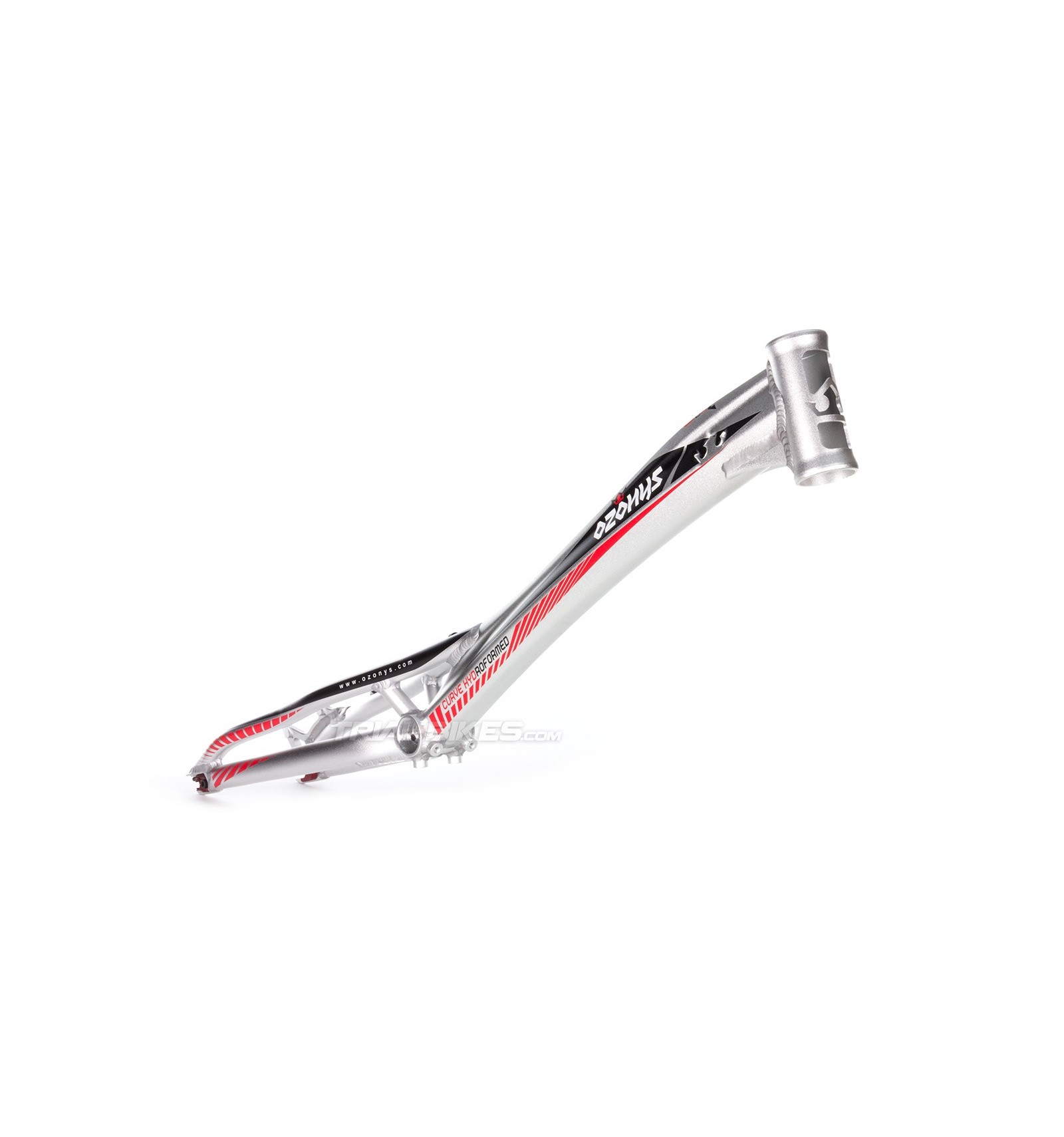

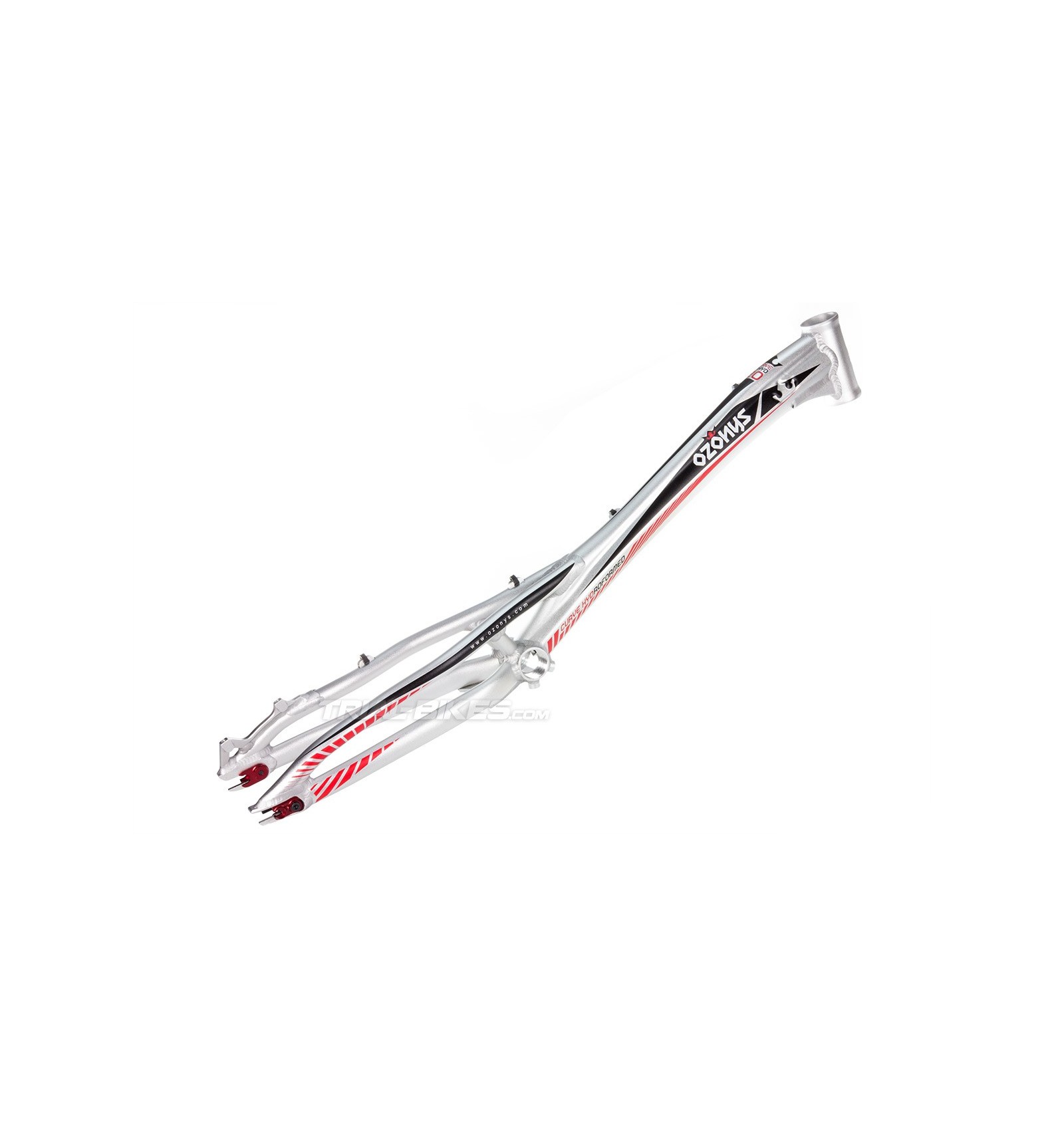

- New Ozonys Curve HYD v5 2014 20” frame, a step forward in the Curve frames evolution.
- This v5 version follows the lines of the v4 HYD frame, which successfully introduced the hydro forming technique, winning the 2013 UCI World Championship with Abel Mustieles.
- Made from high quality 6061-T6 aluminium.
- This frame keeps the unique Ozonys Curve design, but now with smaller-curvature tubes thanks to the hydro forming technique, which helps improve strength and stiffness while saving weight since less tube length is needed.

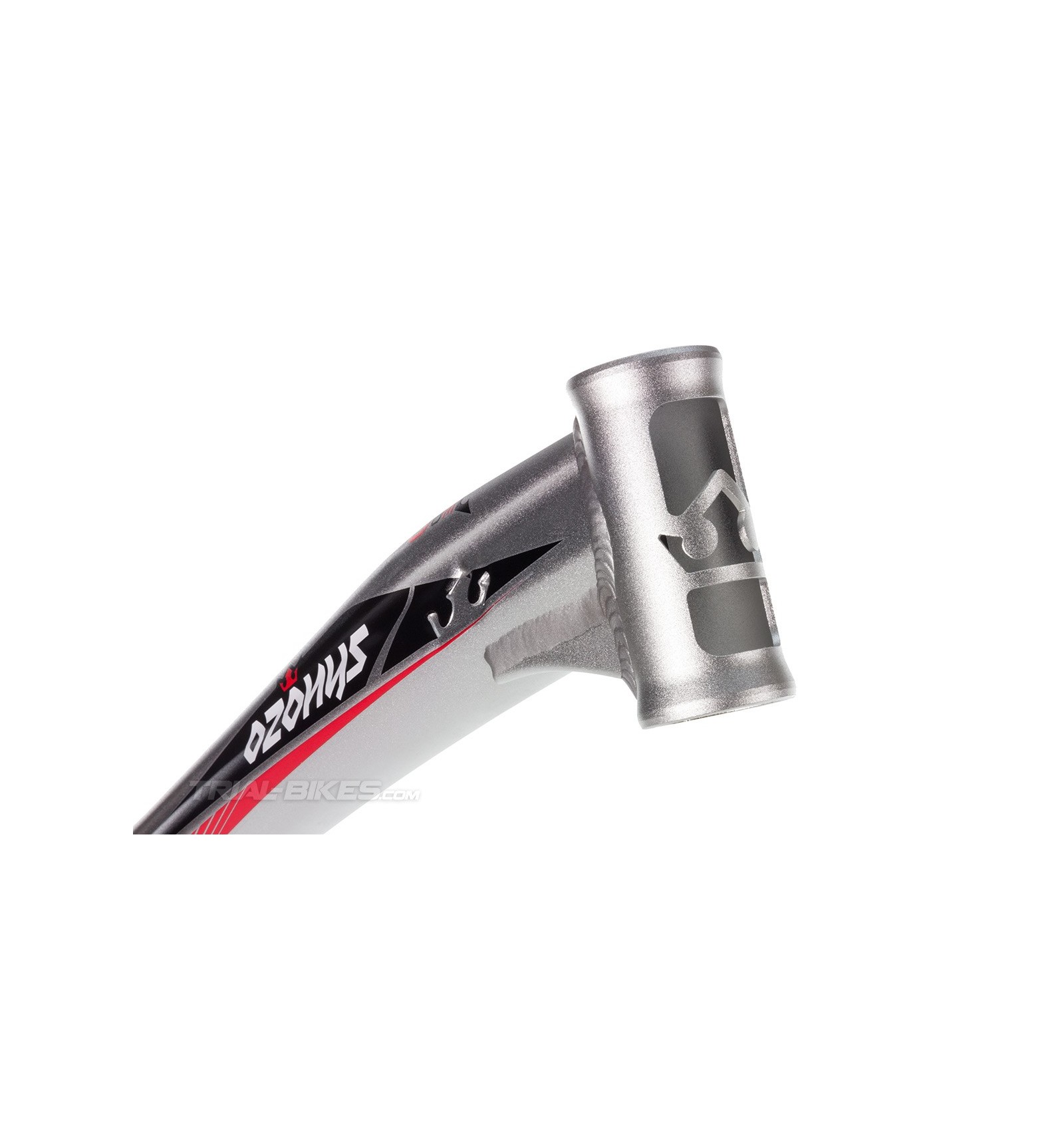

- The head tube has reinforcement gussets at the top and down tube joints, to ensure maximum strength.
- 115mm, 1 1/8 CNC’d head tube, designed to use an integrated headset.
- Designed to use with 116mm rear hubs.

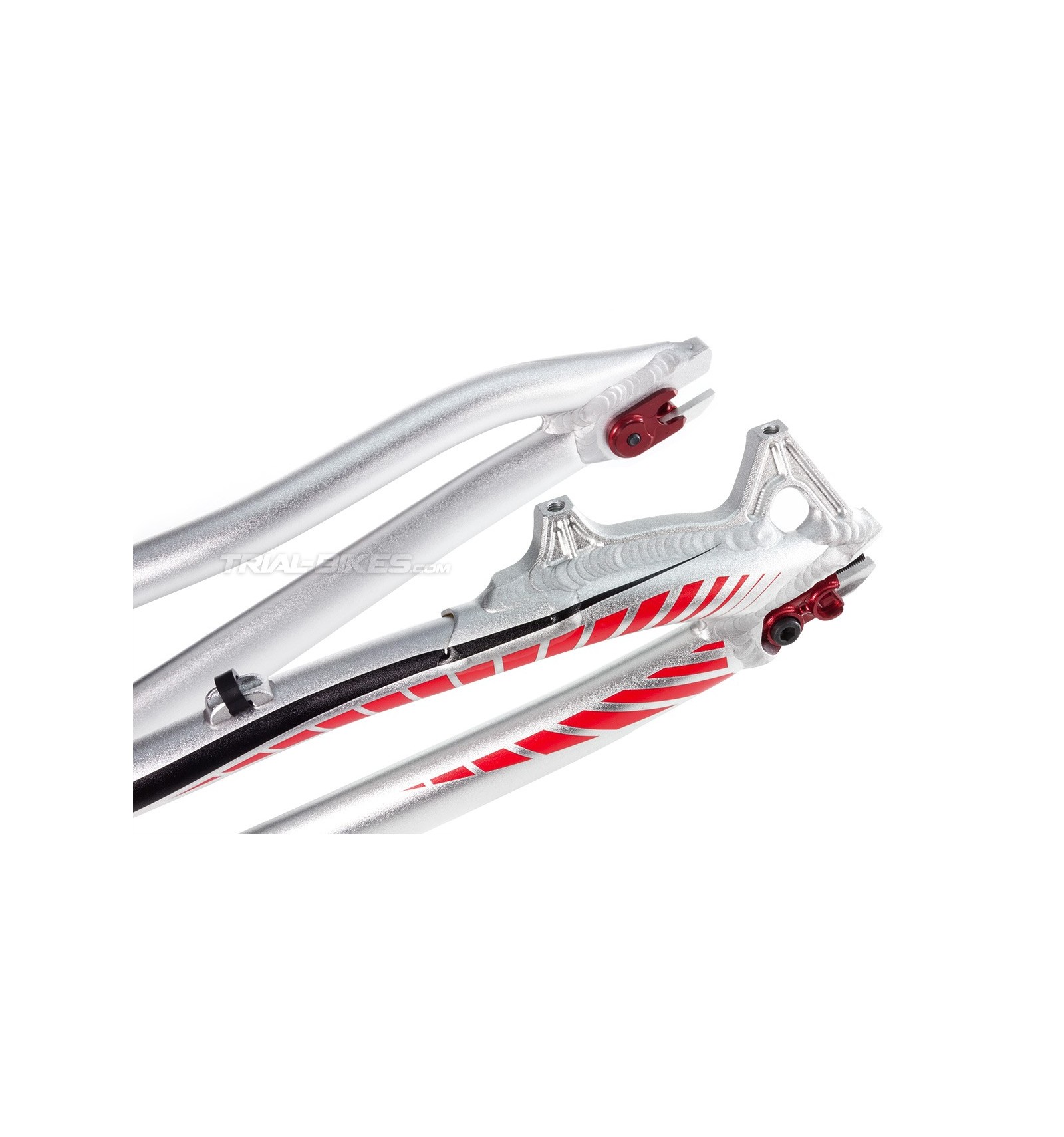

- An important novelty sees the frame now featuring integrated chain tensioner, so snail cams are no longer needed.
- To tension the chain, once the axle bolts are loose, undo the M6 bolt a bit. Now you can adjust the chain tension by using the M5 rear bolt. Afterwards, tighten the M6 bolt and the axle bolt to keep everything in place.

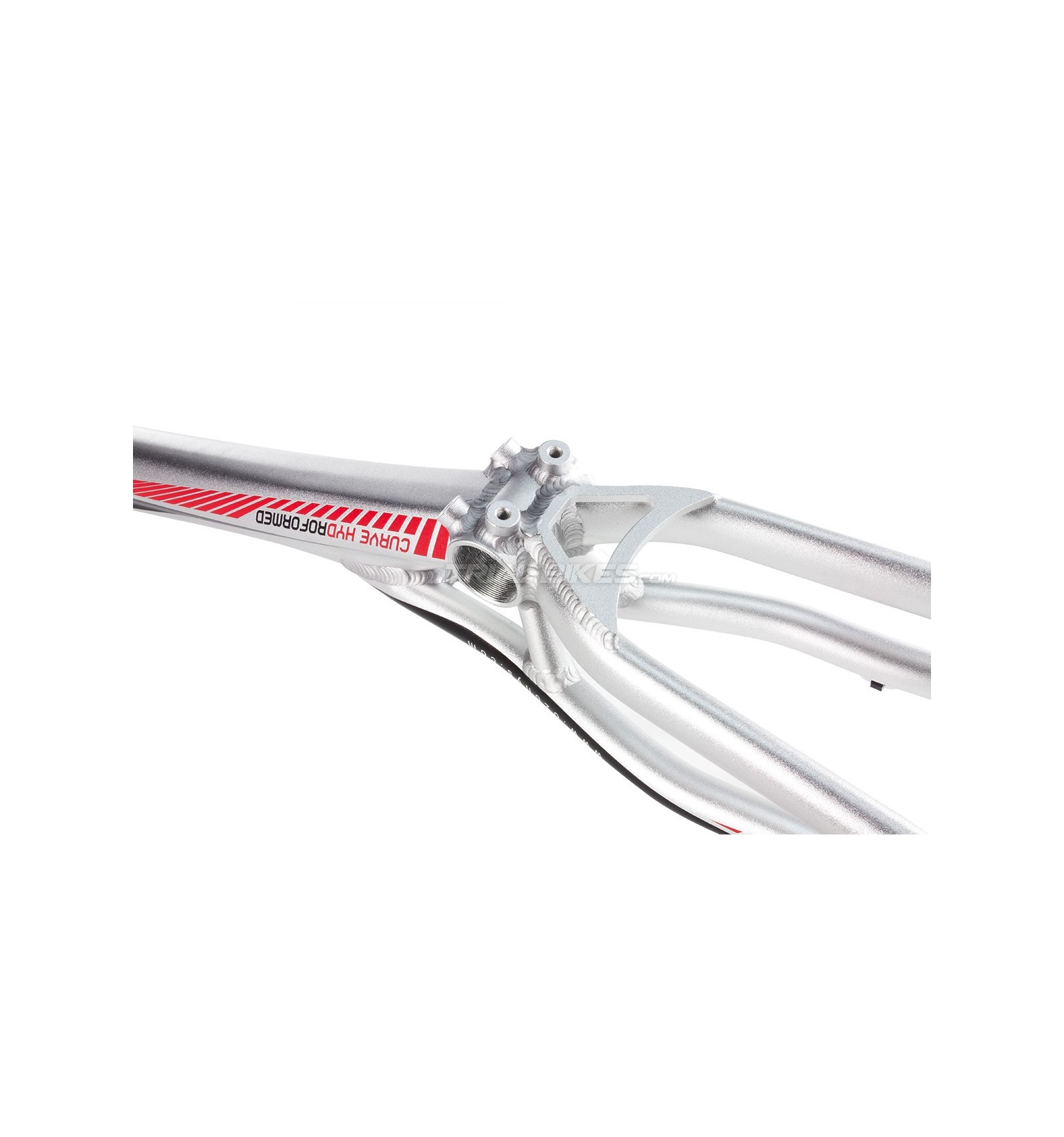

- Twin seat tubes design, creating a triangular-shaped structure over the bottom bracket, achieving the stiffest tube arrangement possible. These tubes join the main tube with a gusset to ensure everything is kept in place.
- Contoured seat and chainstays to guarantee more than enough clearance.
- Only suitable for the Bonz bash plate (not included), available here.
- Anodized silver finish, with Ozonys Curve v5 black/red/white graphics.
Versions
- Two versions available: for 160mm Post Mount disc brakes or with 4-bolt mounts for rim brakes.
- The 160mm Post Mount disc version features a CNC mechanized disc mount, with a large gusset to reinforce this hugely important area.
- The 4-bolt mount rim brake version features a CNC mechanized, built-in brake booster which improves stiffness and strength considerably, thus improving braking performance.
Geometry (measured with a 370mm x 45mm fork)
- Space between dropouts: 116mm
- Bottom bracket shell: 68mm
- Head tube: 115mm, 1 1/8’’
- Wheelbase: 970 and 1010mm
- Chain stay length: 350mm
- BB Rise: +80mm
- Head Angle: 71.5º
Finishes
- Anodized silver finish
- Ozonys Curve v5 black/red/white graphics
Weight
- 1.373kg (1010mm disc version), 1.437kg (1010mm 4-bolt version) and 1.360kg (970kg disc version), including chain tensioners
Additional information
This frame comes with a 1 year warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
WEIGHT | 1.373 |
BRAKE MOUNTS | HS |
TYPE OF HEADSET | Standard 1 1/8" |
