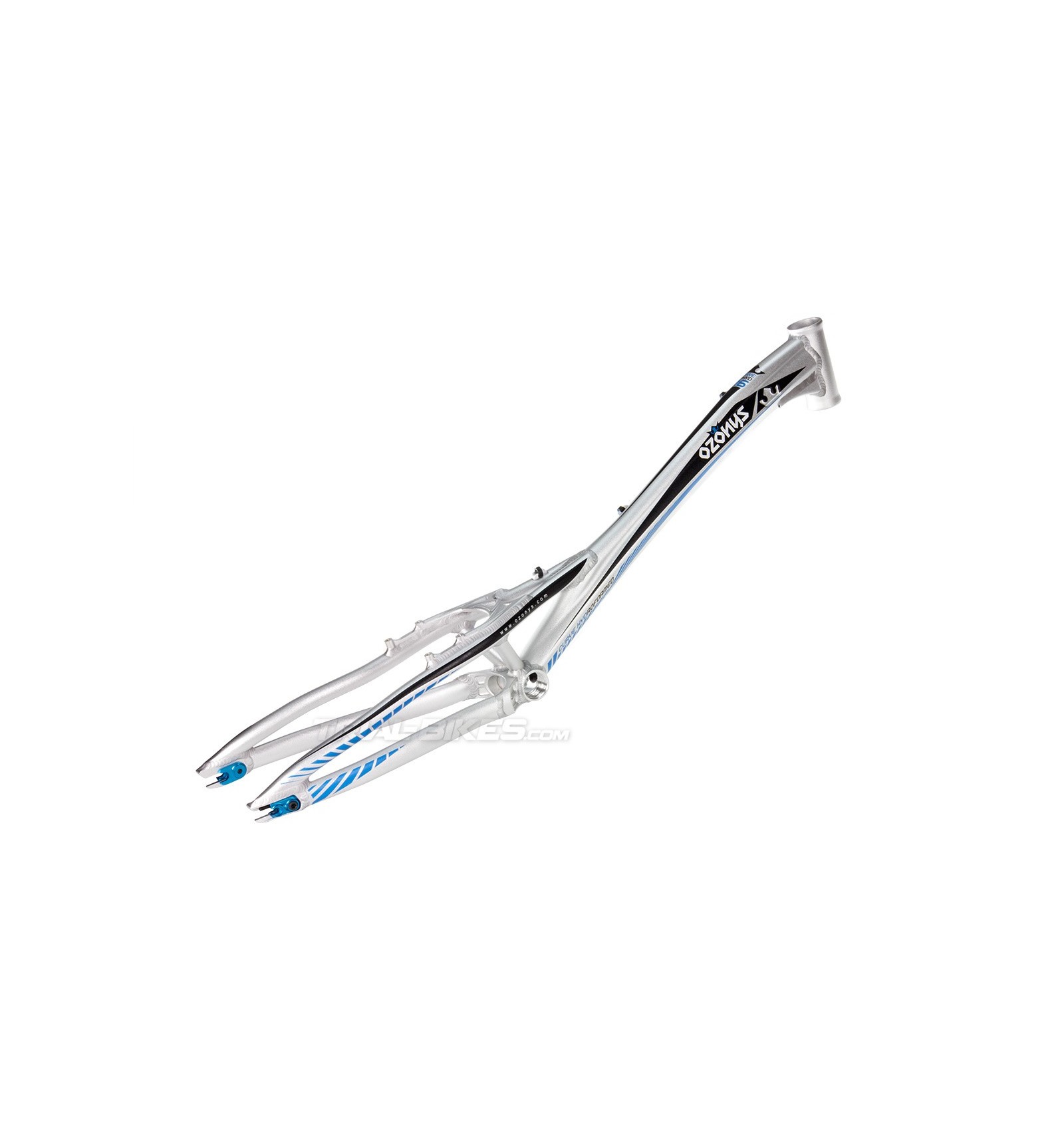

Ozonys Curve HYD V5 26'' Frame

Description and materials
- New Ozonys Curve HYD v5 2014 26” frame, a step forward in the Curve frames evolution.
- This v5 version follows the lines of the v4 HYD frame, which successfully introduced the hydro forming technique, improving overall strength and stiffness of the frame.
- Made from high quality 6061-T6 aluminium.
- This frame keeps the unique Ozonys Curve design, but now with smaller-curvature tubes thanks to the hydro forming technique, which helps improve strength and stiffness while saving weight since less tube length is needed.
- The head tube has reinforcement gussets at the top and down tube joints, to ensure maximum strength.
- 125mm, 1 1/8 CNC’d  head tube, designed to use an integrated headset.
- Designed to use with 135mm rear hubs.
- An important novelty sees the frame now featuring integrated chain tensioner, so snail cams are no longer needed.
- To tension the chain, once the axle bolts are loose, undo the M6 bolt a bit. Now you can adjust the chain tension by using the M5 rear bolt. Afterwards, tighten the M6 bolt and the axle bolt to keep everything in place.
- Twin seat tubes design, creating a triangular-shaped structure over the bottom bracket, achieving the stiffest tube arrangement possible.
- These tubes join the main tube with a gusset to ensure everything is kept in place.
- Contoured seat and chain stays to guarantee more than enough clearance.
- Anodized silver finish, with Ozonys Curve v5 black/blue/white graphics.

Versions
- Only available with 4-bolt mounts, for rim brakes.
- Features a 100mm, CNC mechanized, built-in brake booster which improves stiffness and strength considerably, thus improving braking performance.

Geometry (measured with a 400mm x 35mm fork)
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm
- Head tube: 125mm, 1 1/8’’

- Wheelbase: 1080mm
- Chain stay length: 380mm
- BB Rise: +60mm
- Head Angle: 71.5º

Finishes
- Anodized silver finish
- Ozonys Curve v5 black/blue/white graphics

Weight
- 1.590kg, including chain tensioners

Additional information
This frame comes with a 1 year  warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
