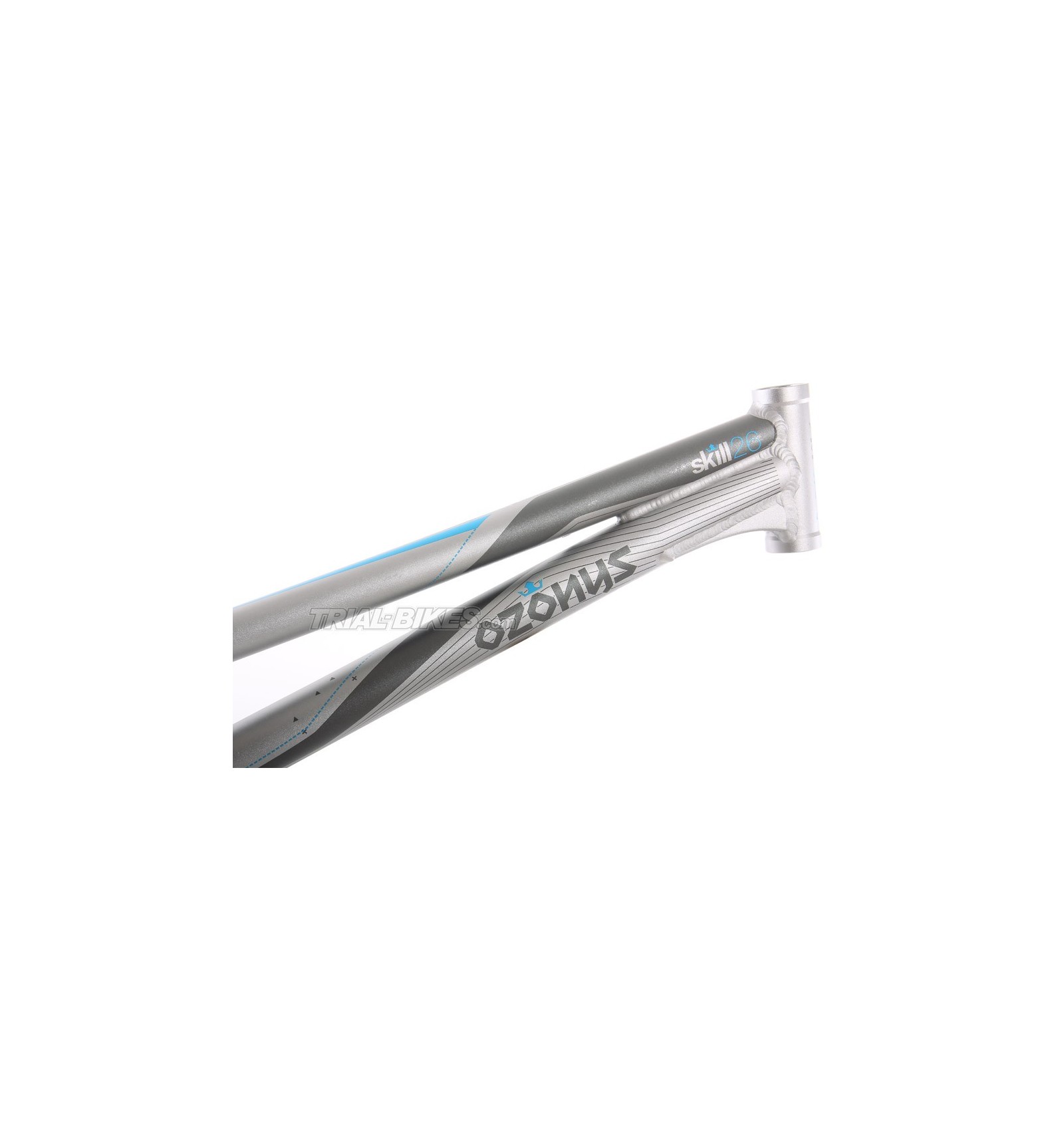

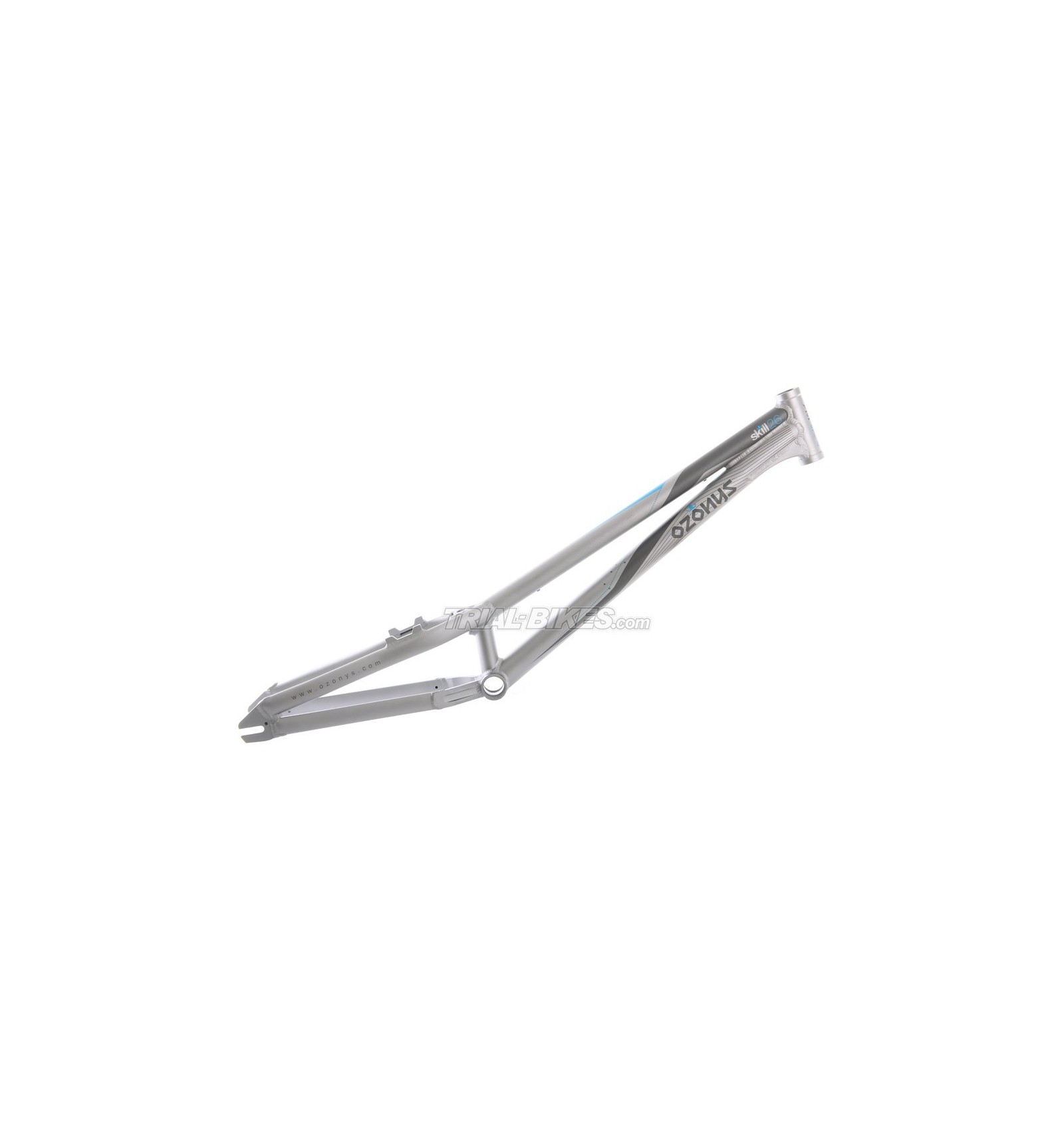

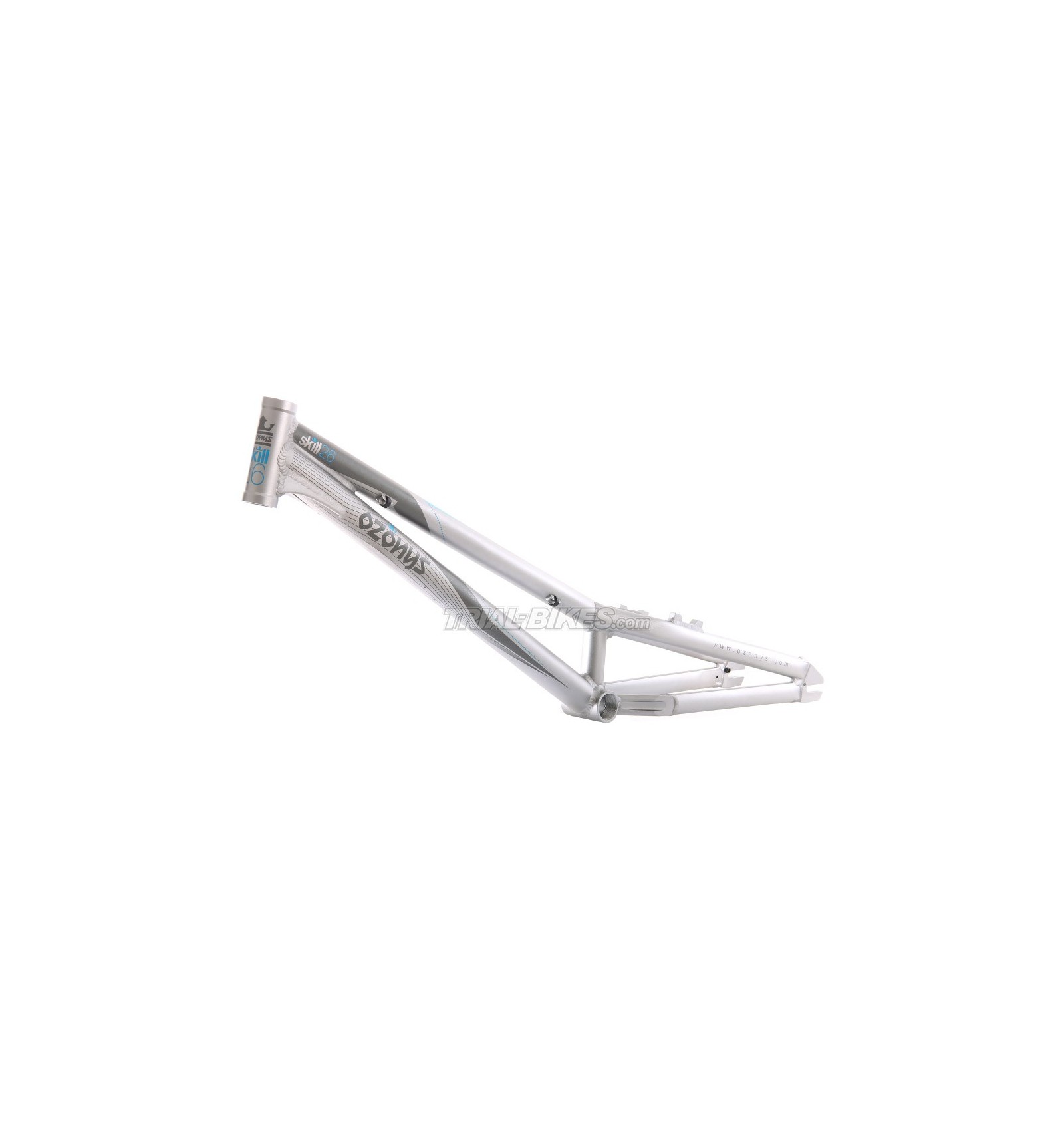

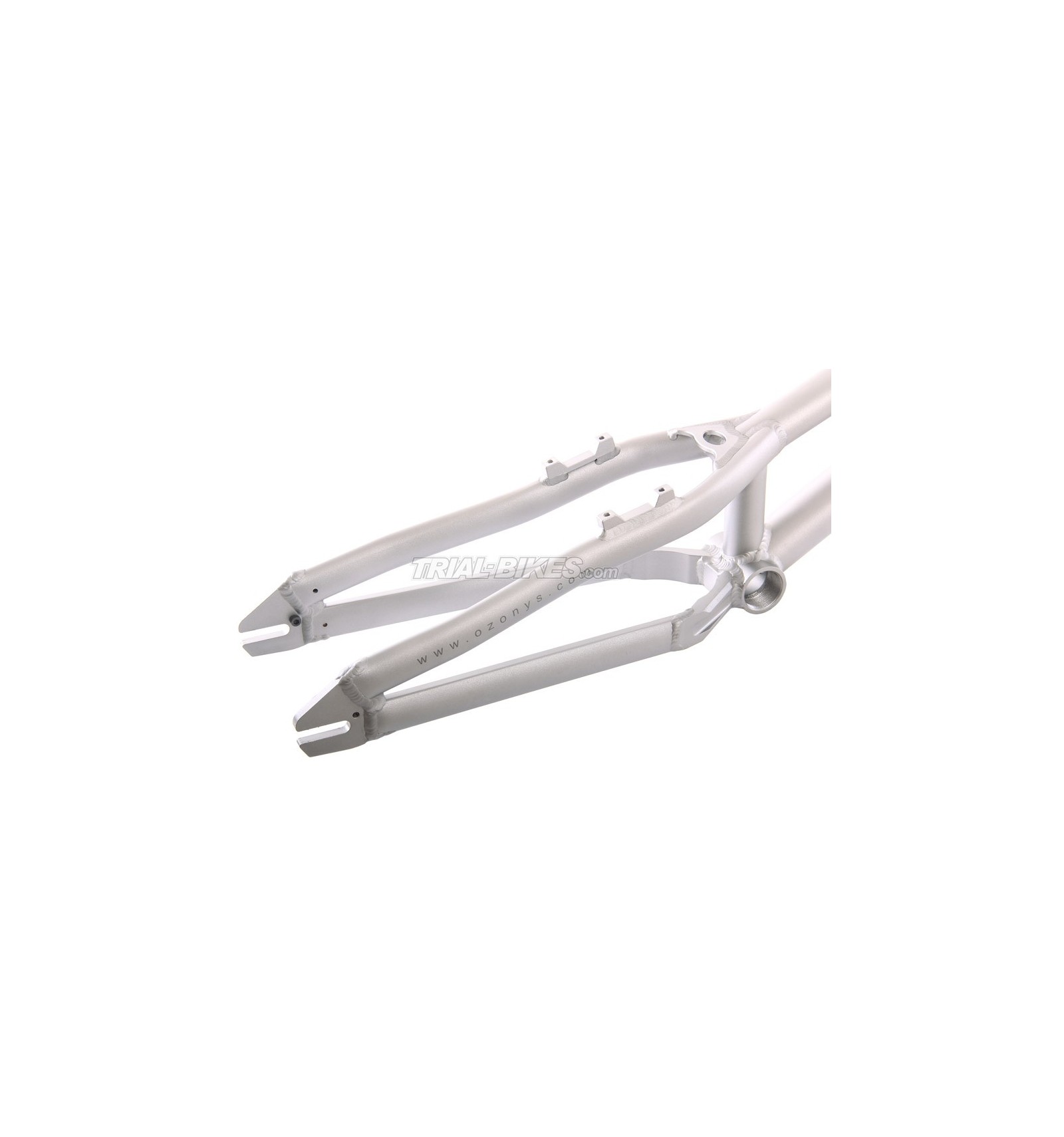

Ozonys Skill 26” Frame

Description and materials
- New Ozonys Skill 26" 2012 frame, a medium-range edition developed by the prestigious French manufacturer Ozonys.
- Ideal for those riders looking for a strong, stiff frame with a low weight.
- Made from high quality 7005 T6 aluminium.
- 120mm long, 1 1/8 head tube is suitable for all external headsets.
- New reinforcement gusset at the top and down tube joint, which increases strength and overall stiffness.
- 68mm bottom bracket shell fits128mm bottom brackets.
- Designed for 129mm rear hubs, with 3mm snail cams (135mm).
- The frame comes with 4-bolt brake mounts, spaced at 100mm.
- Anodised grey finish, with high quality graphics.

Geometry
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm
- Head tube: 120mm, 1 1/8"
- Wheelbase: 1080mm
- Chainstay Length: 380mm
- BB Rise: +40mm
- Head Angle: 71,5 º

Finishes
- Anodised grey.
- Green/ dark grey graphics.

Weight
- 1640g

Additional information
 This frame comes with 1 year warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
 If you have any doubts, please contact us on info@trial-bikes.com
