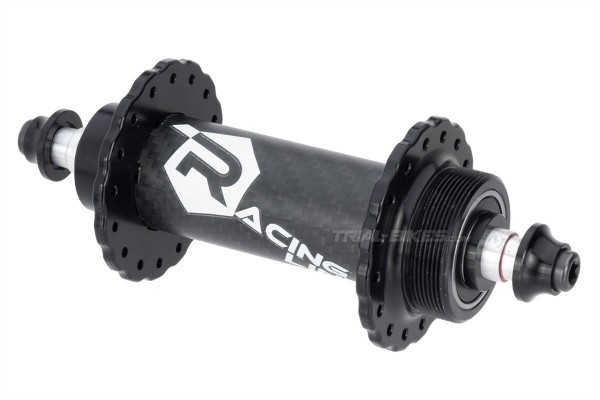

Racing Line 3K Carbon Rear Non-Disc Hub

Description and materials
- New ultralight rear non-disc hub, developed by Asian manufacturer Racing Line.
- This hub features a high quality, 3K carbon fibre centre shell, which saves a lot of weight when compared to traditional aluminium shells
- Furthermore, its hollow aluminium axle and titanium bolts, combined with the carbon hub shell and compact, minimalistic design, allow for a considerable weight saving.
- Ultra light 12mm 7075-T6 aluminium hollow axle, 100mm long and with an M6 thread, in anodized silver.
- 106mm spacing means you need two 5mm-wide snail cams to make the 116mm, standard for most 20” frames and some 26” frames (get in touch if you have any doubts!).
- Note: only Racing Line snail cams will fit this hub, or those snail cams 5mm-wide and designed for using in a Ø12mm axle.
- Features a standard 1,37”x24tpi thread, suitable for most threaded freewheels and sprockets.
- Includes high quality Torx T25 M6x20mm titanium bolts.
- Only available with 32 holes, for rim brakes.

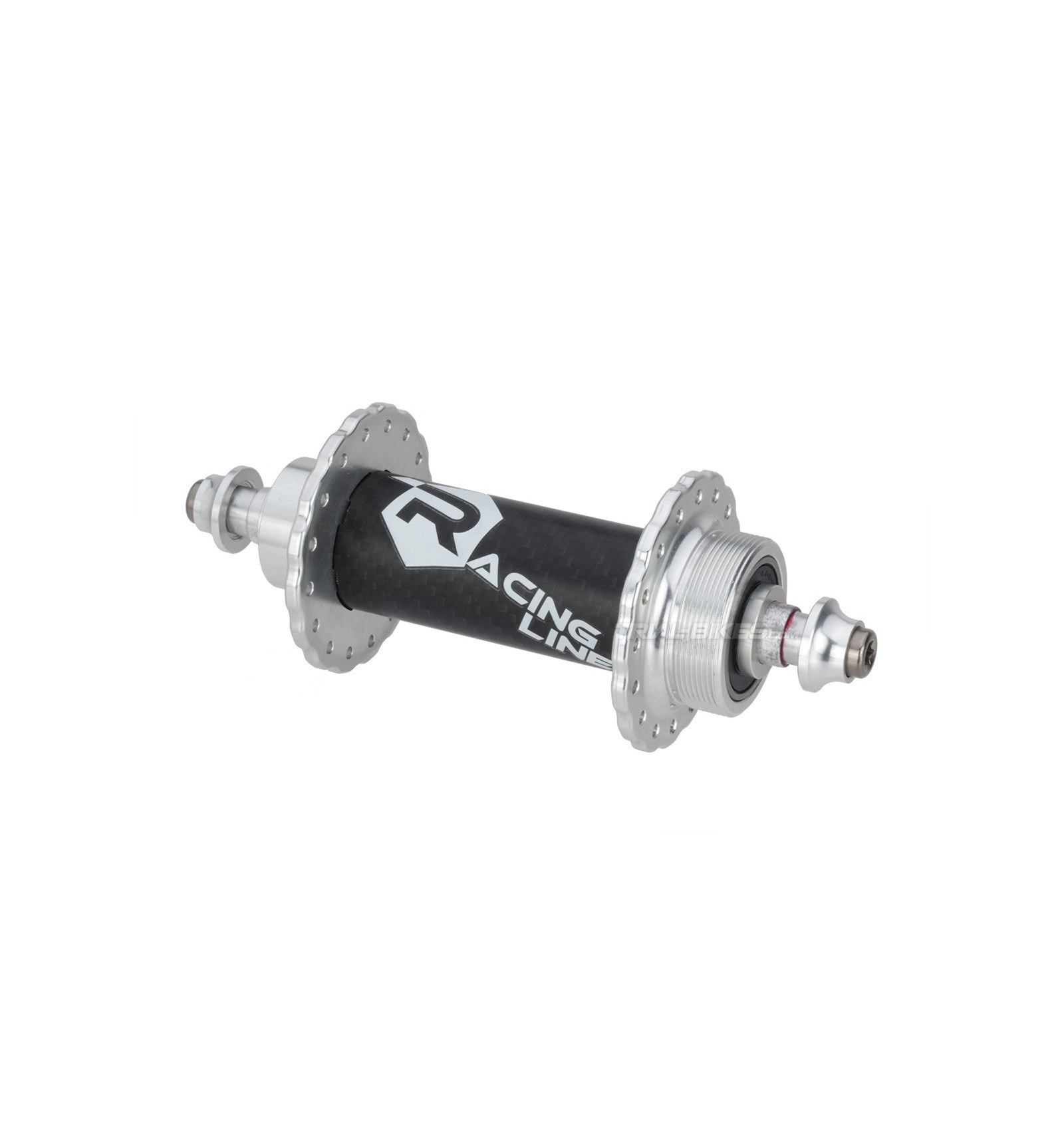

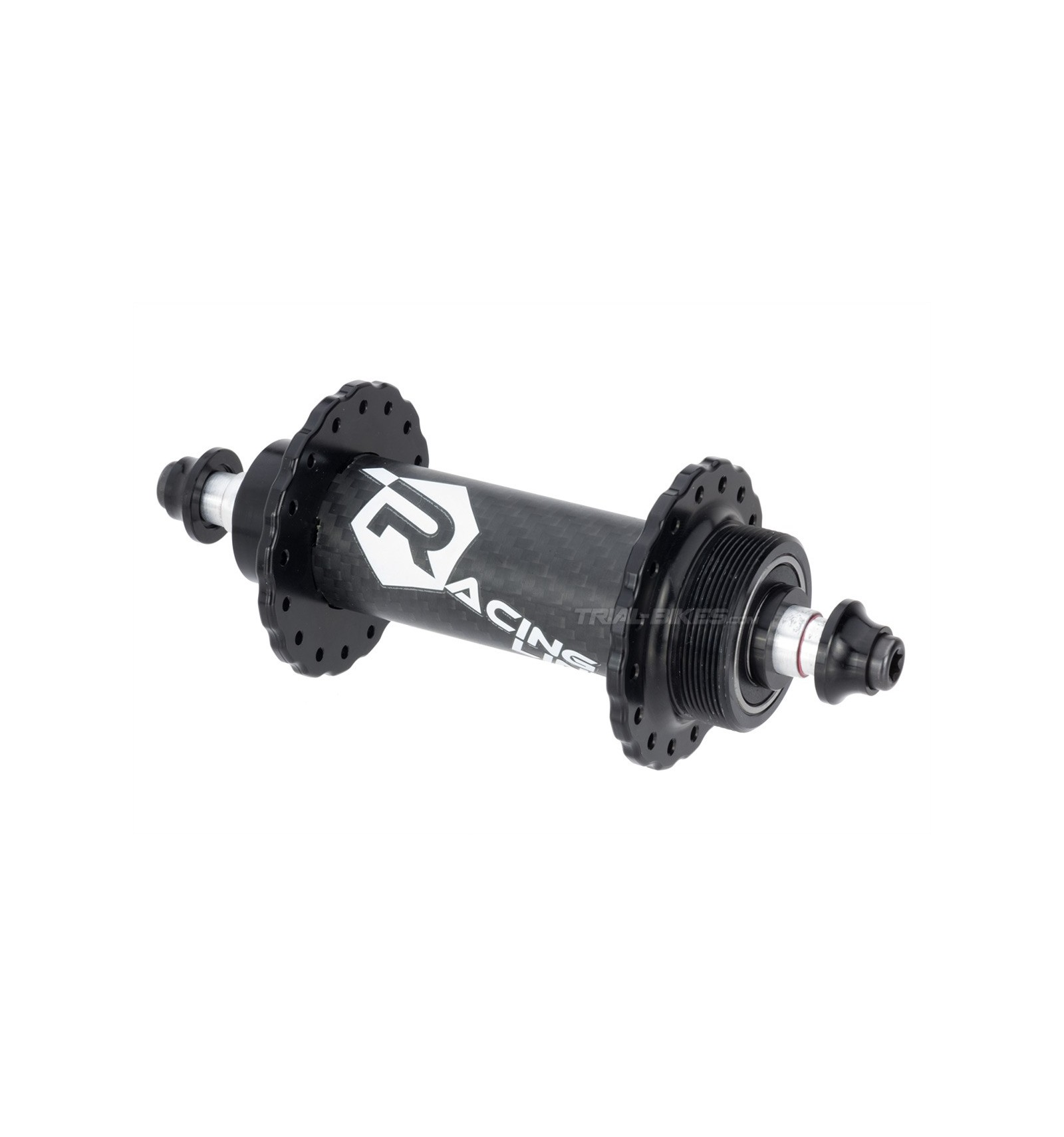

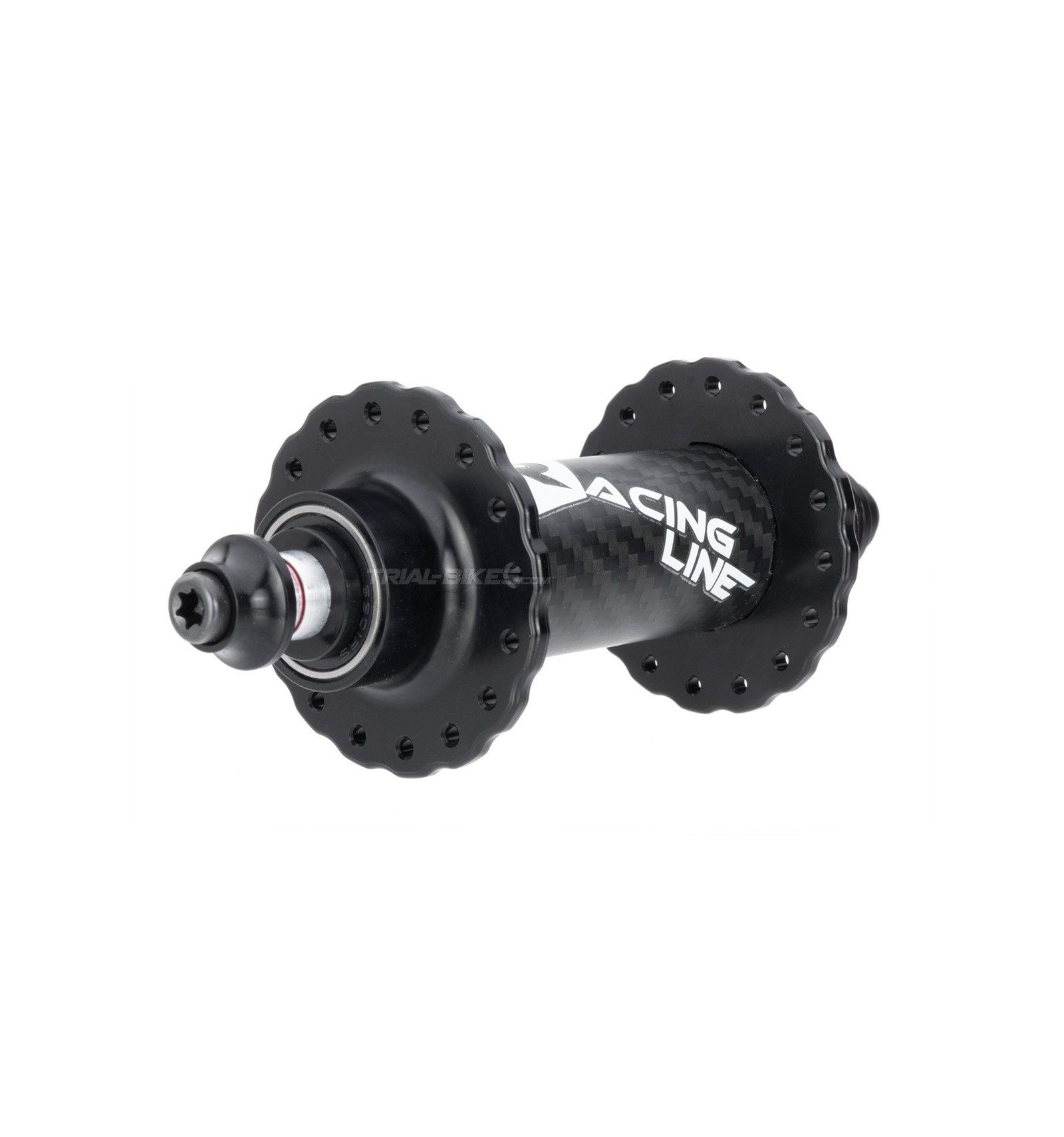

- Two finishes available: silver or black shell, both with anodized silver axle and white Racing Line graphics at the centre of the shell.

Dimensions
- Axle length: 106mm
- Axle diameter: 12mm
- 32 holes

Finishes
- Two finishes available: silver or black shell, both with anodized silver axle and white Racing Line graphics at the centre of the shell.

Weight
- Only 139g!! (+11g of bolts and washers)

Additional information
We must insist: only Racing Line snail cams will fit this hub, or those snail cams 5mm-wide and designed for using in a Ø12mm axle.
