Rockman Liberte 26" Frame

Rockman Liberte 26" Frame

Description and materials

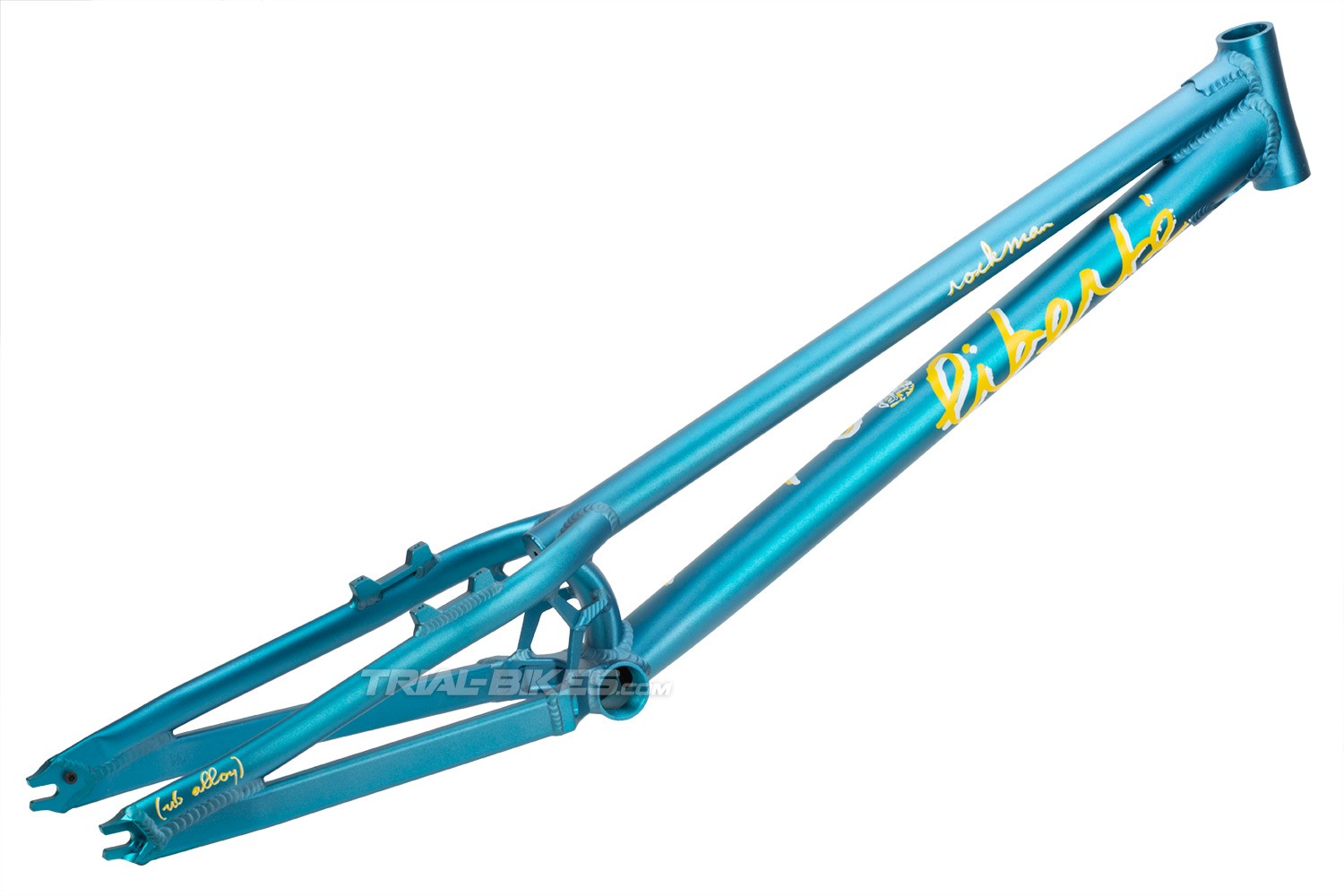

- New Rockman Liberte 26’’ trials frame.
- Made from high quality U6 aluminium.
- New tubes design, now with a larger diameter but reduced thickness, which reduces weight considerably while keeping enough rigidity and strength.
- One-piece reinforced 68mm bottom bracket shell, with a large hole in each side.
- 1 1/8” head tube (for standard headsets), 115mm long, gusseted to the down tube to improve the front-end stiffness.
- 100mm spaced 4-bolt brake mounts.

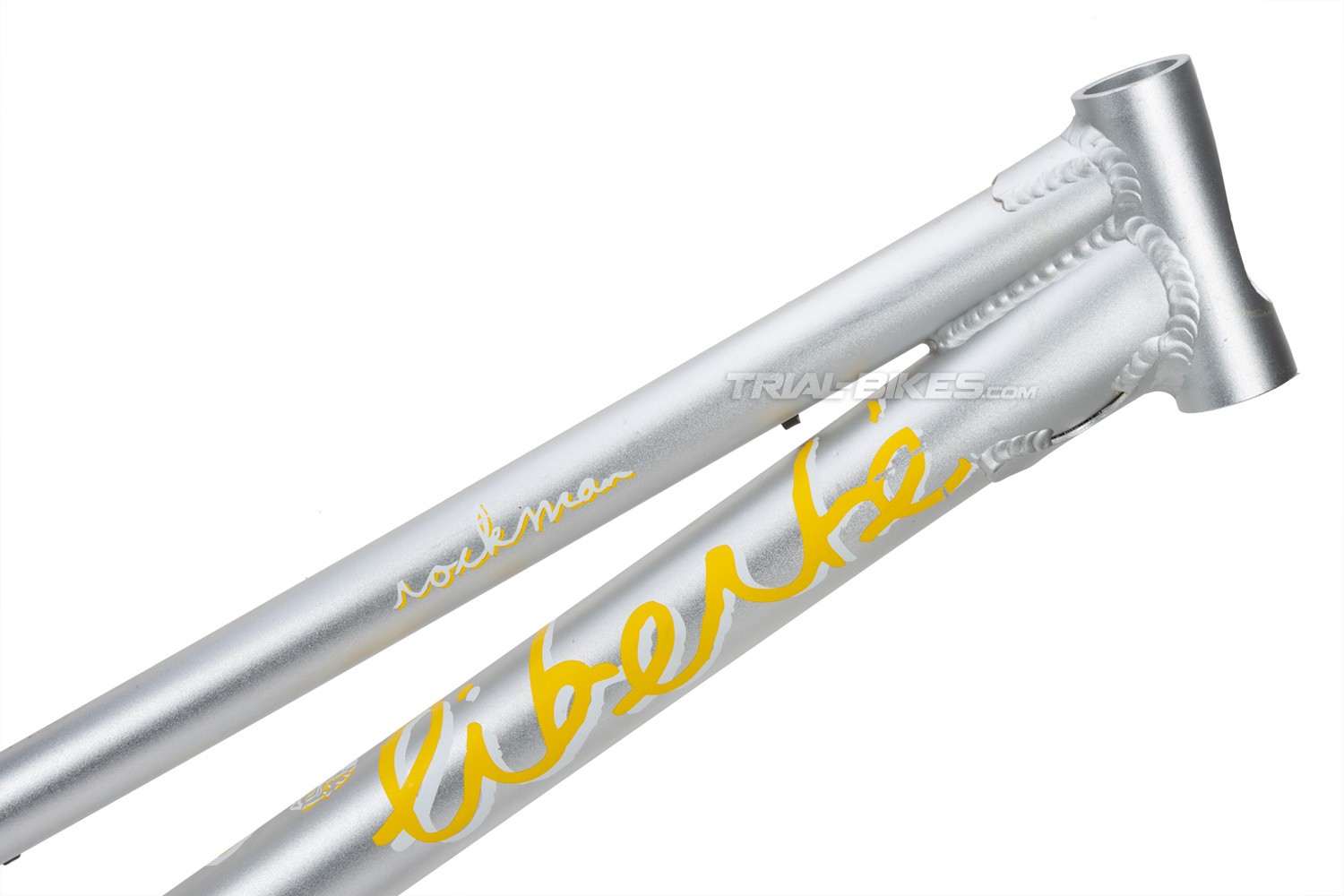

- Machined gussets at the top and down tubes, to help strengthen this important area.
- 135mm horizontal dropouts, suitable for all 135mm hubs.
- HS33 version only.

Geometry
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm
- Head tube: 115mm, 1 1/8"

- Wheelbase: 1085mm
- Chainstay Length: 380mm
- BB Rise: 55mm
- Head Angle: 71,5º

Finishes
- Anodised blue and silver finish
- Yelllow and white Rockman Liberte graphics.

Weight
- 1556g

Additional information
This frame comes with 3 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.

If you have any doubts, please contact us on info@trial-bikes.com .
