Rockman Tapered 20” bike trials fork and the widest range of trials parts, ready for immediate delivery and express shipping worldwide. Find trials brands like Ozonys, Clean, Jitsie, Monty, Hope, Magura, Rockman, Breath, etc.
This product is no longer in stock
Description and materials

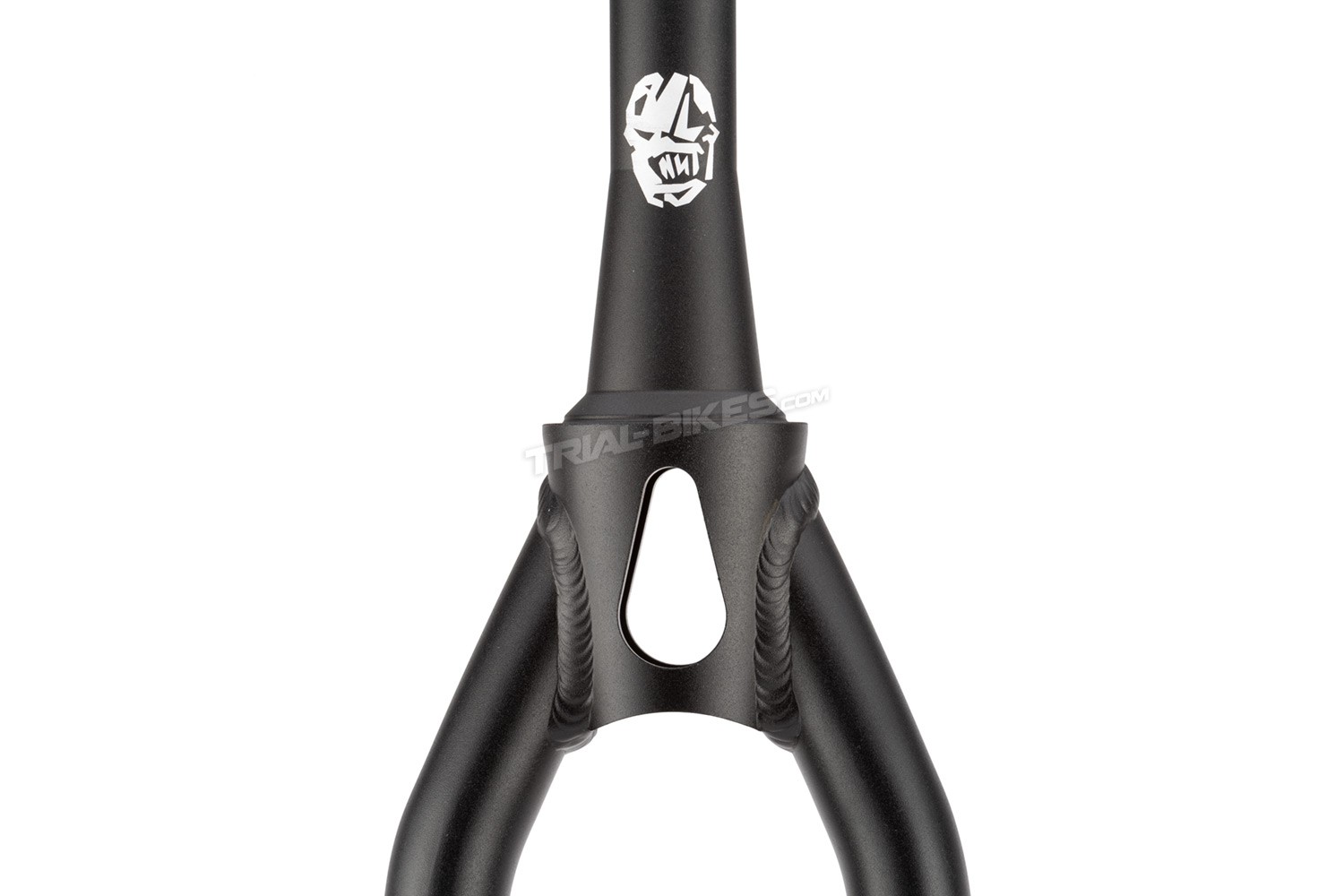

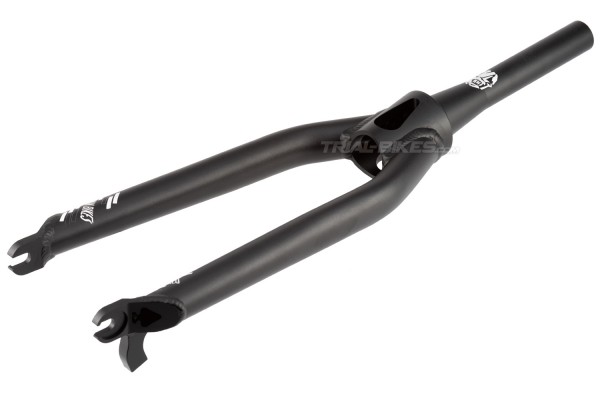

- High-end Rockman Tapered 20” bike trials fork.
- Developed and tested for months by Rockman team rider Sam Oliver.
- Made of 7005-T6 aluminium alloy for high strength and low weight.
- Tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom.
- The steerer tube is machined in one piece to optimize stiffness and prevent cracking.
- Moreover, the bottom has 2 large cut-outs that remove any excess material.
- The steerer tube features an integrated crown race recess for the lower bearing, so there is no need to install one.
- Available with Post Mount 160 mm disc brake mounts, neatly integrated on the left leg.
- Dropouts spaced at 100 mm, compatible with most front hubs for bike trials.

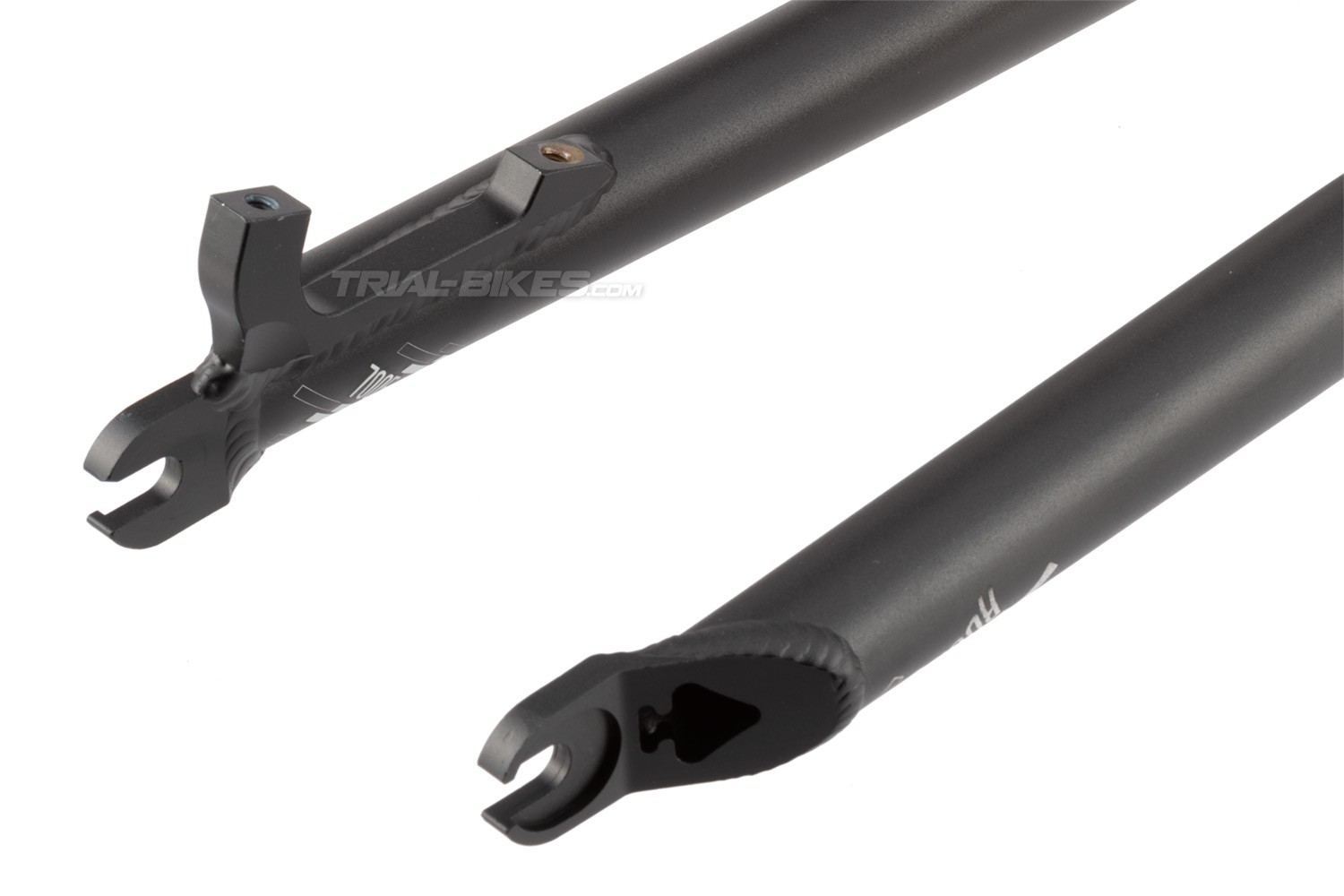

- Each dropout has a spades-shaped hole that helps save weight and gives a unique look.
- Comes with the star nut already installed.
Compatible with:
- Frames with tapered 1 1/8” – 1.5” head tube.
- Front hubs with 10 mm diameter axle and 100mm spacing.
- Note: in case you’d like to install this fork on a frame with 1 1/8” head tube, an adaptor must be used.
Dimensions
(1) Length: 370 mm.
-----------------------------------------------
(2) Offset: +35 mm.
-----------------------------------------------
(3) Steerer tube length: 190 mm.
-----------------------------------------------
- Steerer tube thickness: 4 mm.
Colour
- Anodized black, with white Rockman graphics.
Weight
- 783.14 g.
MATERIAL | Aluminium |
BRAKE MOUNTS | Post Mount Disc |
STEERER TUBE | Tapered 1 1/8” - 1.5” |
