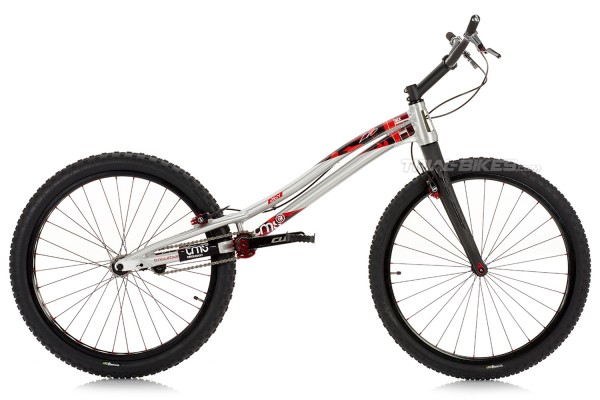

TMS EVO6 26Y Race 26" Bike Silver

TMS EVO6 26Y  Race 26" Bike Silver

• Option 1: Clean CNC ISIS Cranks
• Option 2: Clean X2 BB30 Crankset

Check the following list to see the components of each setup option.

Frame and fork
- Frame: TMS Evo6 26Y 26”, made from 6065-T6 aluminium alloys, with 4-bolt rim brake mounts.
- Forks: Clean K1.2 26”, made of high-modulus carbon fibre, tapered 1 1/8” – 1.5”, with 4-bolt rim brake mounts and 12K carbon finish, 12mm through-axle.

Wheels
- Front hub: Clean X3, 12mm through-axle, 28 spoke holes, without rotor mounts, 104mm spacing, anodized black.
- Rear hub: Clean X3, 12mm through-axle, 32 spoke holes, 120mm spacing, anodized black.
- Chain tensioner: Clean X2 integrated, with two 12T jockey wheels made of plastic, black.
- Front rim: Clean X2 High Profile 26”, single wall, 31mm wide, 28 spoke holes, anodized black.
- Rear rim: Clean X2 High Profile 26”, single wall, 49mm wide, 32 spoke holes, anodized black.
- Spokes: Stainless lightweight spokes, black.
- Rim tape: Clean, grey.
- Front inner tube: Maxxis.
- Rear inner tube: Maxxis.
- Front tyre: Clean Koala V2 26”x2.00”.
- Rear tyre: Clean Koala V2 26”x2.60”.

Brakes
- Front brake: Hashtagg H20 rim brake.
- Rear brake: Hashtagg H20 rim brake.

- Rim brake pads: Jitsie Race.
- Brake clamps: Clean X2 Washerless.

Drivetrain
- Crankset: Clean X1 CNC ISIS 170mm or Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machined, with a new adjustment system. 175mm long cranks, for Shimano HG-splined freewheel (depending on cranks / crankset choice).
- Freewheel: Clean X2 135.9 18T, with 135.9 engagement points, 9 pawls and 18 teeth, red color.
- Chain: KMC, silver.
- Rear sprocket: Clean 15T Screw-on.
- Pedals: Clean single cage, made from 7075-T6 aluminium alloy, anodized black.
- Bashplate: TMS Ring, anodized red.

Steering
- Headset: TMS Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized black.
- Stem: Clean Trials Pro, 141.6mm x 27.6º or Clean 145mm x 25º 31.8mm Oversized handlebar diameter (depending on availability).
- Grips: TMS foam, black.
- Handlebar: Clean X2 107mm carbon fibre, 730mm long, 31.8mm Oversized handlebar diameter, 12K carbon finish.

Geometry:
- Wheelbase: 1077mm
- Chainstay length: 377mm
- Bottom bracket rise: +67.1mm
- Head angle: 72º

Weight
- 7.9kg

Additional information:
The list of components may change. Any changes on the components will be communicated to the customer before delivery, ensuring the component replaces is of the same or higher quality than listed.

Important: Some pictures may not match the item described, so please read the description carefully.

Dispatch time for this bike might be delayed up to 5 days: it is partially set up at our workshop, so the customer will only have to install the front wheel and setup the headset.

If you have any doubts, please contact us on info@trial-bikes.com.
