TMS Vortex Ultimate 26" Bike

TMS Vortex Ultimate 26" Bike

This Vortex 26" bike is the result of several years of research and development, tested and approved in close collaboration with world elite rider Arthur Cavagna.

✅ Fully equipped with Crewkerz WAW components, ensuring quality and durability.

✅ Rear freewheel hub, providing precise and quick response.

✅ Hydroformed tubes for added rigidity and a refined aesthetic.

Note: this bike is delivered on demand. Once the order is submitted, delivery times usually oscillate between 7-15 work days.

In the following list, you can see the components of this bike:

Frame and fork
- Frame: TMS Vortex 26” Ultimate, made from 6065-T6 aluminum alloy, with a 1 1/5" tapered head tube, 12 mm thru-axle, polished aluminum finish.
- Forks: Crewkerz Waw Ultimate Carbon 26”, with 1 1/8” – 1.5” tapered steerer tube, 9 mm thru-axle.

Wheels
- Front hub: Crewkerz Waw HS or Disc 100 mm 28H, with 9 mm thru-axle.

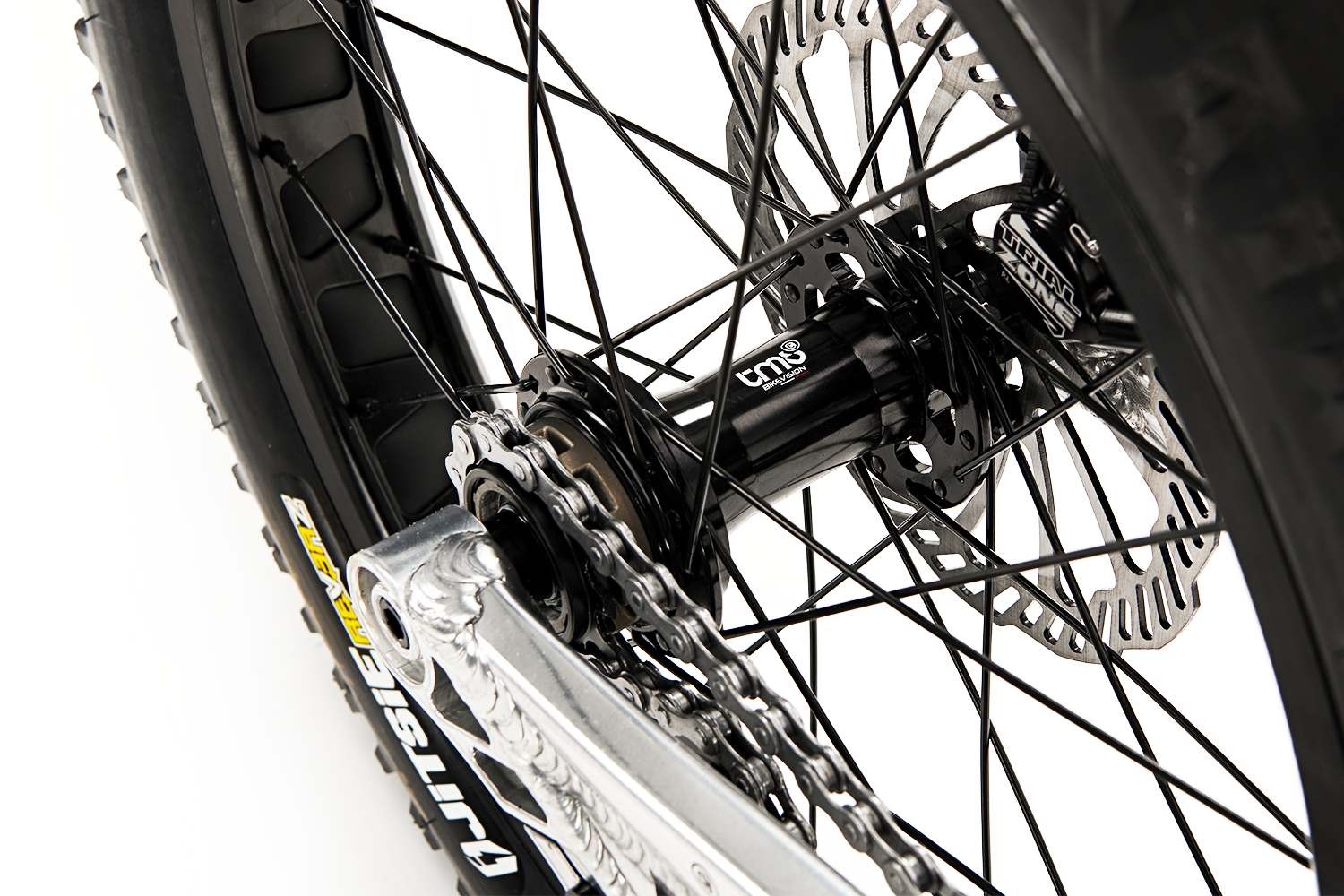

- Rear hub: TMS Rear Disc Freehub 135 mm 32H, with 12 mm thru-axle.
- Chain tensioner: TMS, with two 10T plastic wheels.
- Front rim: Hashtagg 26”, 28 spoke holes.
- Rear rim:  Hashtagg 26”, 32 spoke holes.
- Spokes: Inox 1.8 mm.
- Spoke nipples: Aluminium, anodized black.
- Rim tape: TMS, black.
- Front inner tube: Maxxis 26”.
- Rear inner tube: Maxxis 26”.
- Front tyre: Vee Rubber WAW Edition 26" x 2.0.
- Rear tyre: Vee Rubber WAW Edition 26" x 2.5.

Brakes
- Front brake: Trialtech sport Rim Brake, black.
- Rear brake: Trialtech sport Rim Brake, black.

Drivetrain
- Crankset: Crewkerz WAW AS30 crankset, CNC machined from 7075-T6 aluminium alloy. Comes with 160 mm cranks and Shimano HG splines, black
- Freewheel: Splined Sprocket, with 18 teeth.
- Chain: KMC X9, silver.
- Rear sprocket: TMS 15T Splined Sprocket, made of steel.
- Pedals: Crewkerz WAW Single-cage 7075-T6.
- Basplate: Crewkerz Waw bashring, black.

Steering
- Headset: Crewkerz Internal Tapered 1 1/8” – 1.5”, anodized black.
- Stem: Crewkerz WAW Ulimate 145 mm x 20º.
- Top cap: Crewkerz WAW, anodized red.
- Grips: TMS foam, black.
- Handlebar: Crewkerz Ultimate Carbon, 102 mm high, 720 mm long.

Geometry

(1) Wheelbase: 1070 mm
-----------------------------------------------
(2) Rear End: 380 mm
-----------------------------------------------
(3) Bottom Bracket Height: +67 mm.
-----------------------------------------------
(4) Head Angle: 72°.
-----------------------------------------------
(5) Centre of BB shell to centre top of head tube:  mm
-----------------------------------------------
(6) Reach:  mm
-----------------------------------------------
(7) Stack:  mm
-----------------------------------------------

Weight
- 9.8 Kg (To be confirmed).

Additional information:
The parts listed may be subject to change. Any changes on the setup will be notified to the customer before delivering the bike, and the replacement part will be of the same or superior quality to the one listed above.

Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop, so the customer will only have to set both the front wheel and the headset up.
