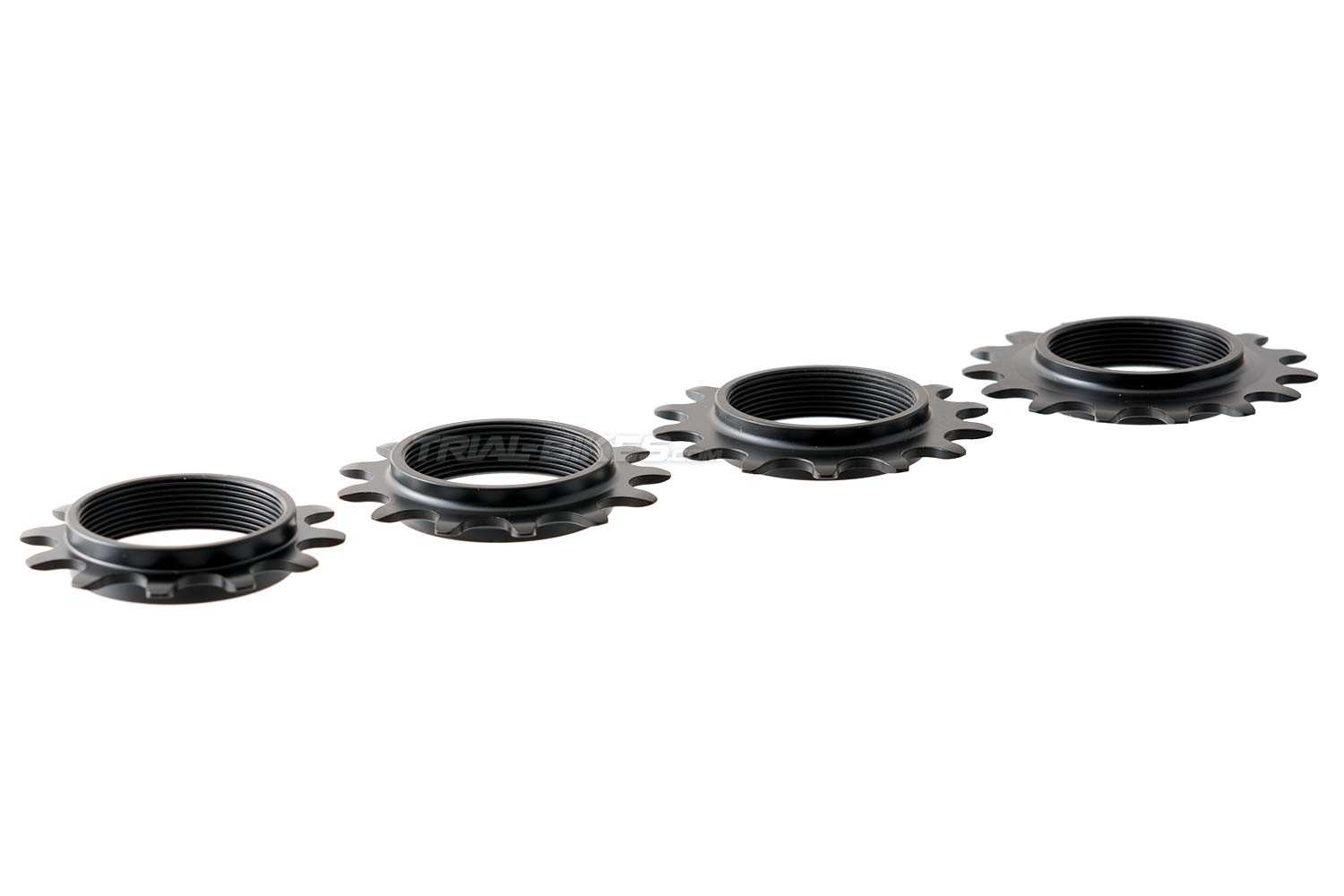

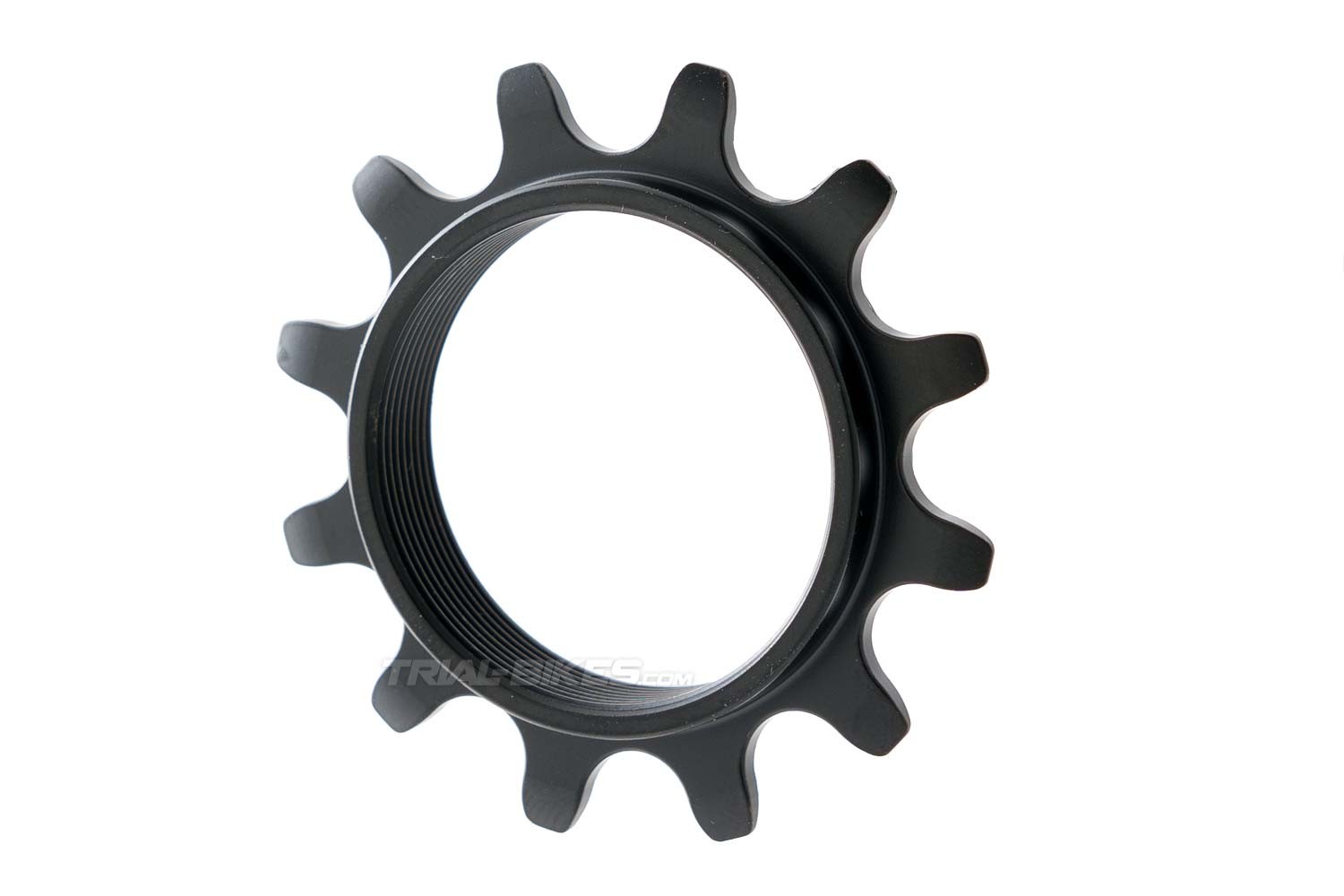

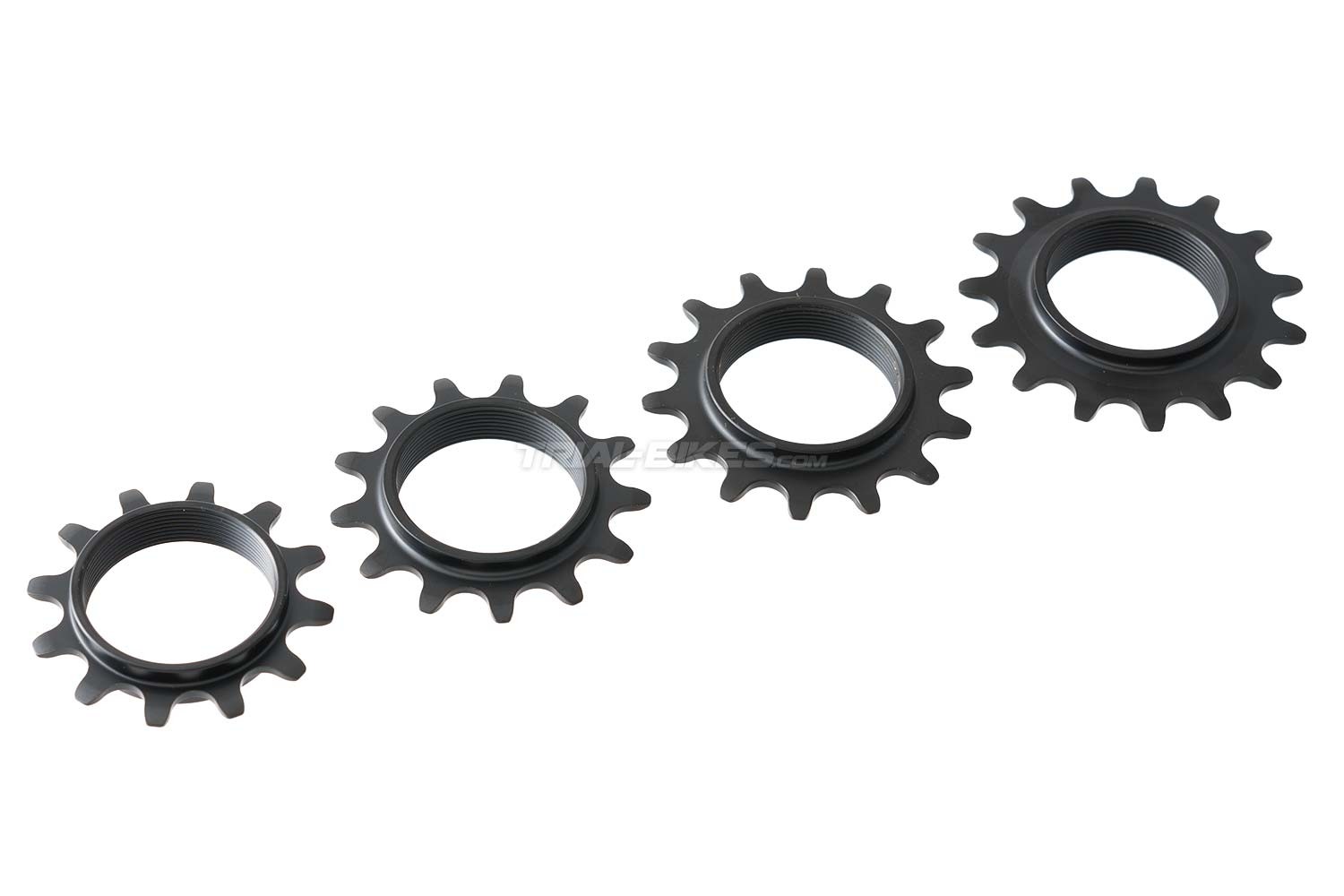

TrialBikes Centred Sprocket

TrialBikes Centred Sprocket

- New TrialBikes screw-On sprocket available with 12 or 15 teeth.
- Lightweight and durable sprocket, made of high-quality steel, ensuring virtually no issues with threading or tooth damage thanks to its exceptional strength.
- Standard 35 mm thread, 1.37” x 24 TPI, compatible with most threaded rear hubs and cranks.
- Teeth are positioned at the centre of the base, allowing for improved chain alignment.
- 10 mm wide base provides multiple thread contacts with the hub or crank.
- Available in 12, 13, 14, and 15-tooth versions.

Compatible with:
- Cranks and hubs with standard 1.37” x 24 TPI threading (the vast majority).
- Chain widths: 1/8”, 3/32", and 11/128".

Dimensions
- Tooth count: 12, 13, 14, and 15 teeth.
- Tooth width: 3 mm.
- Base width: 10 mm.
- Thread: Ø 35 mm, 1.37” x 24 TPI.
- Tooth position: Centre-aligned.

Finish
- Black

Weight
- 23.56 g (12T), 33.58 g (13T), 38.84 g (14T), and 56.38 g (15T).
