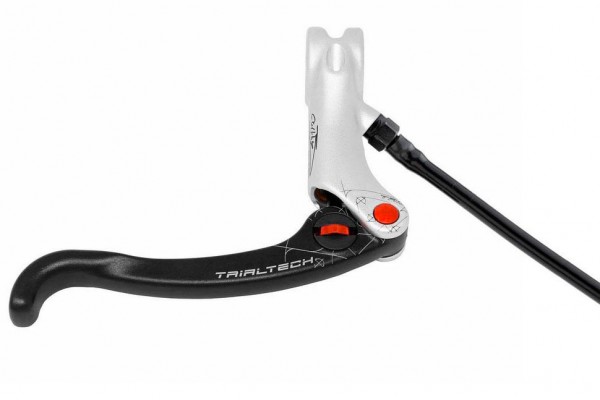

Trialtech Carthy WC Signature Series V2 Rim Brake

Trialtech Carthy WC Signature Series V2 Rim Brake

Overall Description
- High quality Trialtech Carthy WC Signature Series V2 hydraulic rim brake.
- This brake features a Trialtech Carthy WC Signature Series V2 rim brake lever and Magura slave cylinders, and it’s been attached and professionally bled by our TrialBikes team.
- Right Hand version comes with a 1230 mm long PVC hose (standard rear hose length for 20”, 24” and 26” bikes), whereas the Left Hand version is 650 mm long (standard rear hose length for 20”, 24” and 26” bikes).
- Includes an additional olive, so that you don’t have to re-bleed the brake when cutting down the hose.
- If you’d prefer us to shorten the hose to a specific length, please write it down in the Comments box when placing the order (the order might be delayed 24/48 hours).
- Sold individually: 1 complete brake (does not include brake pads, clamps or cylinder washers), with 2 options: Right Hand or Left Hand, already bled with hydraulic rim brake fluid, ready for use.
- You can find the best bike trials brake pads available here.

Improvements to the brake lever compared to the Trialtech Sport brake lever
- Lighter, thanks to the large recesses on the lever blade.
- Less play, thanks to the IGUS pivot bearings.
- Better sealing thanks to the additional scraper seal.
- Stable position of the indexed TPA.
- Note: this lever is not reversible. More details here.

Main features of Magura’s HS33 slave cylinders
- Manufactured from high-strength aluminium alloy.
- Each cylinder has an M6 port and an M8 port (M6/M8).
- Official Magura connectors, made of super-strong steel.
- More details here.

Compatibility
- The brake can be bled with mineral brake fluid (do not use DOT fluids!).
- Compatible with most rim brake pads: PowerPad, TNN, Heatsink, Racing Line and those with similar backings.
- Compatible with most brake clamps.

Colours
- Mirror lever body, black lever blade and white laser etched Trialtech graphics.
- Black slave cylinders, with white Magura graphics.

Weight
- 212g (rear) and 205g (front)
