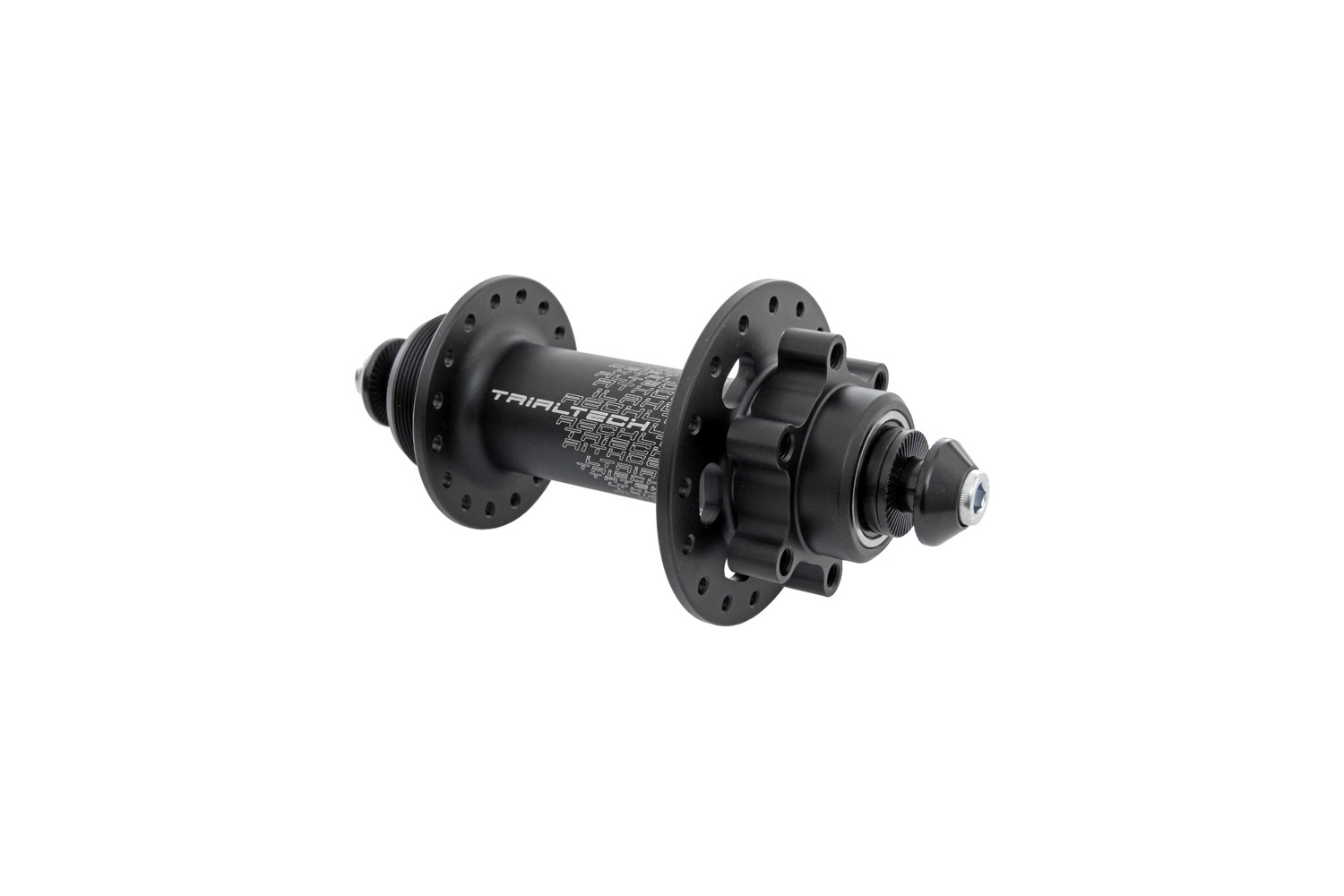

Trialtech Sport Lite 116 Rear Disc Hub

Trialtech Sport Lite 116 Rear Disc Hub

Description and materials
- Trialtech Sport Lite rear disc hub, for frames with 116mm spacing.
- Hollow axle, machined to remove any unnecessary material.
- The shell is made of CNC machined 7075-T6 aluminium alloy, to ensure exceptional mechanical properties.
- High-quality, replaceable sealed bearings ensure a smooth spin and long lifespan.
- Standard 1.37”x24tpi thread, compatible with most screw-on freewheels and sprockets.
- 32 spoke holes (32H).
- Uses 3mm spacers to each side of the hub shell.
- Strong, international standard 6-bolt ISO rotor fitting.
- Supplied with high-strength, zinc plated M6x30mm Cr-Moly axle bolts and low-profile Trialtech washers.

Compatibility
- Frames with 116mm spacing for the rear hub (3mm snail cams must be added).
- Rims with 32 spoke holes (32H).
- 6-bolt disc brake rotors.
- Bearings reference: 6000RU

Dimensions
- Axle spacing: 110mm
- Axle diameter: Ø10mm
- Spacer thickness: 3mm
- Thread: 1.37”x24tpi
- Number of spoke holes: 32 (32H)

Colour
- Anodized matt black hub shell, with white laser etched Trialtech Sport Lite logos.

Weight
- 168.24g (+ bolts and washers at 21.30g)
