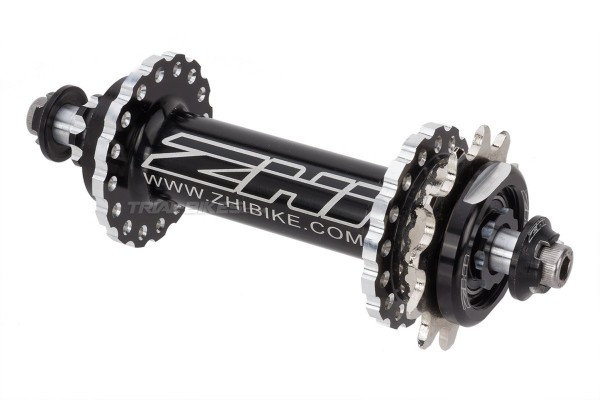

ZHI-L 116mm Splined Non-Disc Rear Hub

Description and materials
- High quality non-disc rear hub from Asian manufacturer ZHI.
- This is a high-end hub, which takes advantage of CNC-machining to save unnecessary weight.
- The hub shell is made from a single piece of high quality 2014-T6 aluminium alloy.
- Designed for using with 3mm snail cams (2x3mm) to obtain a 116mm spacing, the usual in 20” bikes and some 26” bikes.
- The axle has a 12mm diameter at the centre, but goes to 10mm at the ends (you must use a chain tensioner with a 10mm-diameter hole for the axle, like Monty, Clean, Trialtech, Neon or Jitsie snail cams.)
- Designed for using a splined sprocket or freewheel (supplied with a 12T ZHI splined sprocket).
- Features high quality replaceable sealed bearings, which ensure a smooth running while keeping out all the dirt (mud, water, dust, etc.).
- Available with 32 holes, in anodized black, with silver ZHI graphics.
- Supplied with M6x25mm bolts and serrated washers to ensure the wheel stays in place.

Sizes
- Spacing: 116mm
- 32 holes

Finishes
- Anodized black, with silver ZHI graphics

Weight
- 156g (+ bolts and washers at 16g, and sprocket at 27g).

Additional information
Make sure your rim has 32 holes to fit this hub.
You must use a chain tensioner with a 10mm-diameter hole for the axle, like Monty, Clean, Trialtech, Neon or Jitsie snail cams.
If you have any questions, contact us.
