KMC Half-Link

KMC Half-Link

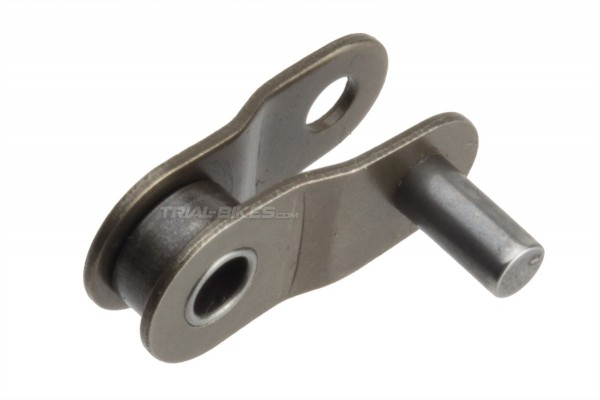

- Half link for single speed bikes manufactured by renowned brand KMC.
- Made from high-strength steel, which is essential for a reliable, long-lasting chain.
- This half link is ideal to connect both standard and half-link chains to help achieve the most accurate chain setup for each frame and freewheel/sprocket combo.
- Available with standard 1/2" pitch, and 3/32” (with 7,8 mm wide pin) or 1/8” (with 9,2 mm wide pin) roller widths.
- Sold singly (1 half link).
- Available in silver.

Compatibility
- The 3/32” option (narrow version) is compatible with 3/32” chains and sprockets/freewheels (not compatible with 1/8” chains or sprockets/freewheels). For instance, it can be used with KMC Z1 eHX Narrow, Z610 HX, X1, K810 and all those chains that require 3/32” links.

- The 1/8” option (wide version) is compatible with 1/8” chains, and also 3/32” and 1/8” sprockets/freewheels. For instance, it can be used with KMC Z1 eHX Wide, Z1 Wide, K710, HL710, X101, Z510, Z510 H, Z510 HX, S1 and all those chains that require 1/8” links.

Dimensions
- Pin width: 7.8 mm (3/32” option), 9.2 mm (1/8” option)
- Pitch: 1/2"
- Maximum load capacity: 1300 kg

Finishes
- Available in silver.

Weight
- 3.22g (3/32”), 3.62g (1/8”).
