CSC J40 Post Mount Disc Brake

Description and materials
- New disc brake from promising Asian manufacturer CSC, now re-designed and improved with regard to the previous version we published a few months ago.
- Specifically designed for Trials and tested for several months by one of the best Asian riders.
- Suitable for all Post-Mount forks and frames, and International Standard forks and frames with the adaptor supplied.

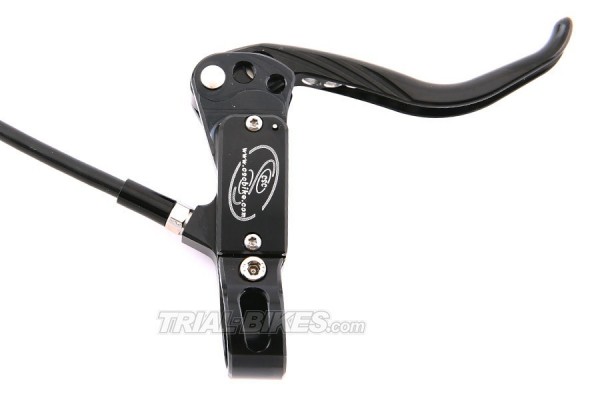

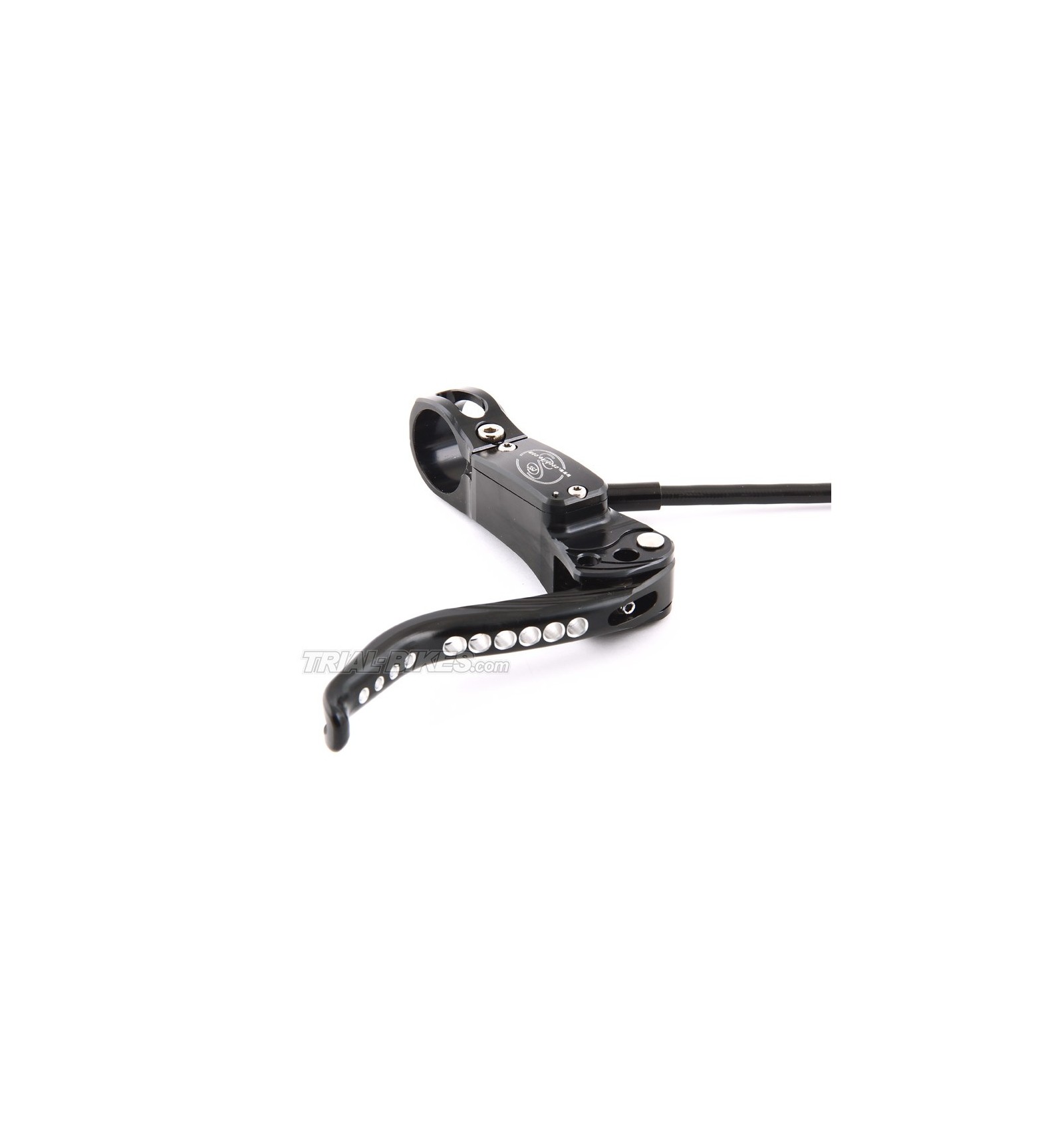

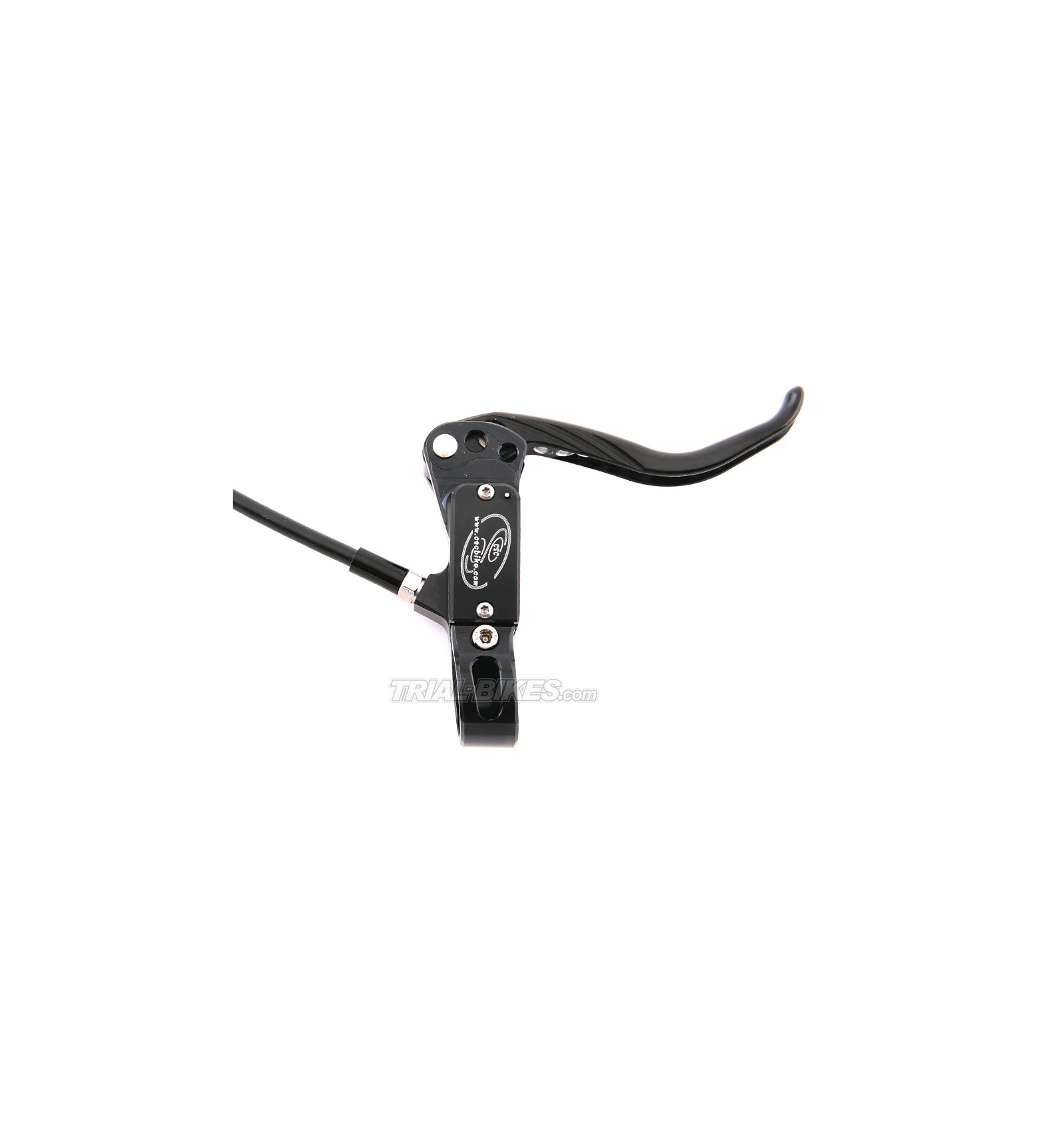

- CSC exclusive designed lever, made from high quality 6061 T6 CNC aluminium, now with tiny little holes which help keeping the weight down while offering the same strength.

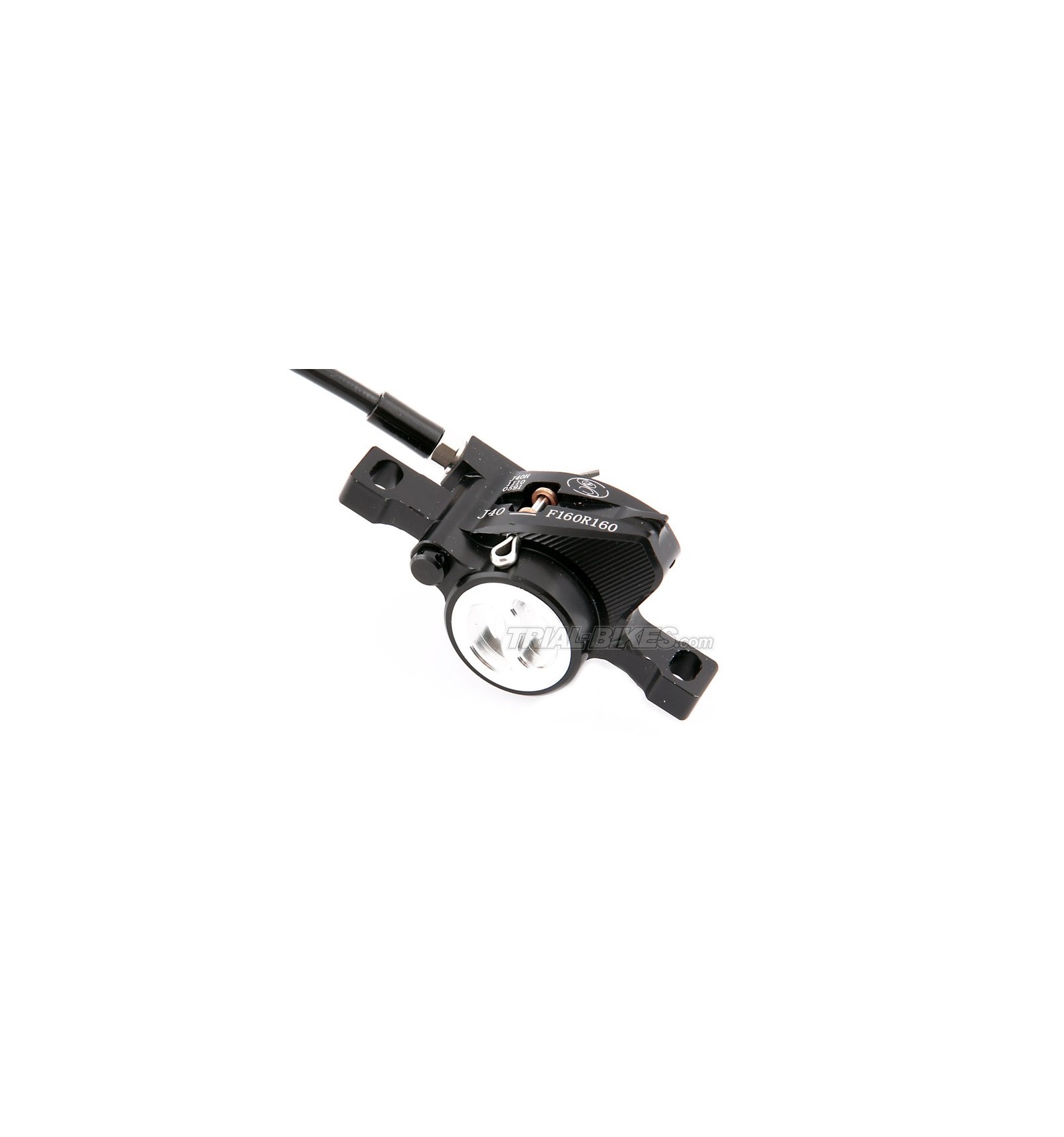

- CSC Post Mount caliper, made from high quality 2024 CNC aluminium, suitable for all 160mm rotors.
- 24mm pistons ensure a great breaking performance.
- PVC hose, which reduces 107g on the whole bike!(40g for the front brake and 67g for the rear brake).

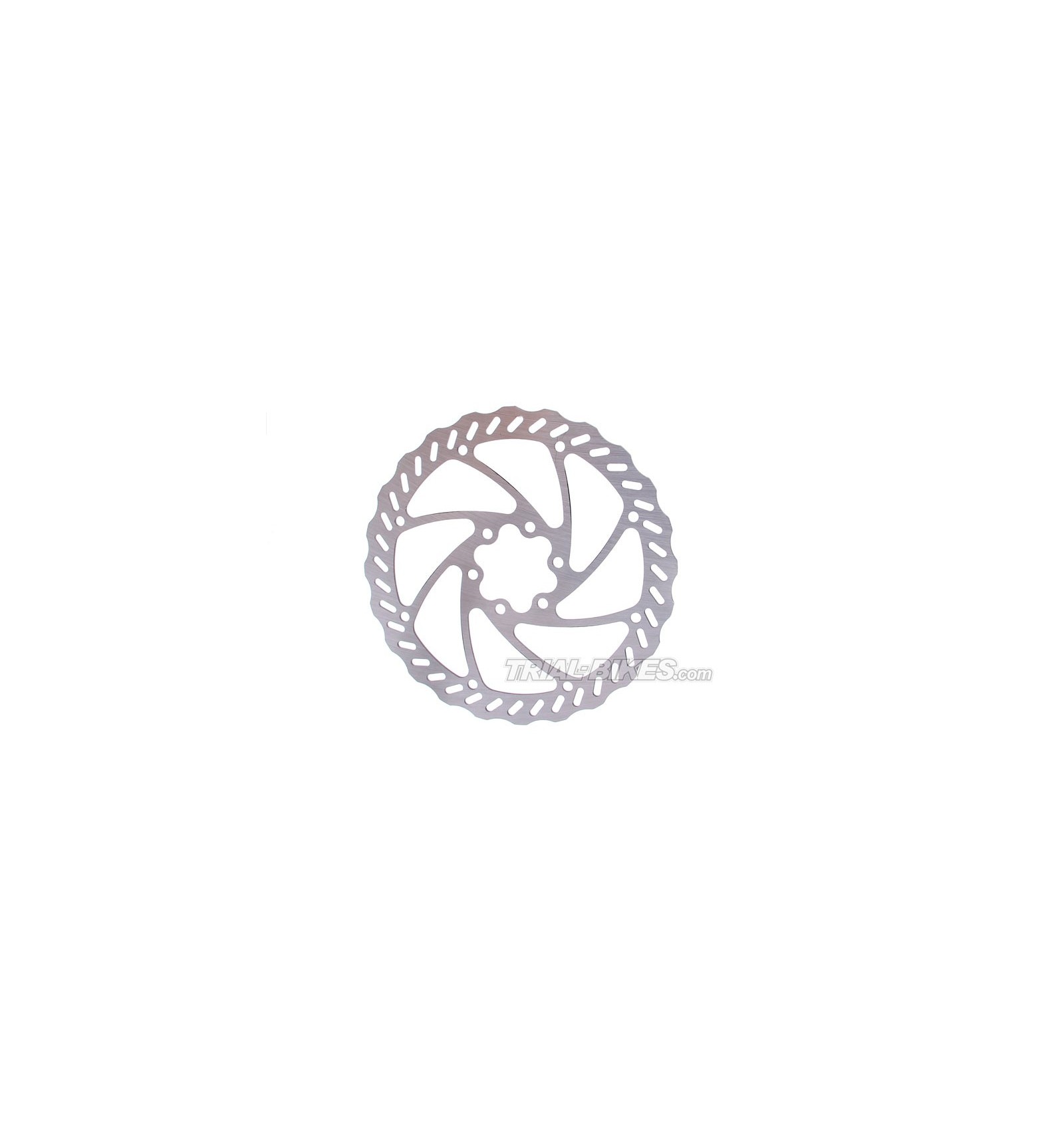

- 160mm CNC Inox rotor supplied, with all necessary bolts to set up.
- Supplied with an aluminium adaptor to be able to use the brake with the IS standard mounts.
- The brake comes bled with DOT 4.0 brake fluid.
- Suits Hope Mono Mini brake pads.
- Available for left or right hand.

Includes

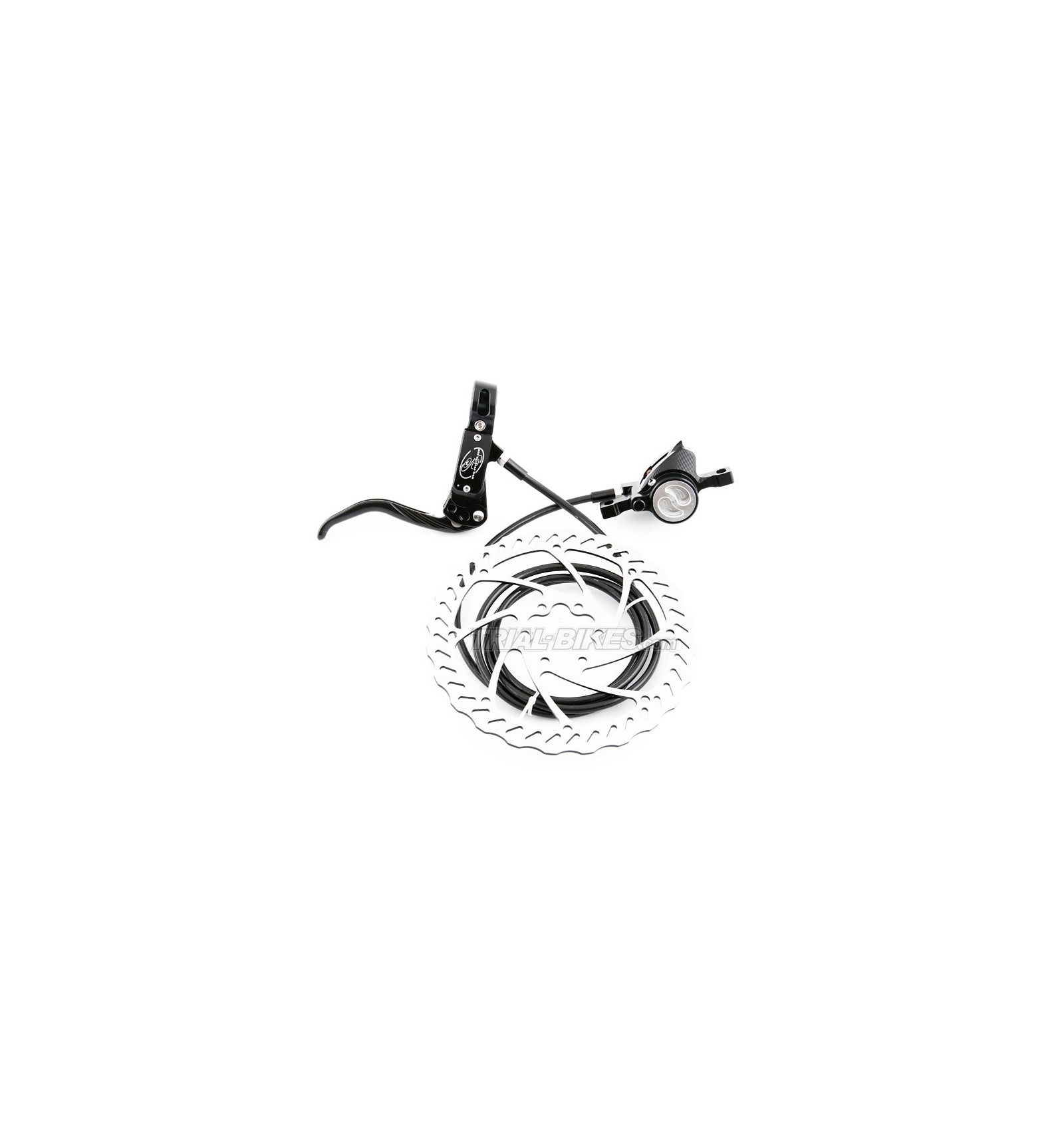

- Brake with 780mm long PVC hose (front version), 1400mm long PVC hose (rear version)
- CSC 160mm inox rotor
- Set of rotor and caliper bolts
- Adaptor to use the brake with standard IS mounts

Finishes
- Anodised black

Weight
- 234g (front) and 263g (rear), 160mm rotor (126g)
