Echo TR 2016 Disc Brake Expand

Echo TR 2016 Disc Brake

ECHO ECHO

New

Description and materials

More details

This product is no longer in stock

95,04€

Model .
 Front

 Rear

Ask a question
rating Ver las 2 opiniones
Valoración media: 10/10 - Nº valoraciones: 2

Description and materials
- New version of the Echo TR disc brake, now updated and improved for the 2016 season.
- The main update is the addition of a cap for the lever piston bore, in order to guide and limit its movement and prevent any leaking.
- Furthermore, each thread and port has been revised and machined with the highest accuracy possible, in order to ensure a reliable, durable sealing.
- Unlike other disc brakes (like many Hope, Avid or Shimano brakes), the Echo TR disc brake features a closed system, like most rim brakes, which eases bleeding and allows for easier adjustment of the bite point thanks to the TPA adjuster.

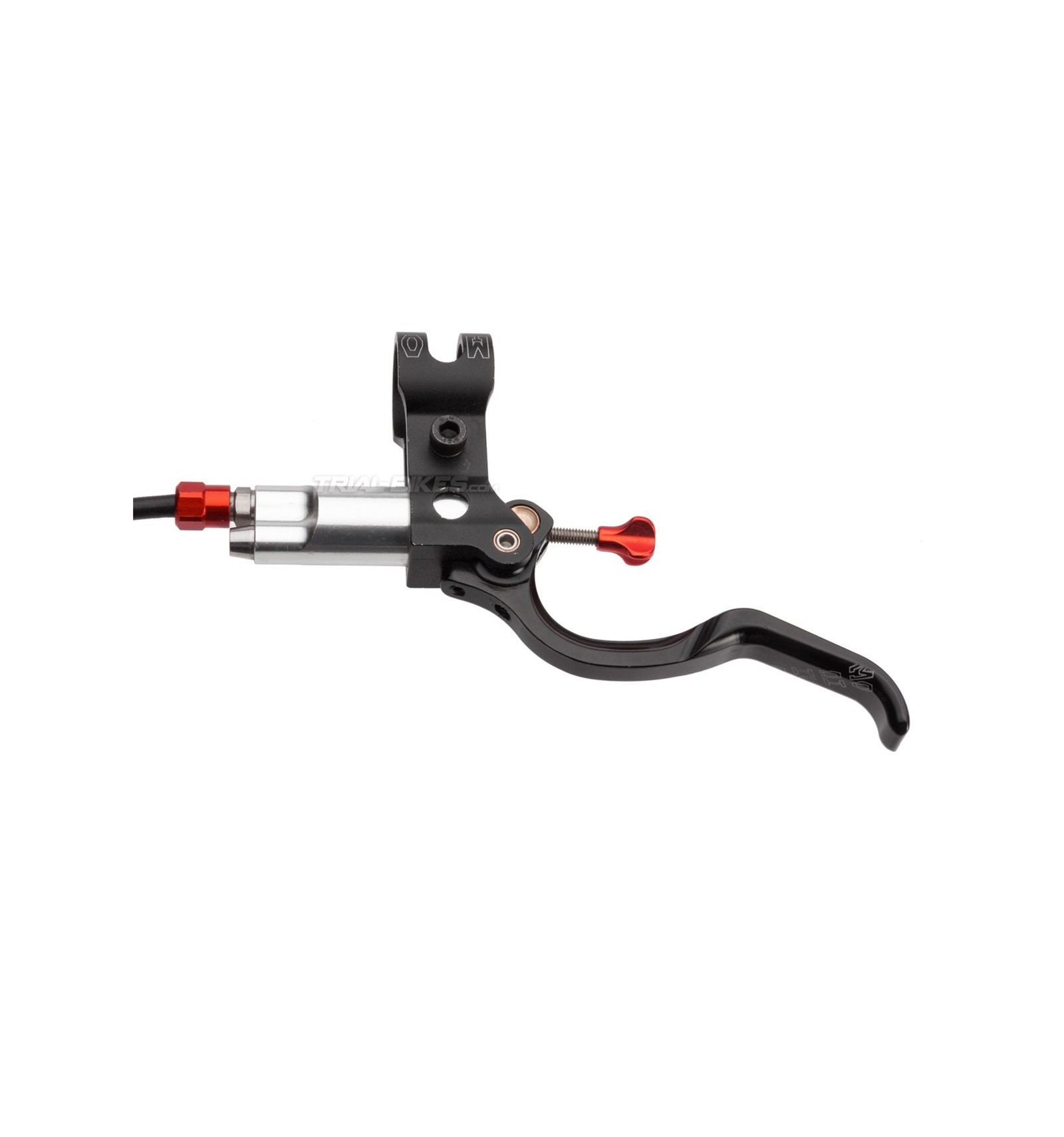

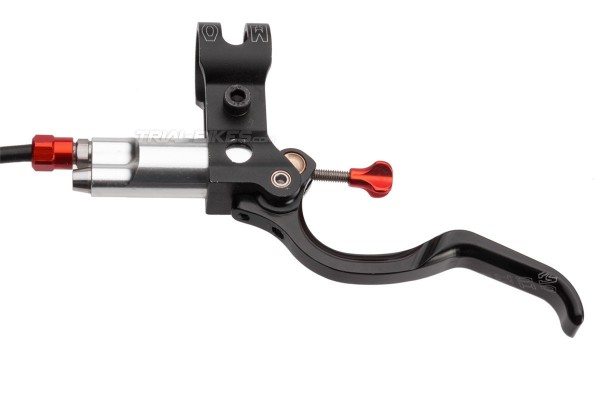

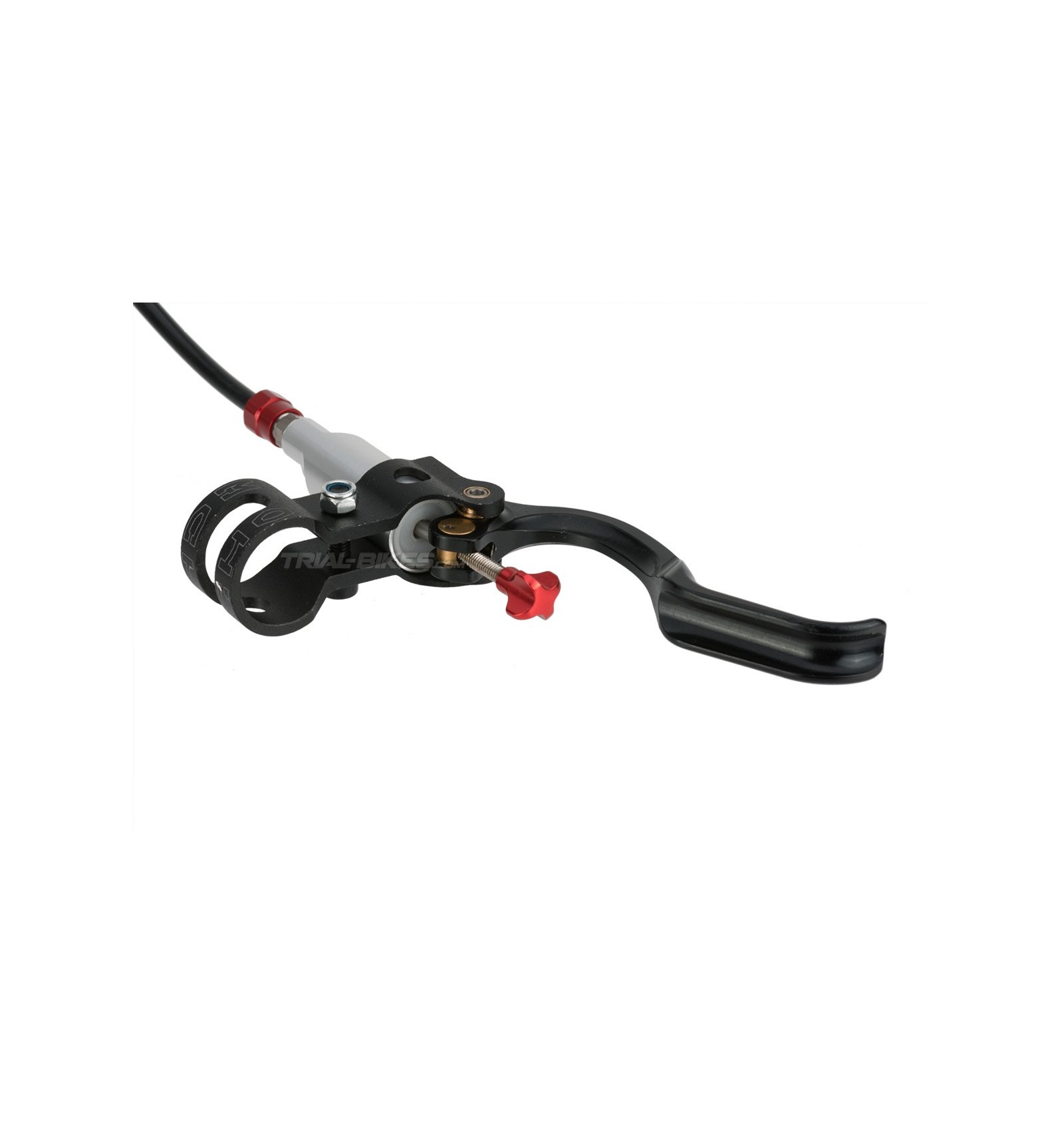

- Exclusive Echo TR lever design, made from a single piece of high quality 6061-T6 CNC aluminium alloy.
- Features a reversible lever, so it can be used as a right-hand or left-hand brake.
- All parts are mechanized from high quality aluminium.
- The TPA adjuster is also made from CNC-machined aluminium, in anodized red color, located between the lever blade and handlebar to ease its use.
- 2-finger lever blade (85mm long), now stiffer and more comfortable, in anodized black color.

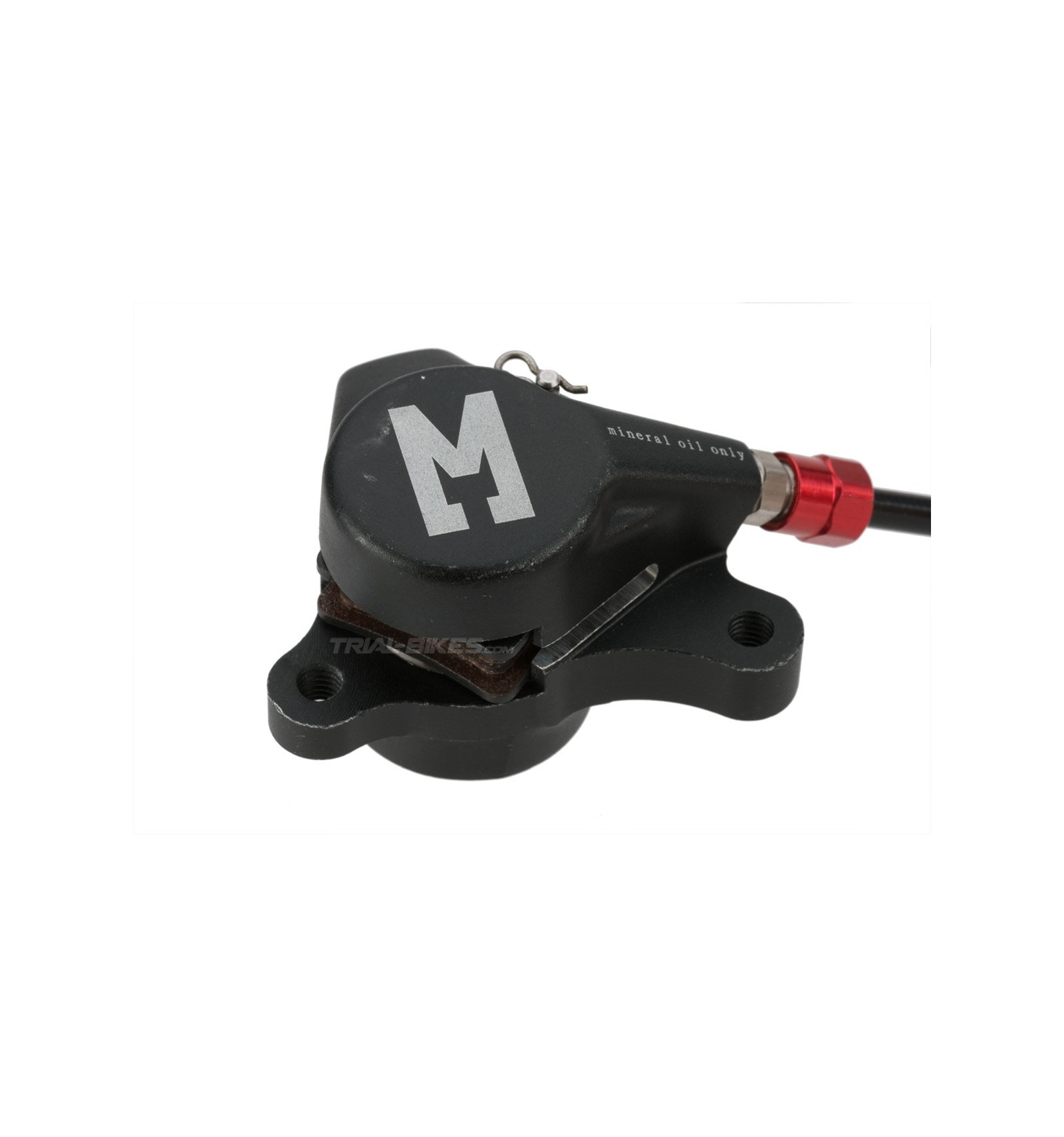

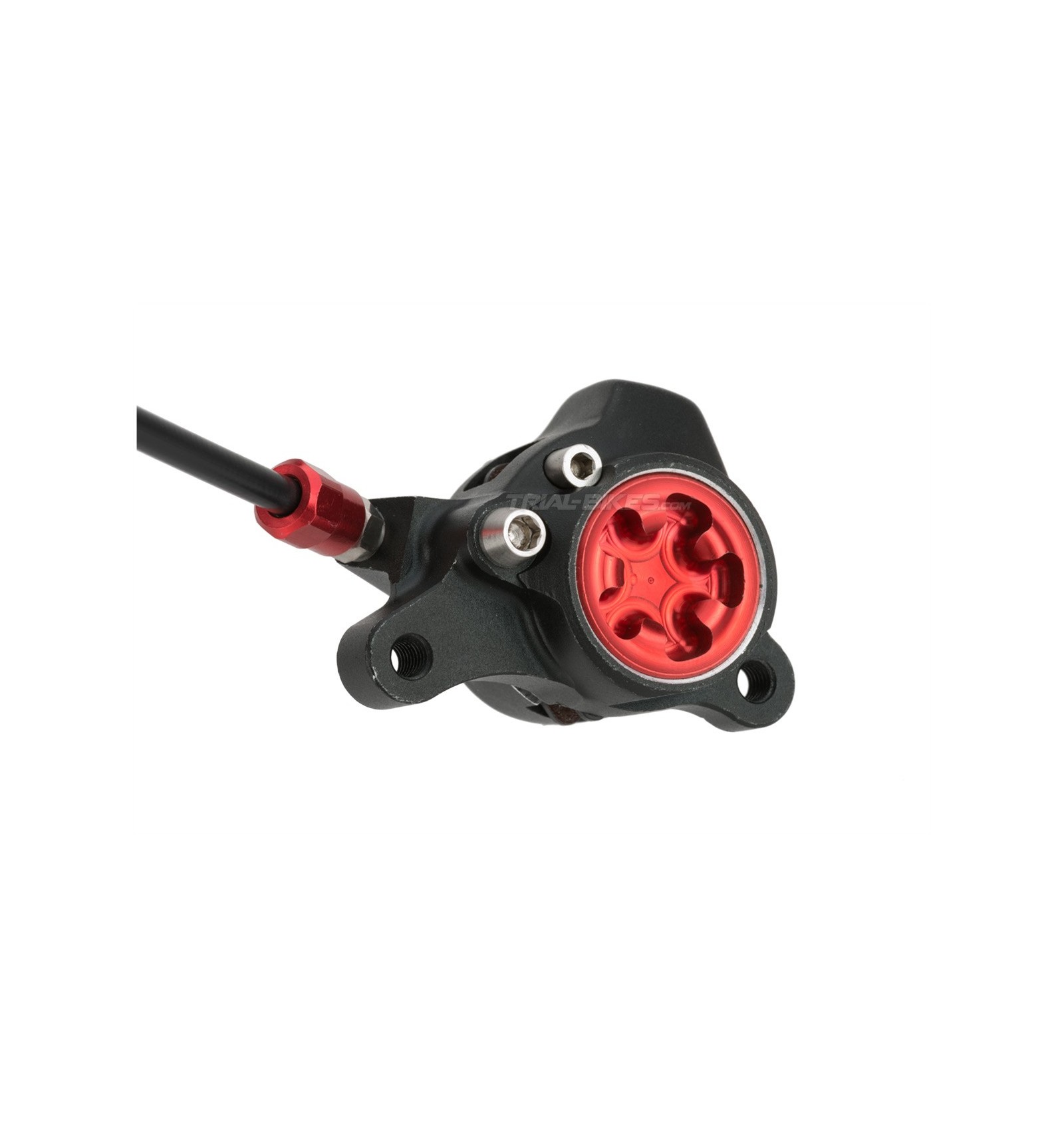

- The caliper is CNC mechanized from 6061-T6 aluminium, with IS (International Standard) disc mounts.
- Includes the Echo TR disc brake rotor, which is also available separately here.
- Available as a front brake or as a rear brake (with 160mm rotor).
- Also includes the Echo TR disc brake pads, although any Hope Trial Zone or Jitsie Race pads will fit too (available here).
- Stunning looks, with anodized black lever body and caliper with silver Echo graphics, and red TPA adjuster, hose ends and bore cap.
- The brake comes already bled with mineral oil, ready to use.

Includes

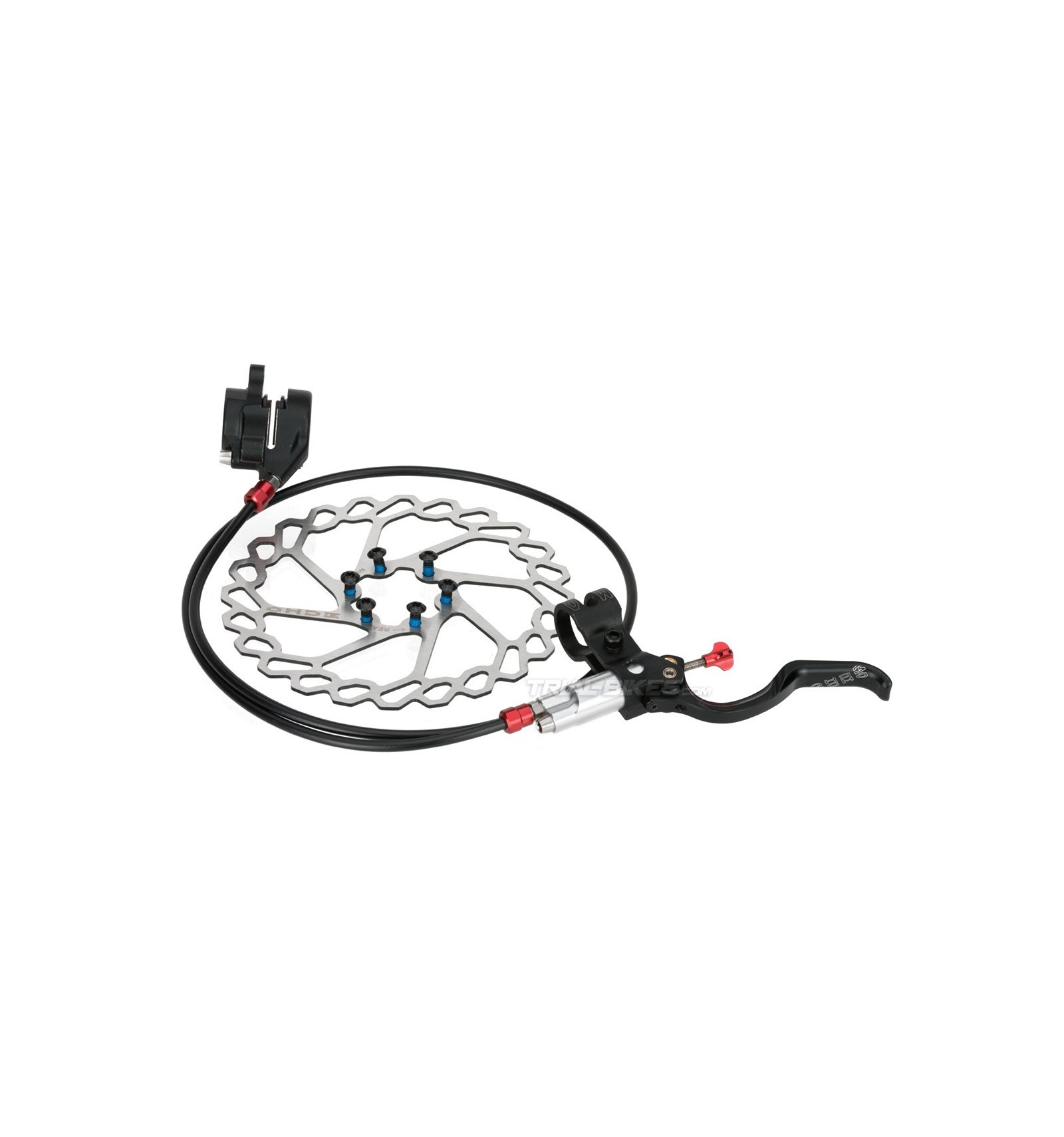

- Echo TR 2016 disc brake, with:
         · Kevlar-reinforced PVC brake hose, 900mm long (front brake) or 1480mm long (rear)
         · Echo TR brake pads, exclusively designed for bike trials
         · Washers for the caliper
         · Caliper and rotor bolts
                  · Echo TR disc brake rotor

Finishes
- Caliper bore cap, hose ends and TPA adjuster in anodized red
- Anodized black lever body.
- Silver etched Echo graphics.

Weight
- 236.72g (front) and 250.58g (rear) + 113g (160mm rotor and bolts)

Additional Information
The brake must be bled with mineral oil only (never use DOT oil).

This brake is supplied with a 3-month warranty, which covers manufacturing defects. Any damage caused by an inadequate use, bleeding or unsealing the brake will invalidate the warranty immediately.
If you want us to shorten the hose to a specific length, let us know and we will do the job! (The order might be delayed between 24 and 48 hours)

WEIGHT 0.236
TYPE IS
OPTION Right Hand
OPTION Left Hand

We have no question. What are you waiting for? Send us yours!

Ask a question
Tu pregunta ha sido envia para moderar. Gracias por preguntar!
Ask a question
Ocultar
Nombre:
Email:
Pregunta:
Idioma:
Código de validación
¿Puede leer la imagen? Click aquí para cambiar
  Ask a question

Haz clic aquí para dar tu opinión


Brilliant!
David S. el día 2020-06-01 It came with a rotor and the bolts which I was very surprised at for the price! In the UK you can expect to pay easily double. Absolutely brilliant!
Freno echo
JUSTO JOSE C. el día 2020-02-21 Perfecto todo , buena atención y servicio , gracias
