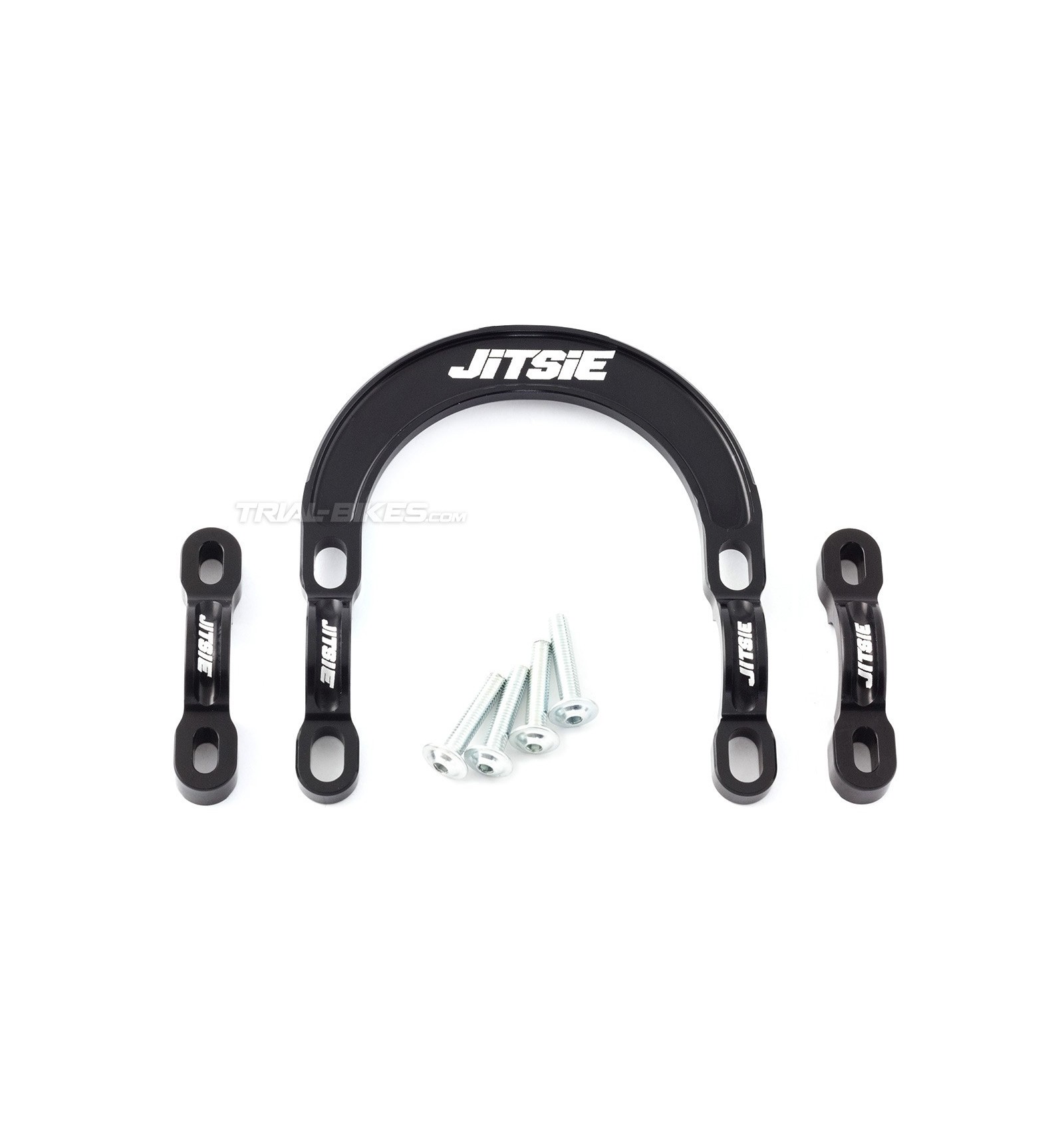

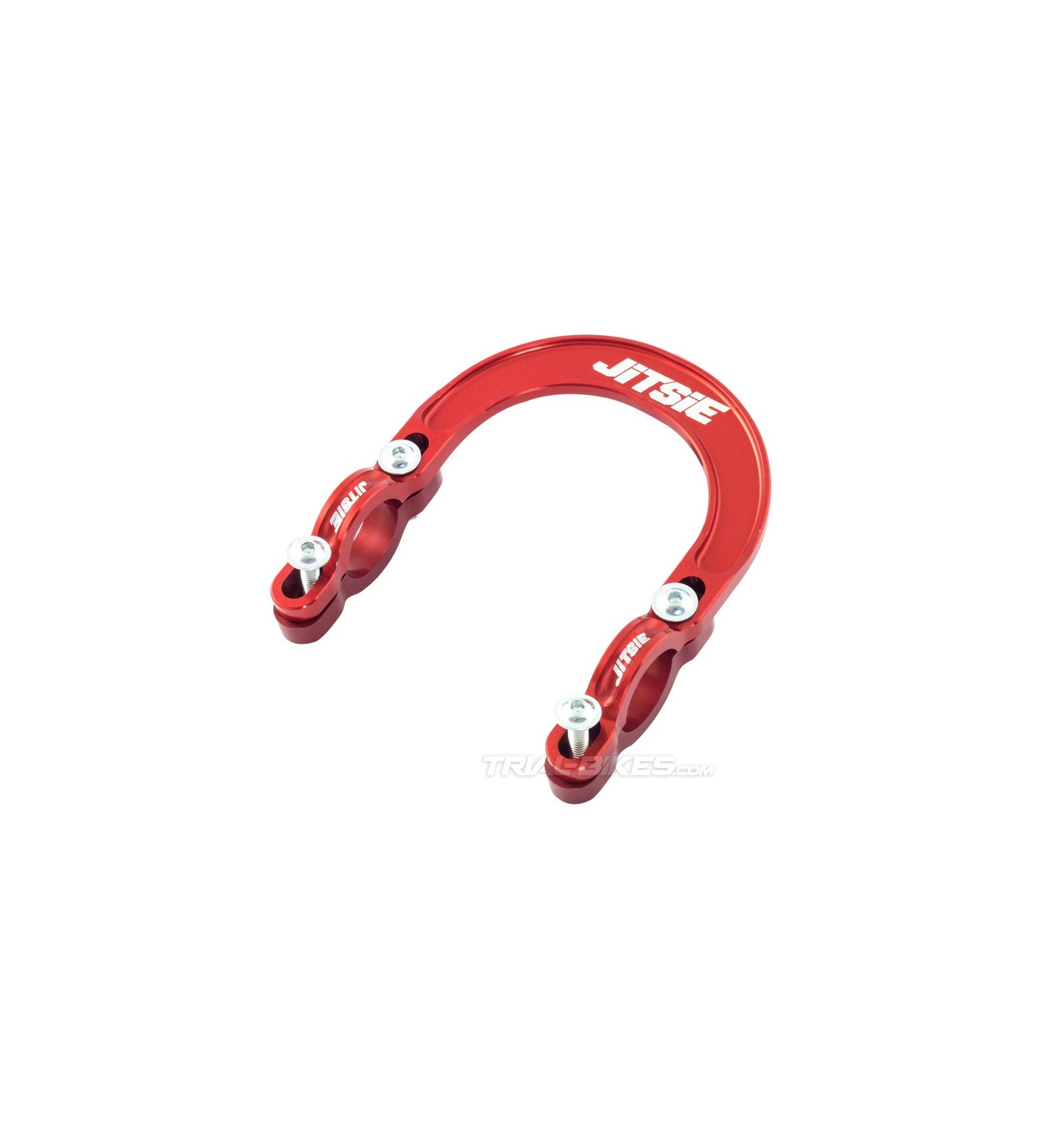

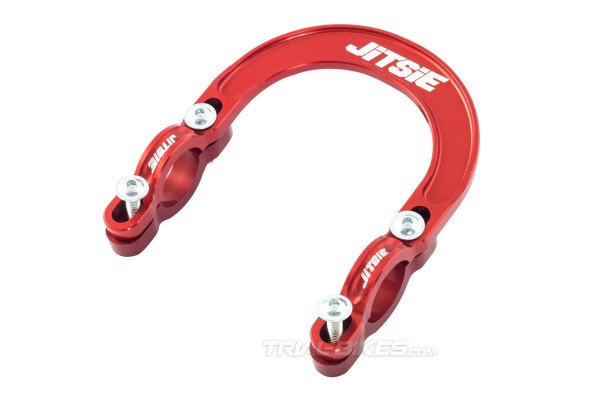

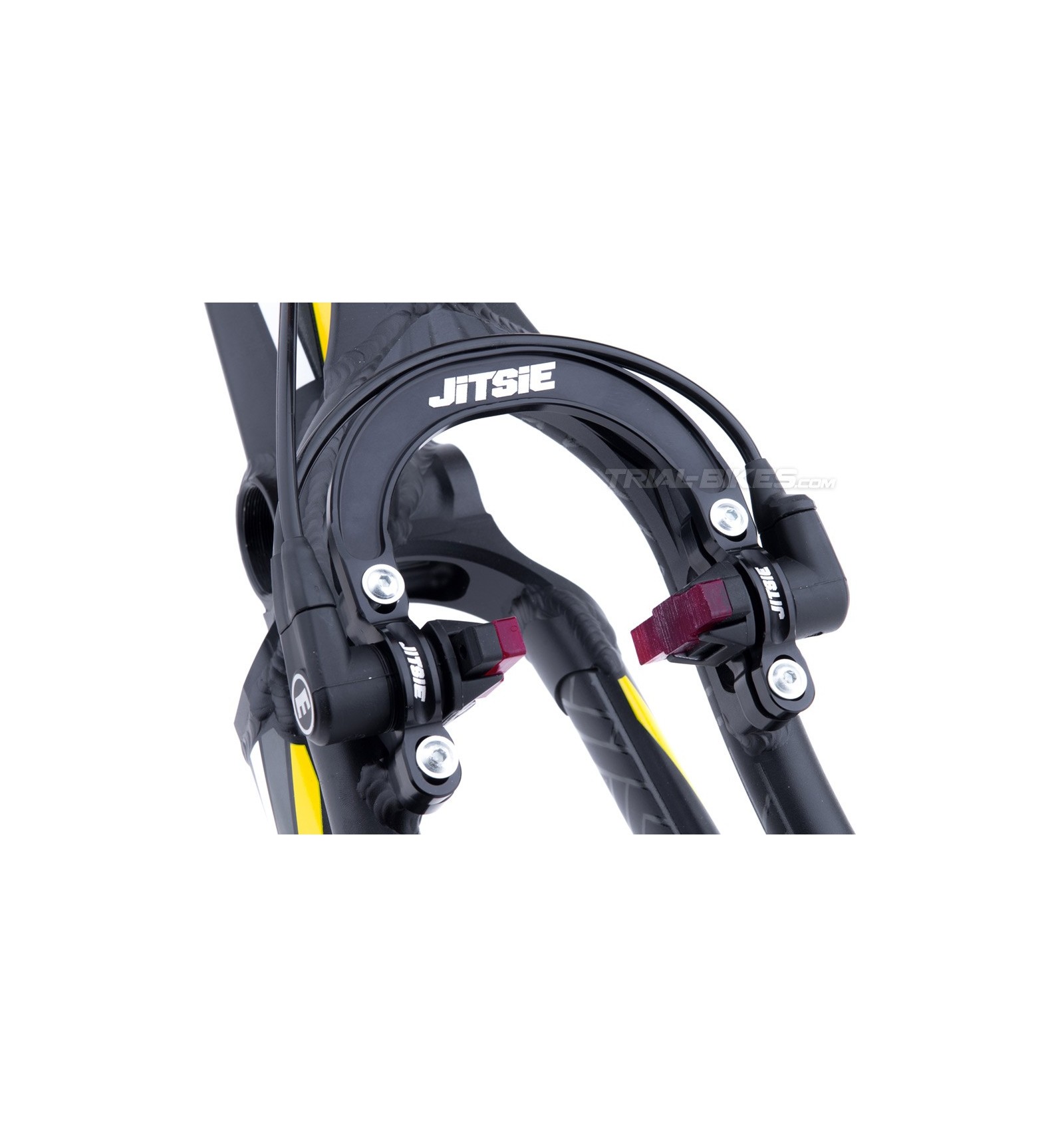

Jitsie Integrated Brake Booster (rear)

Description and materials
- New integrated brake booster from Belgian brand Jitsie, designed and manufactured in Belgium for a top quality, the same as all the Jitsie Race products.
- Exclusive design integrates the brake booster and top brake clamp in one single aluminium piece, therefore providing maximum stiffness.
- Designed by the Jitsie Team riders, lead by 10-Time World Champion Dani Comas.
- Specifically designed for the rear brake (not suitable for the front brake).
- Made from high quality 7075 T6 aluminium.
- There is no need to use the cylinder washer anymore: these brake clamps ensure the pads stay parallel to the rim (as long as the brake mounts are square).
- A nice recess erases unnecessary weight while still keeping more than enough stiffness.
- Wide profile to protect cross-over pipes on HS33 brakes from being hit.
- Includes steel bolts with extra-large head to use with a 3mm Allen key, ready to fit.
- Only suitable for those frames with a 100mm to 105mm spacing between mounts.
- Two versions available, one of them for 20” bikes and another suitable for both 24” and 26” bikes.
- Anodized red or black, with white Jitsie logo.
- Supplied with a little plastic bag, including a free Jitsie sticker.

Dimensions
- Minimum/maximum horizontal spacing between bolts: 100-105mm
- Vertical clearance from top bolt: 40-47mm (20'') and 38-45mm (24/26'')

Finishes
- Anodized red or black, with white Jitsie logo.

Weight
- 71.8g (20”) and 76.5g (24”/26”) (+bolts at 16g a set).
