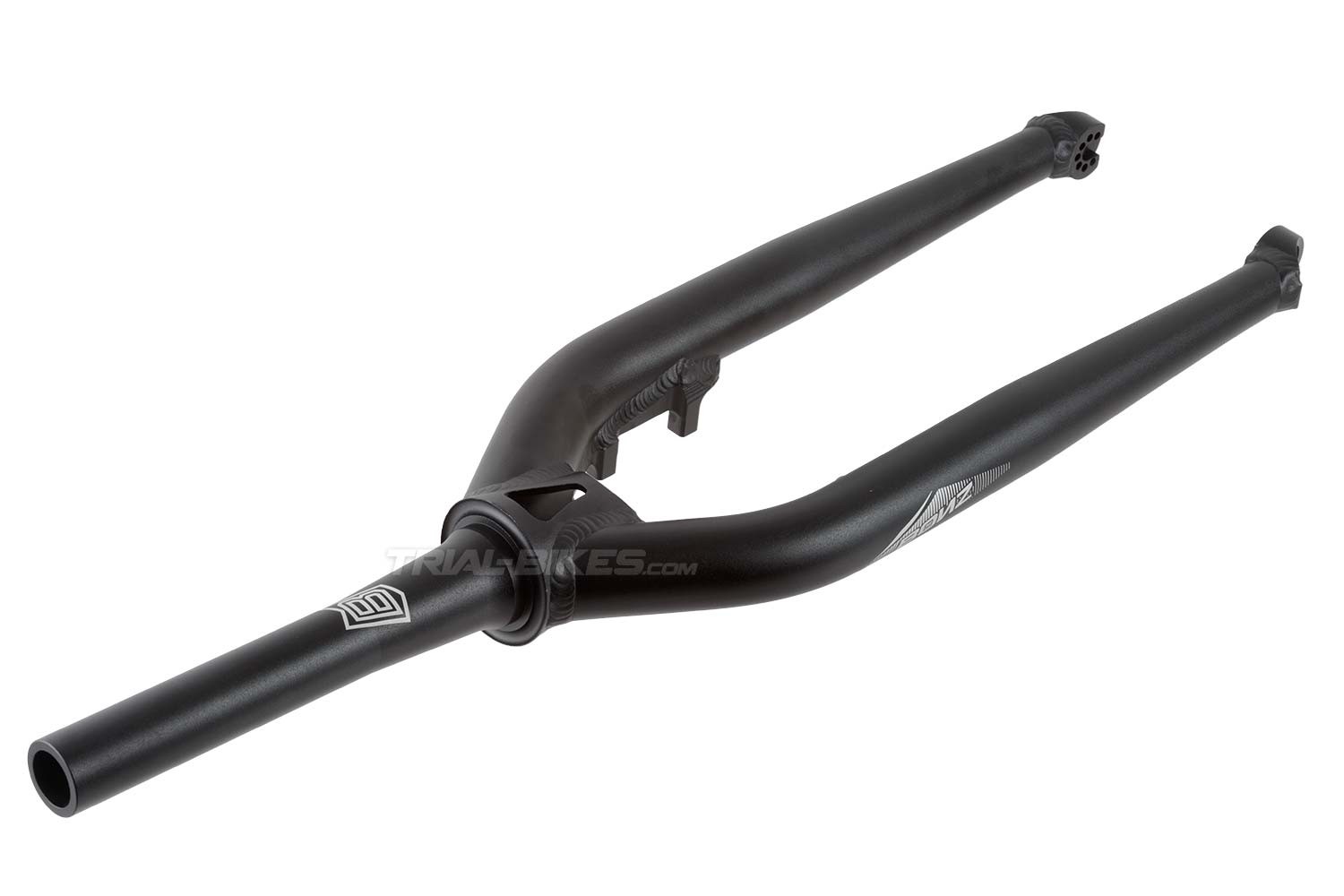

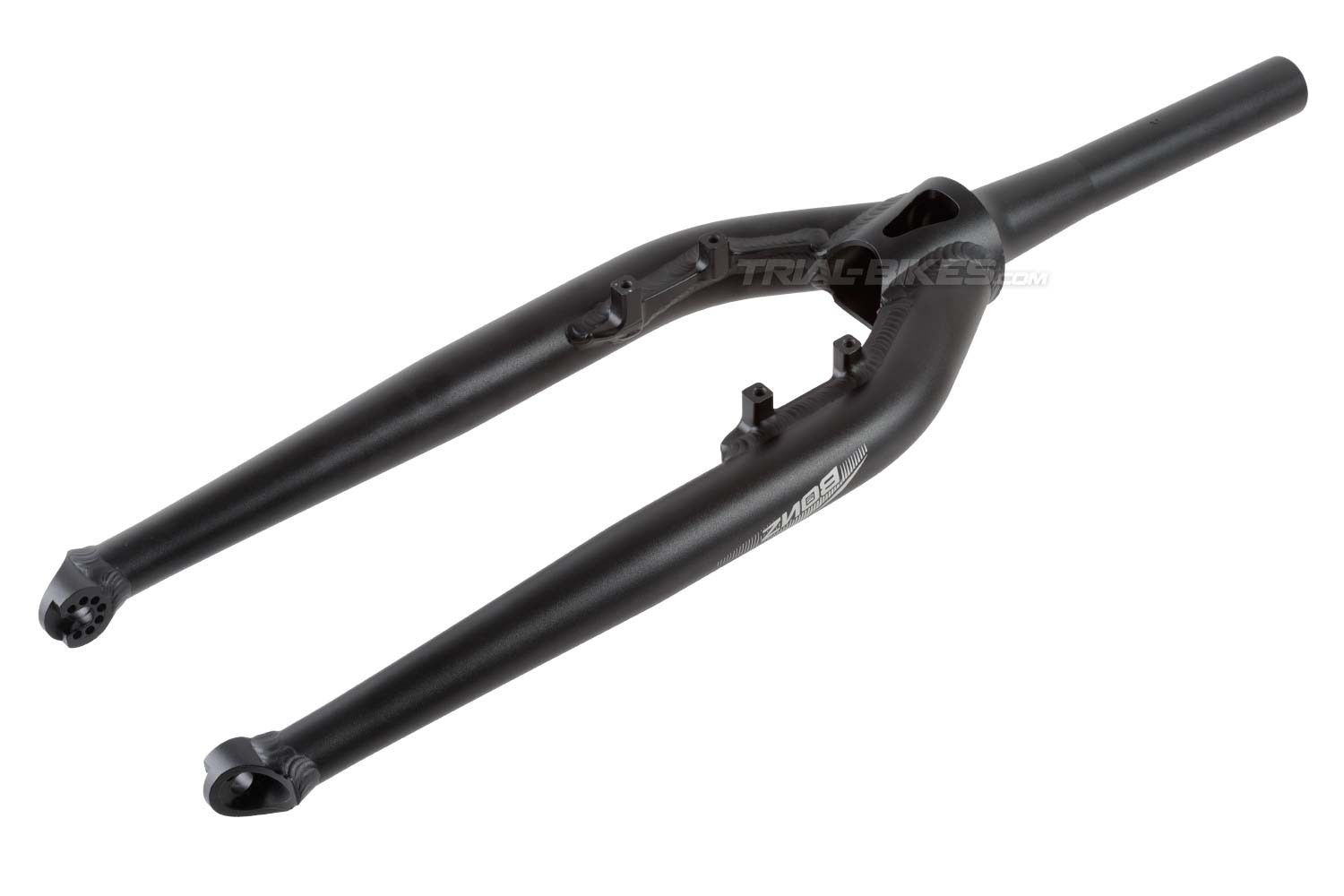

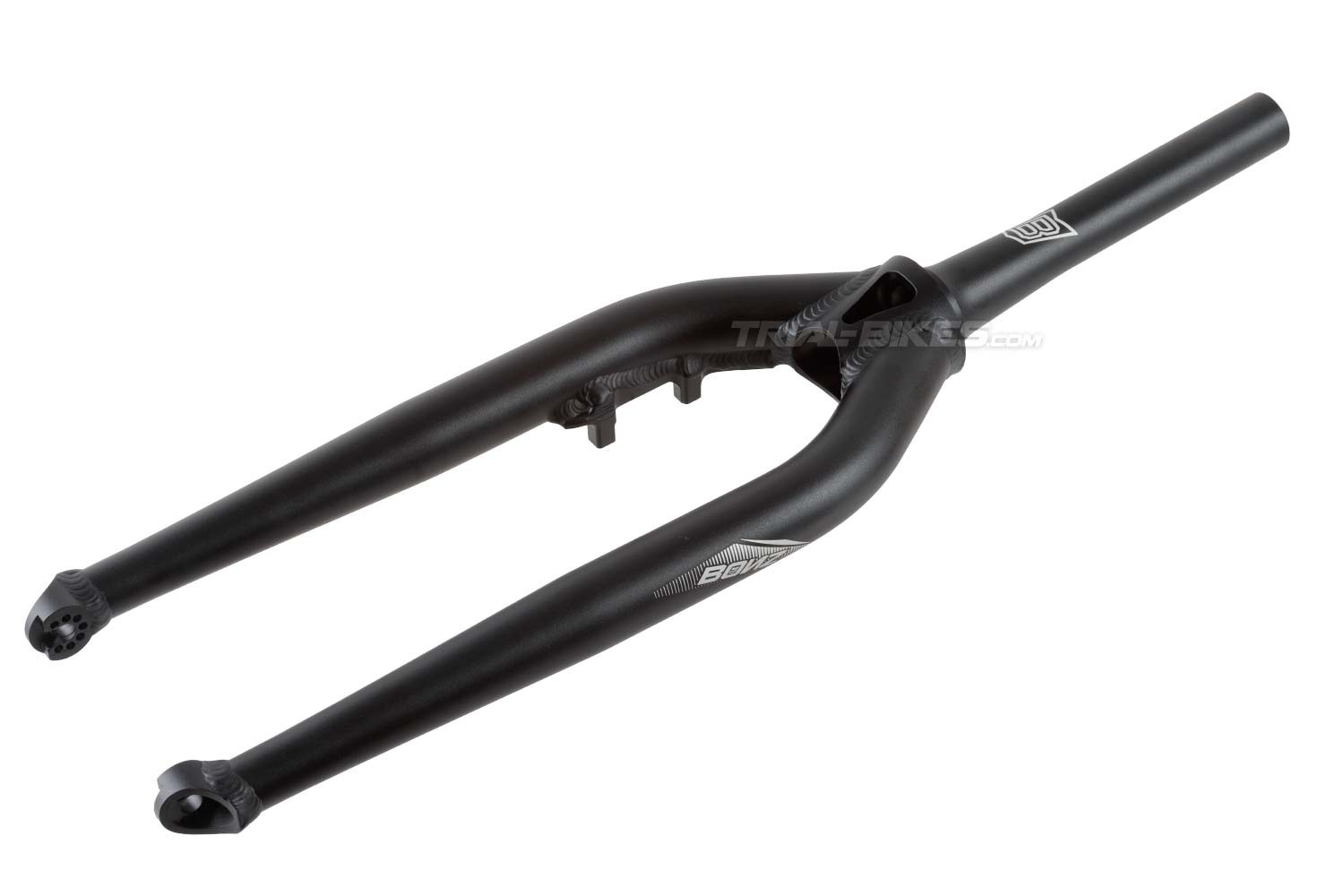

Bonz Pro Light Tapered 26" Fork

Bonz Pro Light Tapered 26" Fork

- New edition of the popular Bonz Pro Light 26” tapered trials fork.
- Made of high quality 7075-T6 aluminium alloy, with the exclusive design by Bonz featuring optimized leg curvature and thickness to increase strength and stiffness.
- Tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom, for use with tapered headsets.
- Robust construction, with a one-piece machined steerer tube to optimize stiffness, with holes at the base to remove any excess material.
- 4 mm thick steerer tube ensures a great balance between moderate weight and high strength.

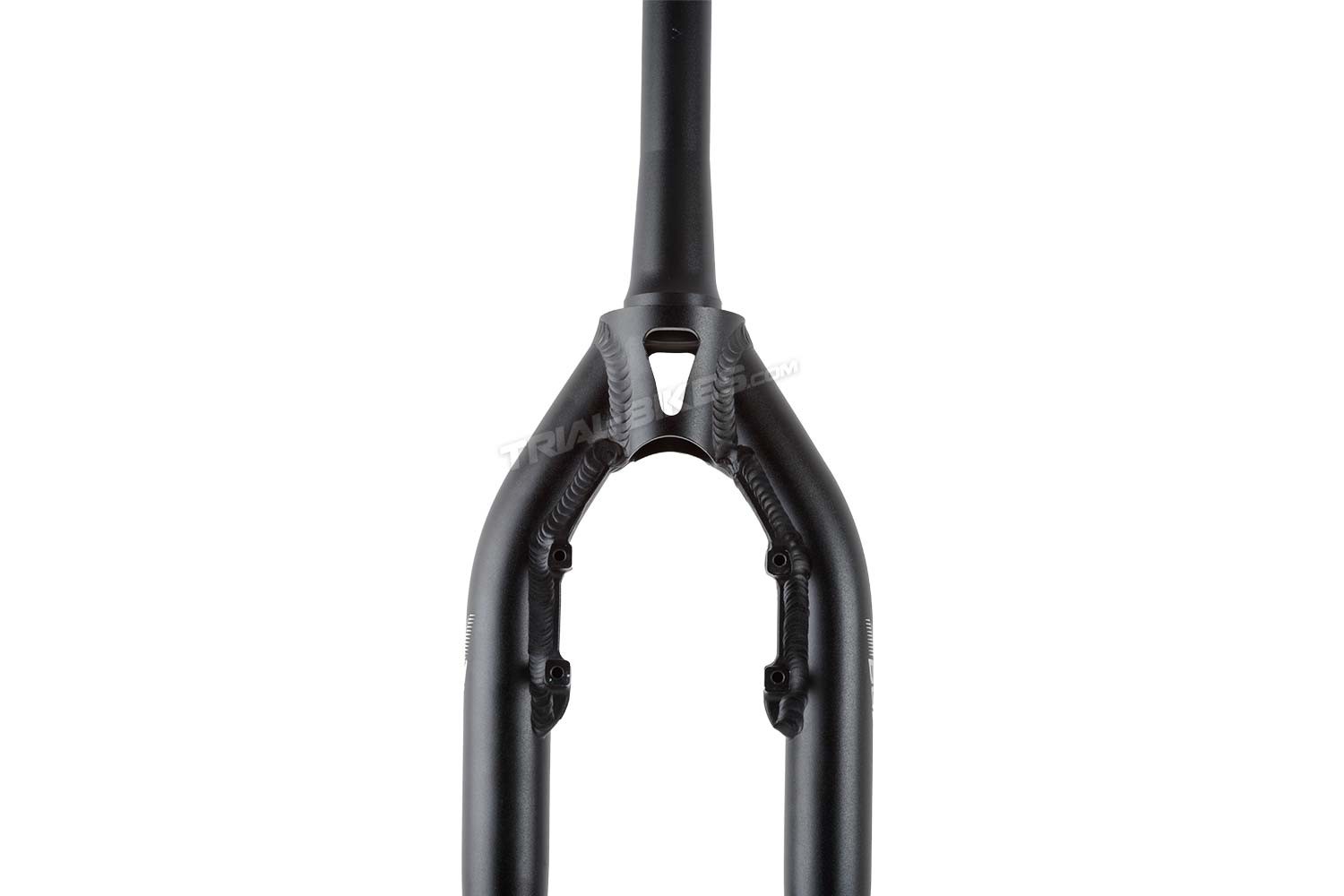

- The rim brake version has brake mounts spaced at 86 mm at the back of the legs, and they’re integrated in built-in brake booster to guarantee increased stiffness and durability.

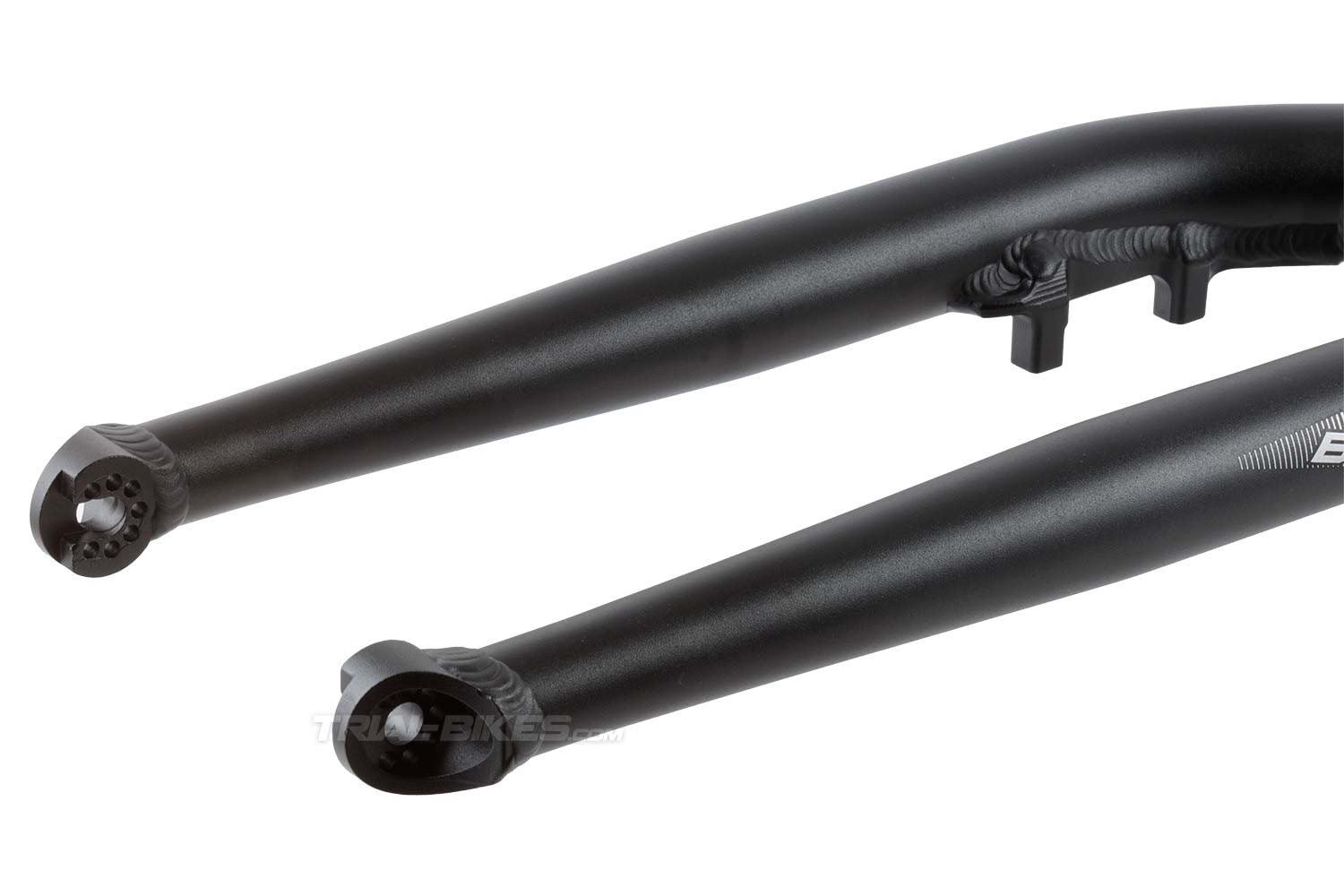

- CNC machined dropouts, spaced at 100 mm.
- Supplied with the star nut already installed.

Compatibility
- This fork has a tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom, so it’s not compatible with frames with standard 1 1/8” headtube. A tapered 1 1/8” – 1.5” headset or a headset adaptor must be used with this fork.
- Compatible with most front trials hubs (with 100 mm spacing).

Dimensions

(1) Length: 400 mm.
-----------------------------------------------
(2) Offset: +35 mm.
-----------------------------------------------
(3) Steerer tube length: 200 mm.
-----------------------------------------------

- Steerer tube thickness: 4 mm.

Colour
- Anodized black, with white Bonz graphics.

Weight
- 809.88g (star nut included), with a 200 mm long steerer tube
