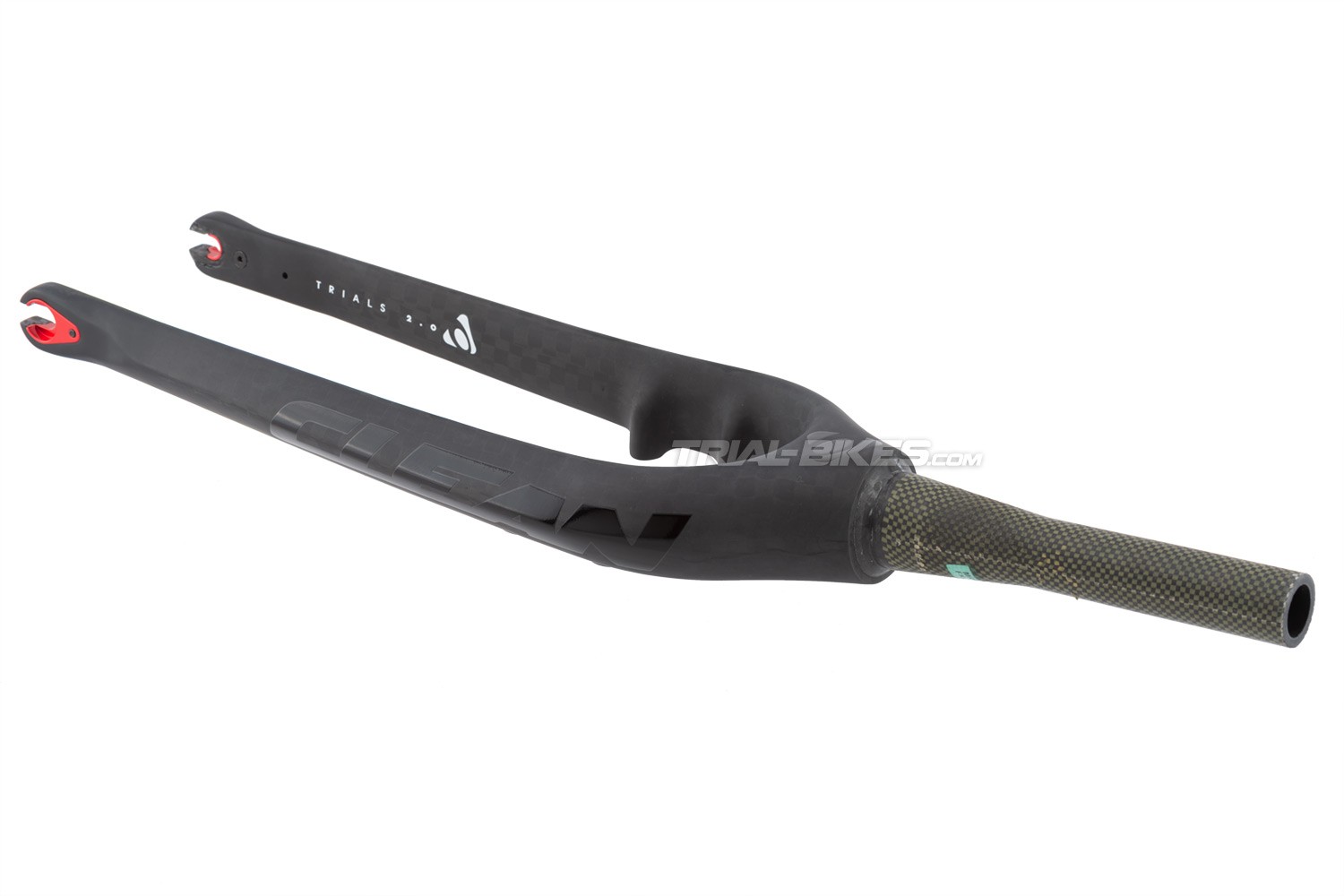

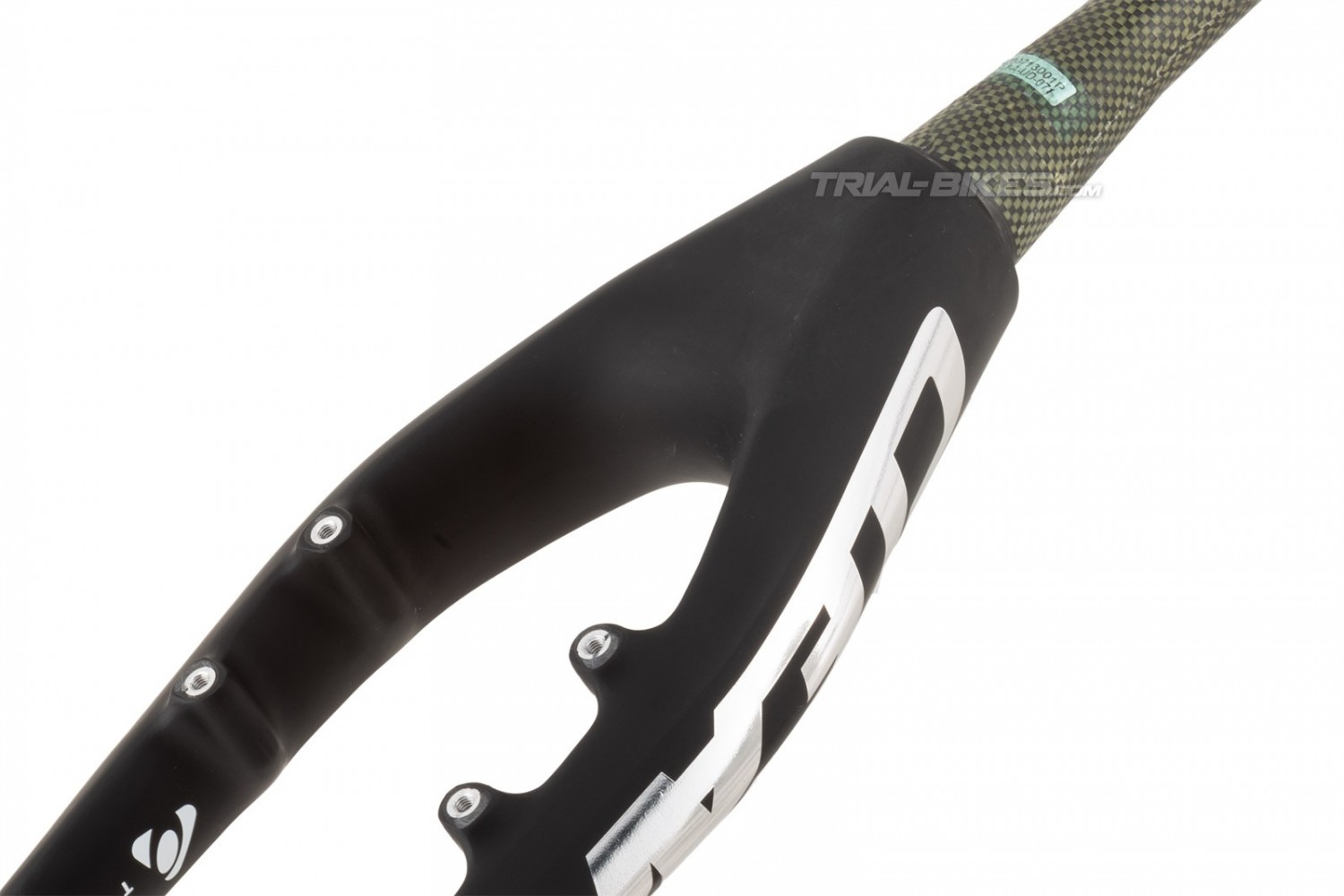

Clean K1 26" Carbon Fork

Clean K1 26" Carbon Fork

Clean K1 26 carbon fork, with a new design that is compatible with a 12 mm through-axle or a standard front hub, by just installing the appropriate aluminium inserts for the dropouts, available separately at our website.

Description and materials
- New Clean K1 26” carbon fork, ultralight and super strong, ideal for top-level bike trials riding.
- Updated design ensures better performance and is now compatible for both through-axle and standard hubs, by simply exchanging the dropouts aluminium inserts (included).
- Developed and tested by multi UCI World Champion Abel Mustieles.
- Inner structure is made of UD carbon fibre, whereas the outer layer is made of 12K carbon for a more spectacular finish, keeping high strength and stiffness and low weight.
- High modulus mono-block construction, which guarantees better properties than most carbon forks available.
- Features a tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom, for use with tapered headsets of said diameters.
- Furthermore, the steerer tube is made of carbon fibre and Kevlar, for increased toughness and stiffness, and also features an aluminium insert that erases the need for a star nut.
- 180 mm long steerer tube, with integrated crown race system at the base, so you no longer need to install a crown race, since the bearing sits directly onto the fork.

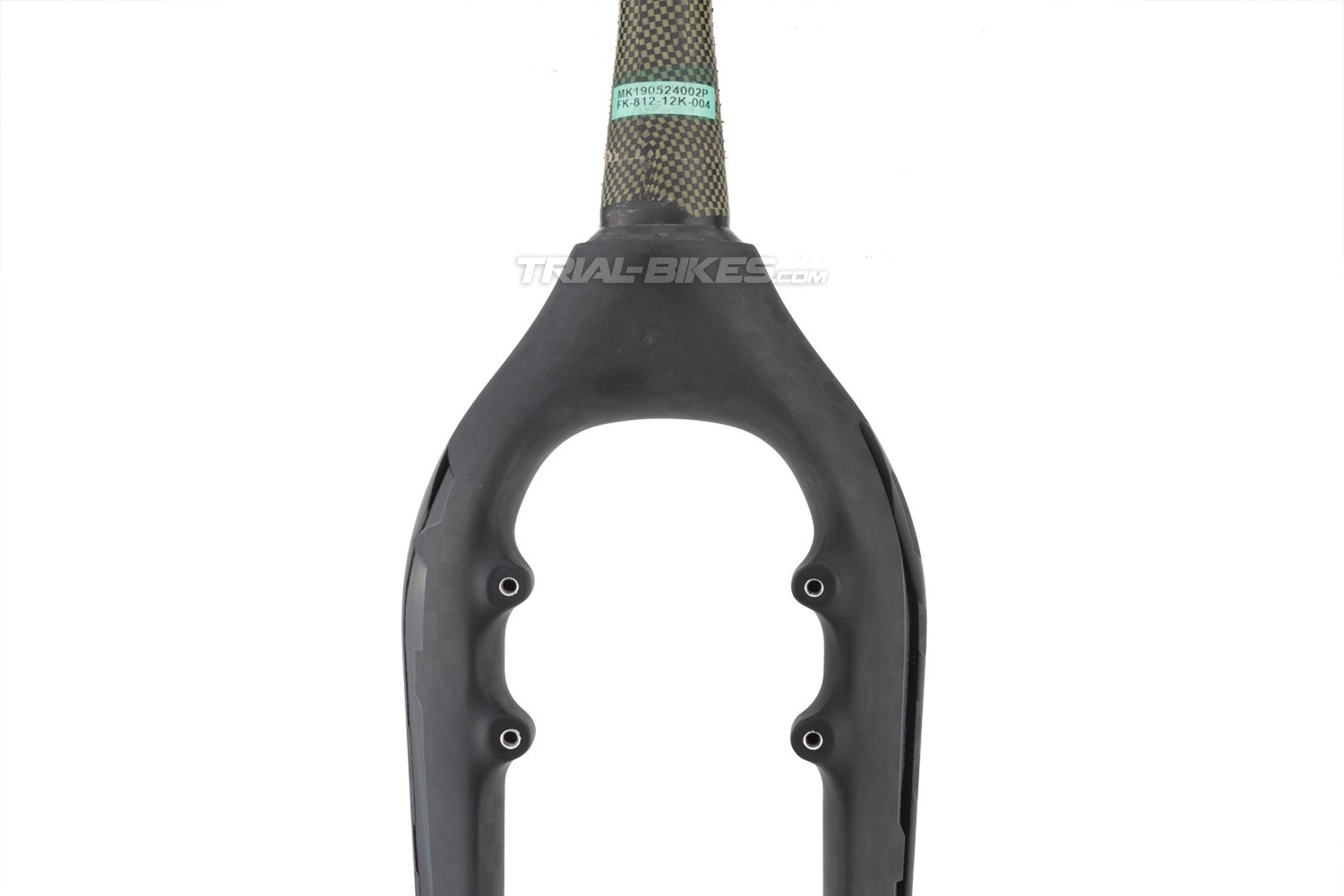

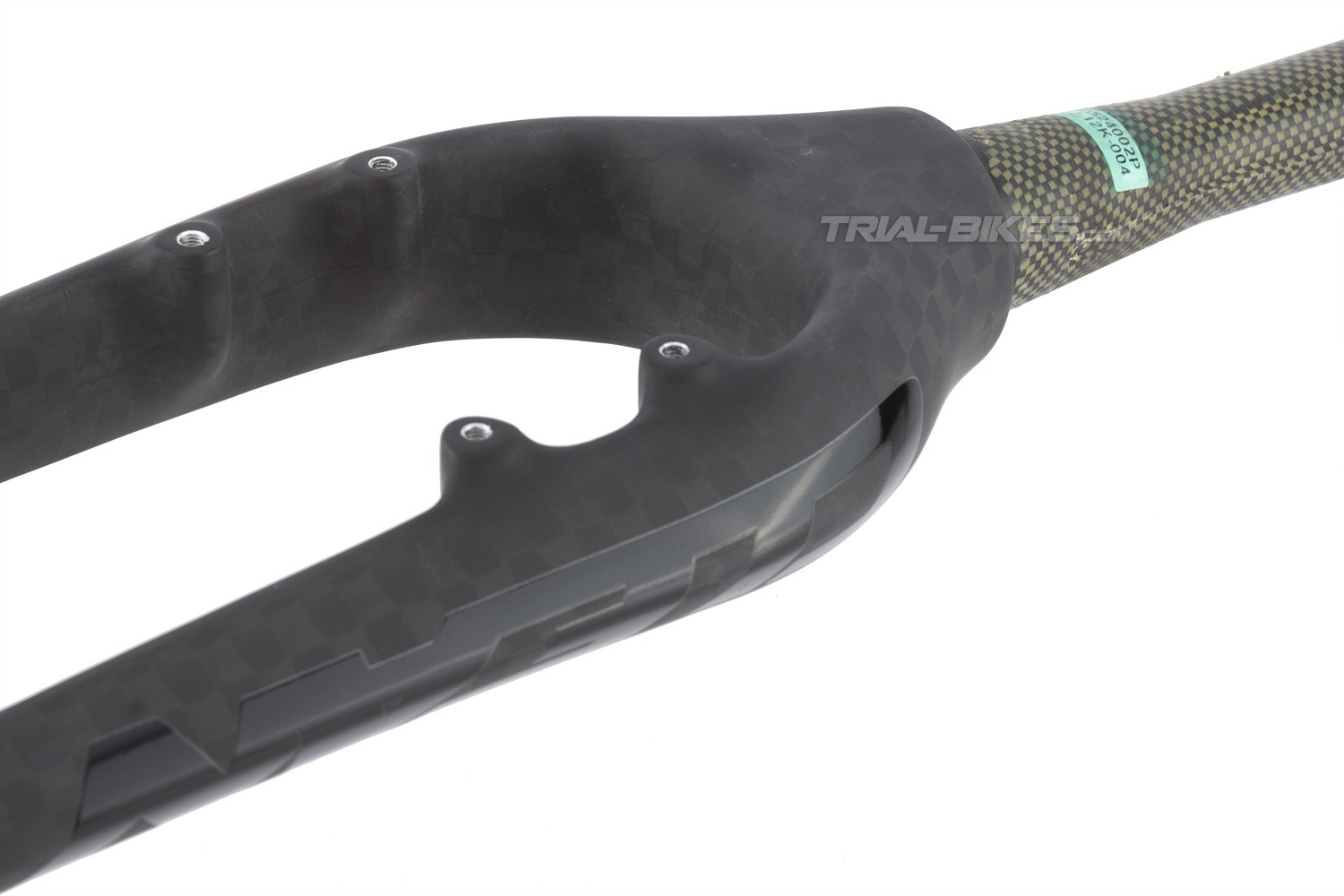

- 4-bolt rim brake mounts integrated at the back of the legs, spaced at 92 mm.

Includes

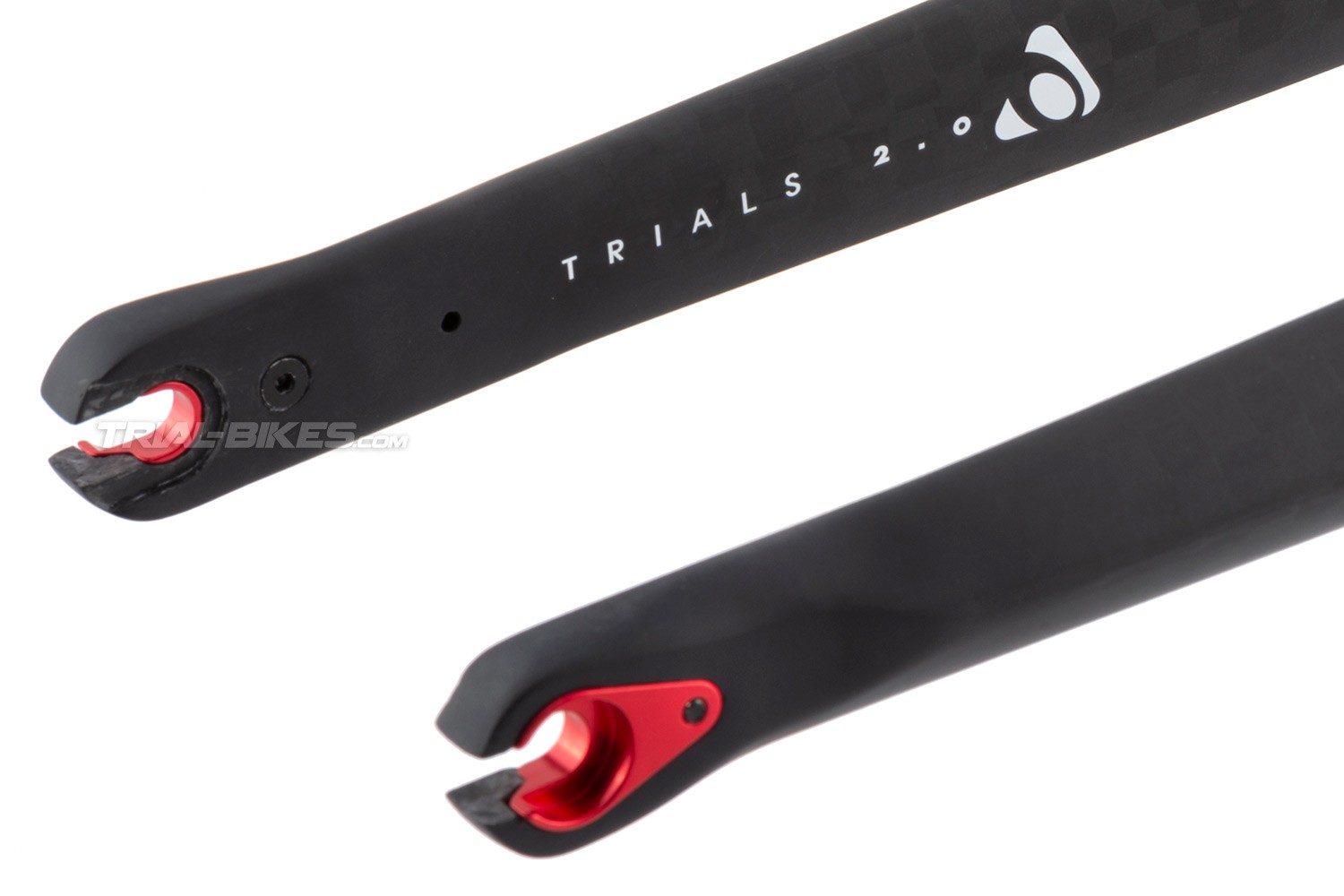

- The fork is supplied with aluminium inserts for a 12mm through-axle front hub.
- Does not include inserts for standard front hubs (available separately here).

Compatibility
- The steerer tube in this fork is tapered, and it has a 1 1/8” diameter at the top and 1.5” diameter at the bottom, so it’s not compatible with those frames that have a standard 1 1/8” steerer tube. A tapered 1 1/8” – 1.5” headset or a headset adaptor must be used to install this fork.

Dimensions

(1) Length: 400 mm.
-----------------------------------------------
(2) Offset: +35 mm.
-----------------------------------------------
(3) Steerer tube length: 180 mm.
-----------------------------------------------

- 4 bolts mounts spacing: 92 mm.

Colour
- 12K carbon pattern with black or silver Clean graphics.
- Red inserts.

Weight
- 553.28 g (including aluminium inserts and a 180 mm long steerer tube)
