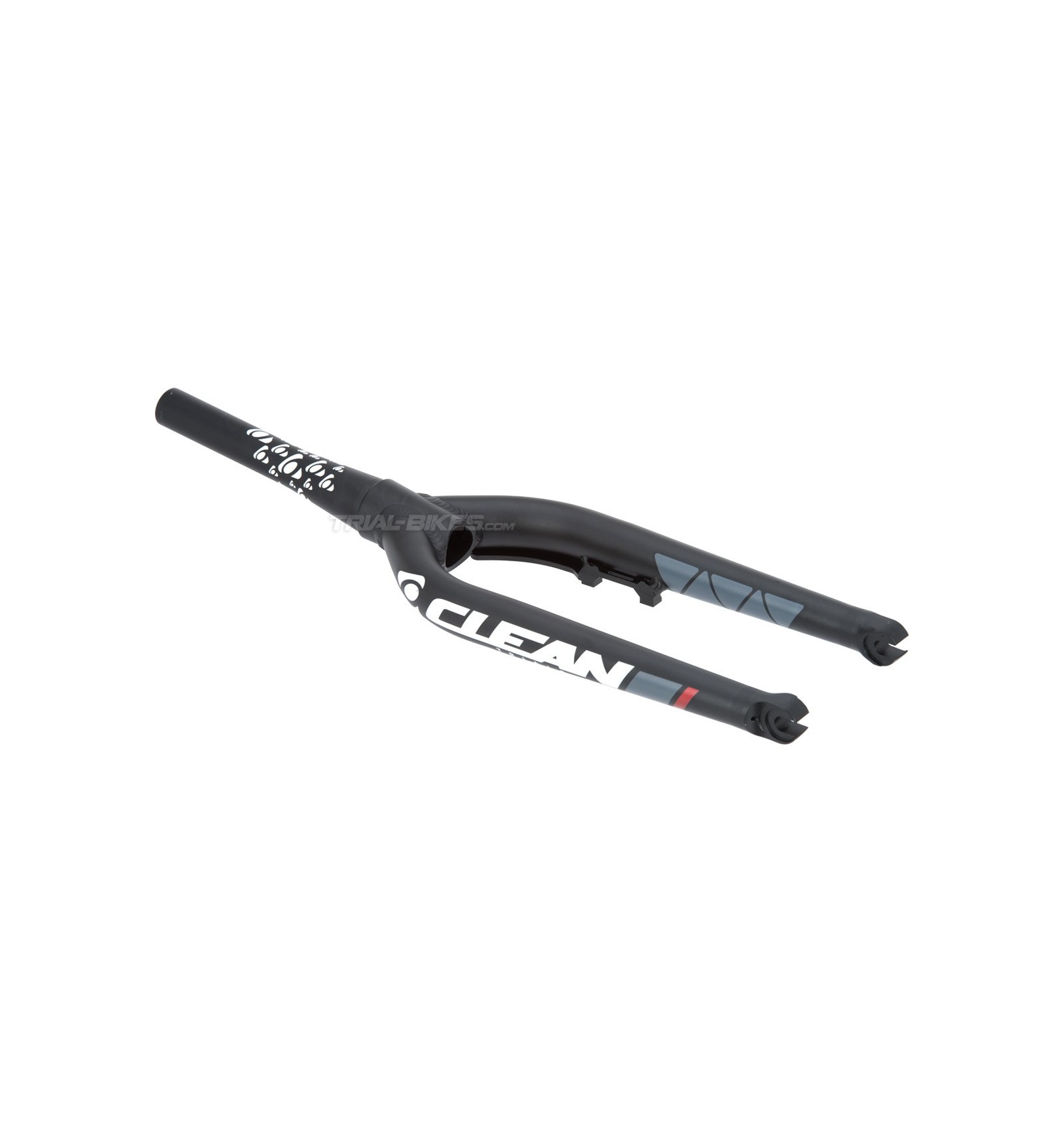

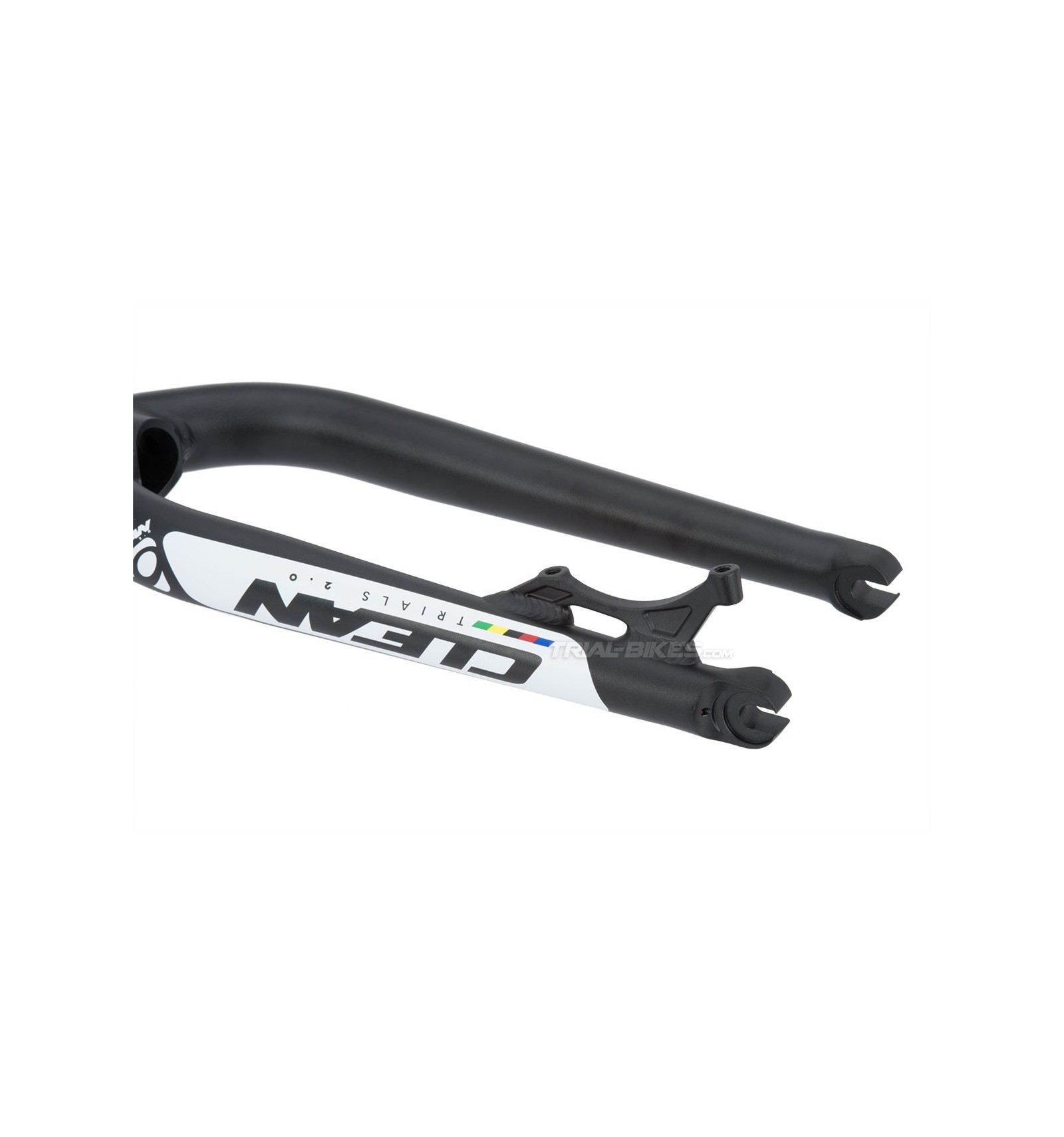

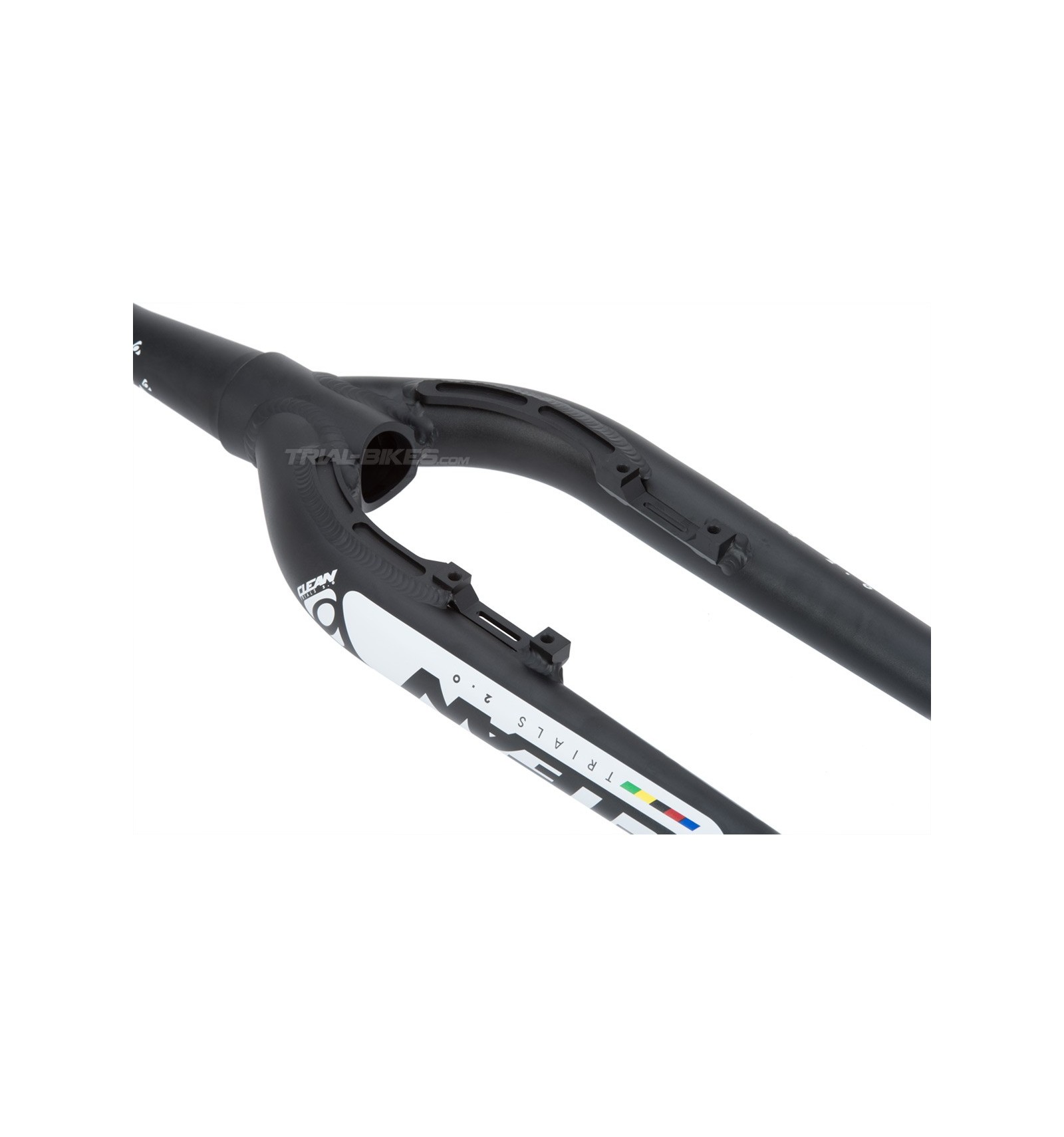

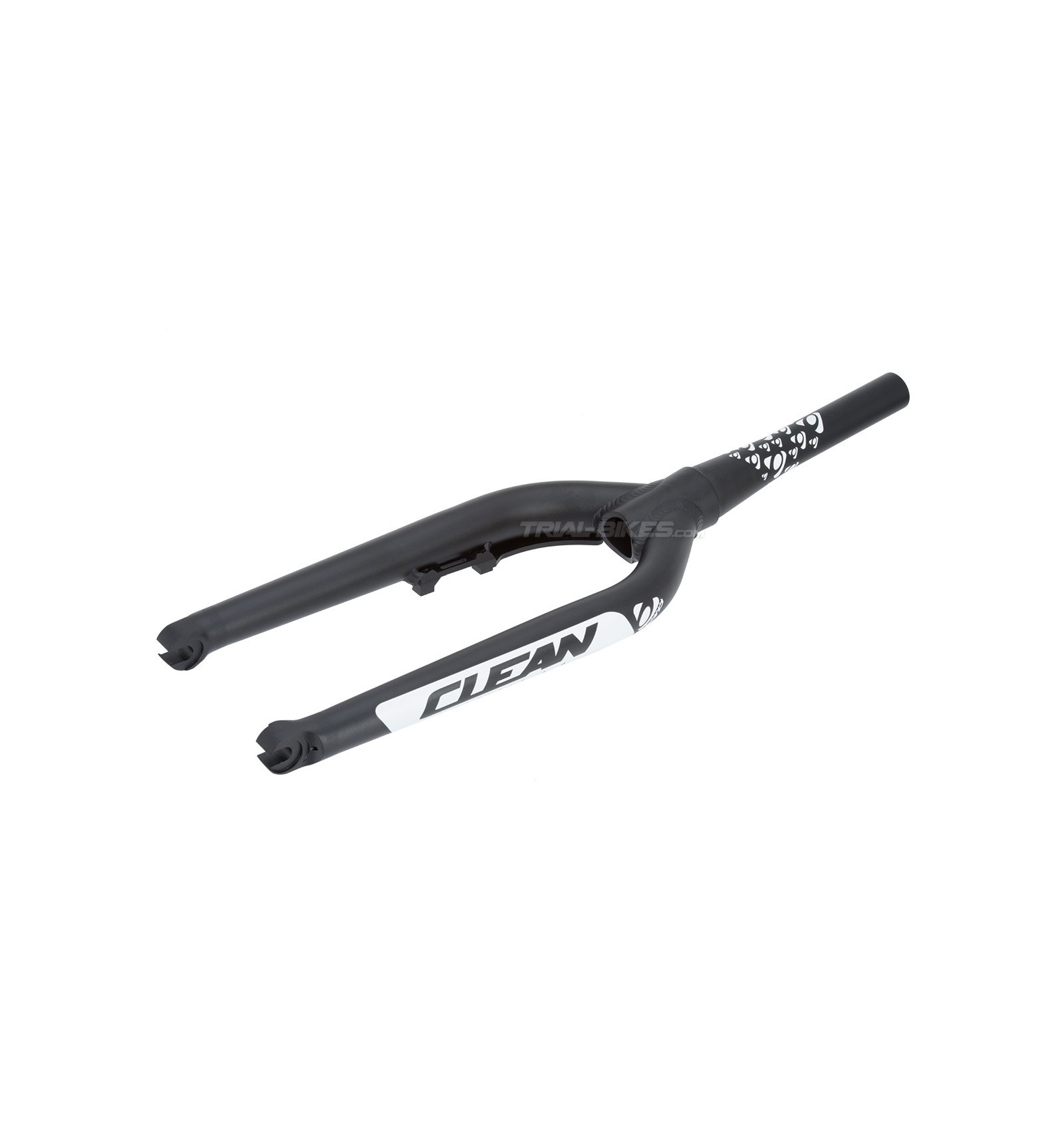

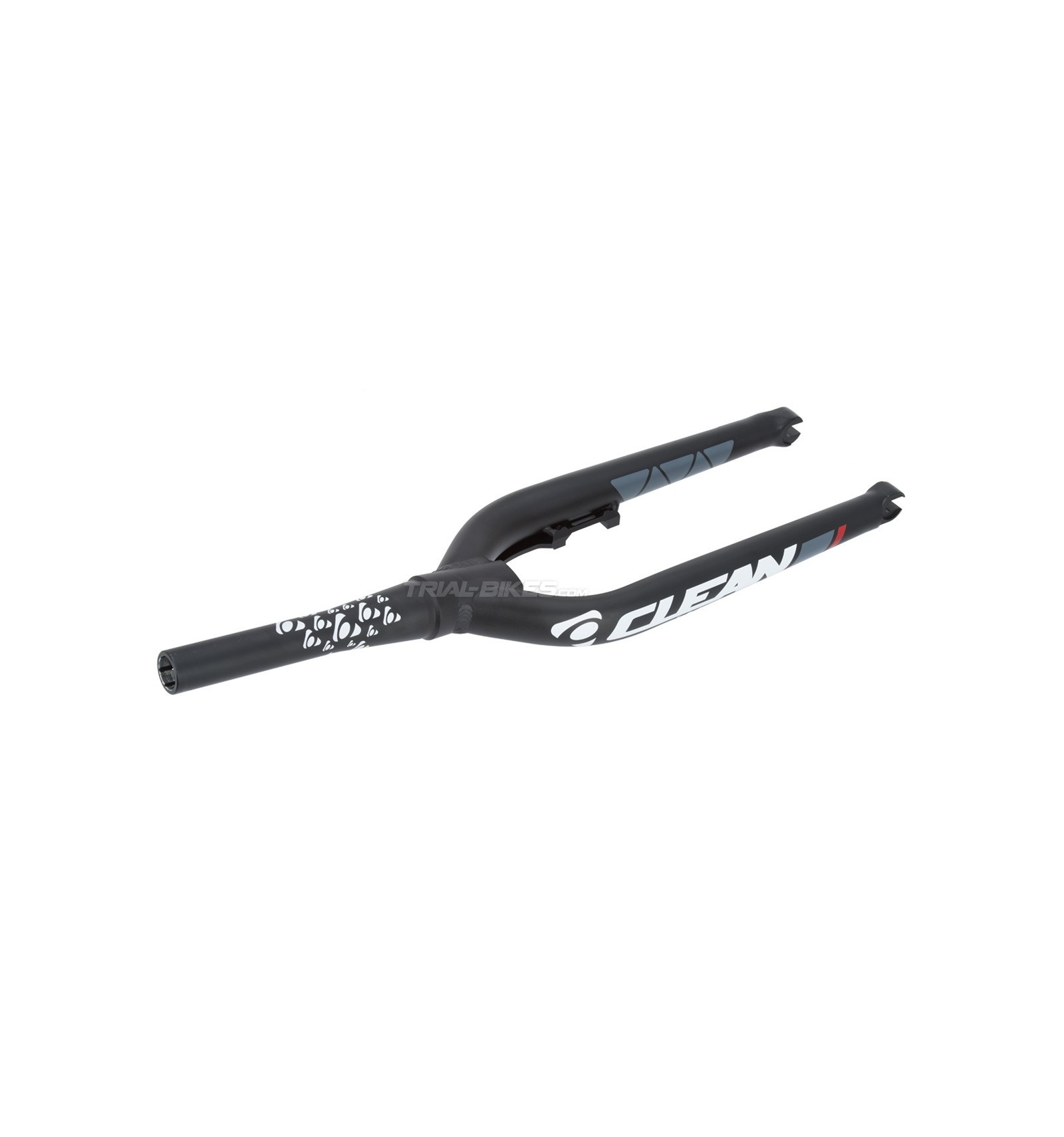

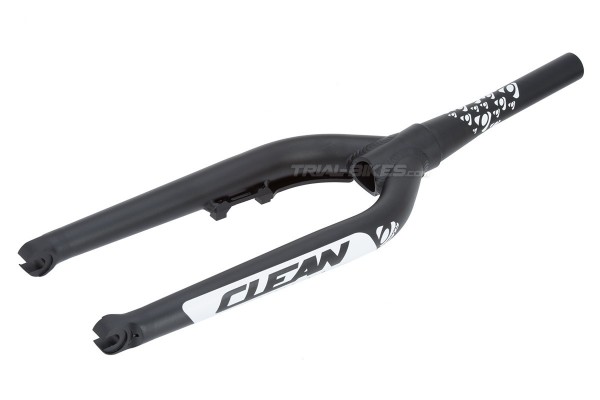

Clean X2 Tapered 20'' Fork

Description and materials
- New Clean Tapered fork for 20” bikes manufactured by Spanish brand Clean, owned by Abel Mustieles.
- This is a completely new fork that’s been designed from scratch to achieve the highest possible quality.
- Features a tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom, for use with tapered headsets of said diameters.
- Made of high quality 7005-T6 aluminium alloy, to ensure high strength and reliability.
- Compact design, with the steerer tube machined in one piece to optimize stiffness.
- Special leg curvatures increases frontal stability and maximizes welding surface.
- CNC machined dropouts.
- It’s available in two different options: for rim brakes or Post Mount disc brake mounts.
- The rim brake version has brake mounts spaced at 95mm at the back of the legs, and they’re integrated in built-in brake booster to guarantee increased stiffness and durability.
- The disc brake version has a new Post Mount disc brake mount for 160 mm rotors, and it’s been redesigned to increase its strength.
- 3.5 mm thick steerer tube offers a great balance between low weight and high strength.
- Supplied with the star nut already installed.
- Available in anodized black, with white, red and grey Clean graphics and UCI colours detail.

Compatibility
- The steerer tube in this fork is tapered, and it has a 1 1/8” diameter at the top and 1.5” diameter at the bottom, so it’s not compatible with those frames that have a standard 1 1/8” steerer tube. A tapered 1 1/8” – 1.5” headset or a headset adaptor must be used to install this fork.

Dimensions

(1) Length: 370 mm.
-----------------------------------------------
(2) Offset: +40 mm.
-----------------------------------------------
(3) Steerer tube length: 190 mm.
-----------------------------------------------

- Steerer tube thickness: 4 mm.
- 4 bolts mounts spacing: 95 mm.

Geometrias horquillas de trial bici

Finish
- Available in anodized black, with white, red and grey Clean graphics and UCI colours detail.

Weight
- 887.54 g (Post Mount version), 898.52 g (4-bolt version), with a 190 mm long steerer tube.

Additional information
This fork comes with a 1 year warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts will not be covered.

WEIGHT 0.887
MATERIAL Aluminium
BRAKE MOUNTS Post Mount Disc
STEERER TUBE Tapered 1 1/8” - 1.5”
