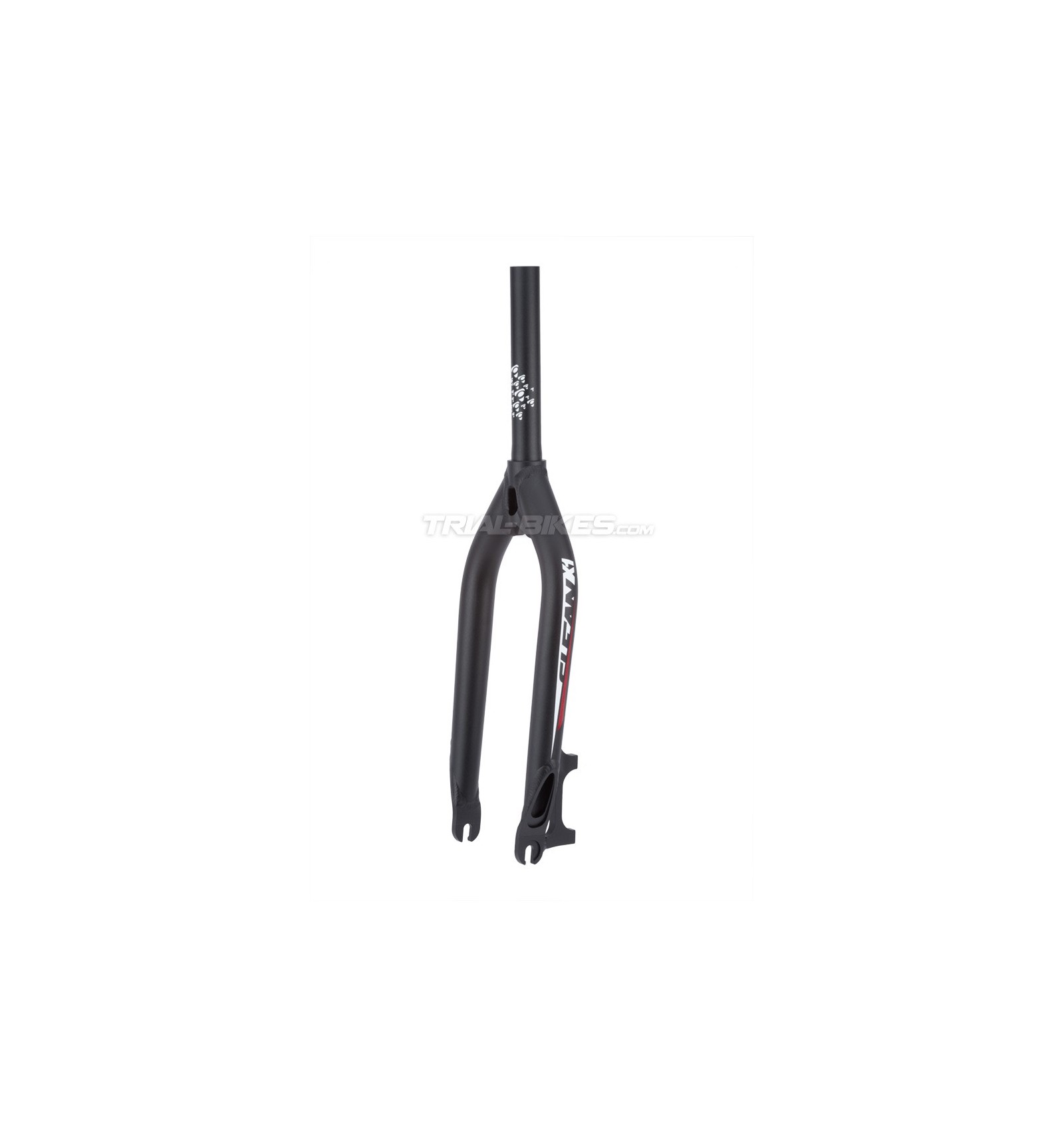

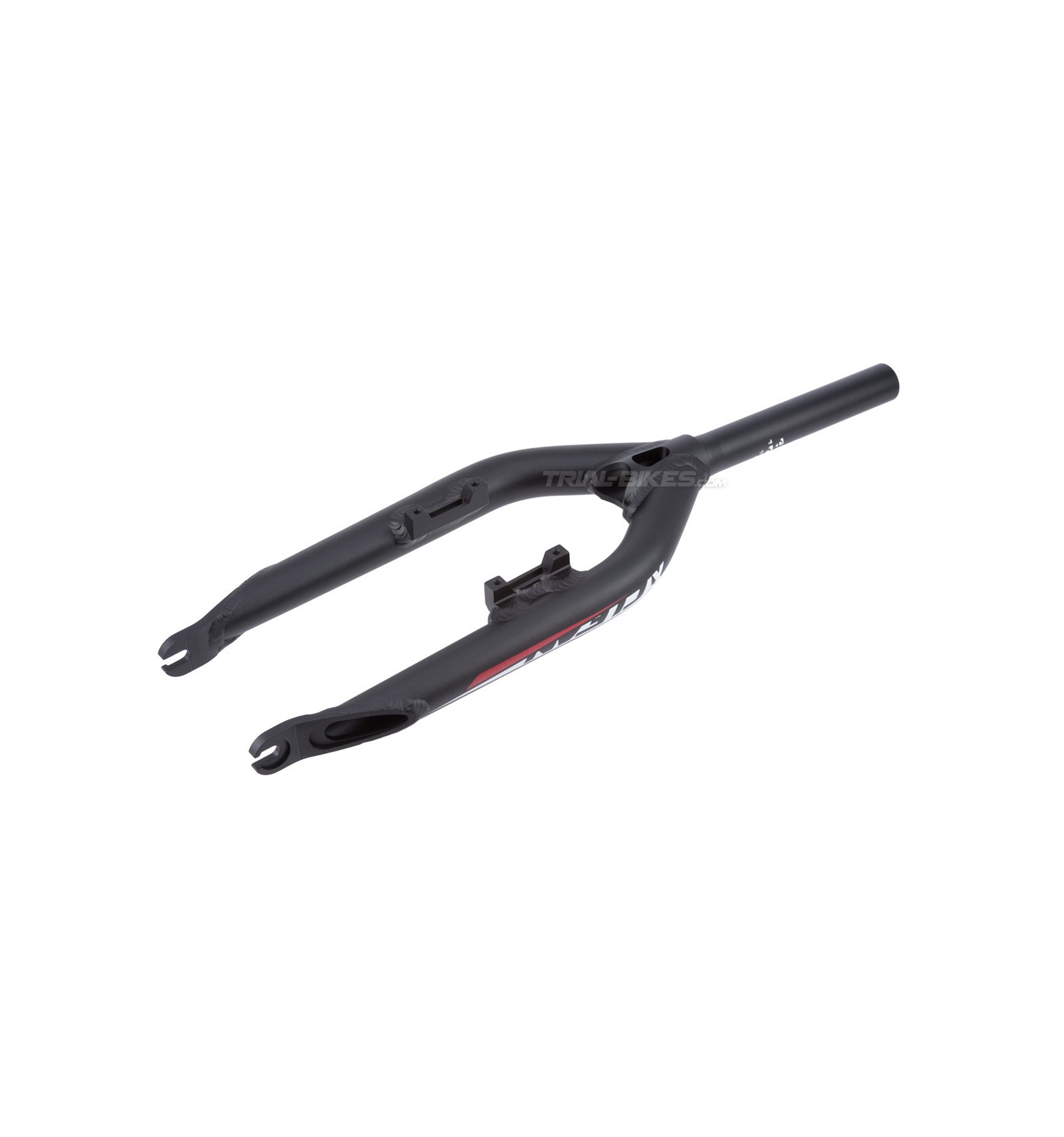

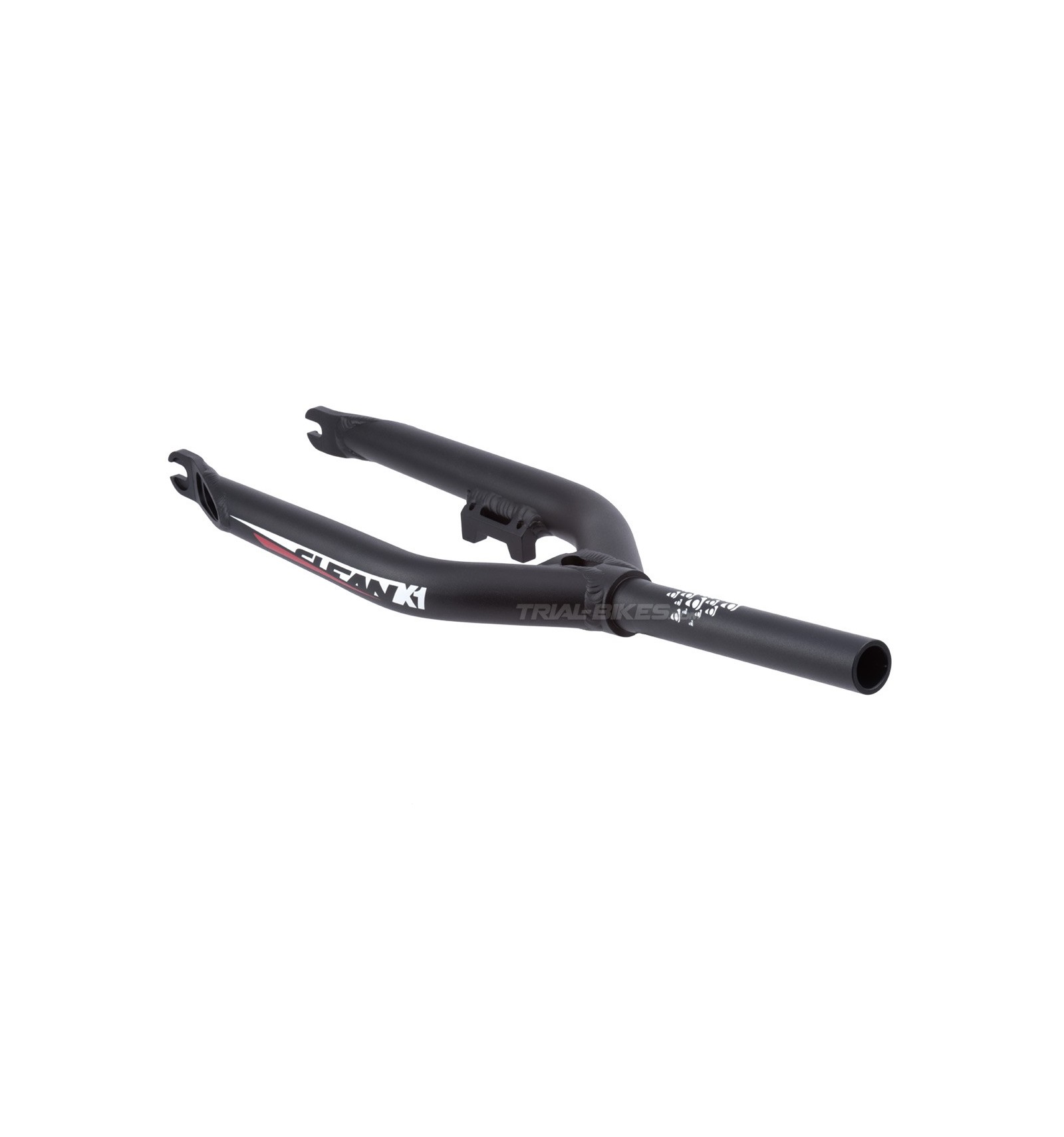

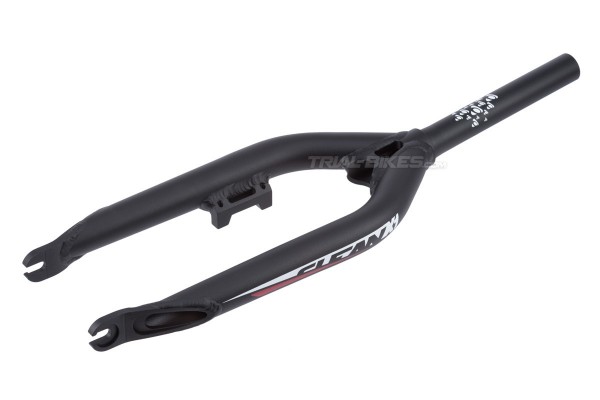

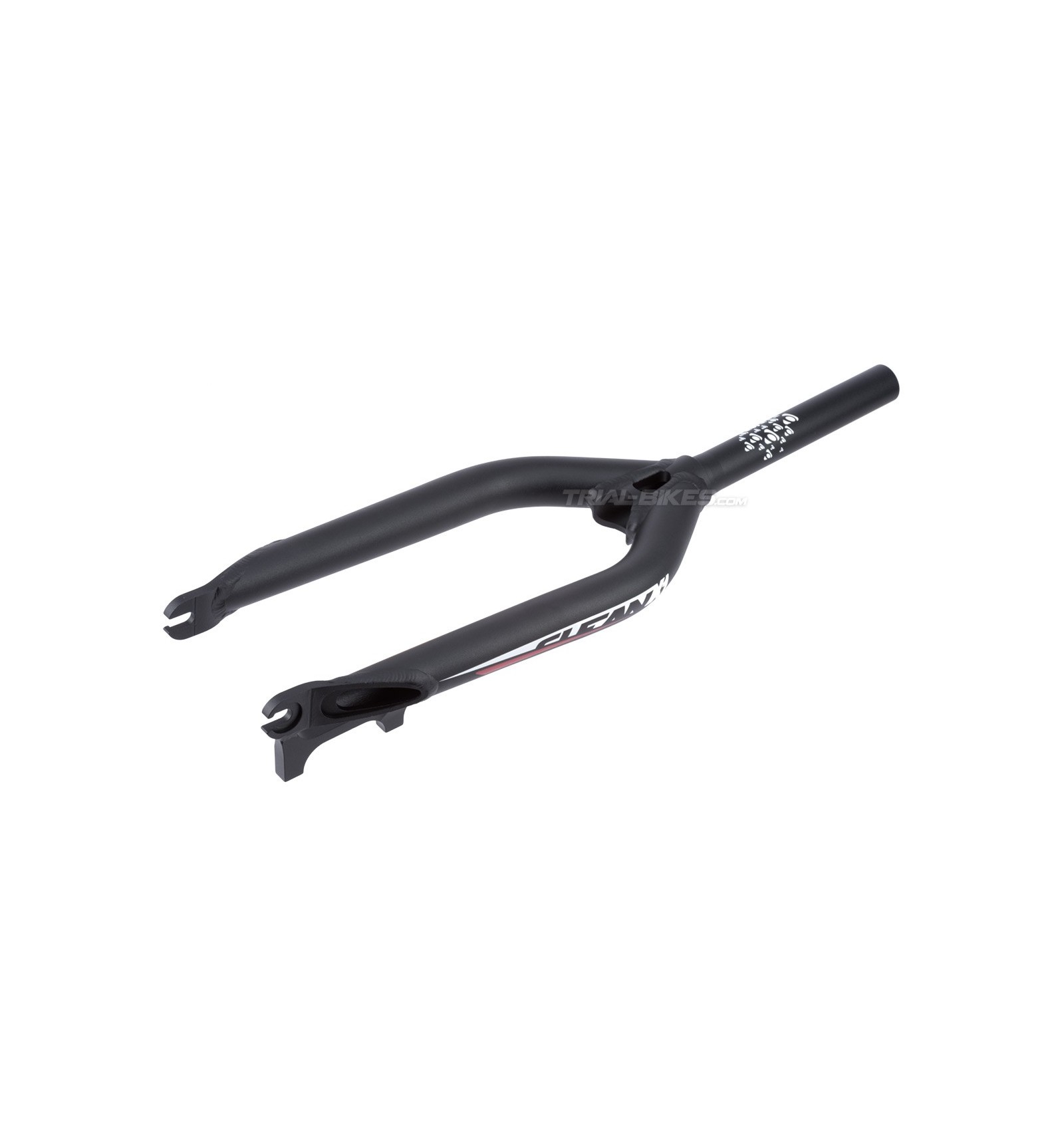

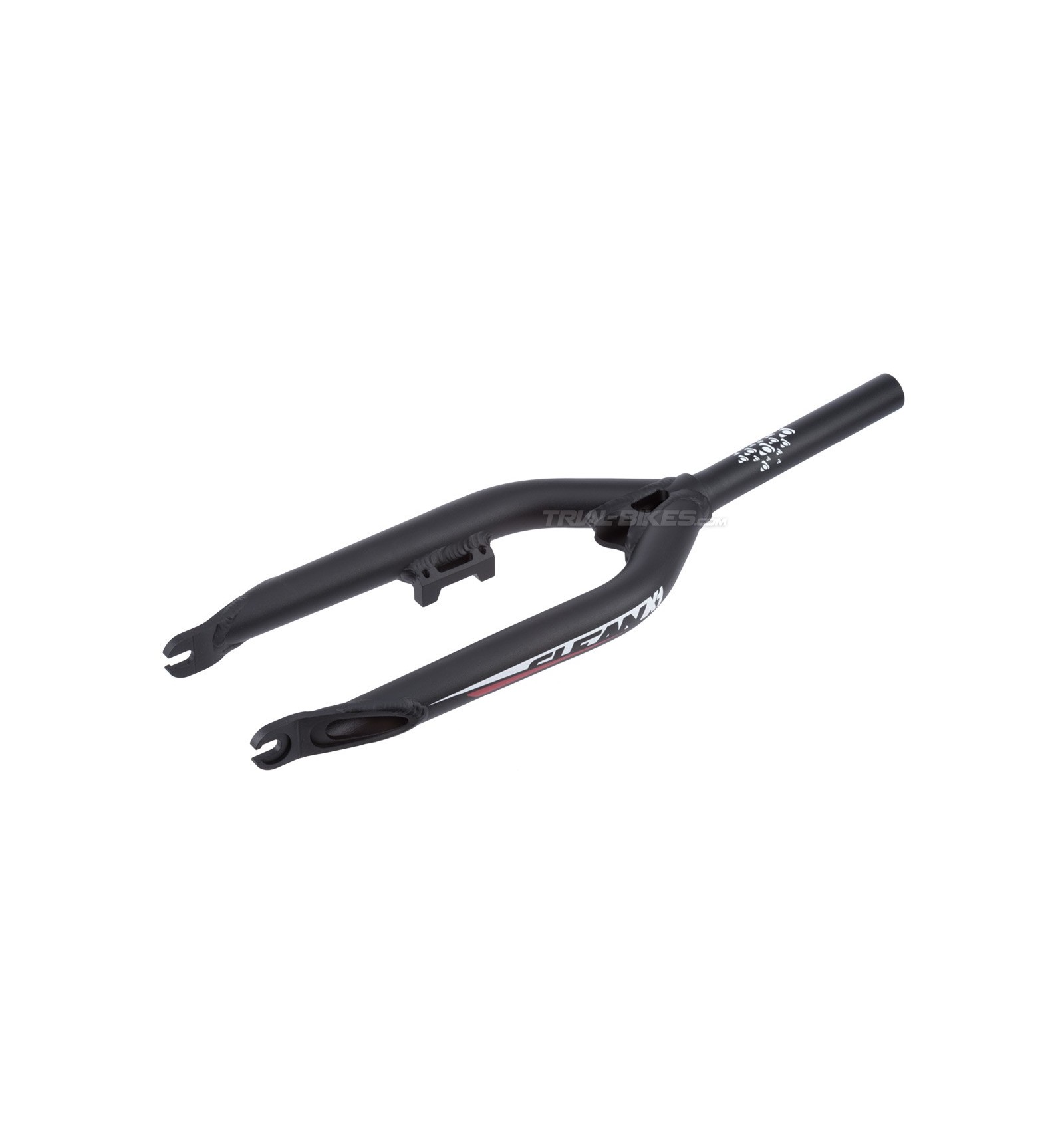

Clean X1 20'' Fork

Description and materials
- New aluminium fork for 20” bikes manufactured by Spanish brand Clean, owned by Abel Mustieles.
- This is a very reliable, strong fork, which comes installed on the new Clean X1 20” range of bikes.
- Made of high quality 7005-T6 aluminium alloy, to ensure high strength and reliability with a low weight.
- Features a standard 1 1/8” steerer tube.
- The steerer tube has been machined in one piece to optimize stiffness and strength.

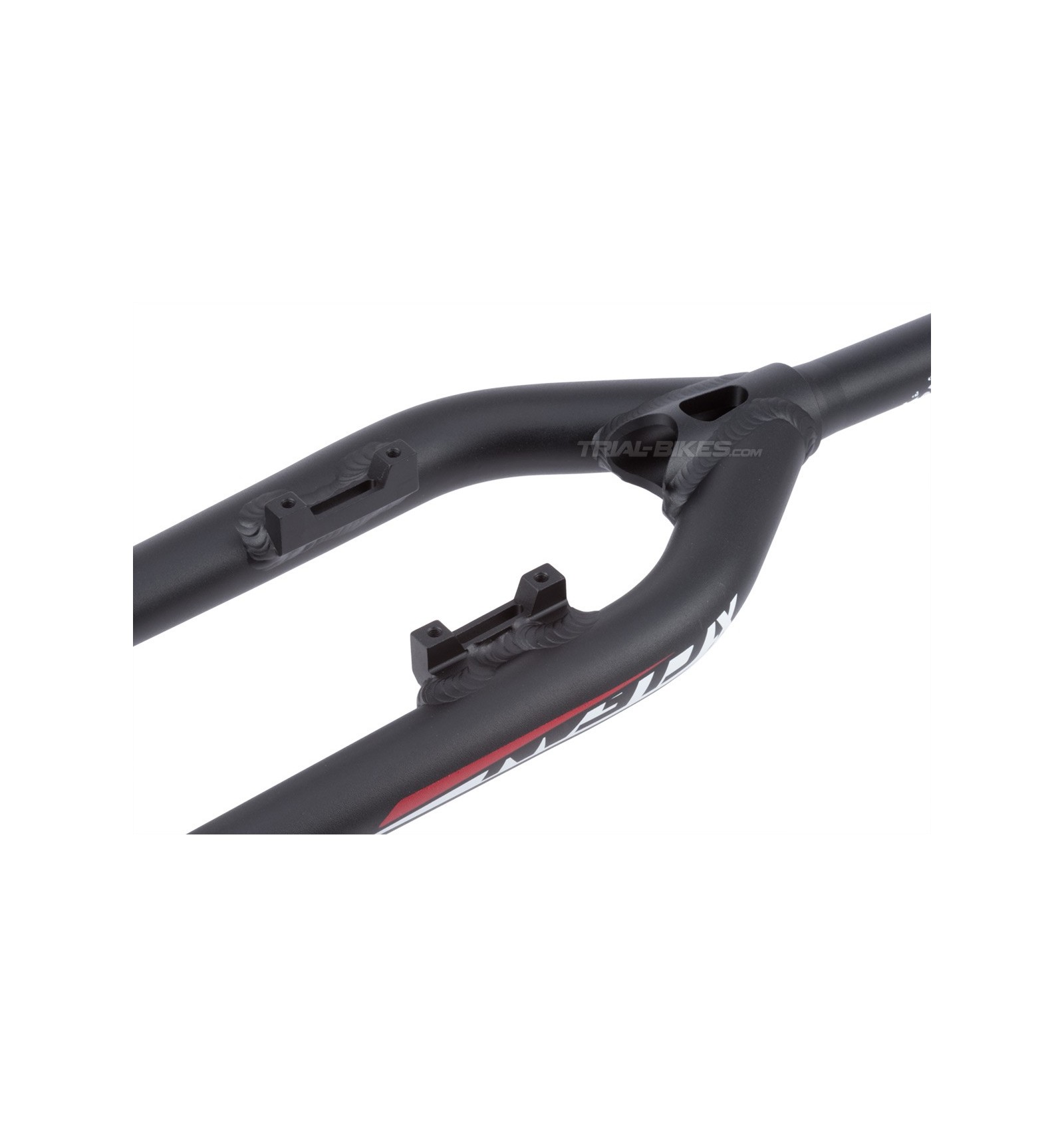

- Special leg curvatures maximize welding surface on the dropouts and steerer tube.
- Accurate CNC machined dropouts, with large windows that remove any excess material.
- 3.5 mm thick steerer tube, enough to ensure long durability.
- Two versions available: with 4-bolt rim brake mounts or Post Mount disc brake mounts.
- The rim brake version has brake mounts spaced at 88 mm at the back of the legs.

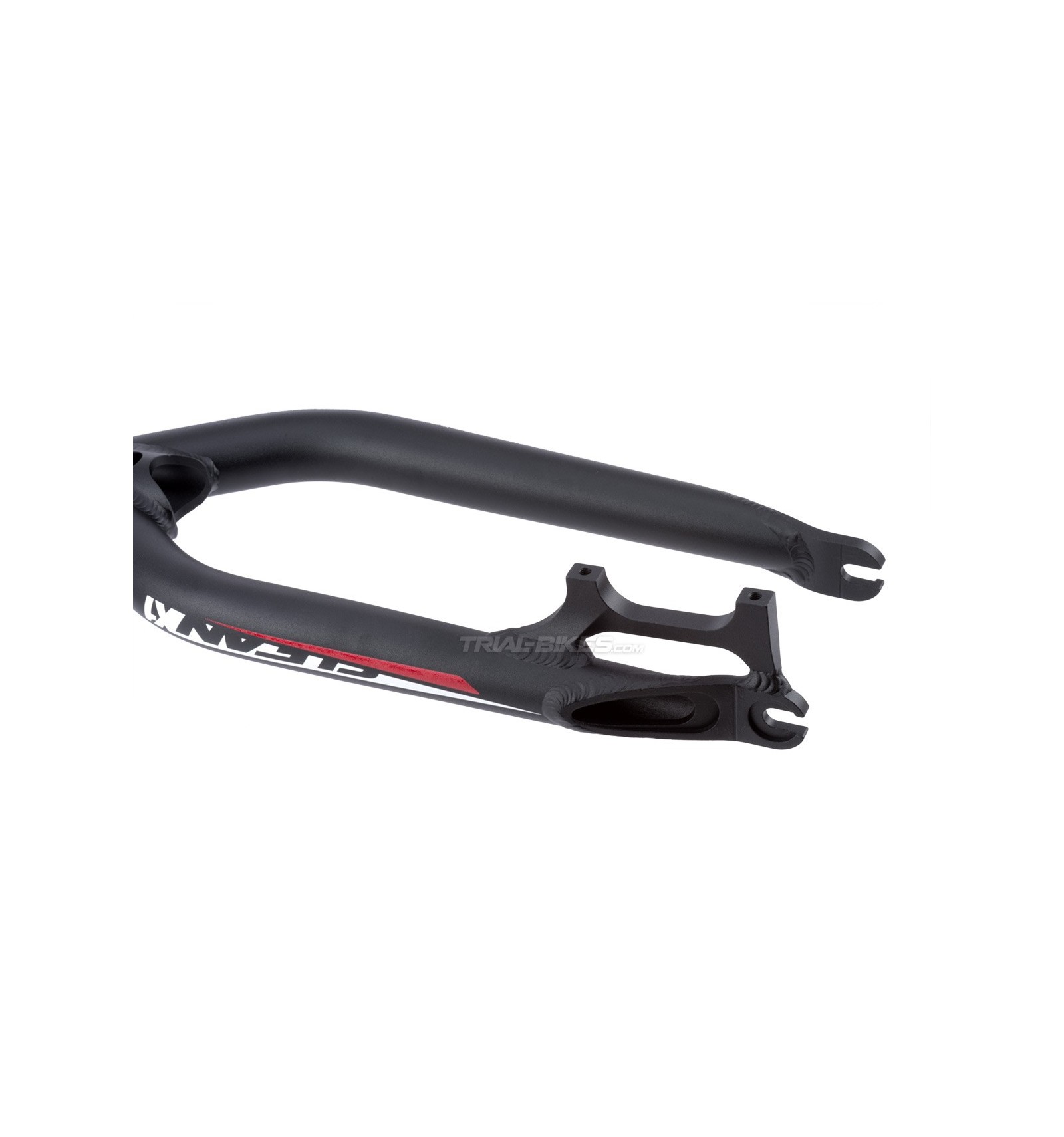

- The disc brake version has a new Post Mount disc brake mount for 160 mm rotors, and it’s been redesigned to increase its strength.
- Supplied with a 1” star nut (not installed).

Compatibility
- 1 1/8” headsets.
- Front hubs with 100 mm spacing.
- 1” star nuts.

Dimensions

(1) Length: 370 mm.
-----------------------------------------------
(2) Offset: +45 mm.
-----------------------------------------------
(3) Steerer tube length: 185 mm.
-----------------------------------------------

- Steerer tube thickness: 3.5 mm.
- 4 bolts mounts spacing: 88 mm.

Finish
- Anodized black, with white and red Clean graphics.

Weight
- 769.62 g (Post Mount version), 792.28 g (4-bolt version), with an 185 mm long steerer tube.
