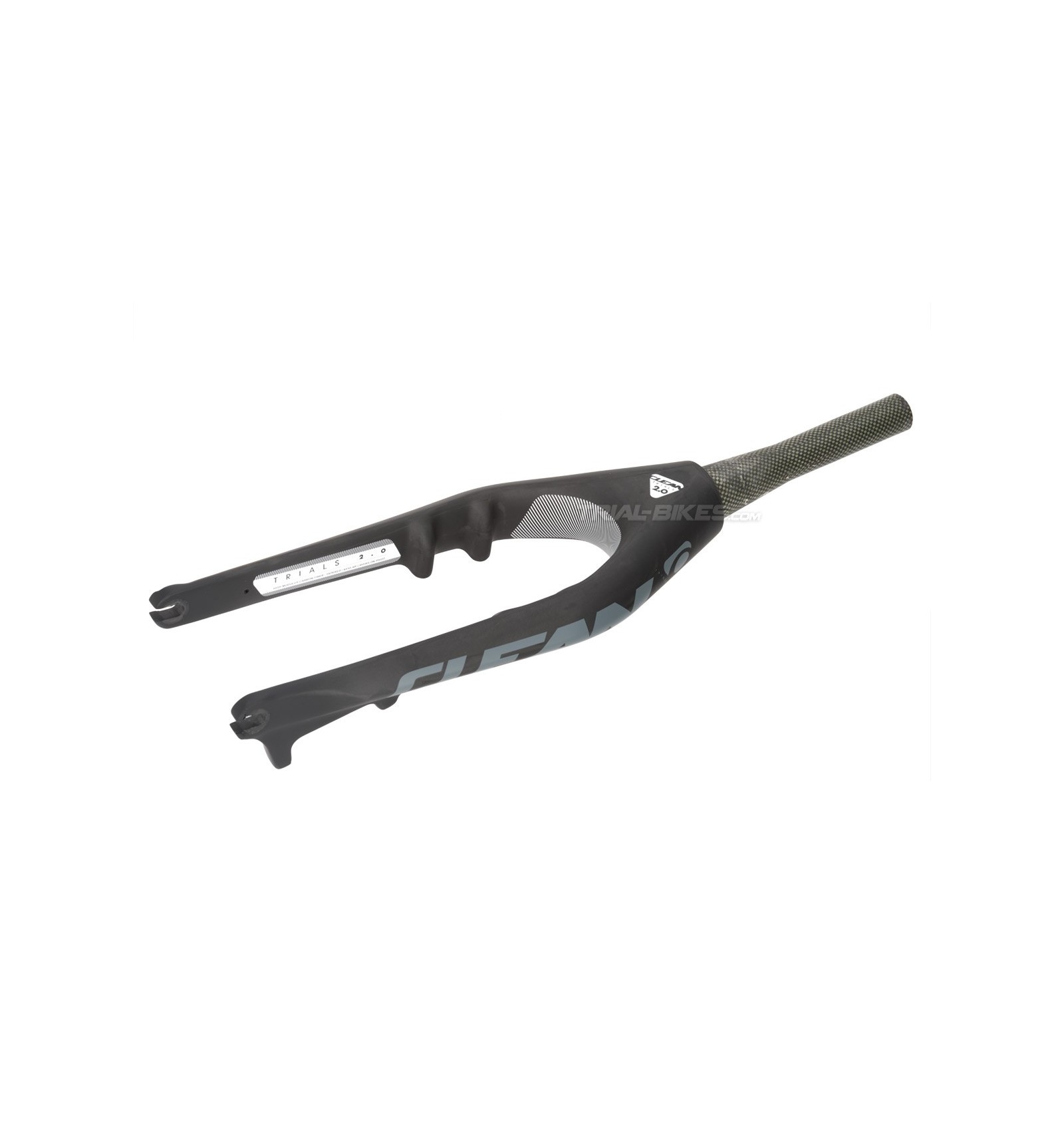

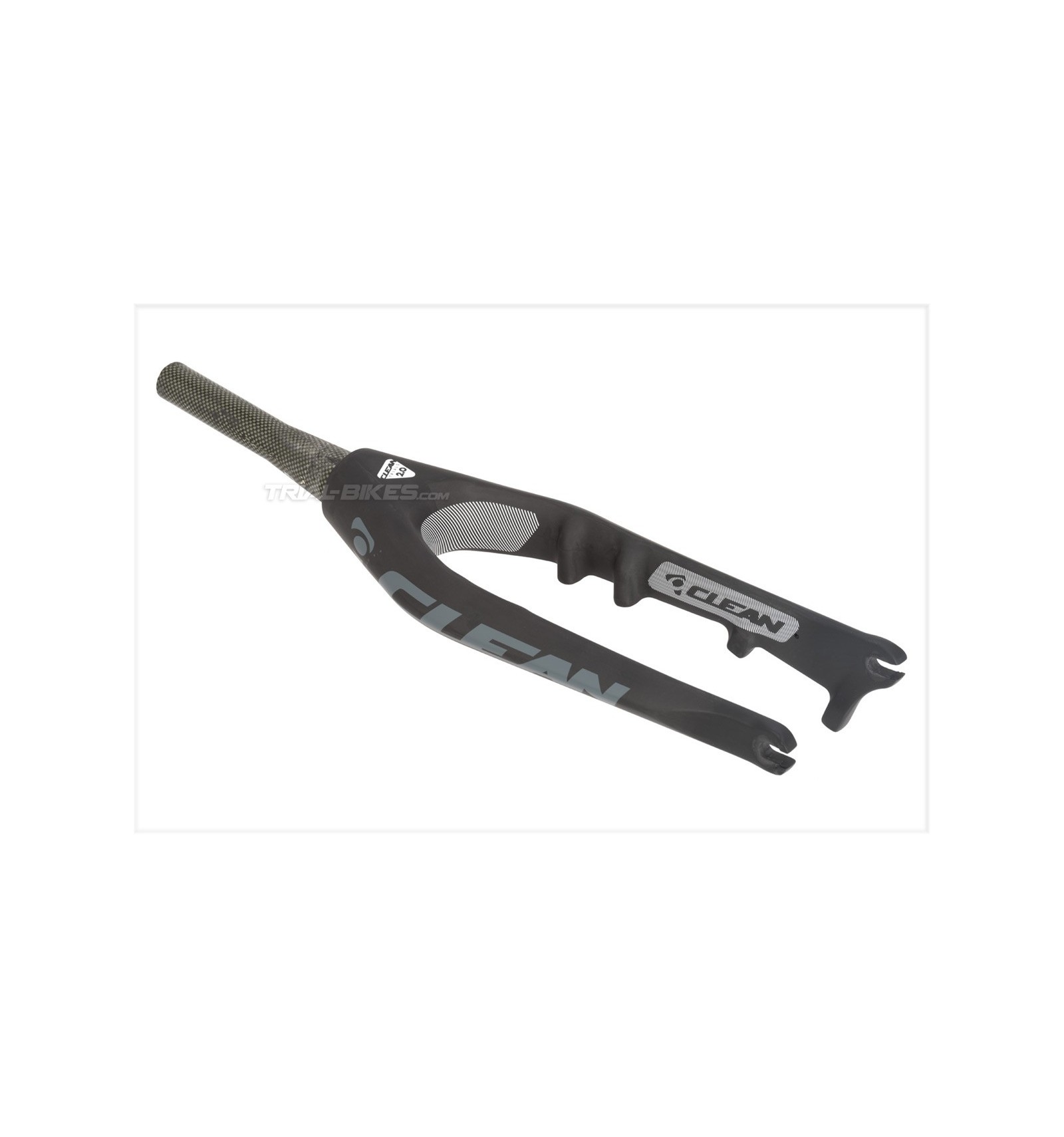

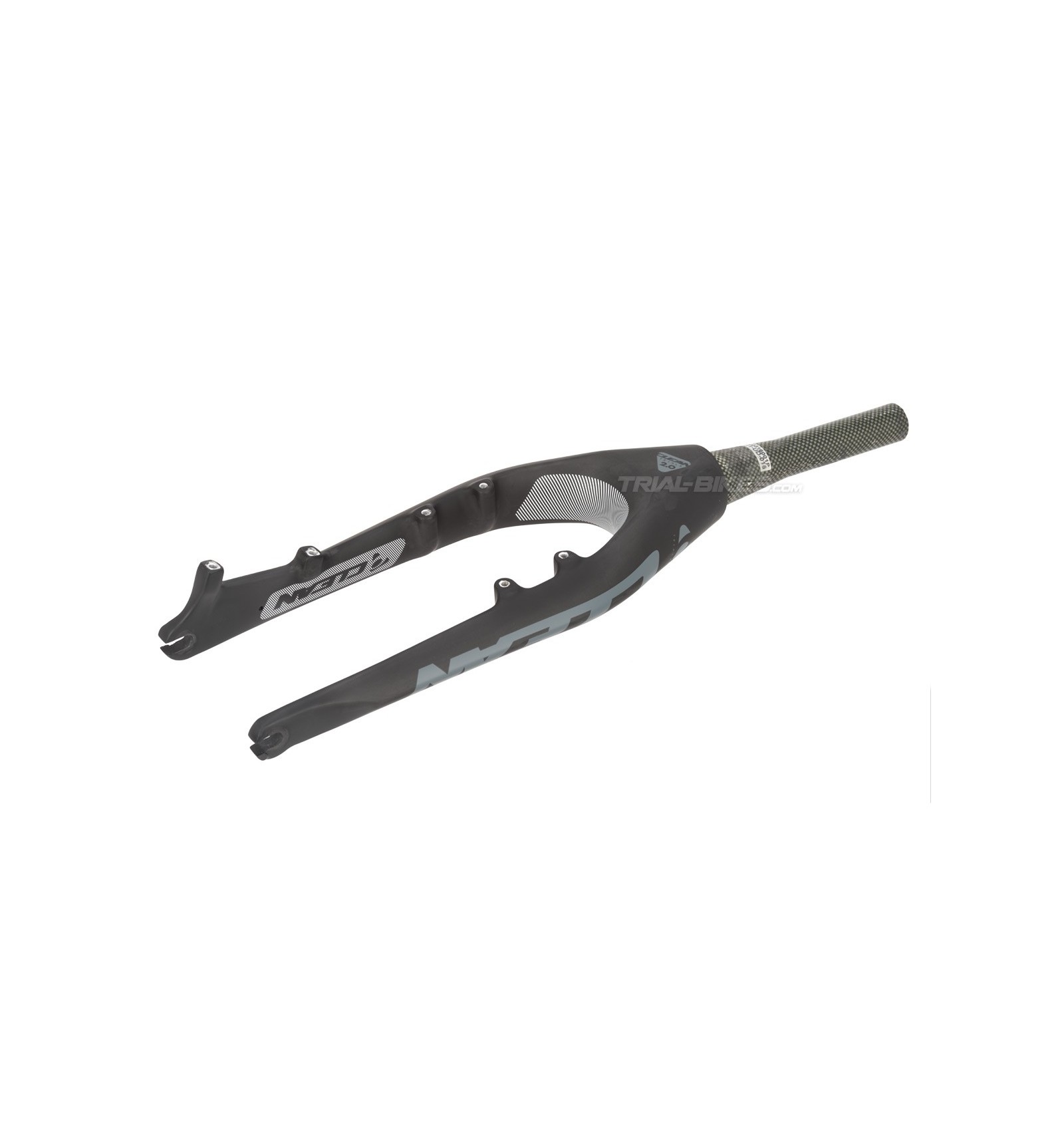

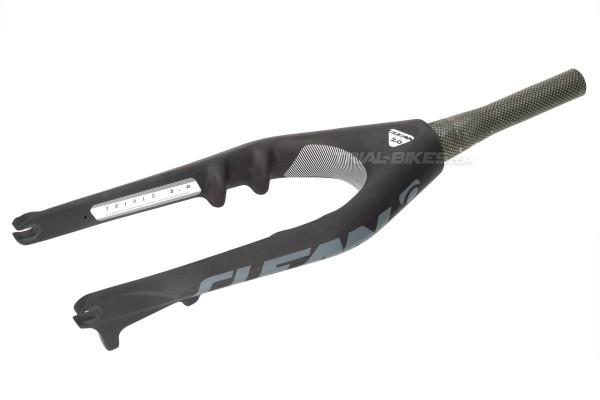

Clean X2 20'' Carbon Fork

Description and materials
- New Clean X2 20” tapered carbon fork, developed by Spanish brand Clean, owned by Multi-time UCI World Champion Abel Mustieles.
- Developed and tested for months by Clean team riders Sebastián Ruiz, Joacin Nymann and Abel Mustieles himself.
- Manufactured from unidirectional (UD) carbon fibre, a material that allows for drastic weight savings when compared to aluminium, while still keeping high strength and reliability.
- High modulus mono-block construction, which guarantees better properties than most carbon forks available.

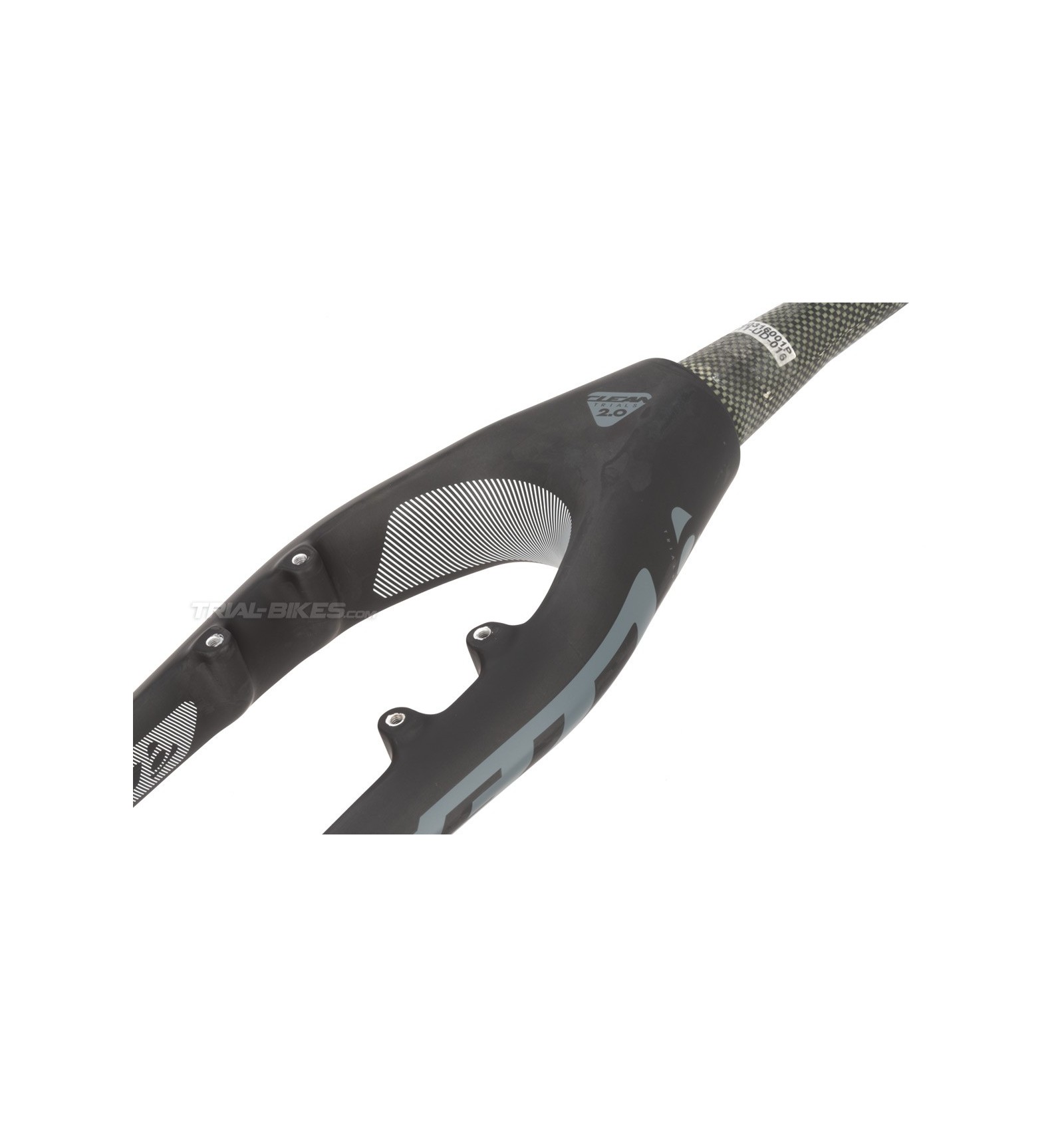

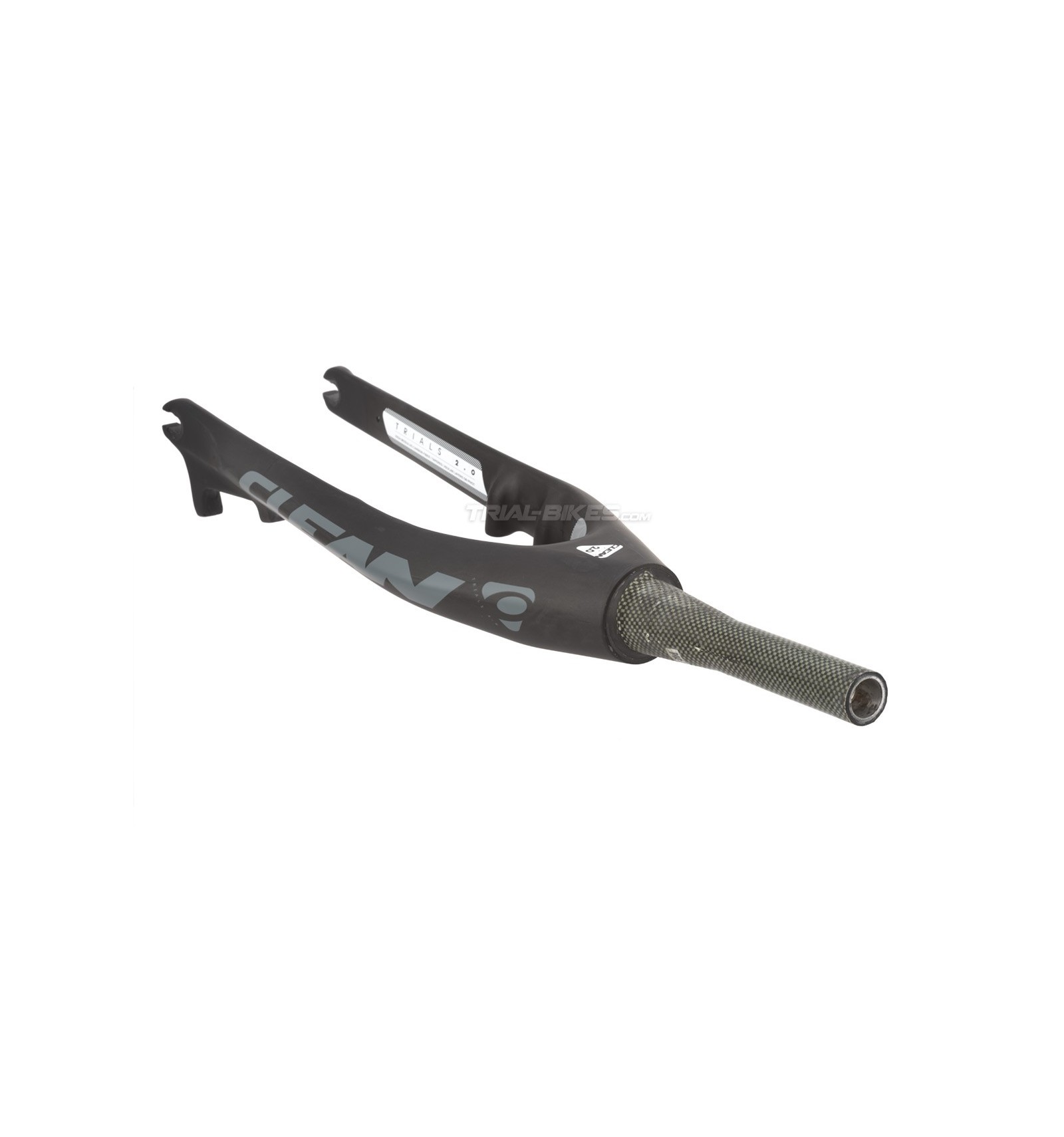

- Features a tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom, for use with tapered headsets of said diameters.
- Furthermore, the steerer tube is made of carbon fibre and Kevlar, for increased toughness and stiffness, and also features an aluminium insert that erases the need for a star nut.
- 180mm long steerer tube, with integrated crown race system at the base, so you no longer need to install a crown race, since the bearing sits directly onto the fork.
- Features both 4-bolt rim brake mounts and Post Mount disc brake mounts.
- The 4-bolt rim brake mounts are integrated at the back of the legs, spaced at 91mm.
- 160mm Post Mount disc brake mount, neatly integrated in the fork leg.

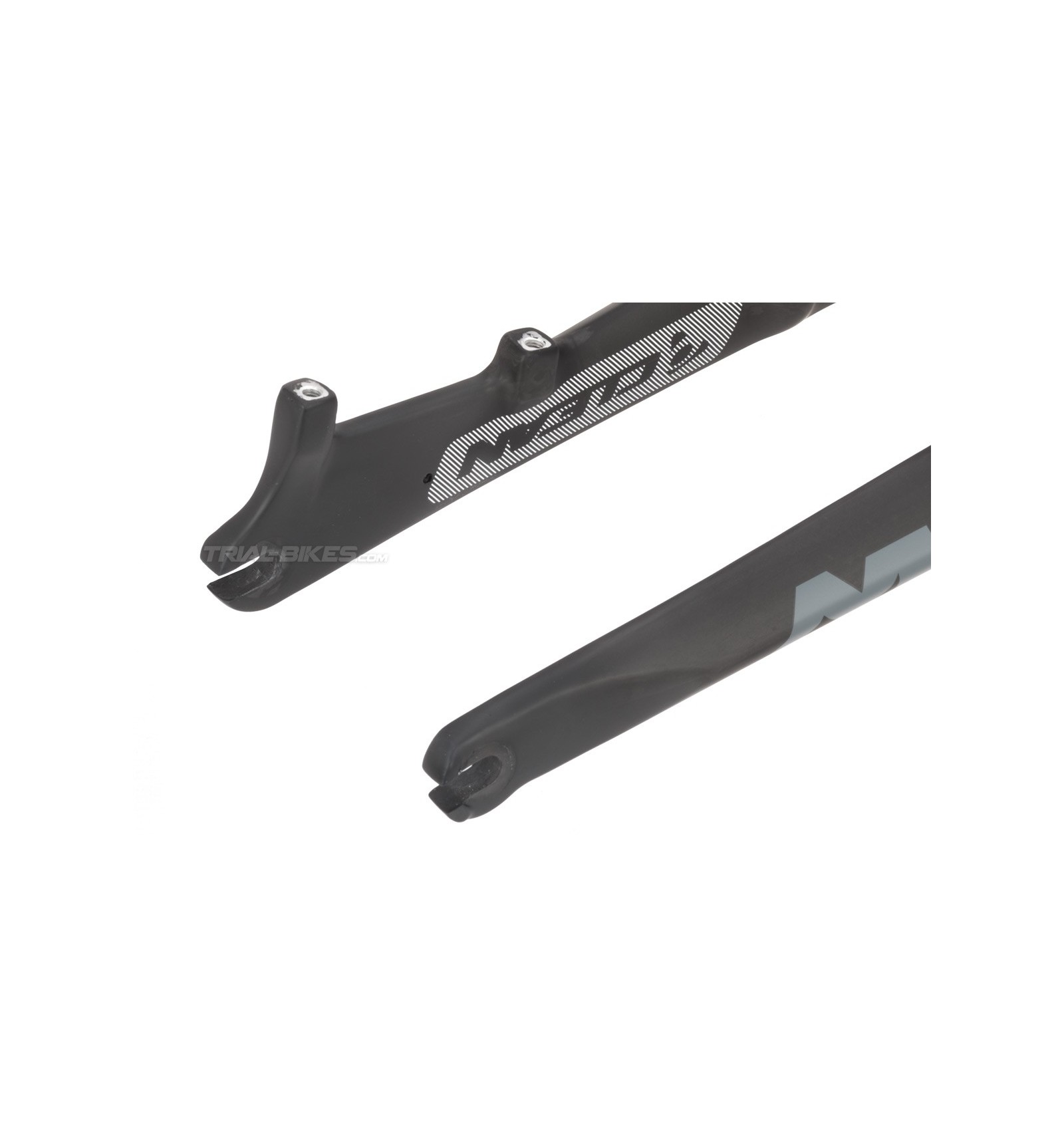

- The dropouts are designed for 10mm-diameter axle, spaced at 100mm, so it’s compatible with most front hubs available.
- UD carbon matt black finish, with white and grey Clean graphics, and carbon fibreeffect finish on steerer tube.

Compatibility
- The steerer tube in this fork is tapered, and it has a 1 1/8” diameter at the top and 1.5” diameter at the bottom, so it’s not compatible with those frames that have a standard 1 1/8” steerer tube. A tapered 1 1/8” – 1.5” headset or a headset adaptor must be used to install this fork.

Dimensions
- Length: 370mm
- Offset: +40mm
- Steerer tube: 180mm

Finish
- UD carbon matt black finish, with white and grey Clean graphics, and carbon fibreeffect finish on steerer tube.

Weight
- 504.06g (with a 180mm steerer tube)

Additional information
This fork is made for competition riding, so it is not covered under any warranty.
