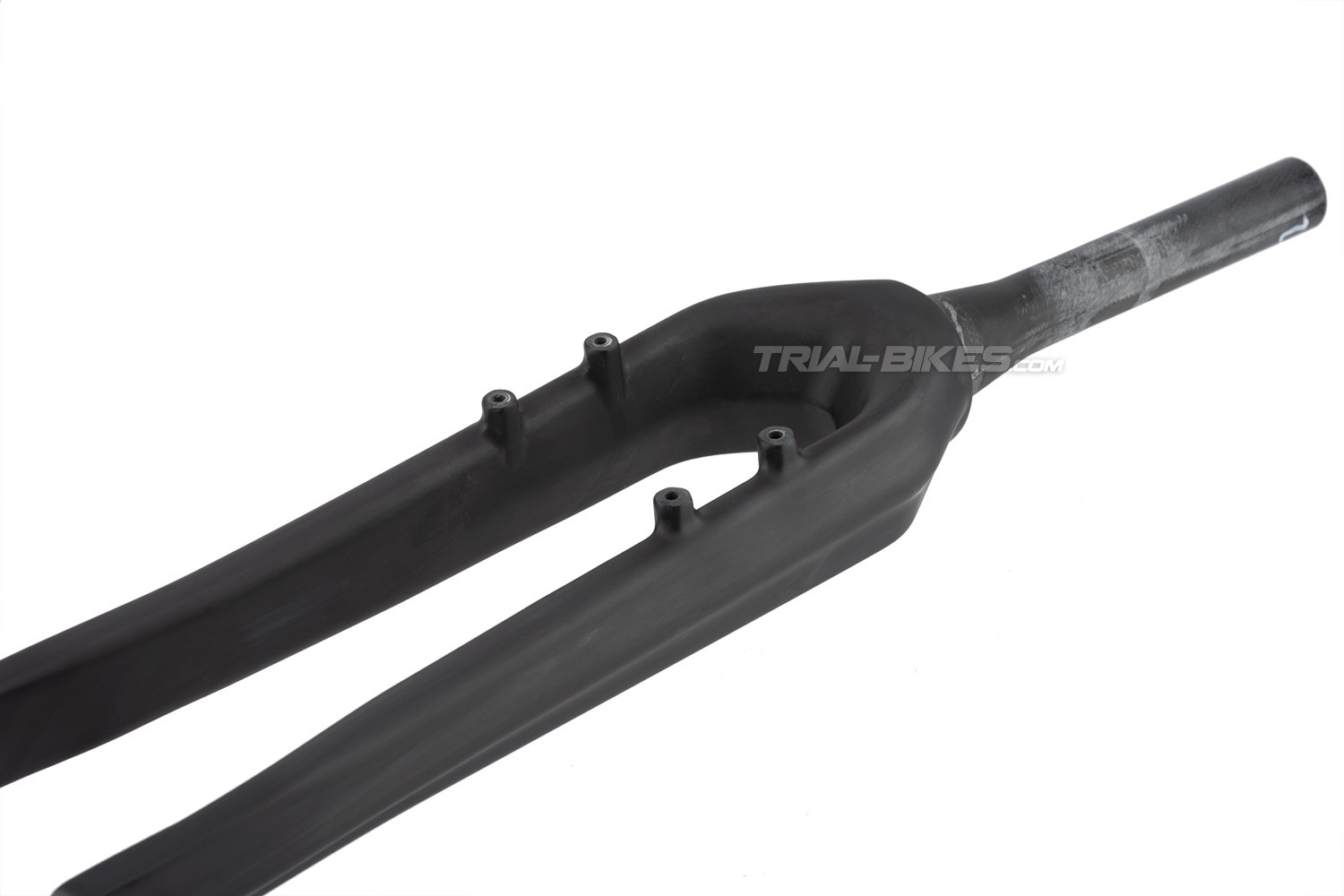

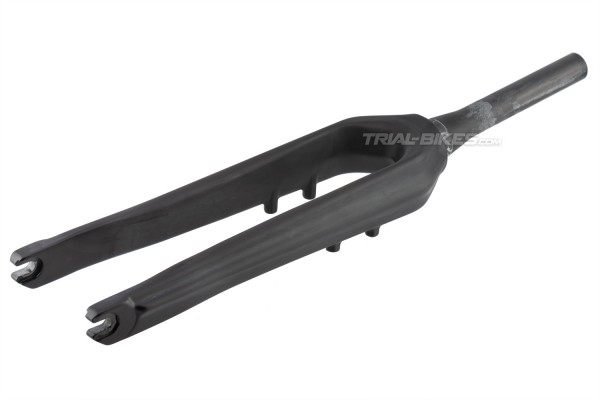

Comas carbon tapered 26" fork

Comas carbon tapered 26" fork

Description and materials
- Comas tapered 26” carbon fork, currently used by UCI Trials World Champion Sergi Llongueras.
- This is the top of the range Comas fork, super stiff and ultralight thanks to its carbon fibre construction.
- Tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom.

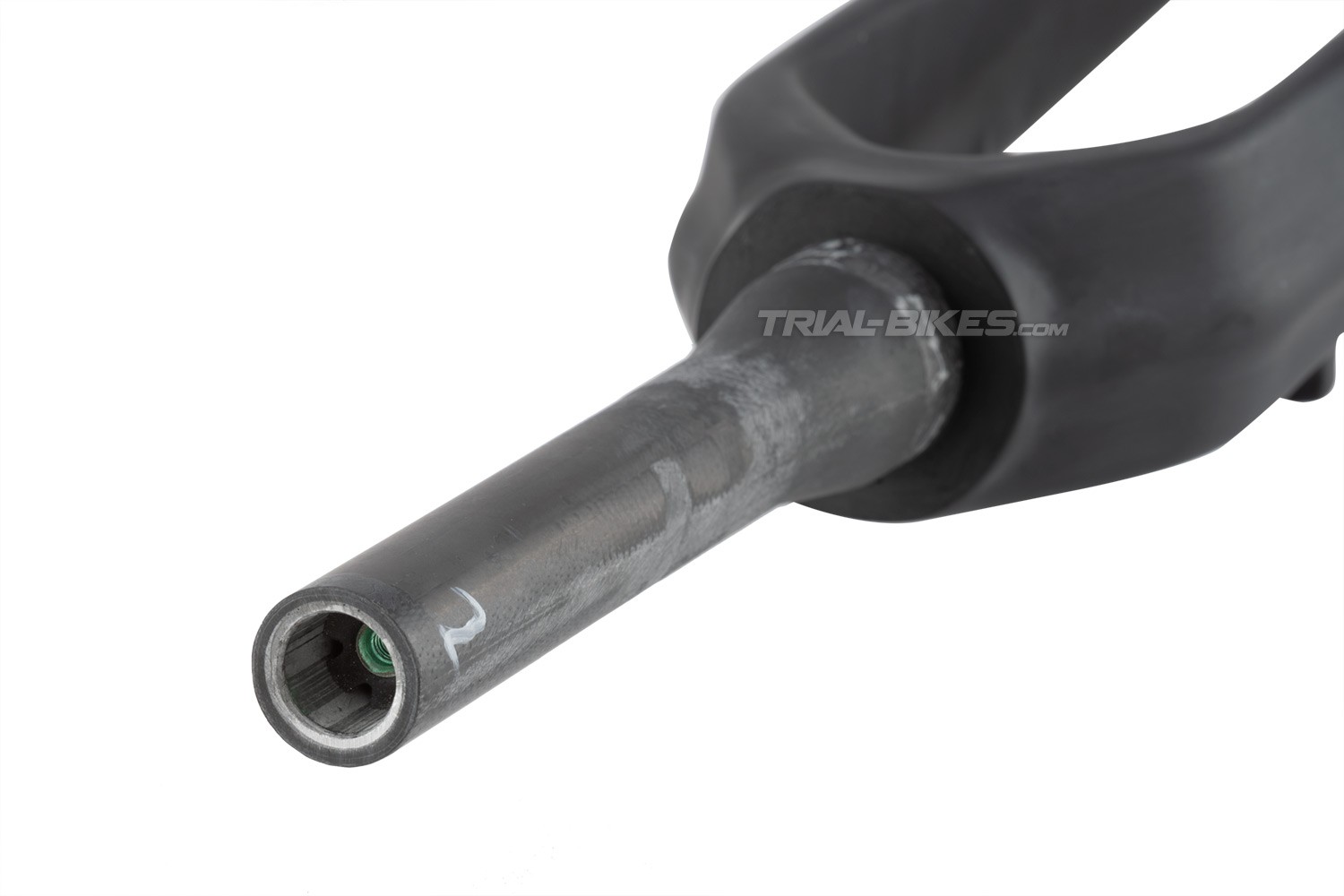

- The steerer tube is made of carbon fibre, it’s 85 mm thick, and it’s reinforced with an internal aluminium tube.
- Features 4-bolt rim brake mounts, spaced at 85 mm at the back of the legs.
- Dropouts spaced at 100 mm, designed to fit a 9 mm diameter axle.
- Includes a star nut installed.

Compatible with:
- Frames with tapered 1 1/8” – 1.5” head tube.
- Front hubs with 9 mm diameter axle and 100 mm spacing.
- Note: in case you’d like to install this fork on a frame with a standard 1 1/8” headtube or any other dimensions, an adaptor must be used.

Dimensions

(1) Length: 400 mm.
-----------------------------------------------
(2) Offset: +35 mm.
-----------------------------------------------
(3) Steerer tube length: 185 mm.
-----------------------------------------------

- Steerer tube thickness: 4 mm.
- 4 bolts mounts spacing: 85 mm.

Important: The fork steerer tube is cut at an angle, not flat as shown in the photo. The length is 168 mm at the lower rear and 185 mm at the higher front.

Colour
- UD carbon fibre matt black finish.
- Grey and green Crossbow graphics on the inner sides.

Weight
- 489.18 g

Note:
This fork is offered without any type of warranty, which explains its lower price. It is a durable fork, although it is not as stiff as other tapered steerer forks.
