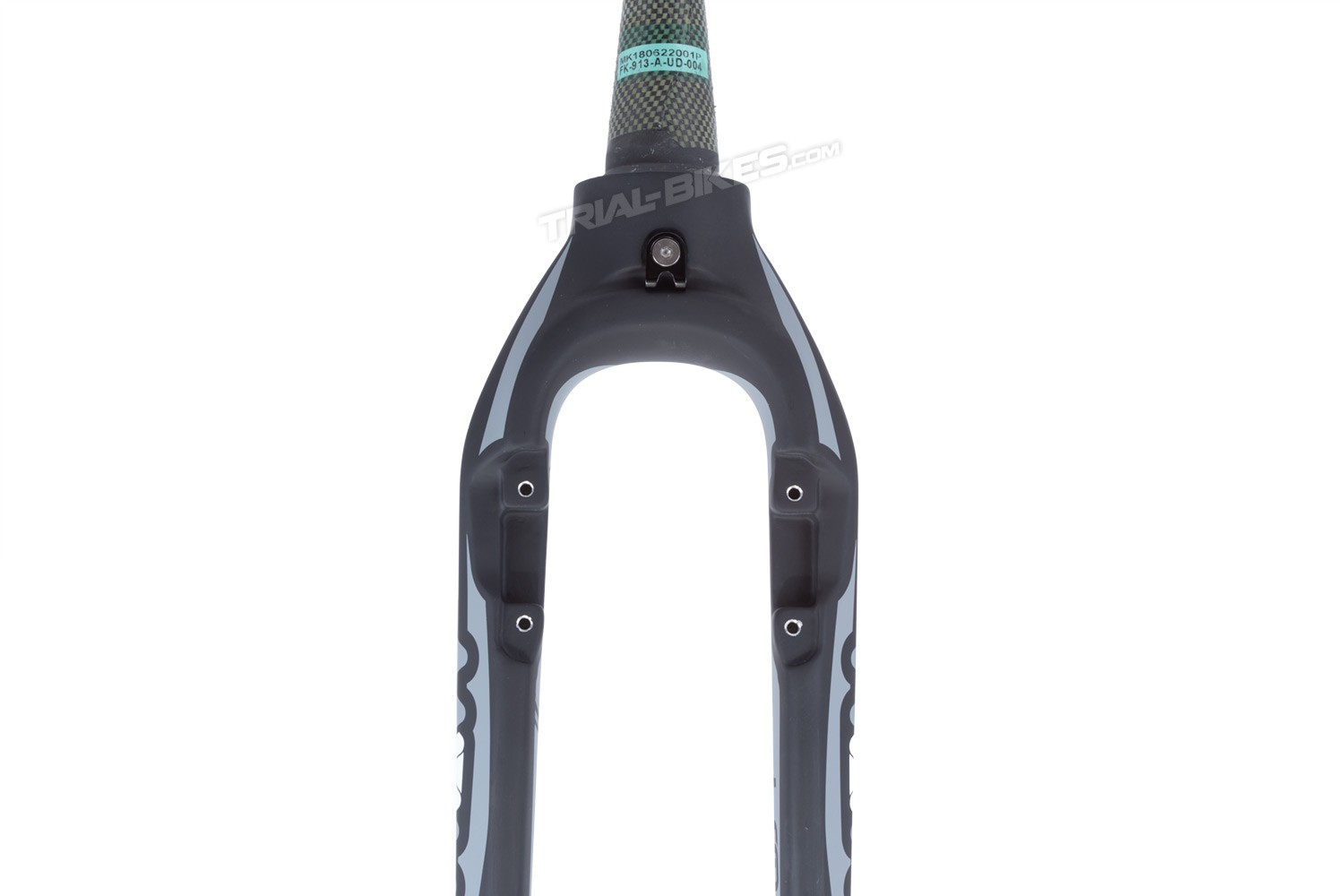

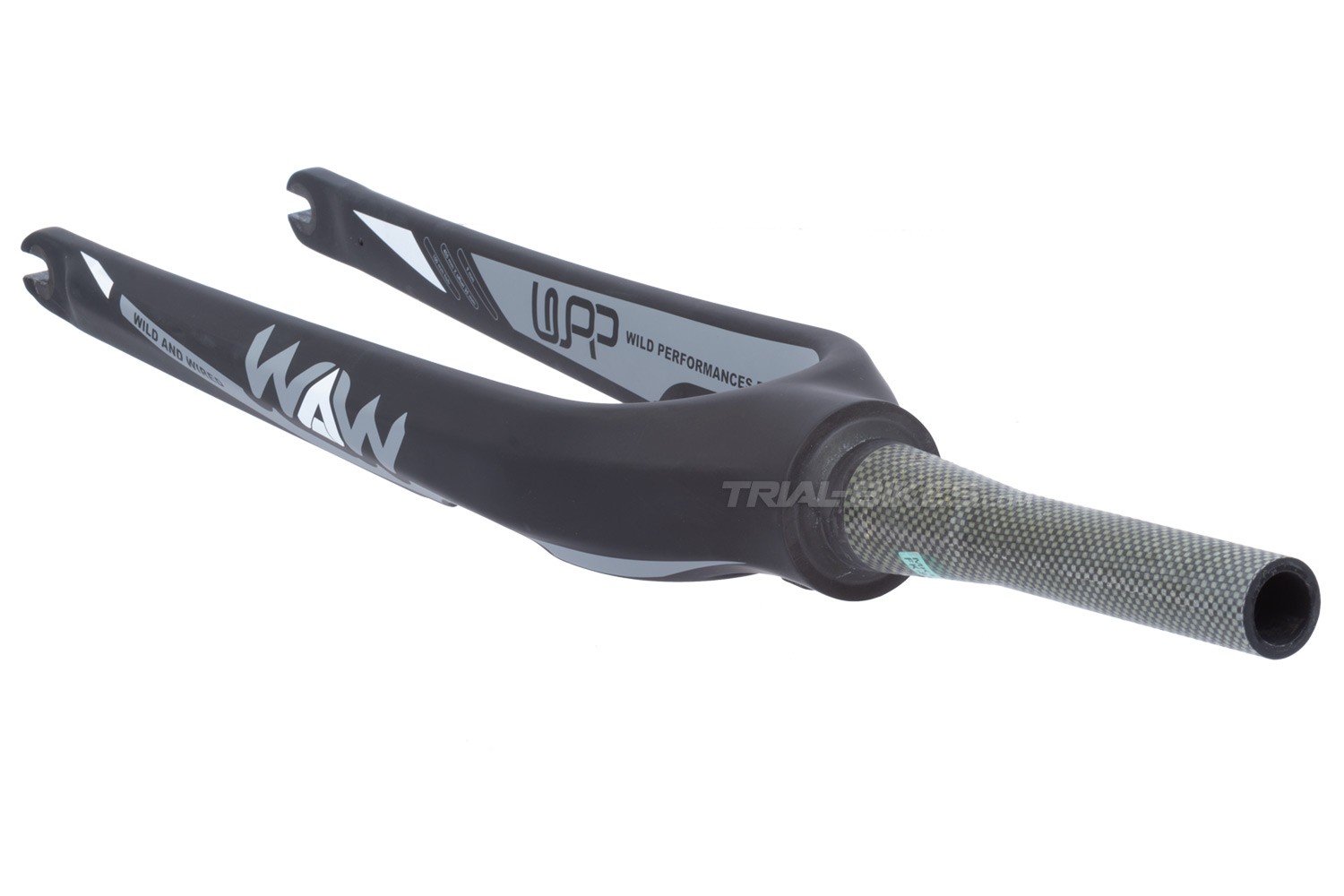

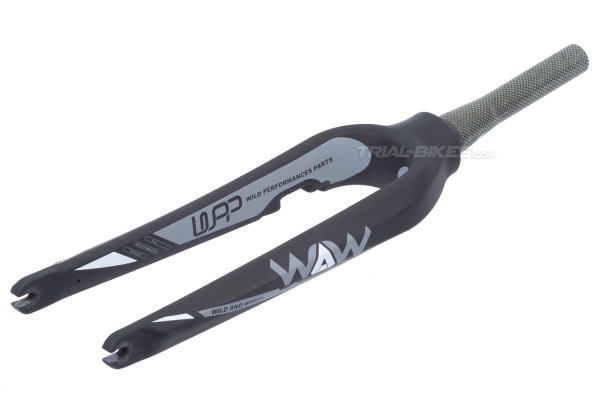

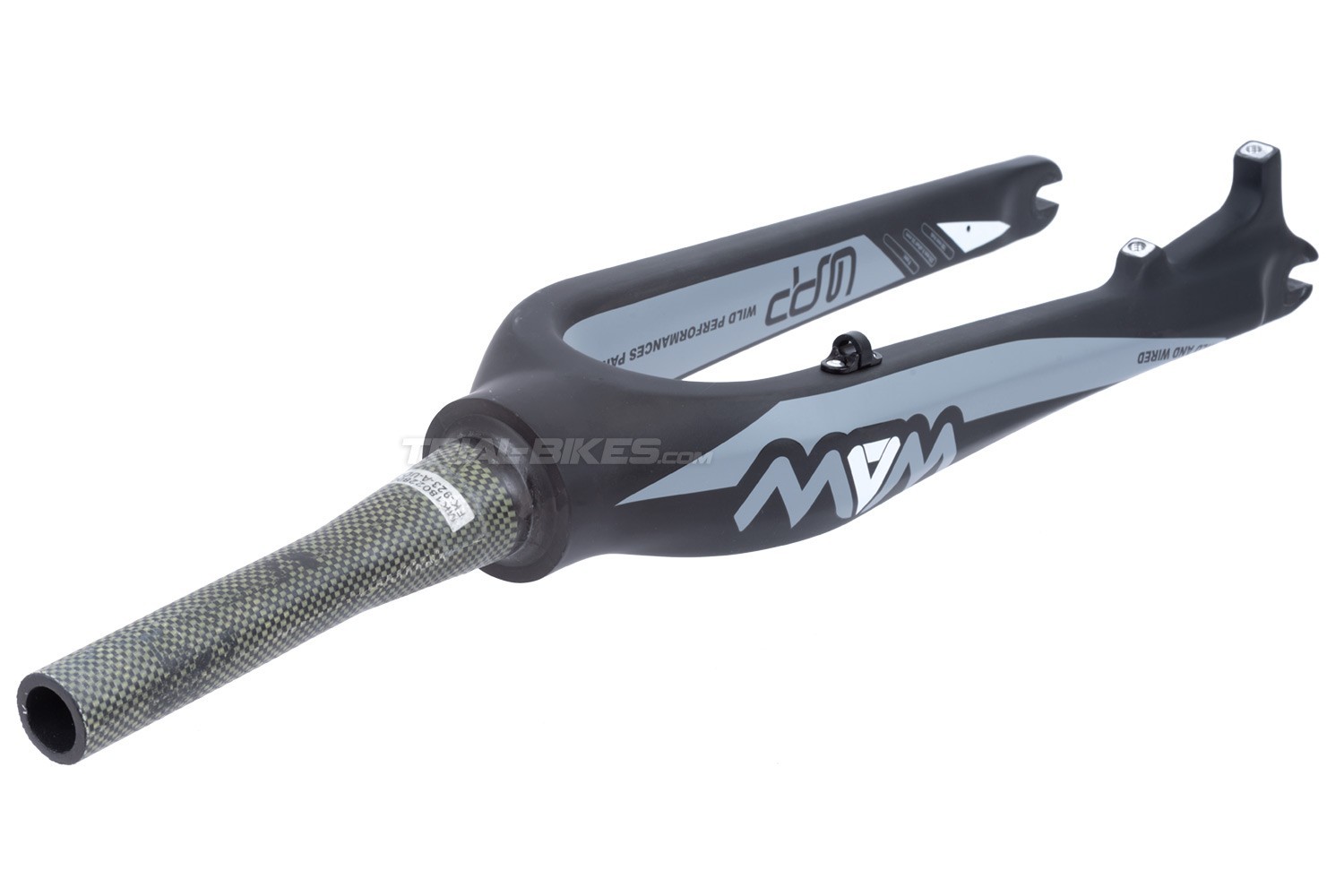

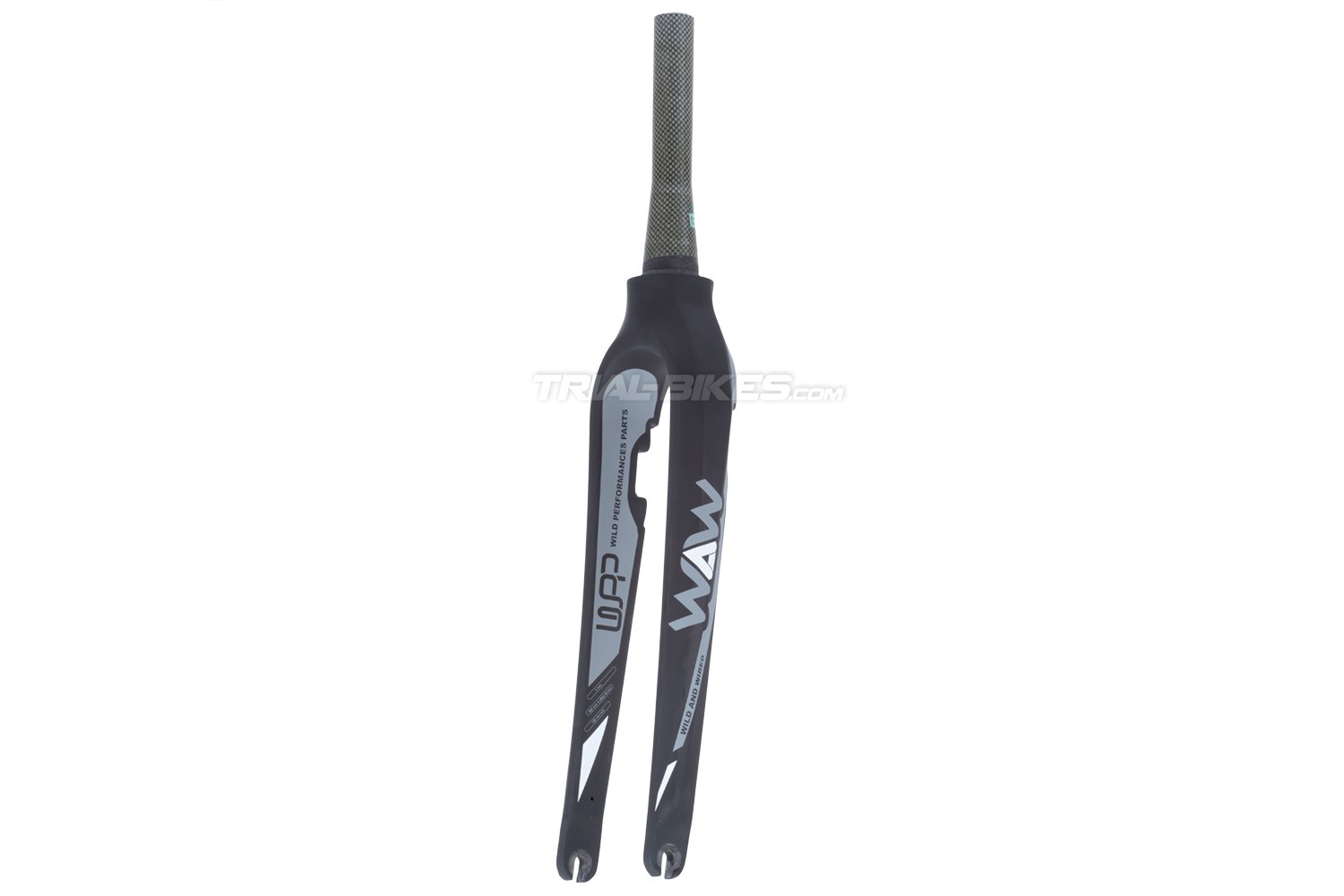

Crewkerz Waw Ultimate 26" Carbon Fork (Standard)

Crewkerz Waw Ultimate 26" Carbon Fork (Standard)

Crewkerz Waw Ultimate 26” carbon fork. This is a Standard version with open dropouts, and it’s compatible with traditional front hubs that use a 9 mm diameter axle.

✅ 4-bolt version, with rim brake mounts (HS).
✅ Post Mount disc version.

Description and materials
- High-end Crewkerz Tapered 26” bike trials carbon fork, developed with state-of-the-art technology.
- This Standard version has open dropouts and it’s compatible with traditional front hubs with a 9 mm diameter axle.
- 100% exclusive design by Crewkerz, made of high-modulus carbon fibre for the best performance and ultra-low weight.
- Tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom.
- The steerer tube is made of 4.2 mm-thick Kevlar, and it comes reinforced with an internal aluminium tube.
- Also features an aluminium insert that removes the need for a star nut.

- Two versions available:
· 4-bolt version, with rim brake mounts spaced at 92 mm at the back of the legs.
· Post Mount disc version, with the mounts integrated onto the left dropout.

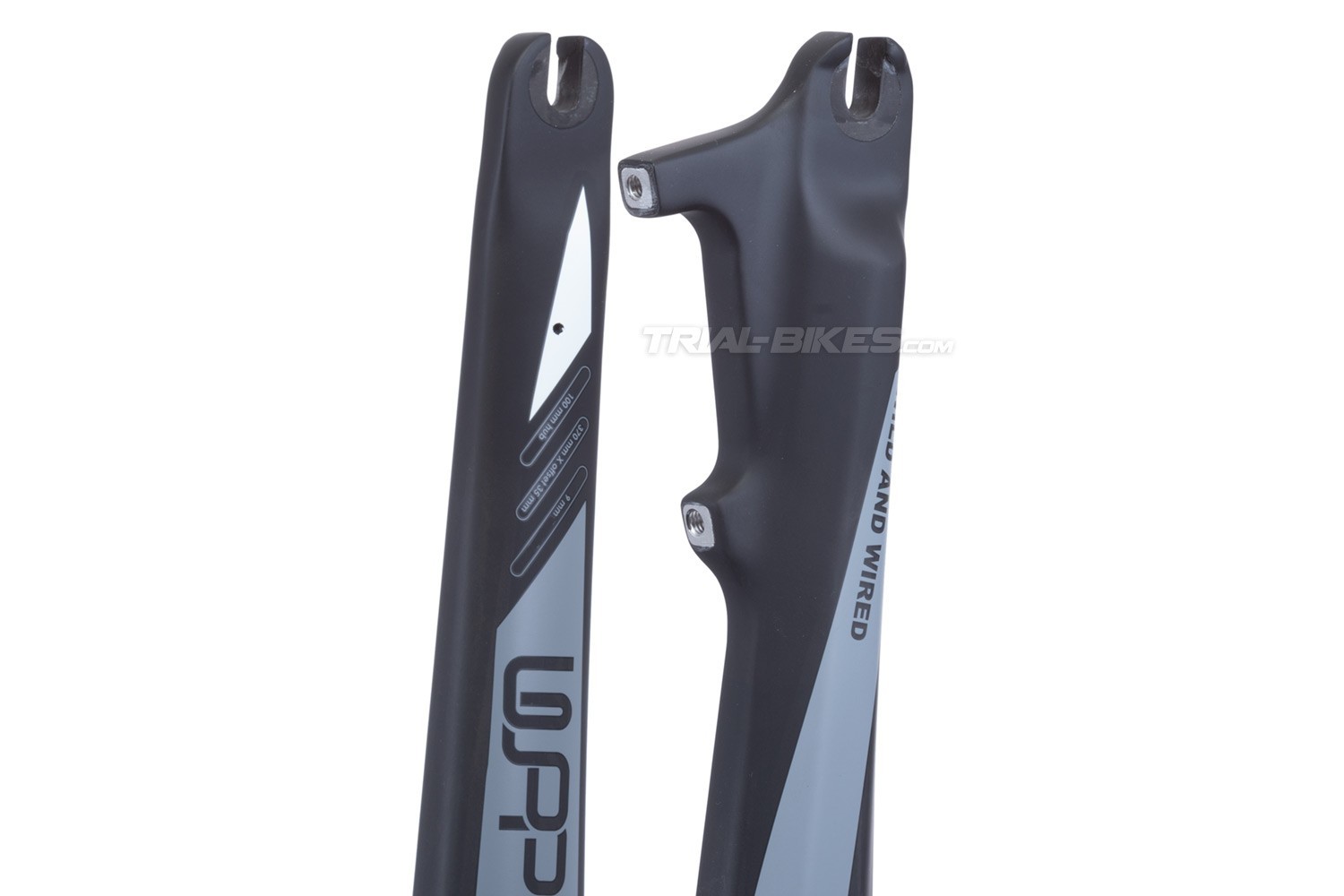

- Brake mounts are integrated in the legs (instead of protruding from the legs as in other forks). This improves strength and stiffness considerably while braking.
- Open dropouts spaced at 100 mm, designed for a 9 mm diameter front hub.
- Sold singly, does not include a star nut.

Compatible with:
- Frames with tapered 1 1/8” – 1.5” head tube.
- Front hubs with 9 mm diameter axle and 100 mm spacing.
- Note: in case you’d like to install this fork on a frame with 1 1/8” head tube, an adaptor must be used.

Dimensions

(1) Length: 405 mm.
-----------------------------------------------
(2) Offset: +35 mm.
-----------------------------------------------
(3) Steerer tube length: 180 mm  or 190 mm.
-----------------------------------------------

- Steerer tube thickness: 4.2 mm.
- 4 bolts mounts spacing: 92 mm.

Colour
- Matt black, with white and grey Crewkerz graphics.

Weight
- 490.22 g (disc version, 180 mm steerer tube length), 499.22 g (disc version, 190 mm steerer tube length), and 530.22 g (HS version, 180 mm steerer tube length).
