Crewkerz Waw Ultimate 20" Carbon Fork

Crewkerz Waw Ultimate 20" Carbon Fork

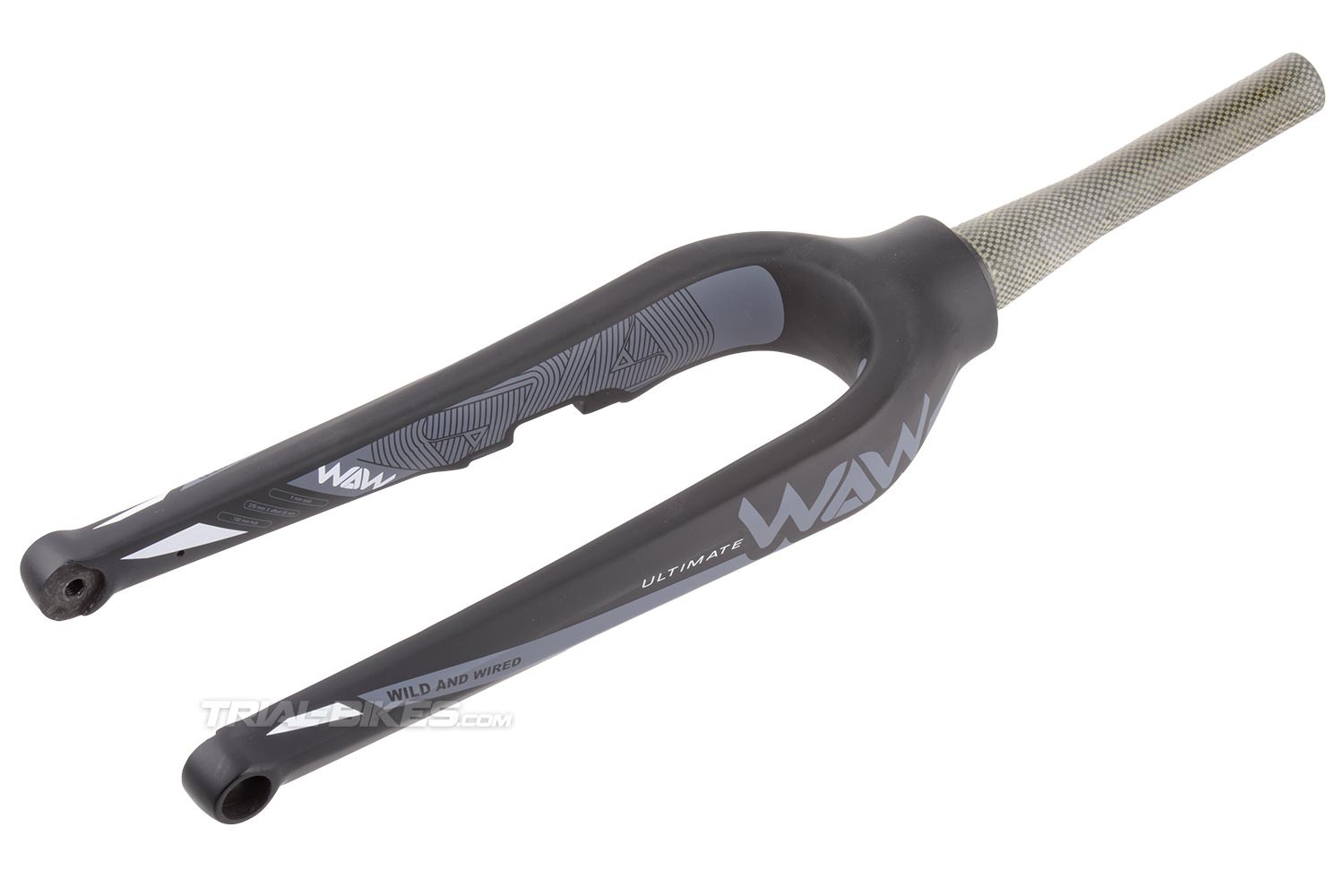

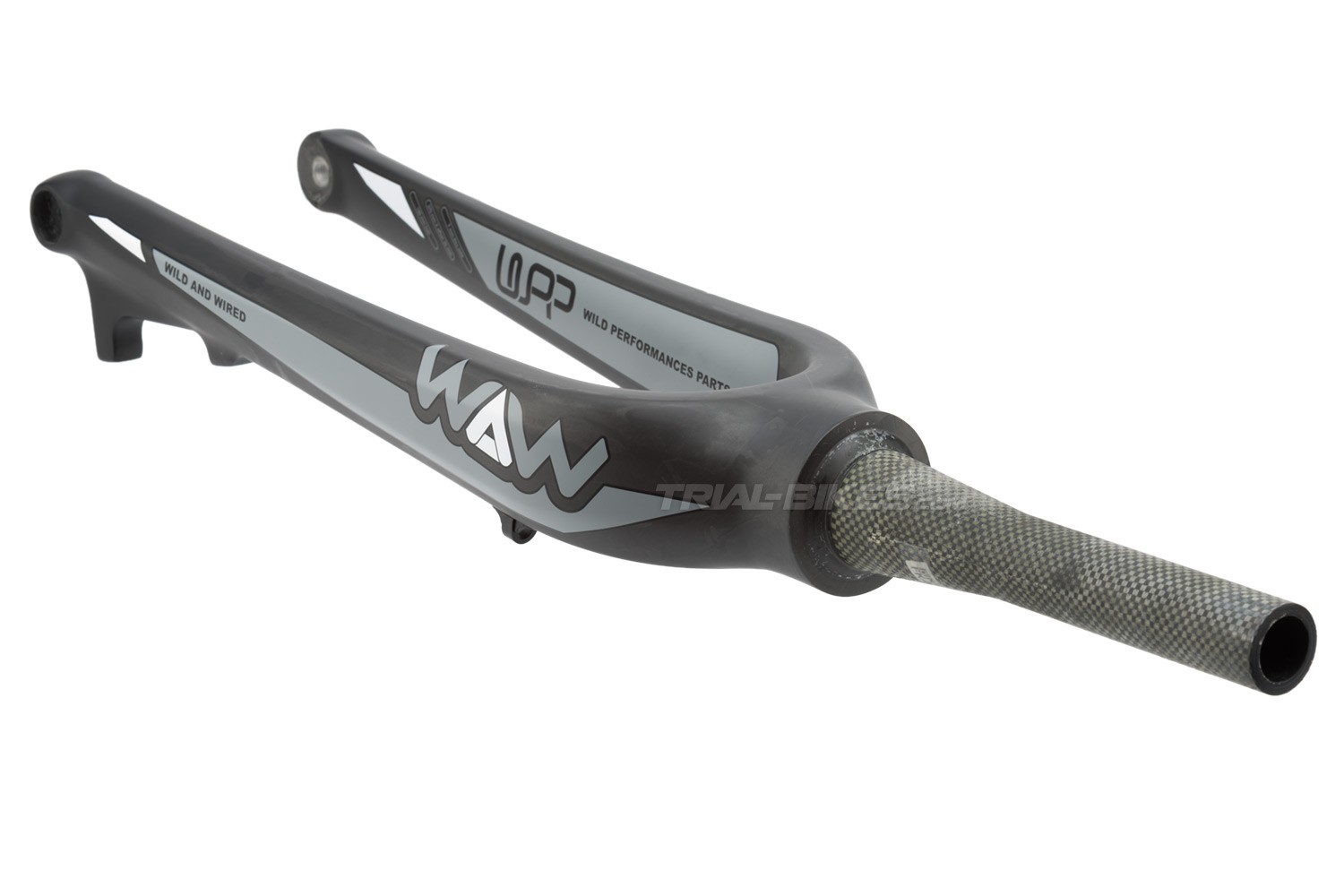

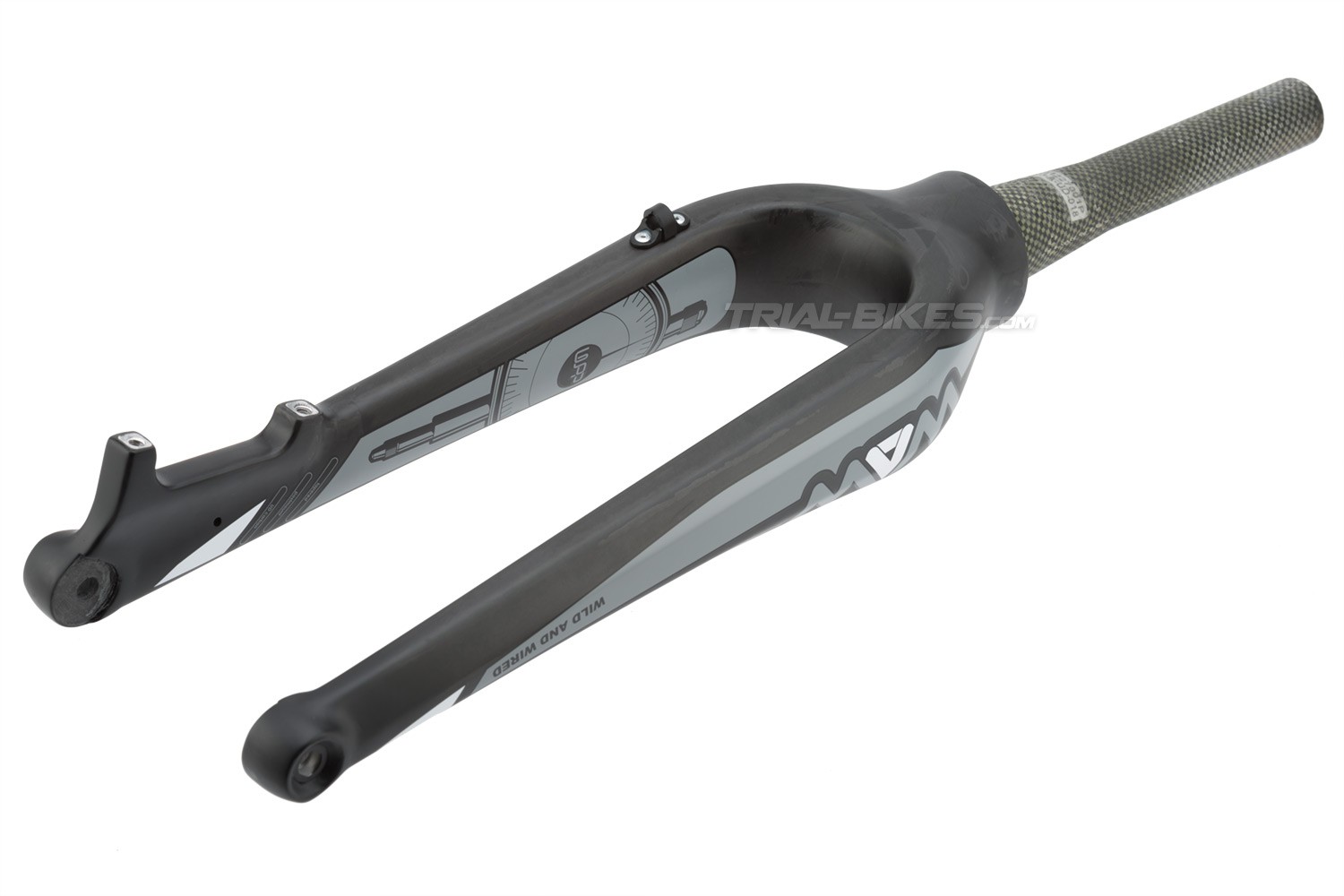

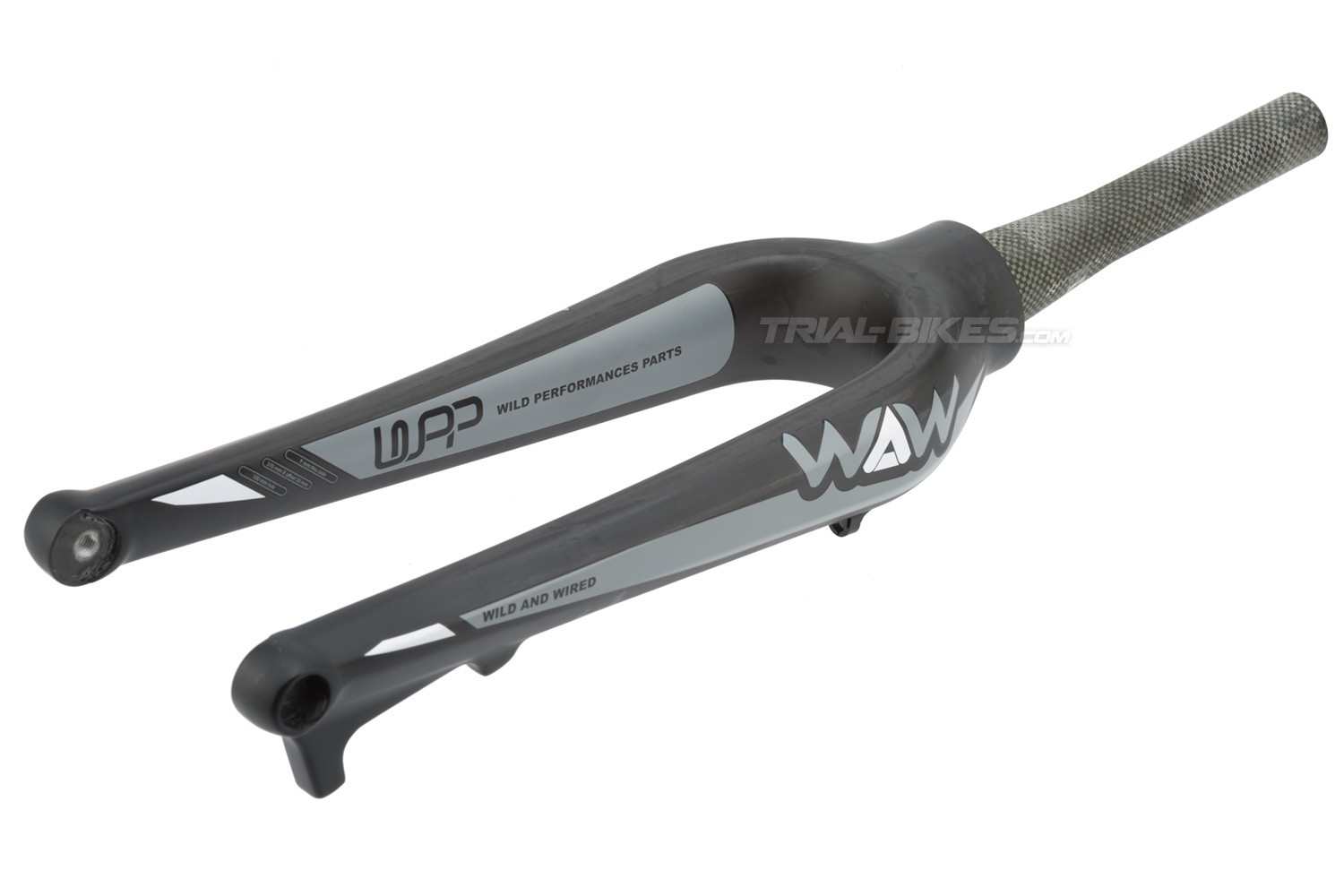

Crewkerz Waw Ultimate Tapered 20” high-end carbon trials fork. This carbon fork is a pioneer in introducing the front thru-axle in bike trials, apart from using state-of-the-art manufacturing technology to achieve the best performance: this is the most advanced carbon trials fork in the world!

Description and materials
- High-end Crewkerz Waw Ultimate Tapered 20” bike trials carbon fork, developed with state-of-the-art technology.
- 100% exclusive design by Crewkerz, featuring closed dropouts to fit a 9 mm diameter thru-axle.
- Made of high-modulus carbon fibre for the best performance and ultra low weight.

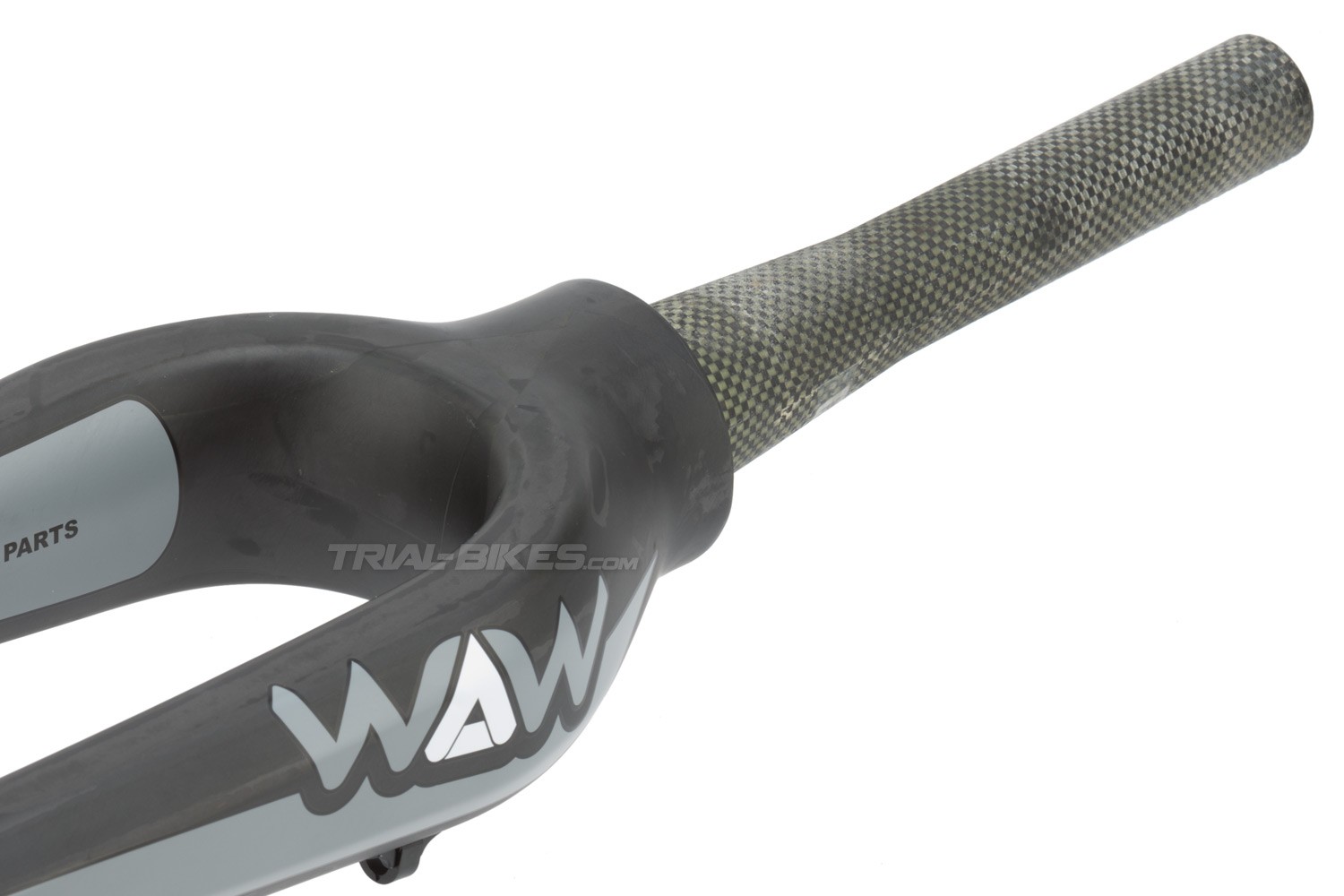

- Tapered steerer tube, with 1 1/8” diameter at the top and 1.5” diameter at the bottom.
- The steerer tube is made of 4 mm-thick Kevlar, and it comes reinforced with an internal aluminium tube.
- Also features an aluminium insert that removes the need for a star nut.
- The steerer tube features a 45º integrated crown race recess, so there is no need to install one.
- Features Post Mount disc brake mounts, neatly integrated onto the left leg, for 160 mm rotor.

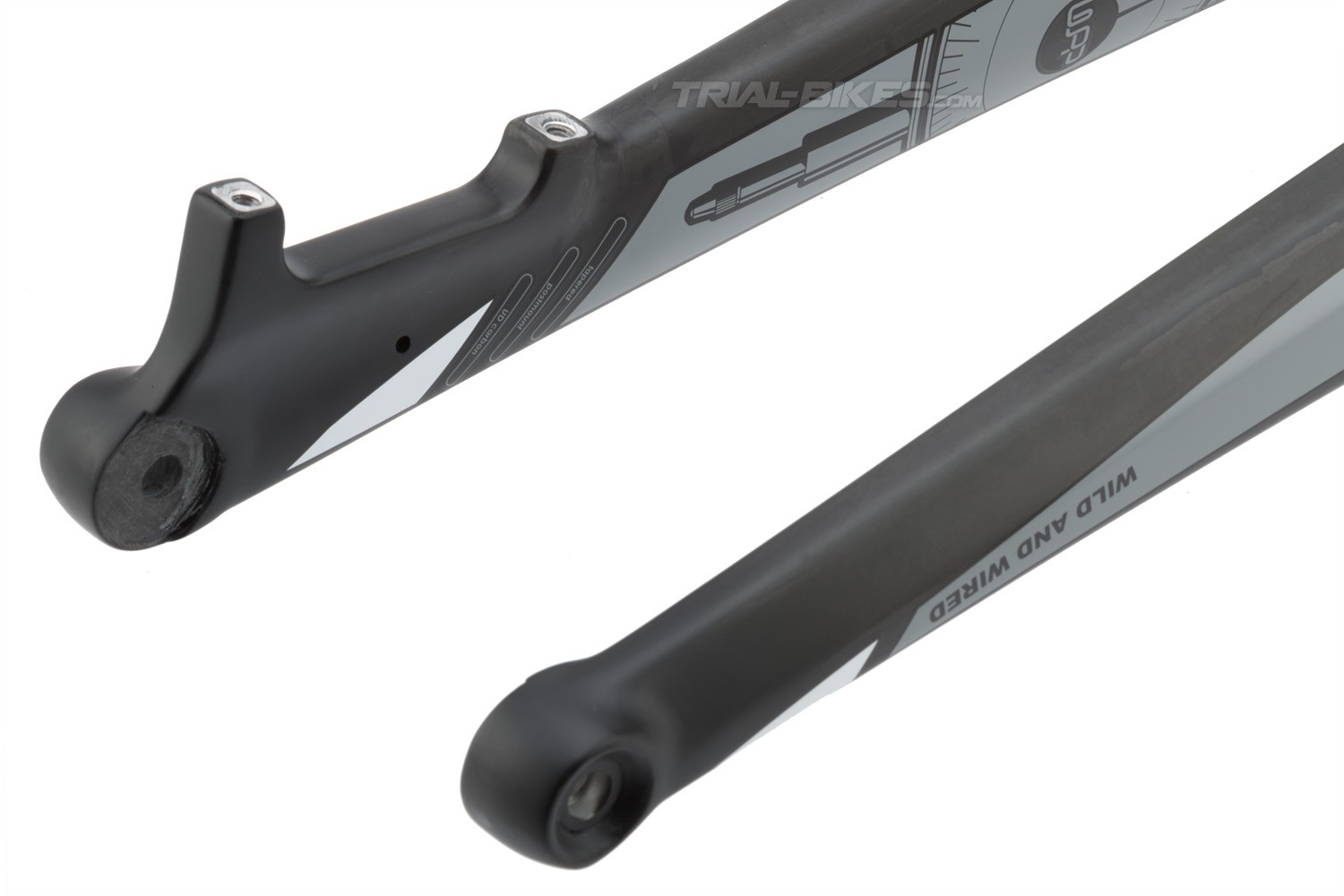

- Closed dropouts spaced at 100 mm, designed for a 9 mm diameter thru-axle.
- Sold singly.

Compatible with:
- Frames with tapered 1 1/8” – 1.5” head tube.
- Front hubs with 9 mm diameter thru-axle and 100 mm spacing.
- 160 mm diameter rotors.
- Note: in case you’d like to install this fork on a frame with 1 1/8” head tube, an adaptor must be used.

- Important: The version with the 180 mm Steerer tube length corresponds to the year 2024 and comes standard on the Crewkerz Jealousy Ultimate 2024 bikes. If you intend to use this fork on an older model frame, it's important to note that you'll need to adjust the height by removing 10 mm, which can be achieved by removing the headset spacers.

Dimensions

(1) Length: 370 mm.
-----------------------------------------------
(2) Offset: +35 mm.
-----------------------------------------------
(3) Steerer tube length: 180 mm  or 190 mm.
-----------------------------------------------

- Steerer tube thickness: 4 mm.

Colour
- Matt black, with white and grey Crewkerz graphics.

Weight
- 508.32 g (disc, 190 mm Steerer tube length), 537.92 g (disc, 180 mm Steerer tube length), 523.22 g (HS, 180 mm Steerer tube length) and 526.68 g (HS, 190 mm Steerer tube length).
