Inspired Arcade 24" Fork

Inspired Arcade 24" Fork

The 24" Arcade fork is a standard component in the street trials bike range from the renowned British brand Inspired. Compatible with IS (International Standard) disc brakes.

- Manufactured from high-quality Japanese Cr-moly steel.
- Double-butted tubing ensures maximum durability while helping reduce weight.

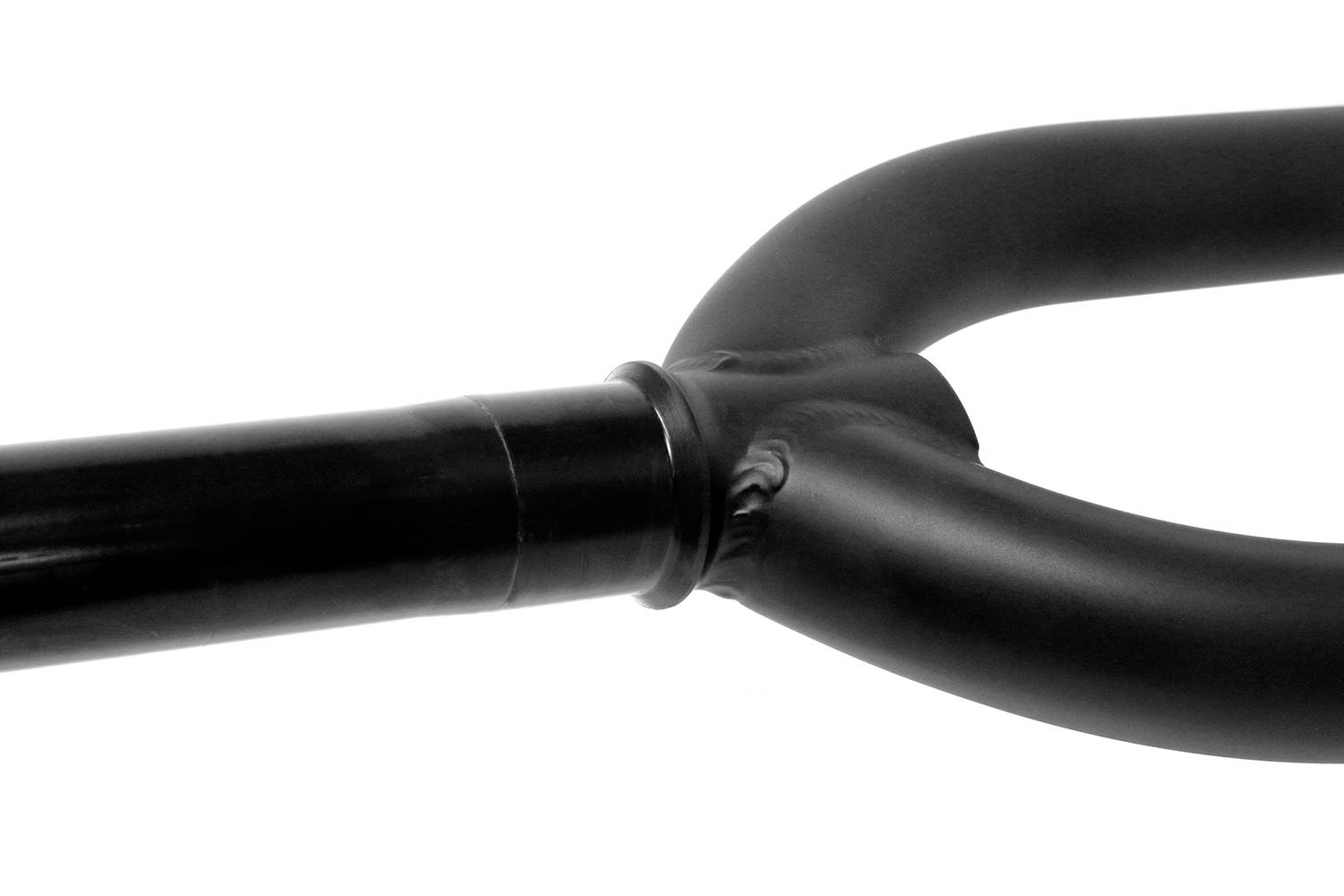

- Variable thickness steerer tube with a standard 1 1/8" one-piece crown.
- Note: This fork requires a 45° x 45° bearing, with an external diameter of 41.8 mm and a depth of 7.4 mm, available here. Please note that older Arcade headset bearings are not compatible.

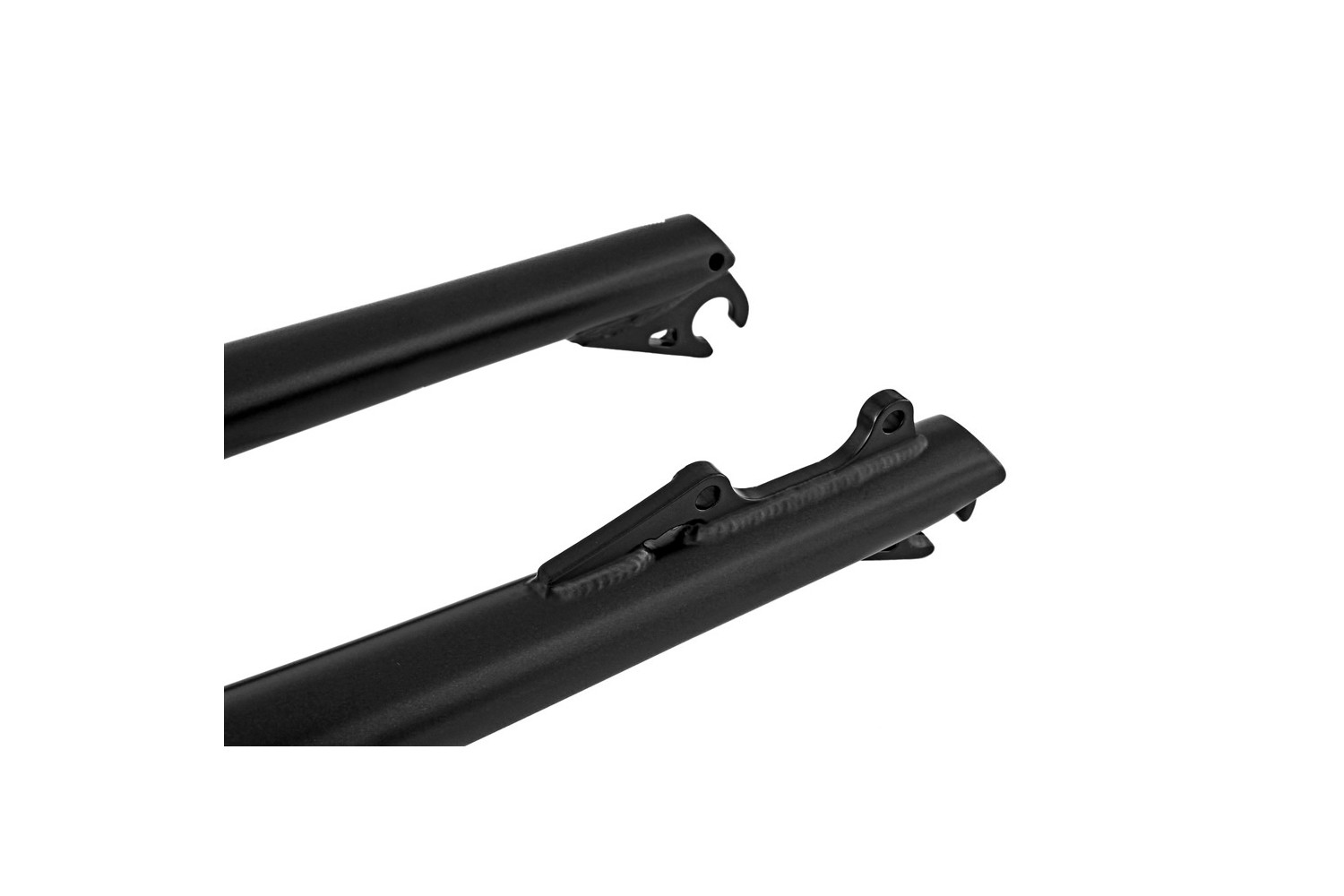

- The unique dropout design is compatible with standard 9/10 mm or 15 mm tru-axle hubs (10 mm hubs require Arcade fork adapters, 15 mm hubs require the Arcade bolt tru-axle, available separately here).
- Custom-designed IS (International Standard) disc mount, engineered to prevent cracking at the top of the fork.

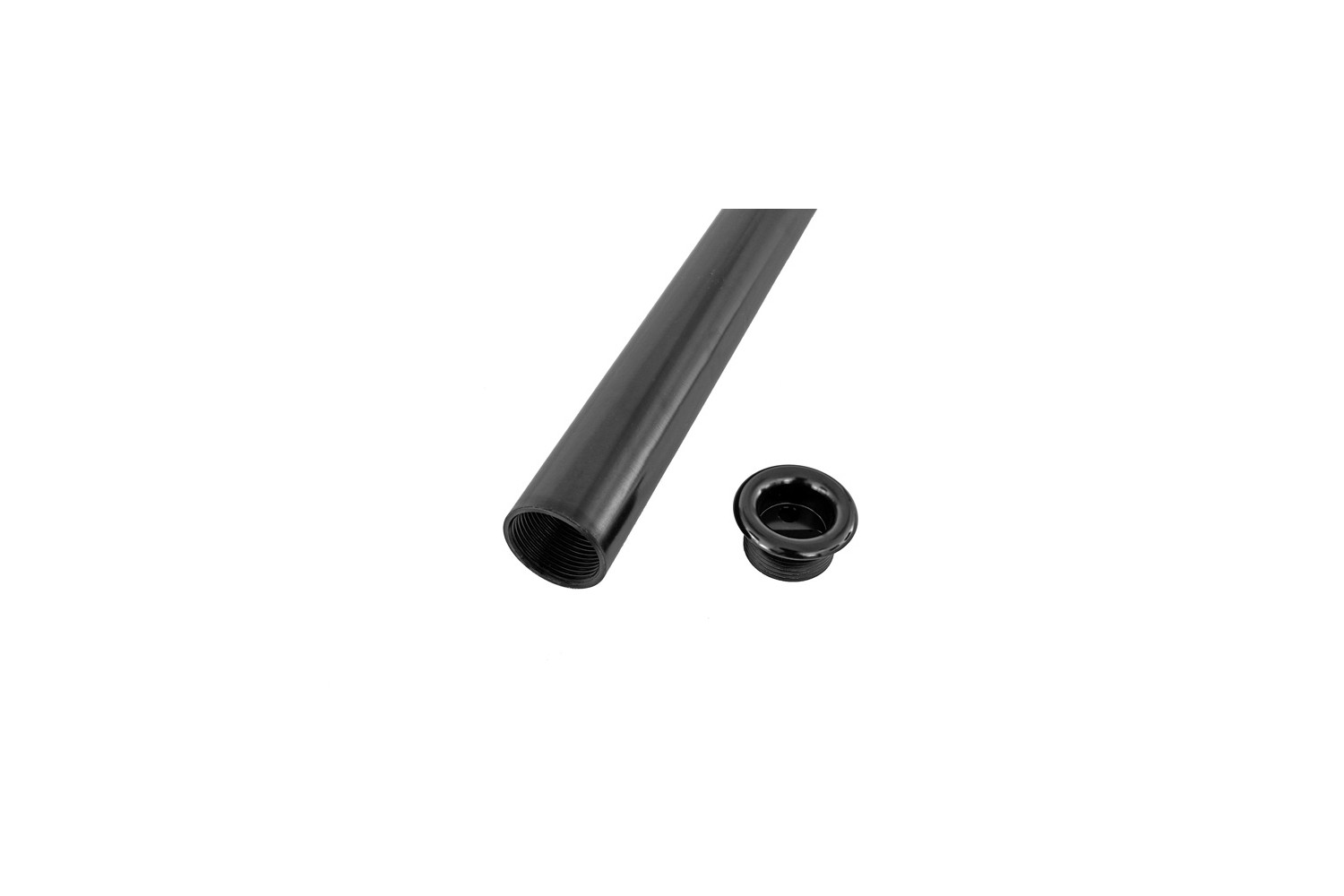

- Includes a precision-machined 7075 screw-on top cap, allowing brake hose routing through the fork.
- Matte black finish with engraved logos.

Compatibility
- 24” and 26” bikes.
- Frames with a 1-1/8” steerer tube.
- Front disc hubs with 9/10 mm tru-axle (with adapter) and 15 mm tru-axle.
- Standard IS disc brakes.
- 180 mm rotors (maximum 185 mm; using a larger rotors may void the warranty).

Dimensions

(1) Length: 405 mm.
-----------------------------------------------
(2) Offset: +28 mm.
-----------------------------------------------
(3) Steerer tube length: 215 mm.
-----------------------------------------------

- Steerer tube thickness: 3 mm.

Finish
- Matte black with Arcade graphics.

Weight
- 1164.12 g.
