Jitsie Varial 20'' Fork

Description and materials

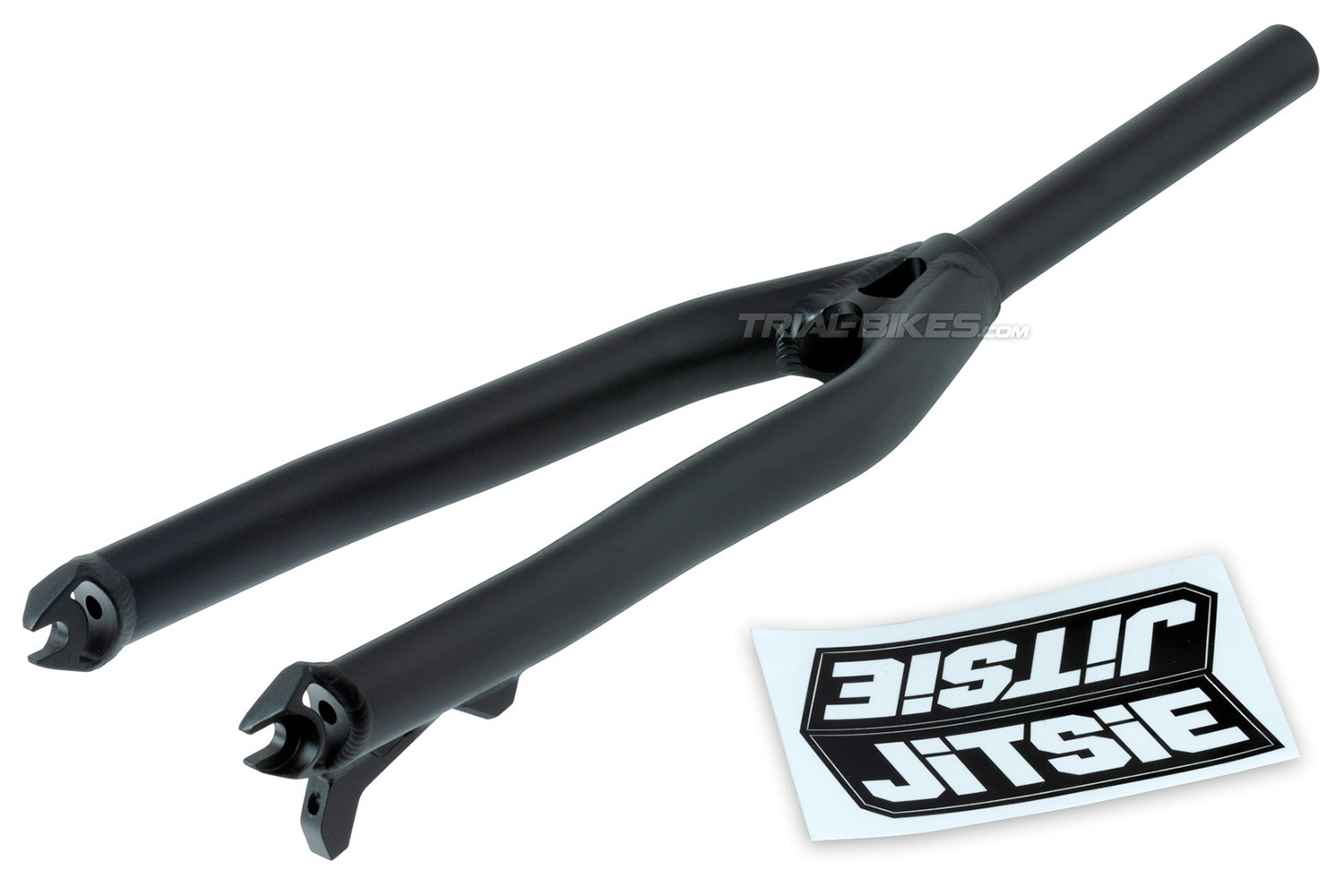

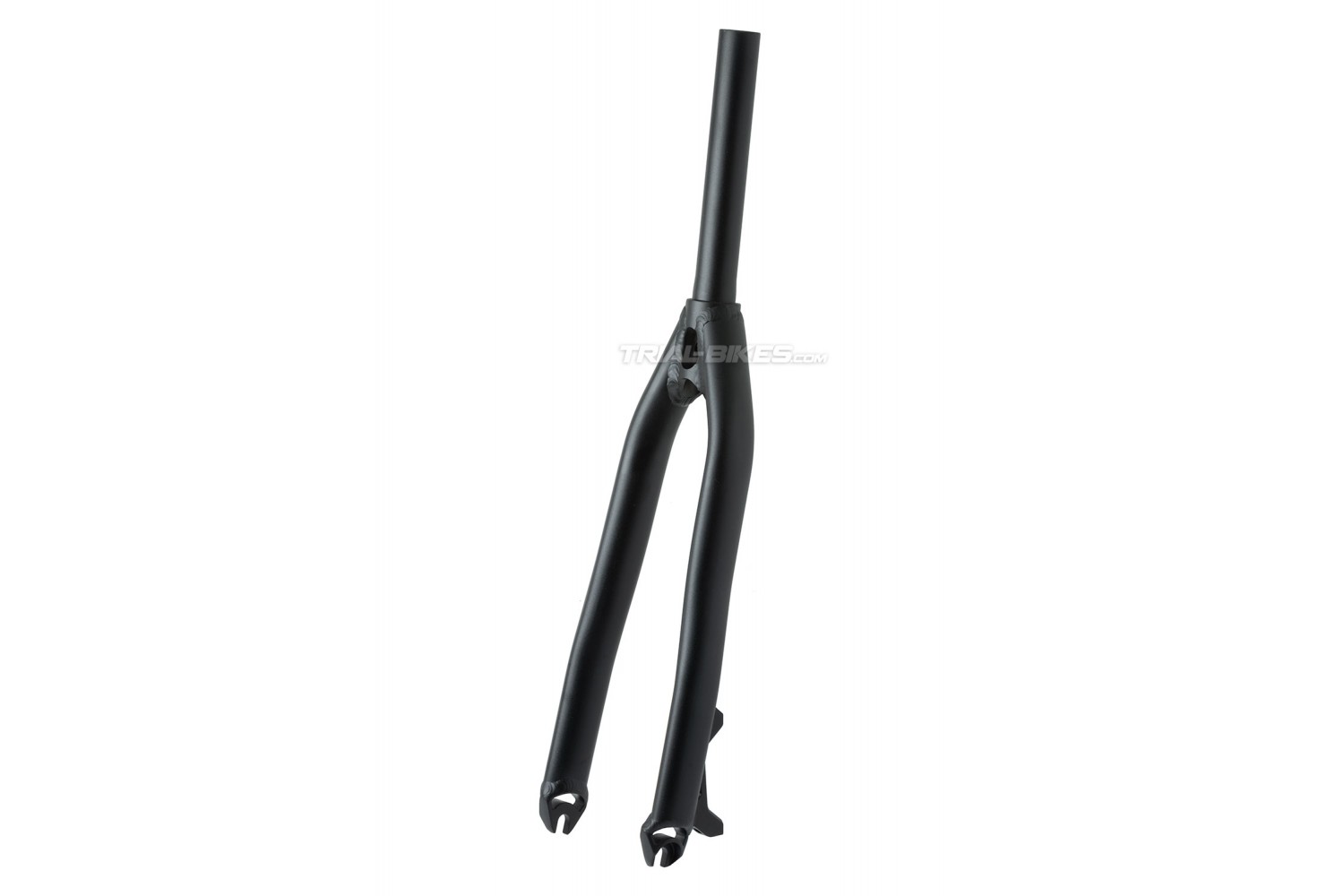

- New high quality Jitsie Varial 20” fork.
- This fork is the one supplied with all Jitsie Varial 20” 970 mm and 1010 mm bikes.
- Made of high quality 7005-T6 aluminium alloy.

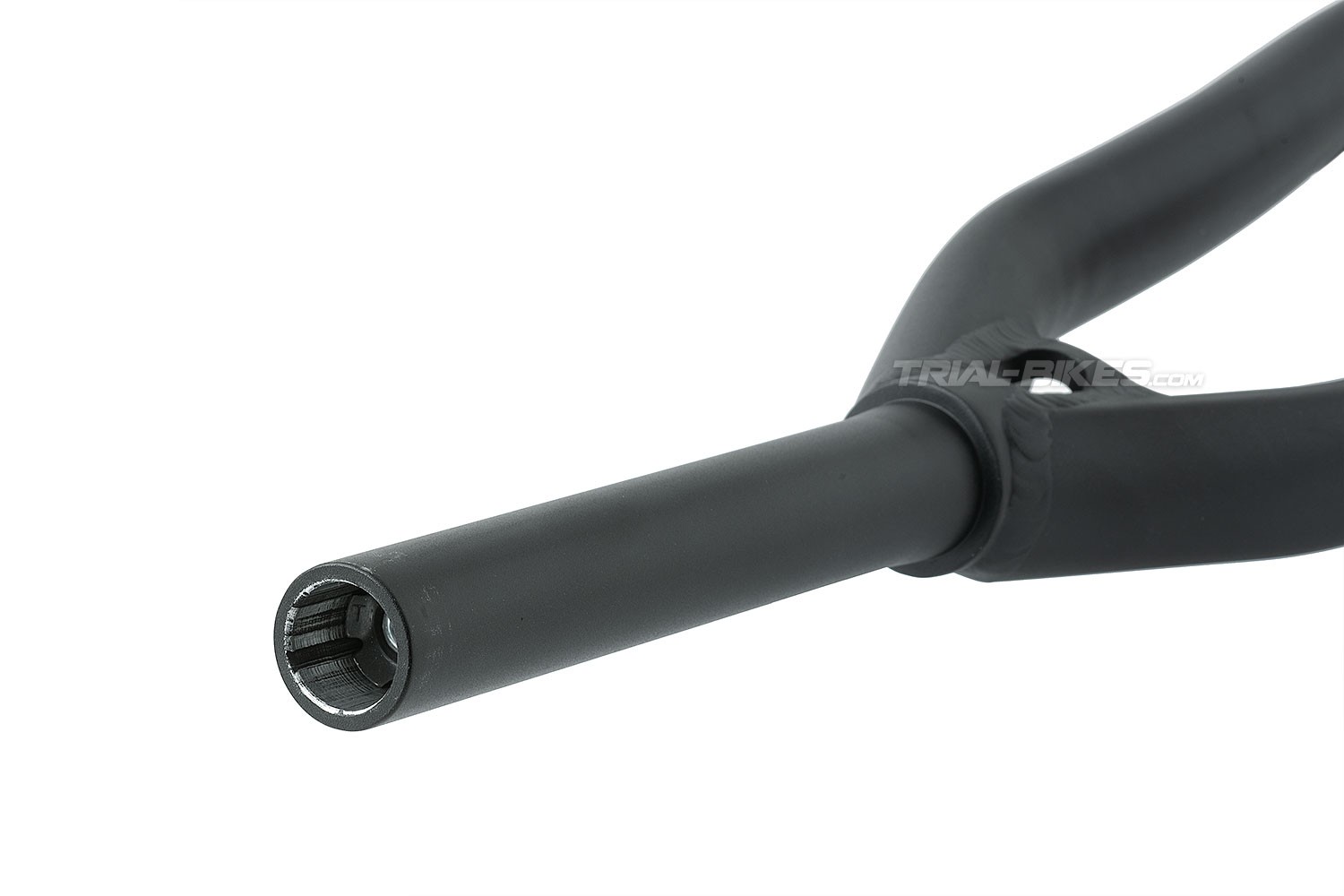

- The steerer tube is compatible with 1 1/8” headsets, and it’s been machined from a single piece in order to increase its stiffness.

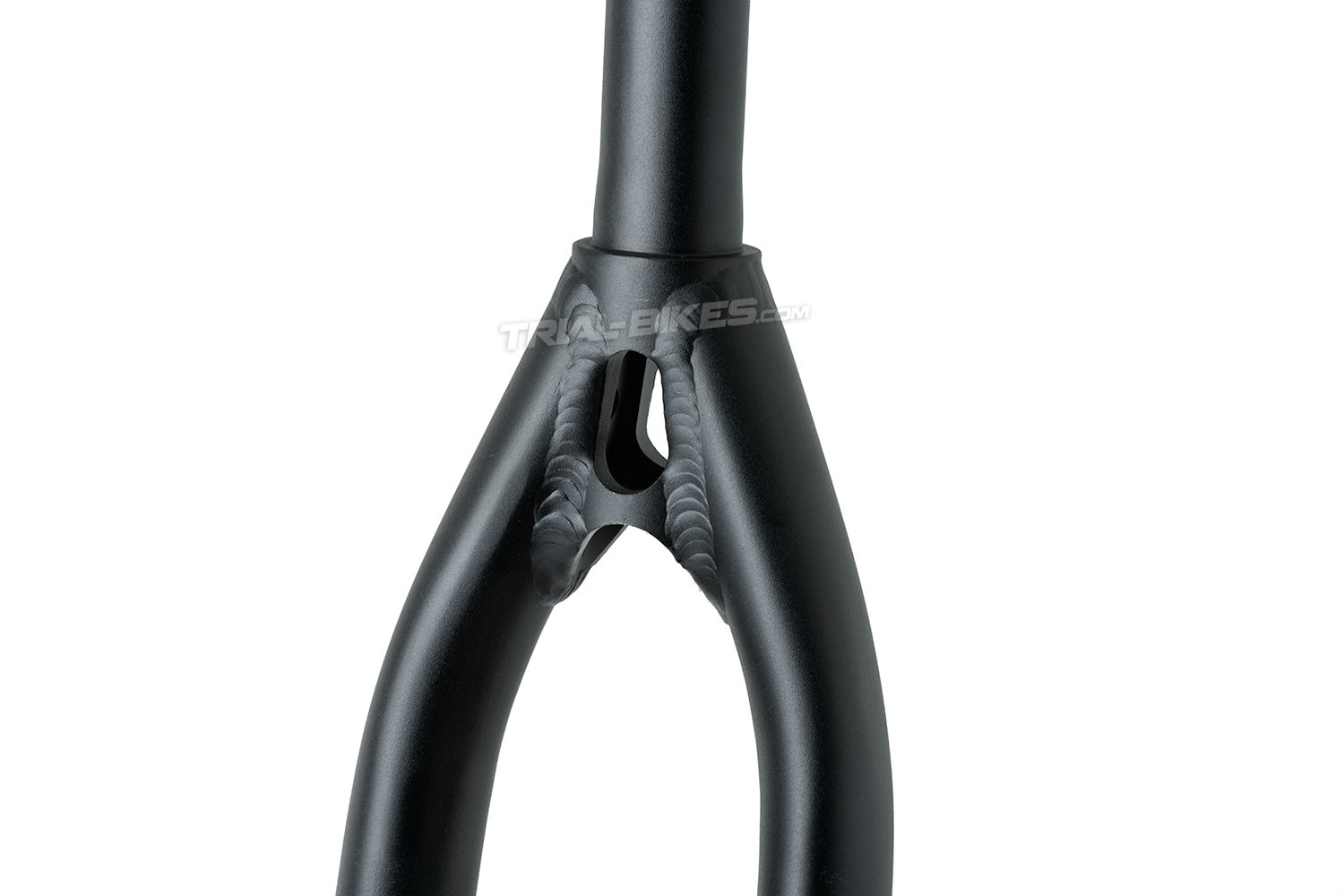

- The crown race area has 2 large holes that help save additional weight.
- Minimalistic, CNC-machined dropouts, which also feature a large hole that removes unnecessary material.
- 2 versions available: for rim or disc brakes.

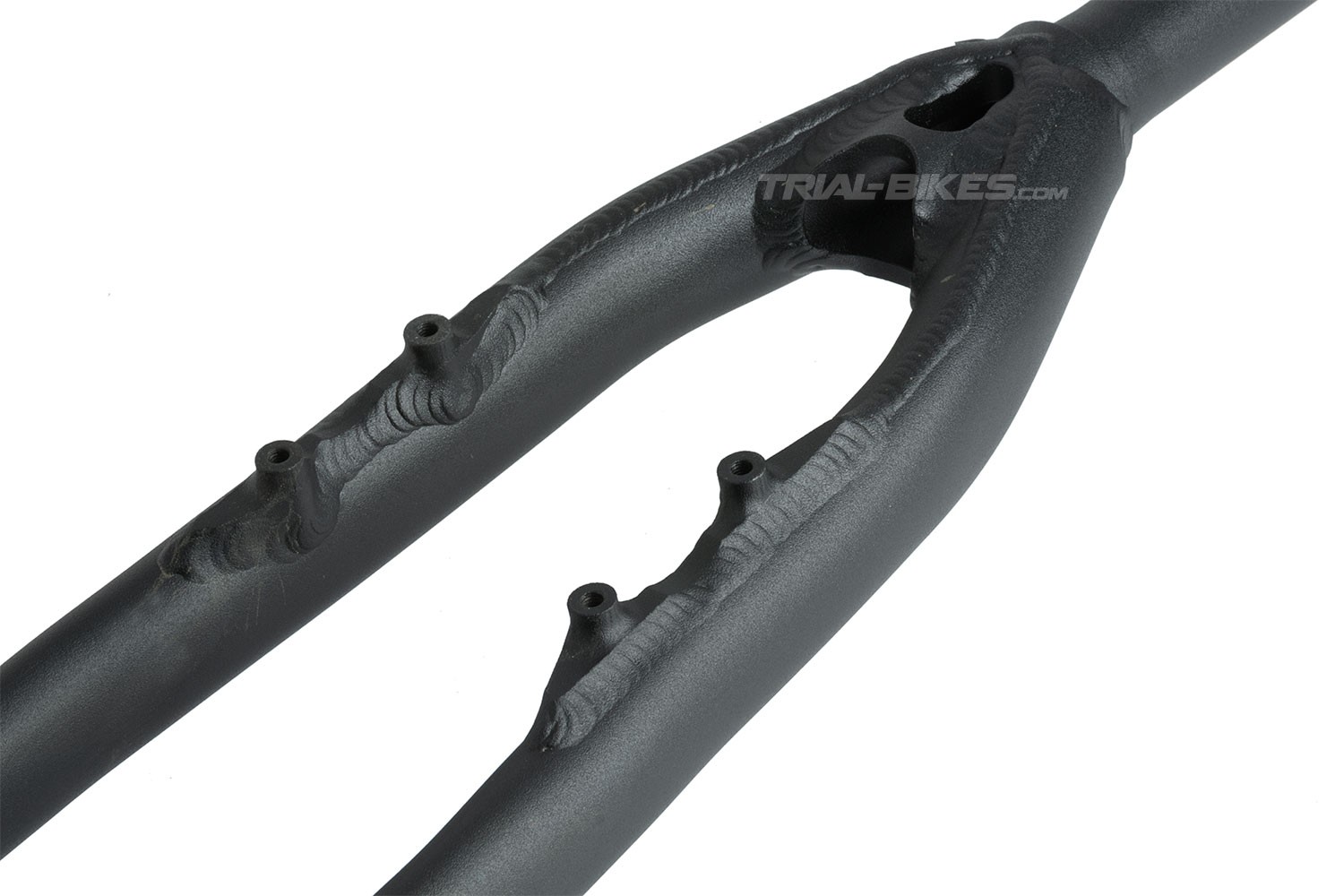

- The rim brake version has brake mounts spaced at 86 mm at the back of the legs, with a reinforcement weld towards the steerer tube that helps spread stress and increase strength and stiffness.

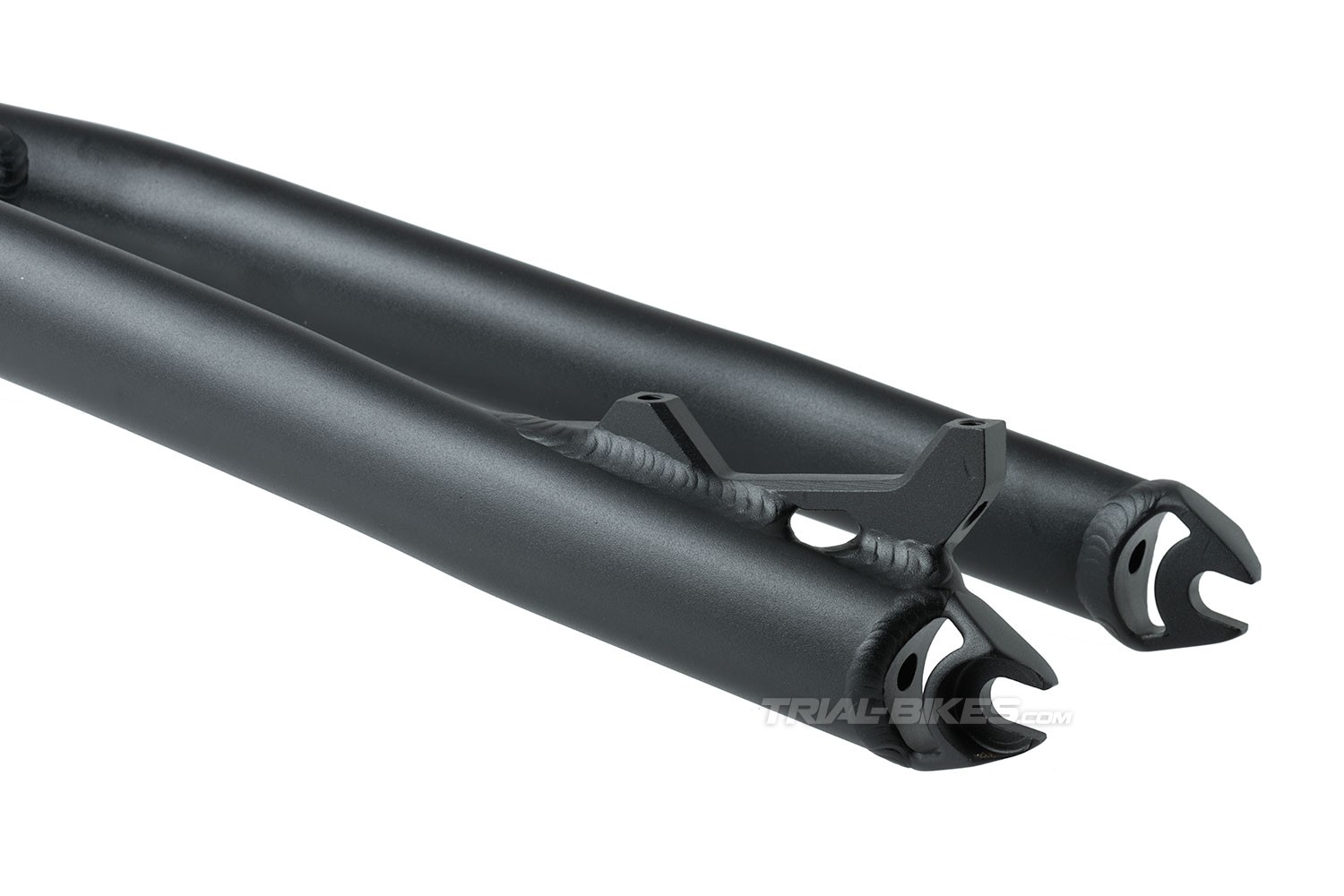

- The disc brake version has CNC-machined Post Mount disc brake mounts for 160 mm diameter rotors.
- Supplied with a star nut (23 mm large star nut, available too separately here) and 2 Jitsie stickers.

Compatible with:
- 1 1/8” diameter headsets.
- Front hubs with 100 mm spacing.
- 1” star nut.

Dimensions

(1) Length: 370 mm.
-----------------------------------------------
(2) Offset: +45 mm.
-----------------------------------------------
(3) Steerer tube length: 185 mm.
-----------------------------------------------

- Steerer tube thickness: 3.6 mm.
- 4 bolts mounts spacing: 86 mm.
- Spacing between dropouts: 100 mm.

Finish
- Sand blasted then anodized black, without graphics.
- Black/white Jitsie stickers (included but not installed).

Weight
- 723.72 g (Post Mount version), 738.00 g (4-bolt version), with a 185 mm long steerer tube.
