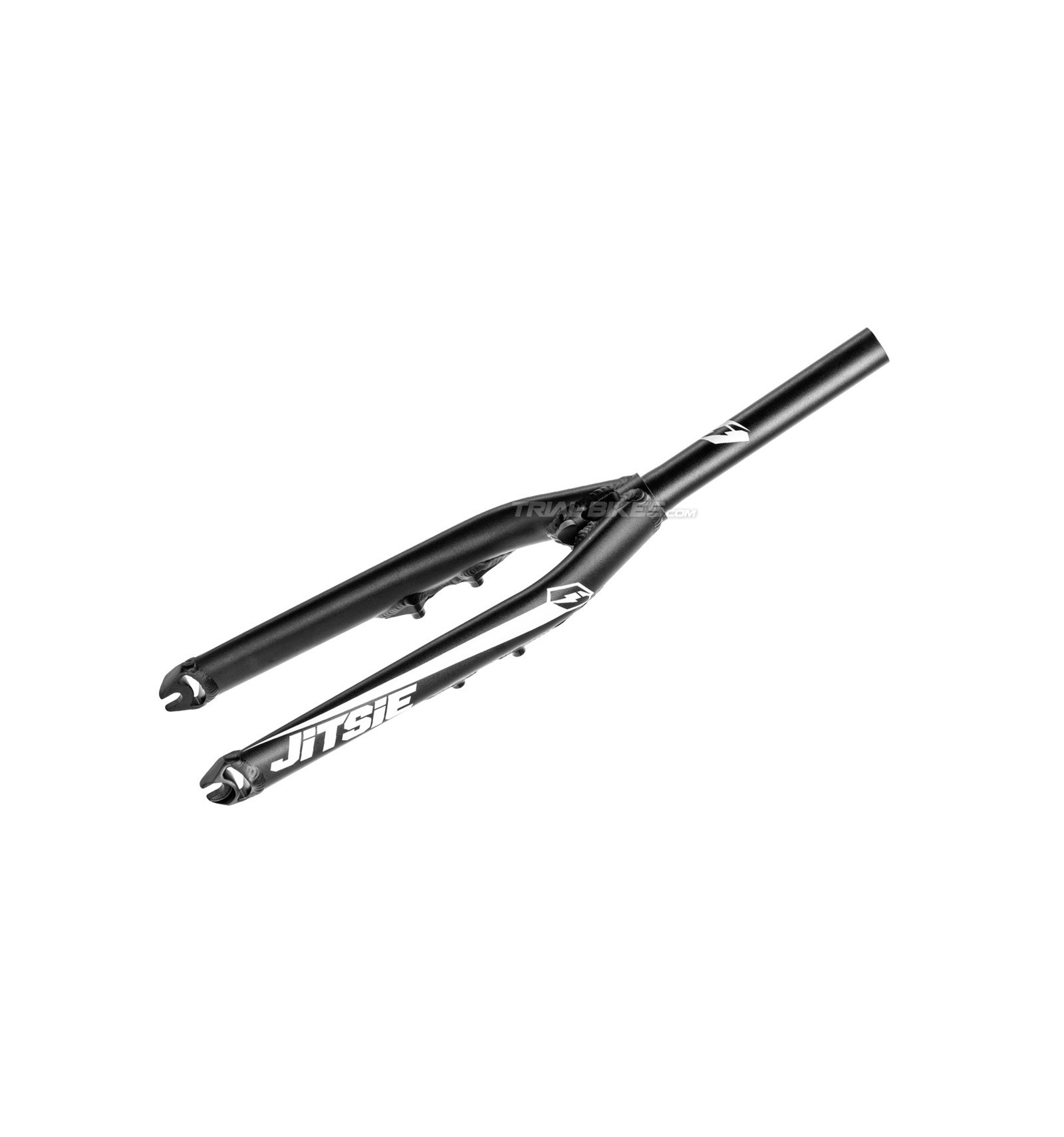

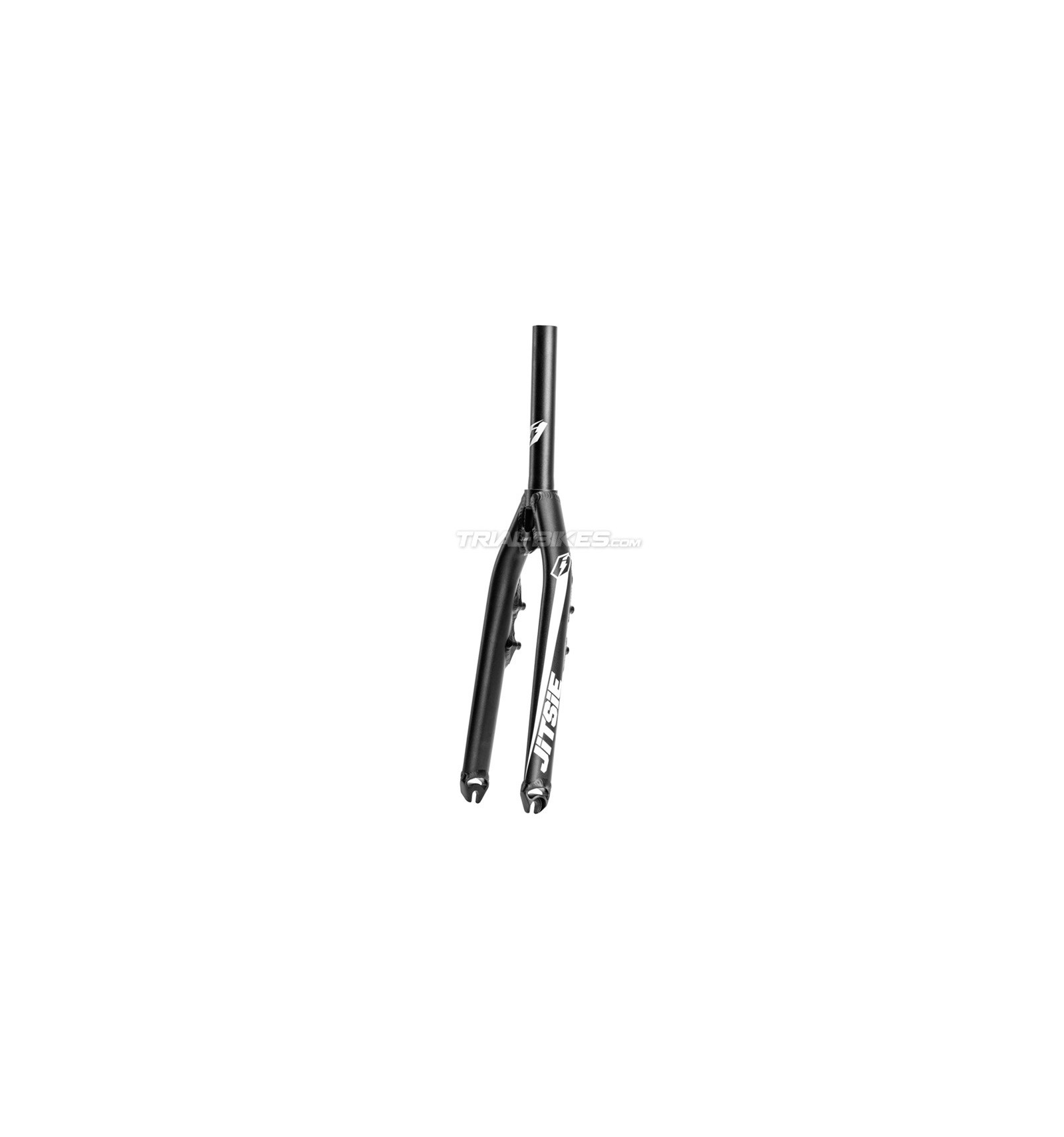

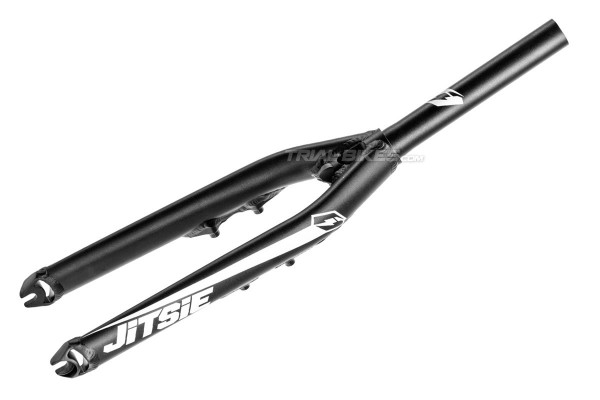

Jitsie Varial 20” Kids Fork

Description and materials
- New high quality Jitsie Varial 20” kids fork.
- This fork is the one supplied with all Jitsie Varial 20” 920mm bikes.
- It’s 350 mm long, 20mm shorter than the adults size, which allows for a more comfortable riding position on bikes with shorter geometries.
- Made of high quality 7005-T6 aluminium alloy.
- The steerer tube is compatible with 1 1/8” headsets, and it’s been machined from a single piece in order to increase its stiffness.

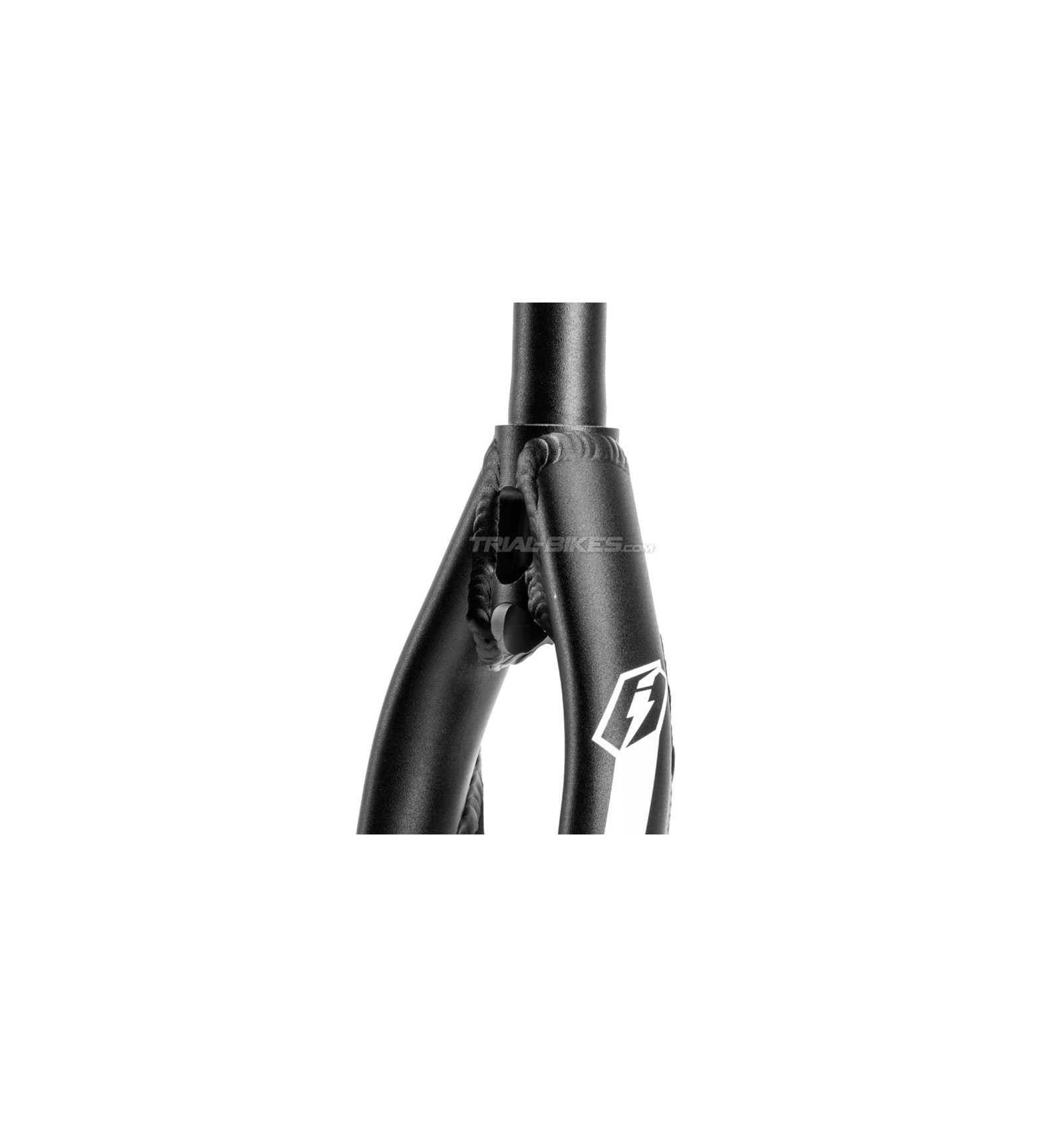

- The crown race are has 2 large holes that help save additional weight.

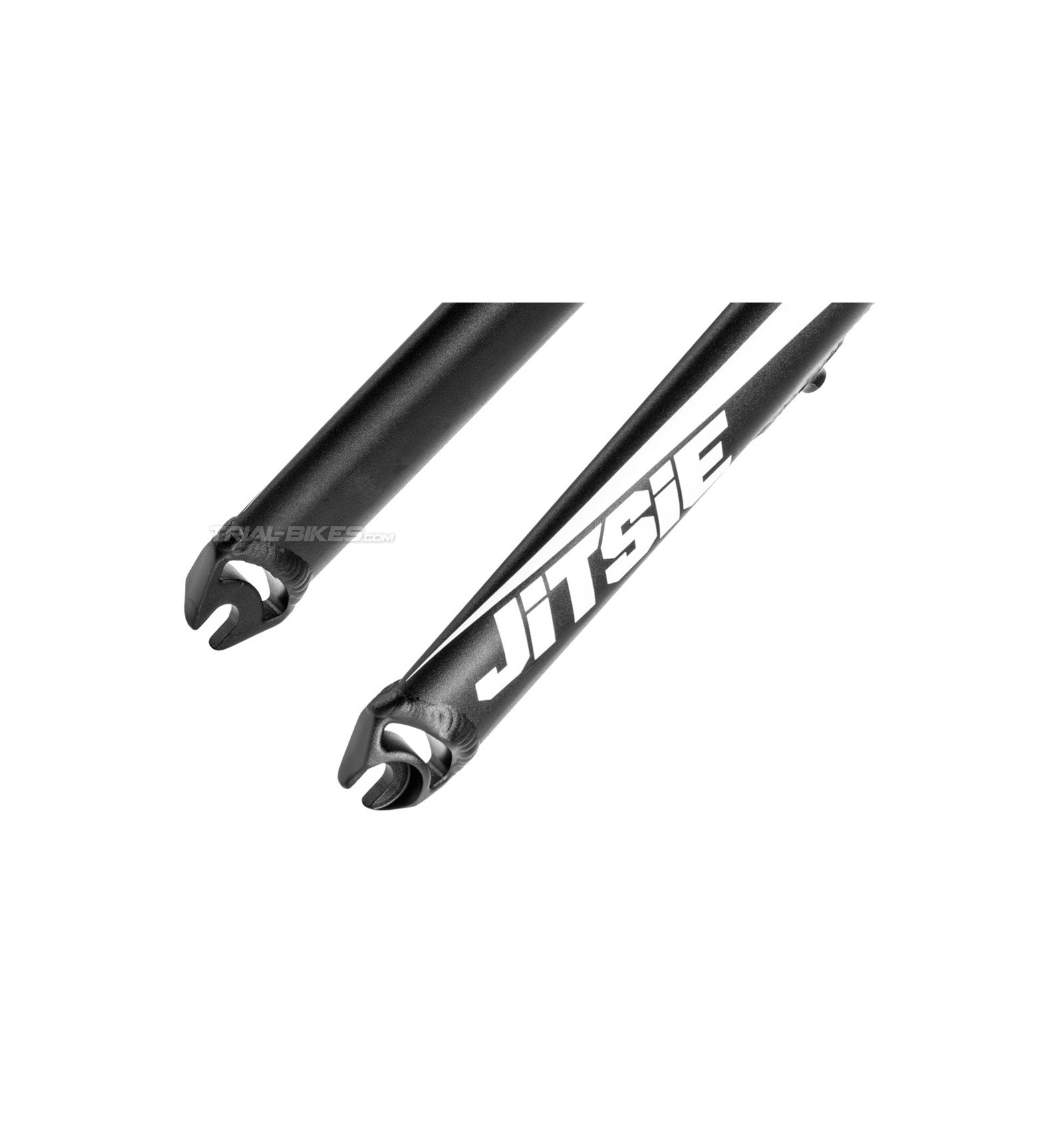

- Minimalistic, CNC-machined dropouts, which also feature a large hole that removes unnecessary material.

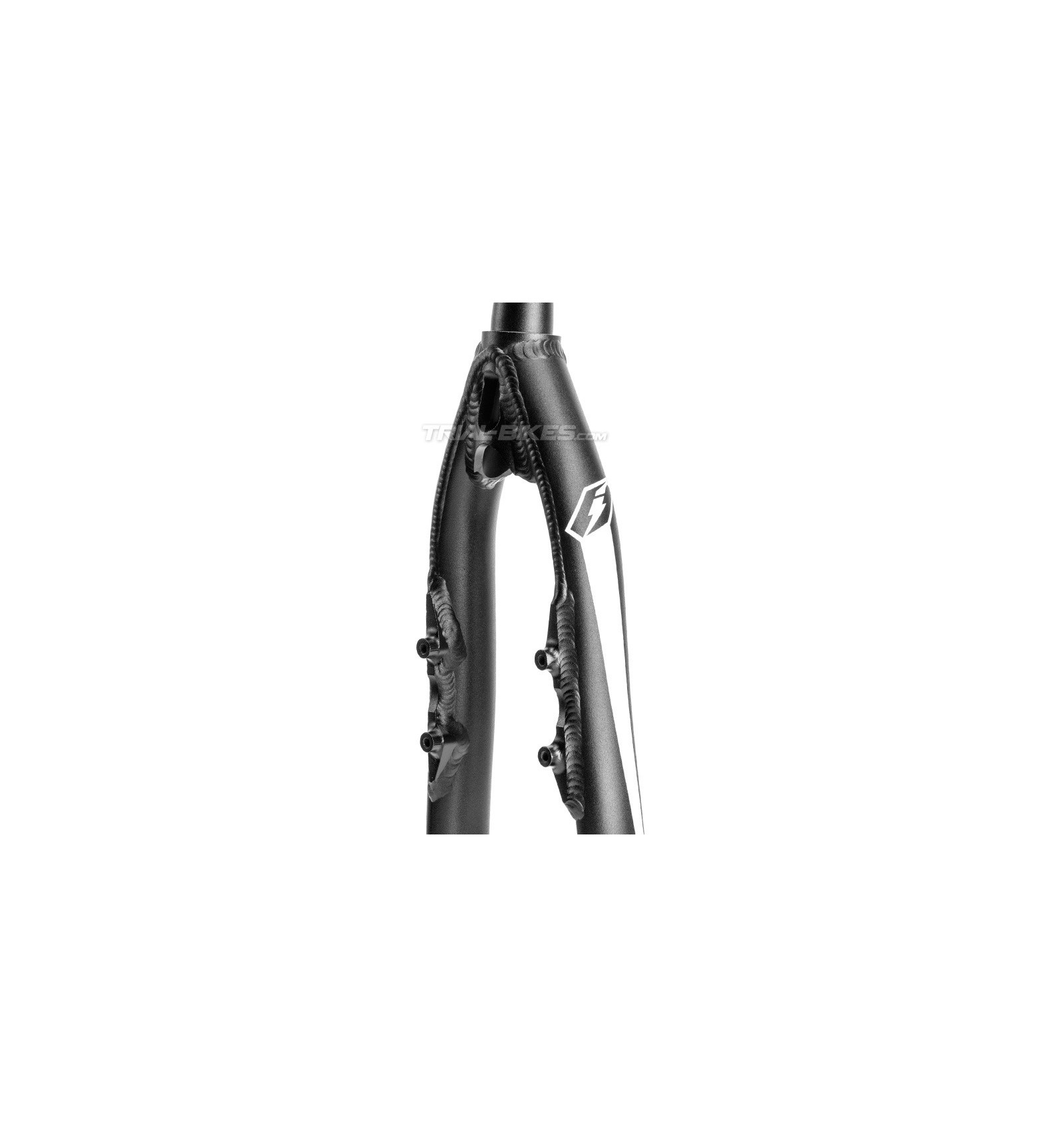

- Available with rim brake mounts spaced at 86 mm at the back of the legs, with a reinforcement weld towards the steerer tube that helps spread stress and increase strength and stiffness.
- Supplied without a star nut (requires a 23 mm large star nut, available separately here).

Compatible with:
- 1 1/8” diameter headsets.
- Front hubs with 100 mm spacing.
- 1” star nut.

Dimensions

(1) Length: 350 mm.
-----------------------------------------------
(2) Offset: +45 mm.
-----------------------------------------------
(3) Steerer tube length: 185 mm.
-----------------------------------------------

- Steerer tube thickness: 3.6 mm.
- 4 bolts mounts spacing: 86 mm.
- Spacing between dropouts: 100 mm.

Finish
- Sand blasted then anodized black, with white Jitsie graphics.

Weight
- 718 g (without star nut), with a 185 mm long steerer tube.
