Jitsie Varial 26 Inches Fork Expand

Jitsie Varial 26'' Fork

JITSIE JITSIE

537836

New

This product is no longer in stock

206,61€

Ask a question

Description and materials

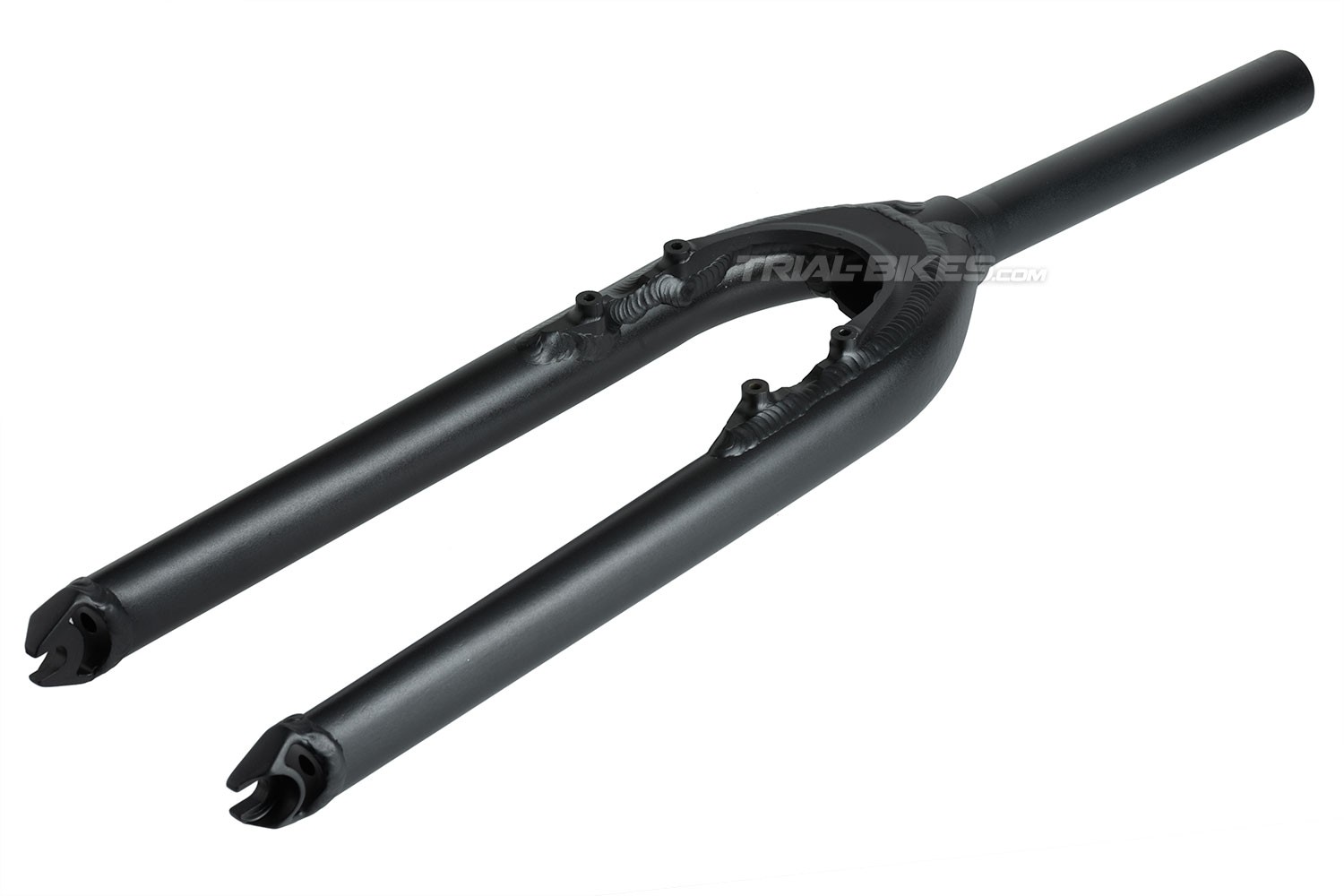

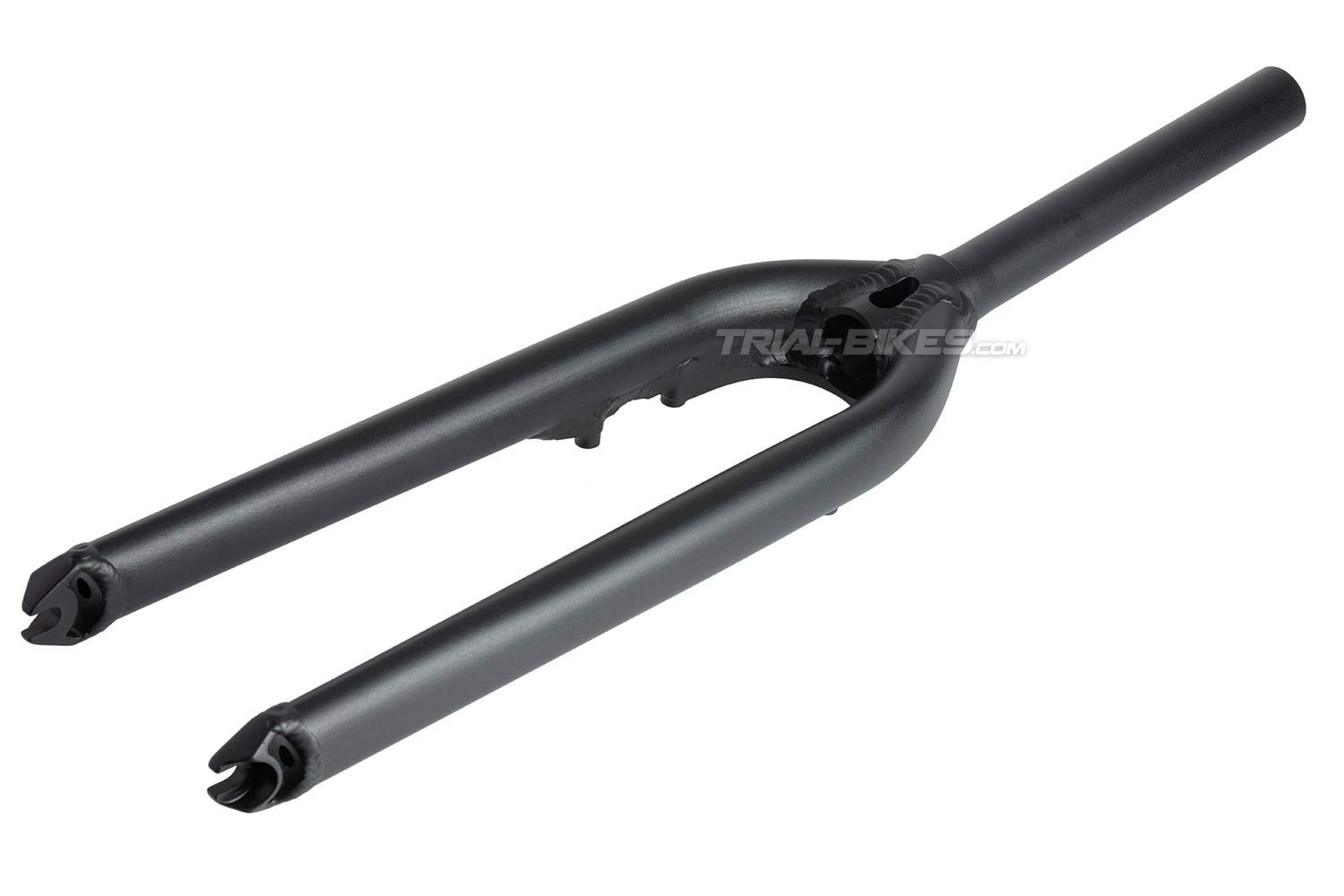

- New high quality Jitsie Varial 26” fork.
- Developed for months by Jitsie team in order to ensure maximum reliability.
- This fork is the one supplied with all Jitsie Varial 26” 1085mm bikes.
- Made of high quality 7005-T6 aluminium alloy.

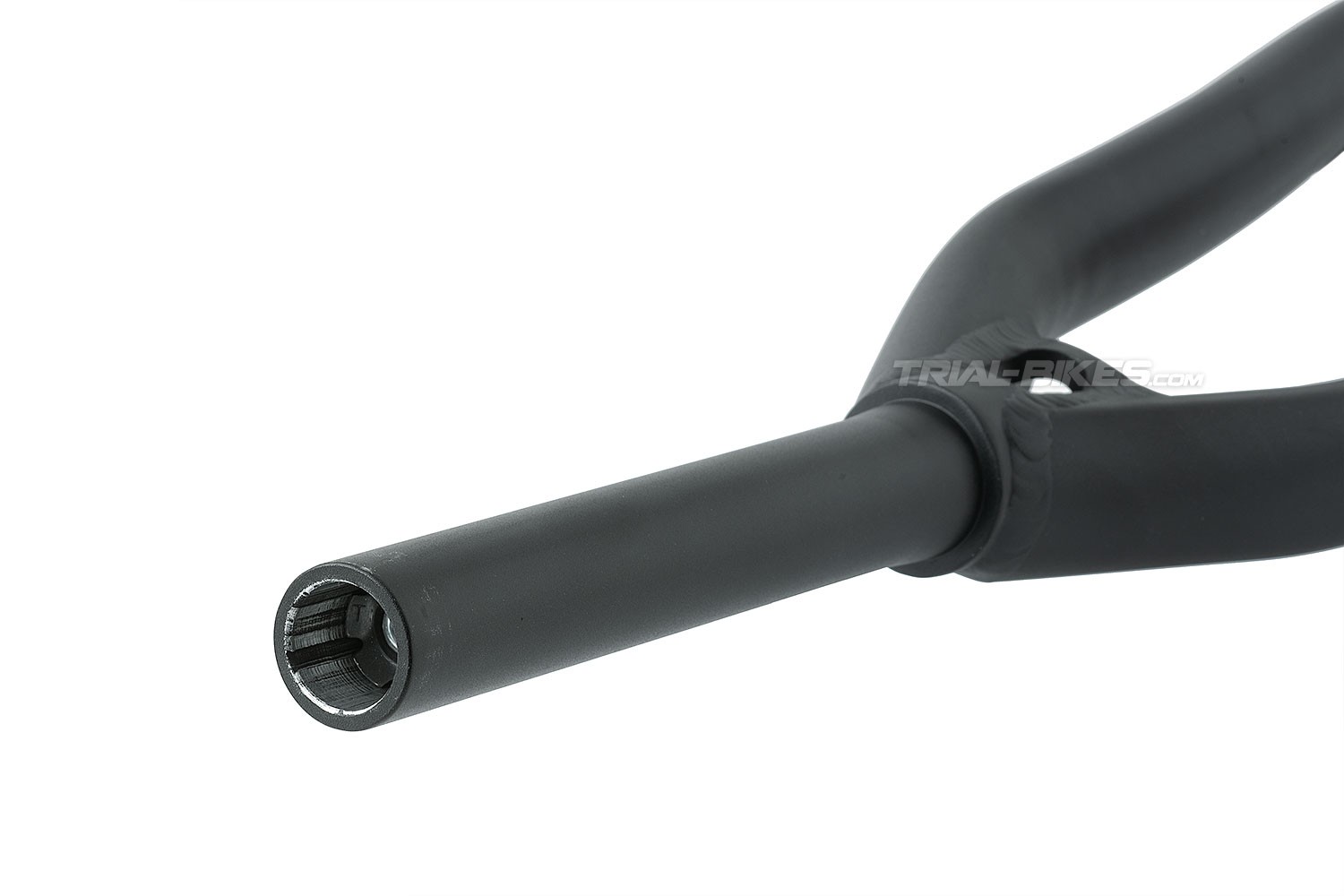

- The steerer tube is compatible with 1 1/8” headsets, and it’s been machined from a single piece in order to increase its stiffness.
- The crown race area has 2 large holes that help save additional weight.

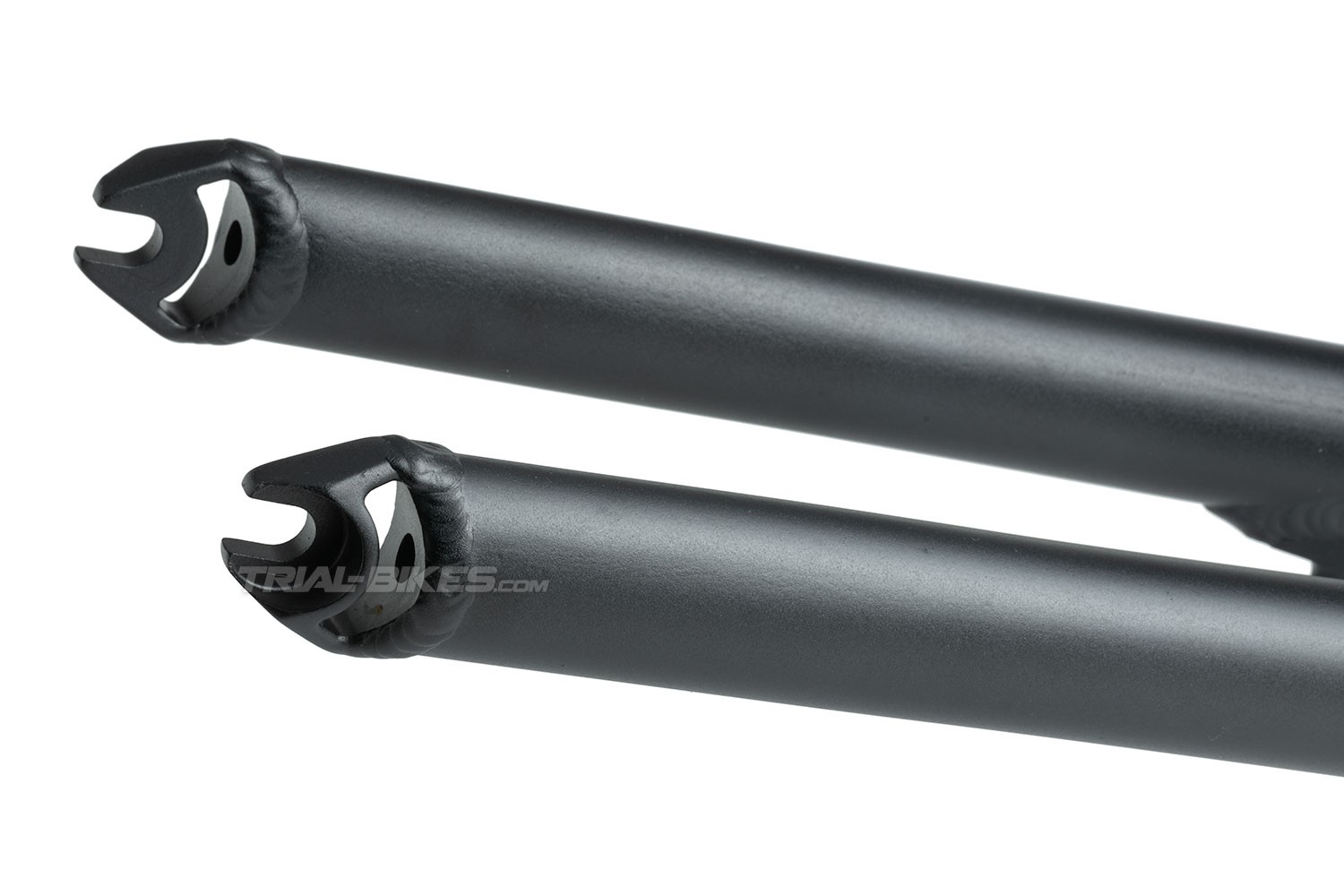

- Minimalistic, CNC-machined dropouts, which also feature a large hole that removes unnecessary material.

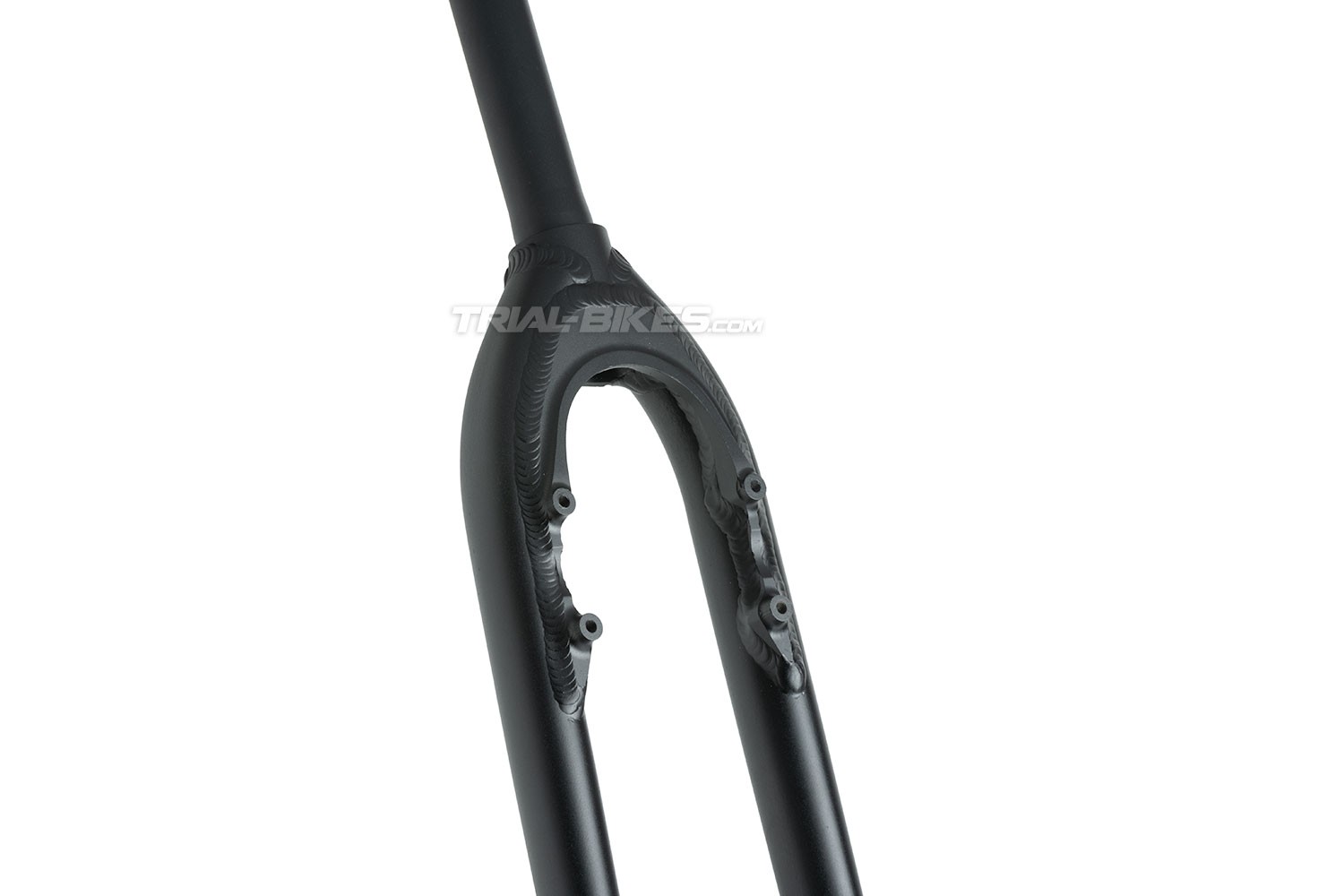

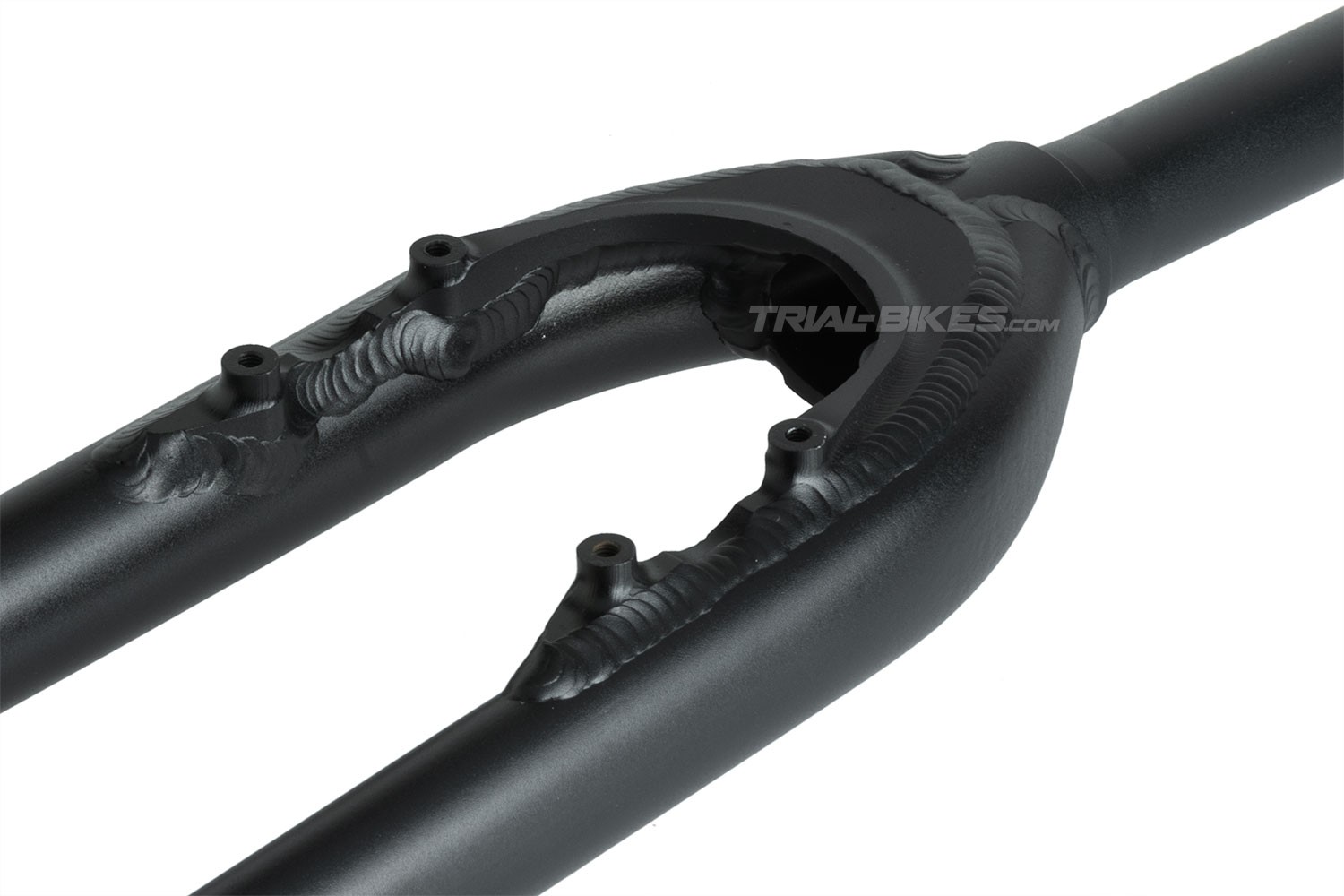

- Available with rim brake mounts spaced at 86 mm at the back of the legs, with a reinforcement weld towards the steerer tube that helps spread stress and increase strength and stiffness.
Supplied with a star nut (23 mm large star nut, available too separately here) and 2 Jitsie stickers.

Compatible with:
- 1 1/8” diameter headsets.
- Front hubs with 100 mm spacing.
- 1” star nut.

Dimensions

(1) Length: 400 mm.
-----------------------------------------------
(2) Offset: +35 mm.
-----------------------------------------------
(3) Steerer tube length: 200 mm.
-----------------------------------------------

- Steerer tube thickness: 3.6 mm.
- 4 bolts mounts spacing: 86 mm.

Geometrias horquillas de trial bici

Finish
- Sand blasted then anodized black, without graphics.
- Black/white Jitsie stickers (included but not installed).


Weight
- 840 g (without star nut), with a 200 mm long steerer tube.


WEIGHT 0.840
MATERIAL Aluminium
BRAKE MOUNTS HS
STEERER TUBE Standar 1 1/8”
