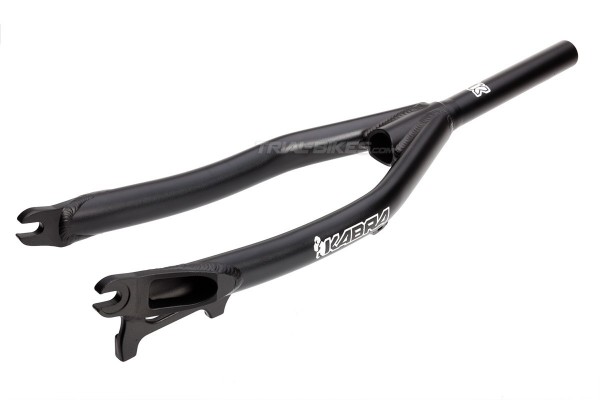

Kabra S20 20'' Fork

Description and materials
- Updated, reinforced version of the high quality Kabra 20” fork.
- The crown race area has been redesigned, with a new structure that is much stronger and more robust.
- Made of high quality 7005-T6 aluminium alloy.
- The headtube is compatible with 1 1/8” headsets, and it’s been machined from a single piece in order to increase its stiffness.

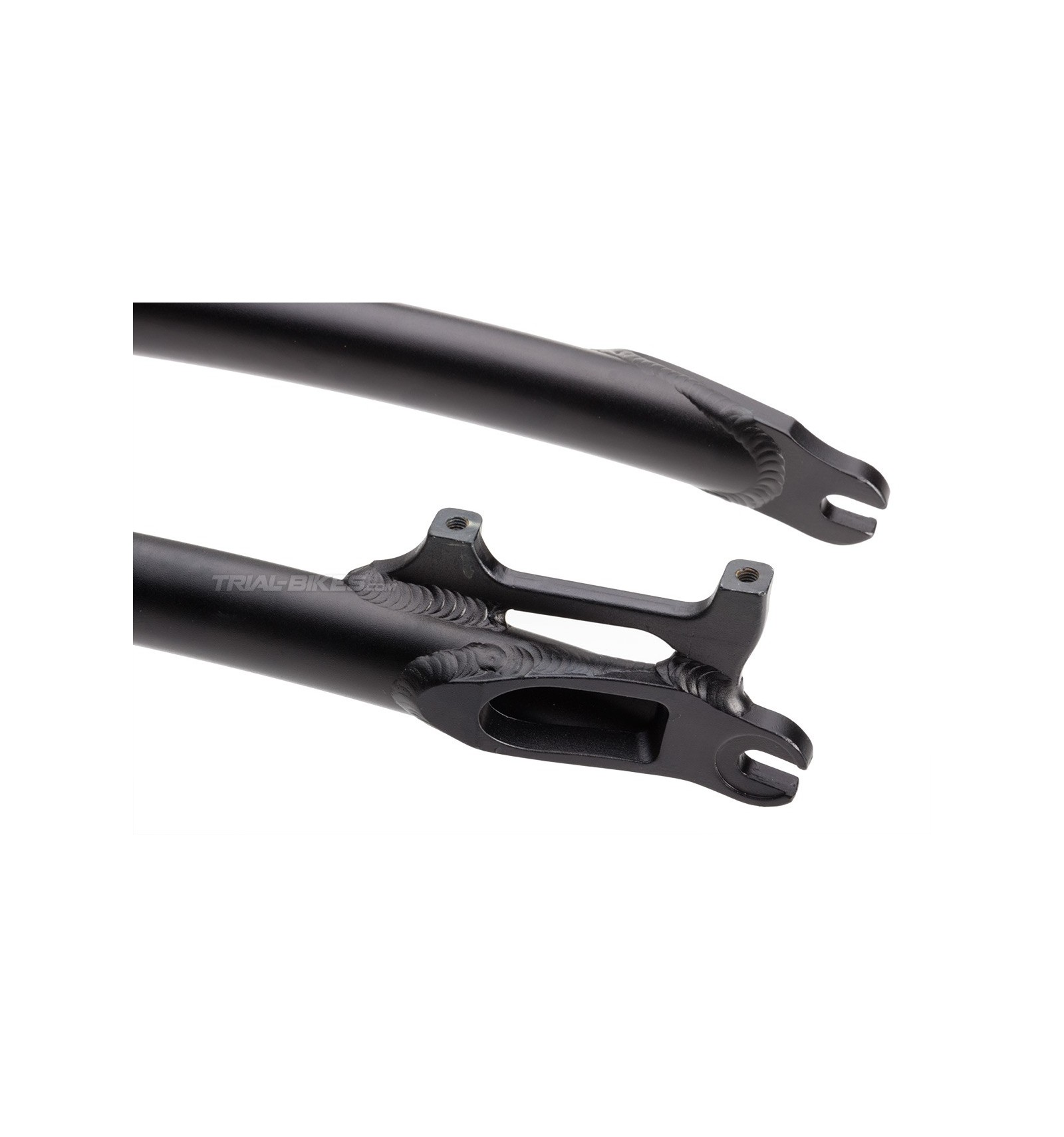

- CNC-machined dropouts, with a large hole that helps remove unnecessary material.
- Two different versions available: with 4-bolt rim brake mounts or Post Mount disc brake mounts.
- The rim brake version has brake mounts spaced at 95 mm at the back of the legs, now even more reinforced, built in an integrated brake booster that increases strength and stiffness.
- The disc brake version has Post Mount disc brake mounts for 160 mm diameter rotors.
- Supplied with a star nut.

Compatible with:
- 1 1/8” diameter headsets.
- Front hubs with 100 mm spacing.

Dimensions

(1) Length: 365 mm.
-----------------------------------------------
(2) Offset: +40 mm.
-----------------------------------------------
(3) Steerer tube length: 180 mm.
-----------------------------------------------

- 4 bolts mounts spacing: 86 mm.
- Spacing between dropouts: 100 mm.

Finish
- Anodized black, with white Kabra graphics on the legs and steerer tube.

Weight
- 702.32 g (Post Mount version, without star nut), 732.86 g (4-bolt version, without star nut), with a 180 mm long steerer tube.
