Description and materials

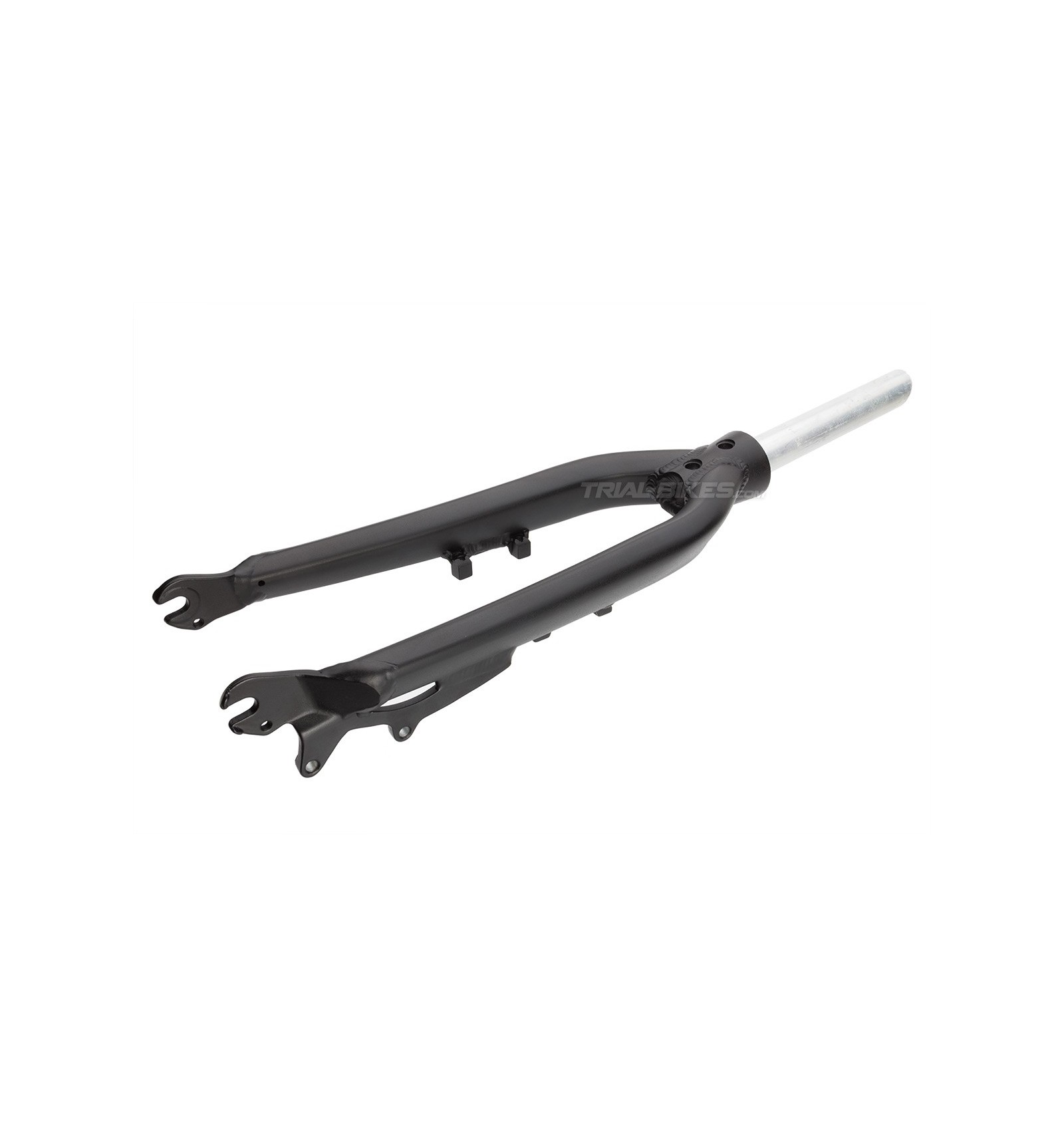

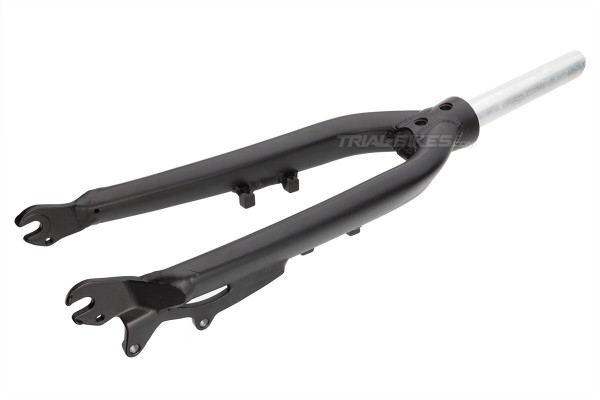

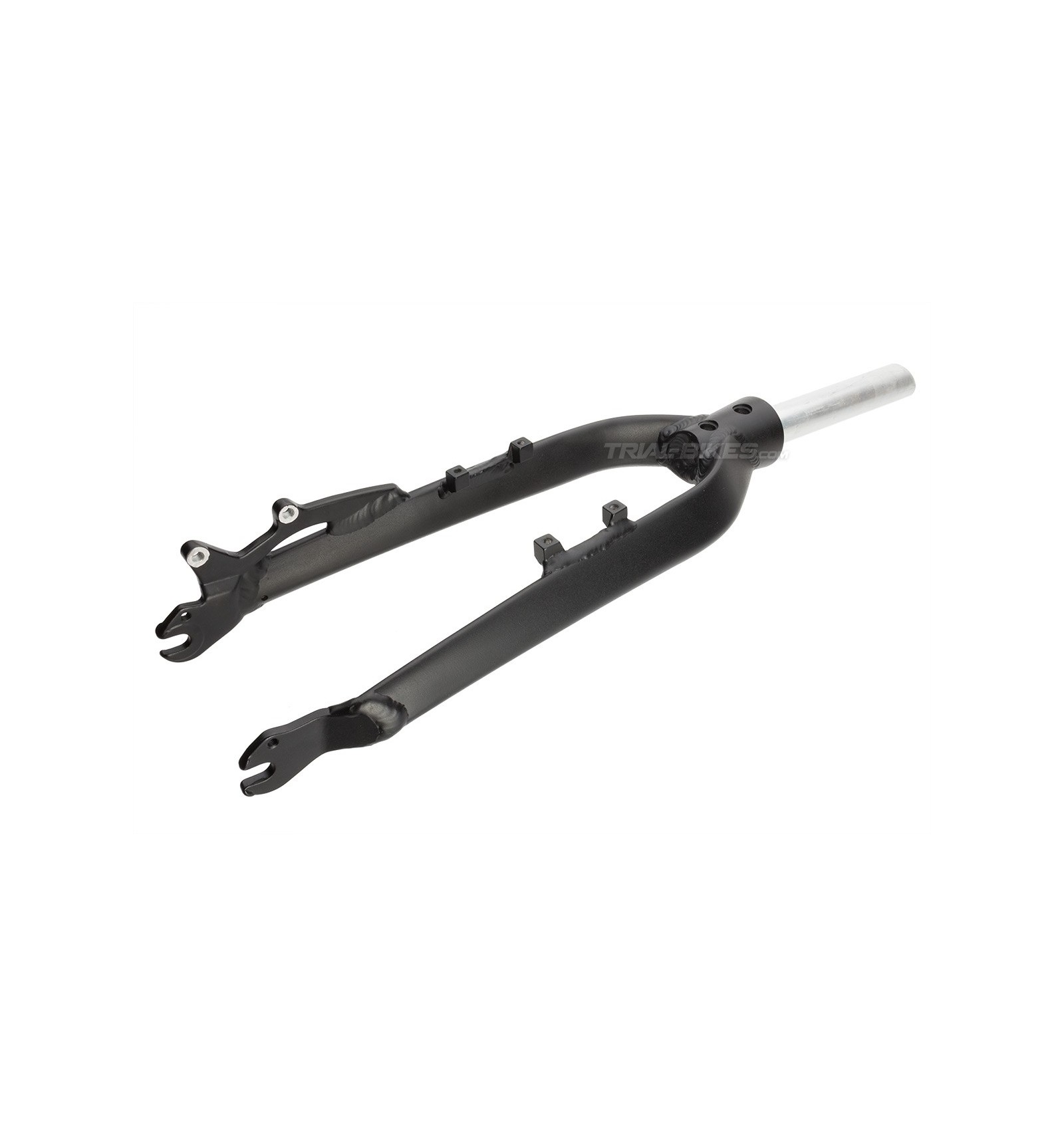

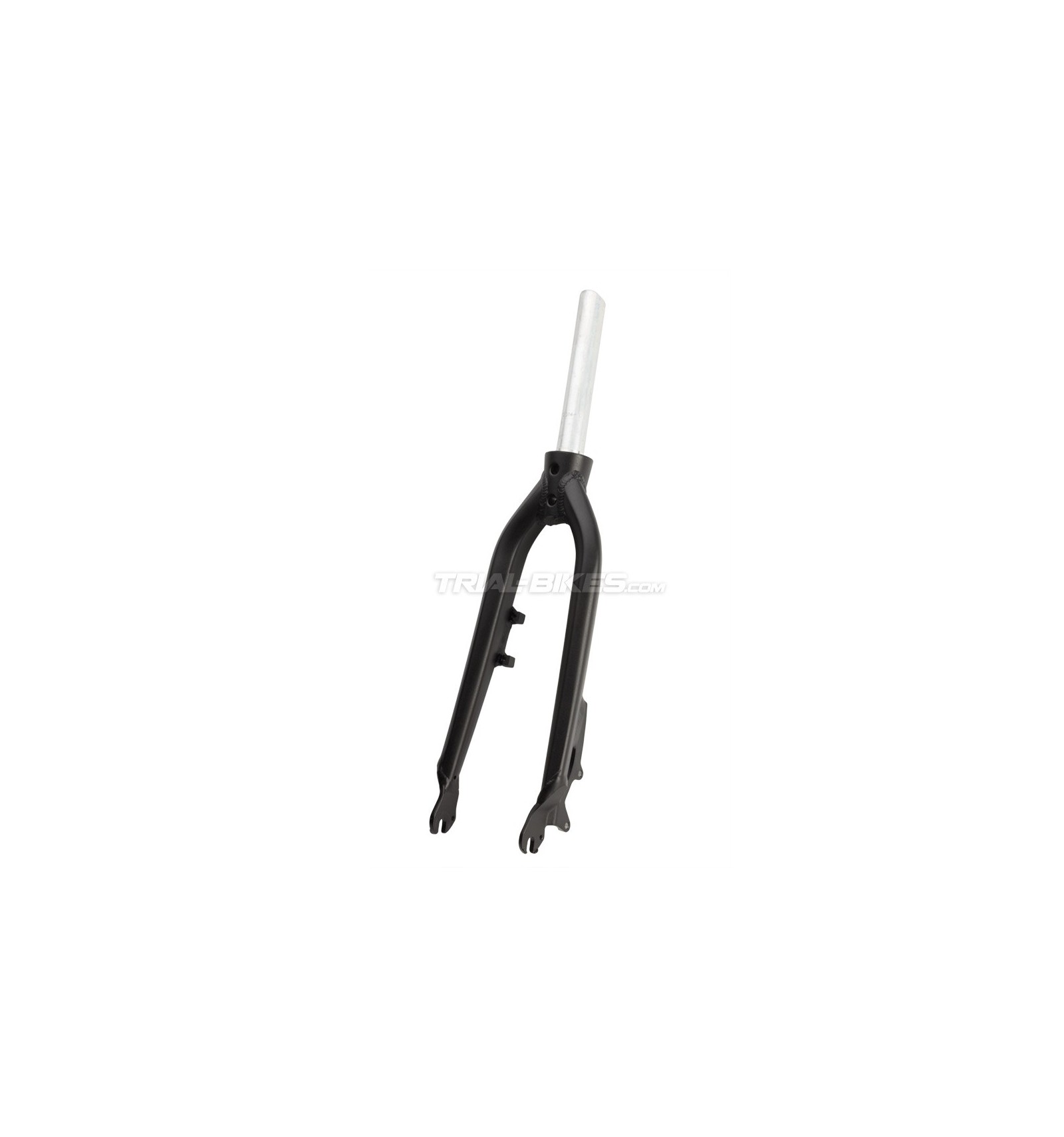

- New Monty 2015 fork, for 20” bikes.
- Made from high quality 6061-T6 aluminium, with hydro-formed tubes for an improved strength.

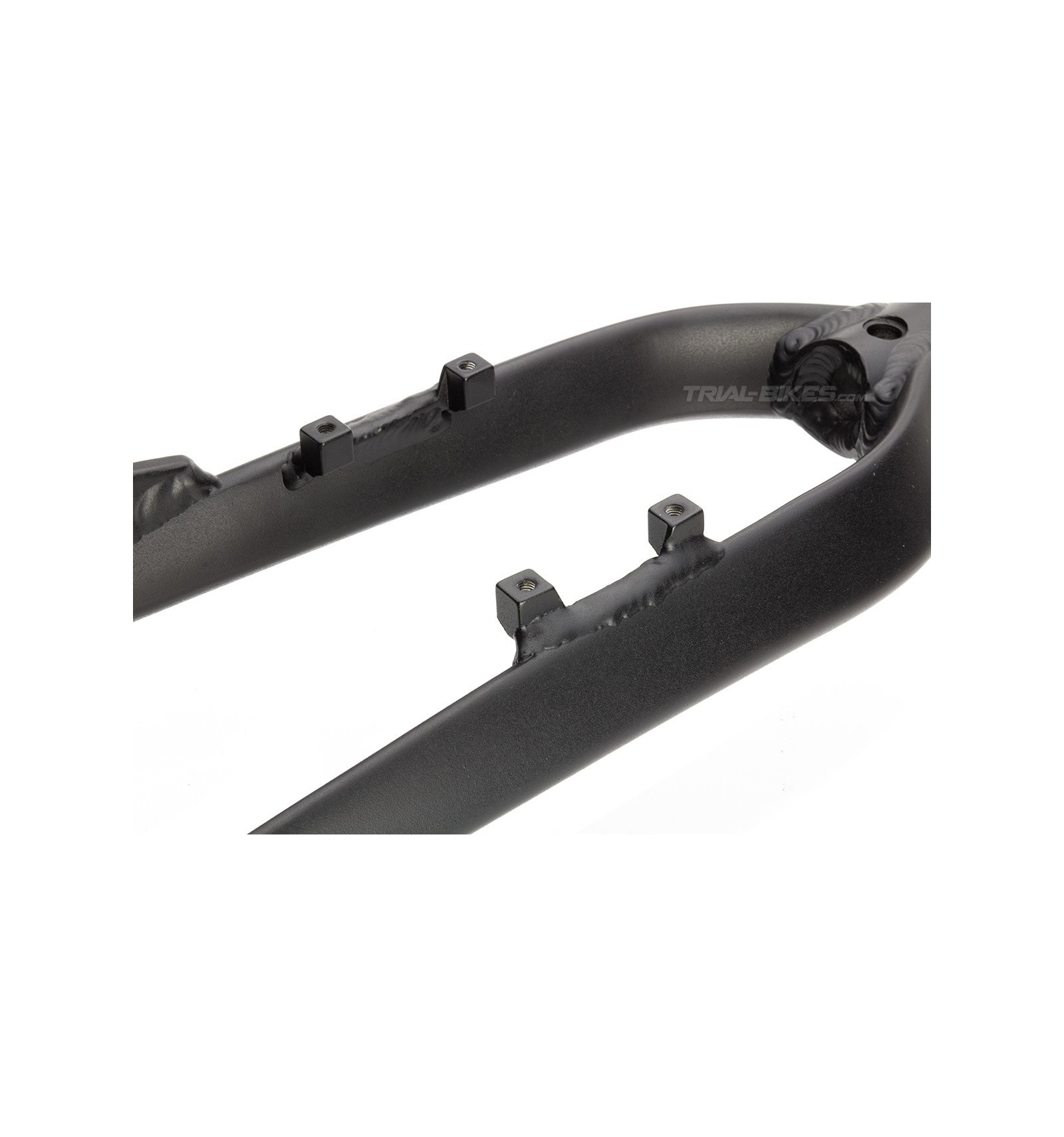

- Features both 4-bolt rim brake mounts (spaced at 85mm) and IS (International Standard) disc brake mount.
- The disc brake mount (which is 9mm thick) features an extra long weld which helps avoid cracks at the disc mount joint.
- 100mm spacing, suitable for almost all front trials hubs.

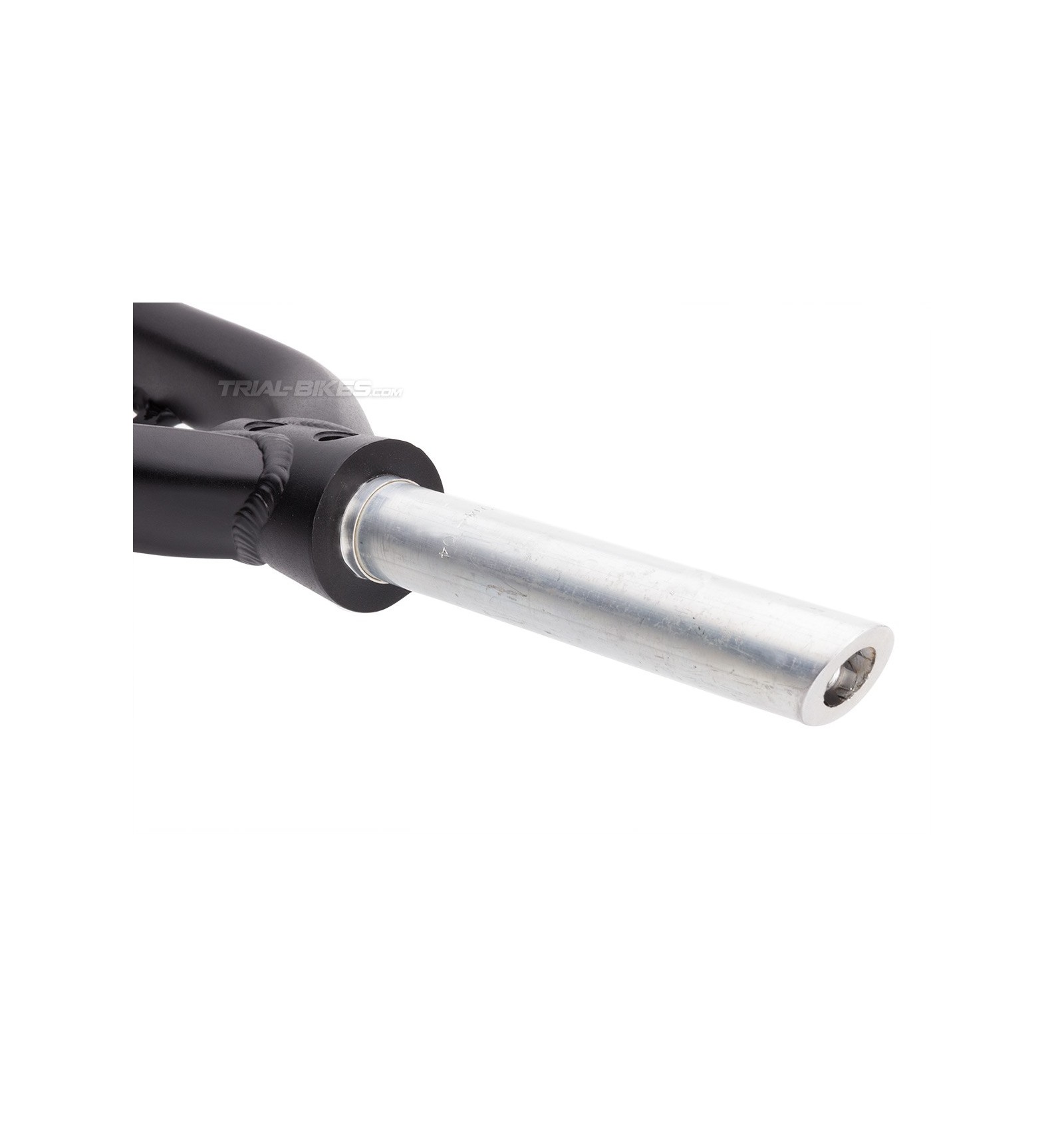

- The steerer tube is suitable for 1” 1/8 headsets (used in almost all trials bikes), and is supplied with the star nut already inserted.
- 6mm thick steerer tube, cut at an angle, so the steerer tube length goes from 162mm to 175mm.
- Because of the lower crown race design, it is highly recommended to use an open crown race to ease the set up.
- Anodized black finish.
Dimensions
- Length: 384mm
- Offset: + 45mm
- Steerer tube: From 162mm to 175mm
-Hs33 spacing: 85mm
- Steerer tube thickness: 6mm
Finish
- Anodized black
Weight
- 900g
WEIGHT | 0.900 |
MATERIAL | Aluminium |
BRAKE MOUNTS | IS Disc |
BRAKE MOUNTS | HS |
STEERER TUBE | Standar 1 1/8” |
