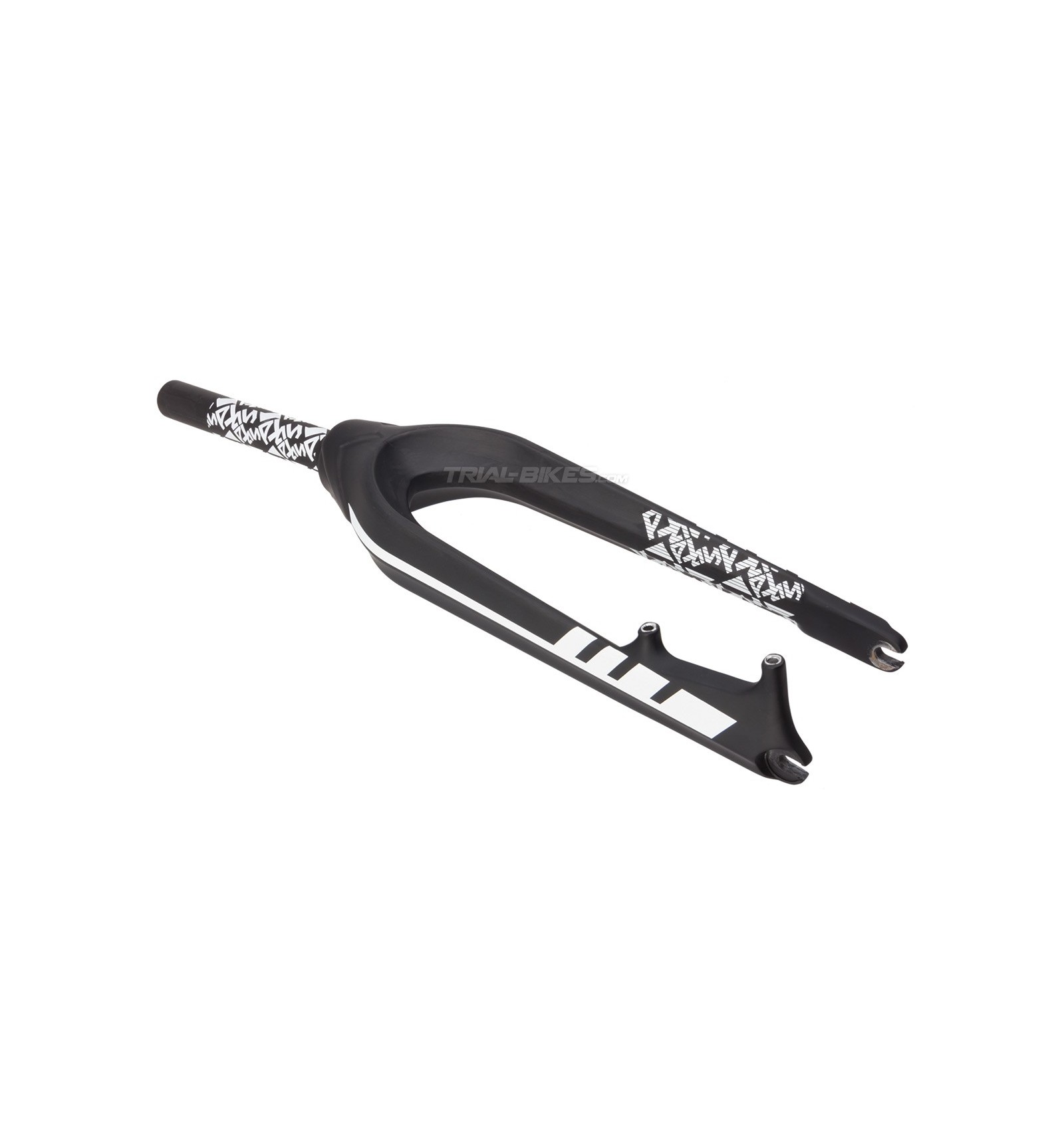

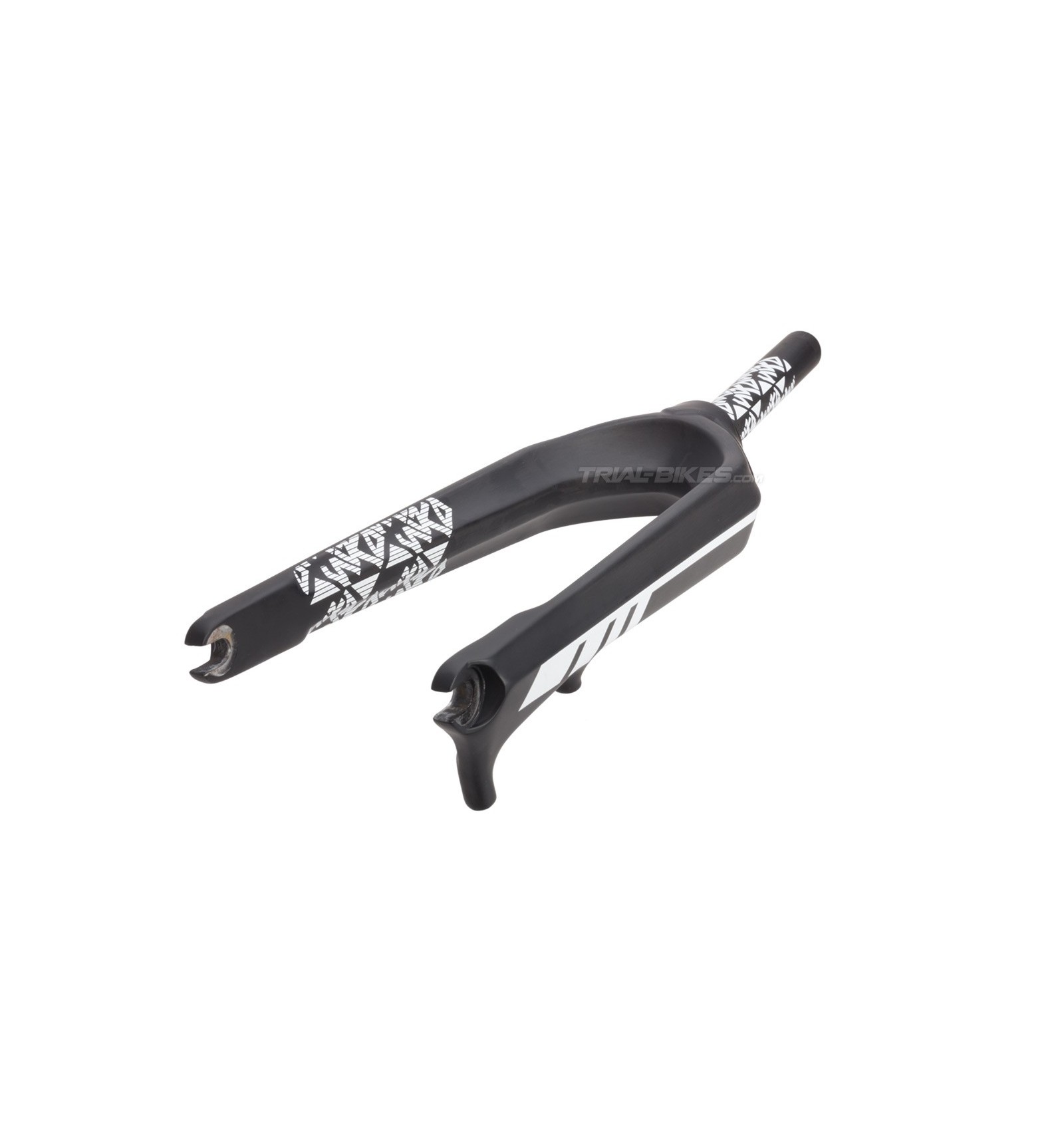

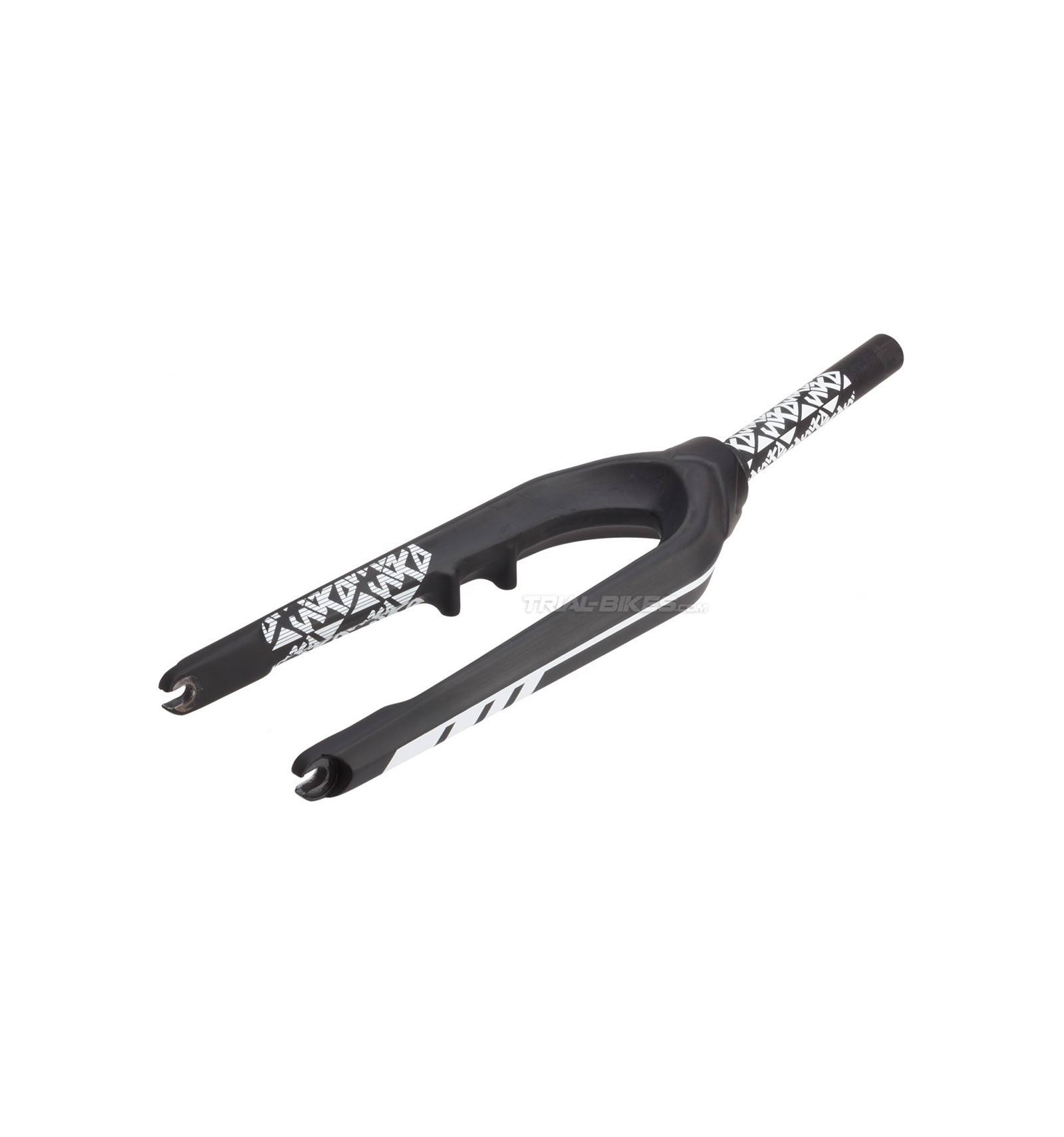

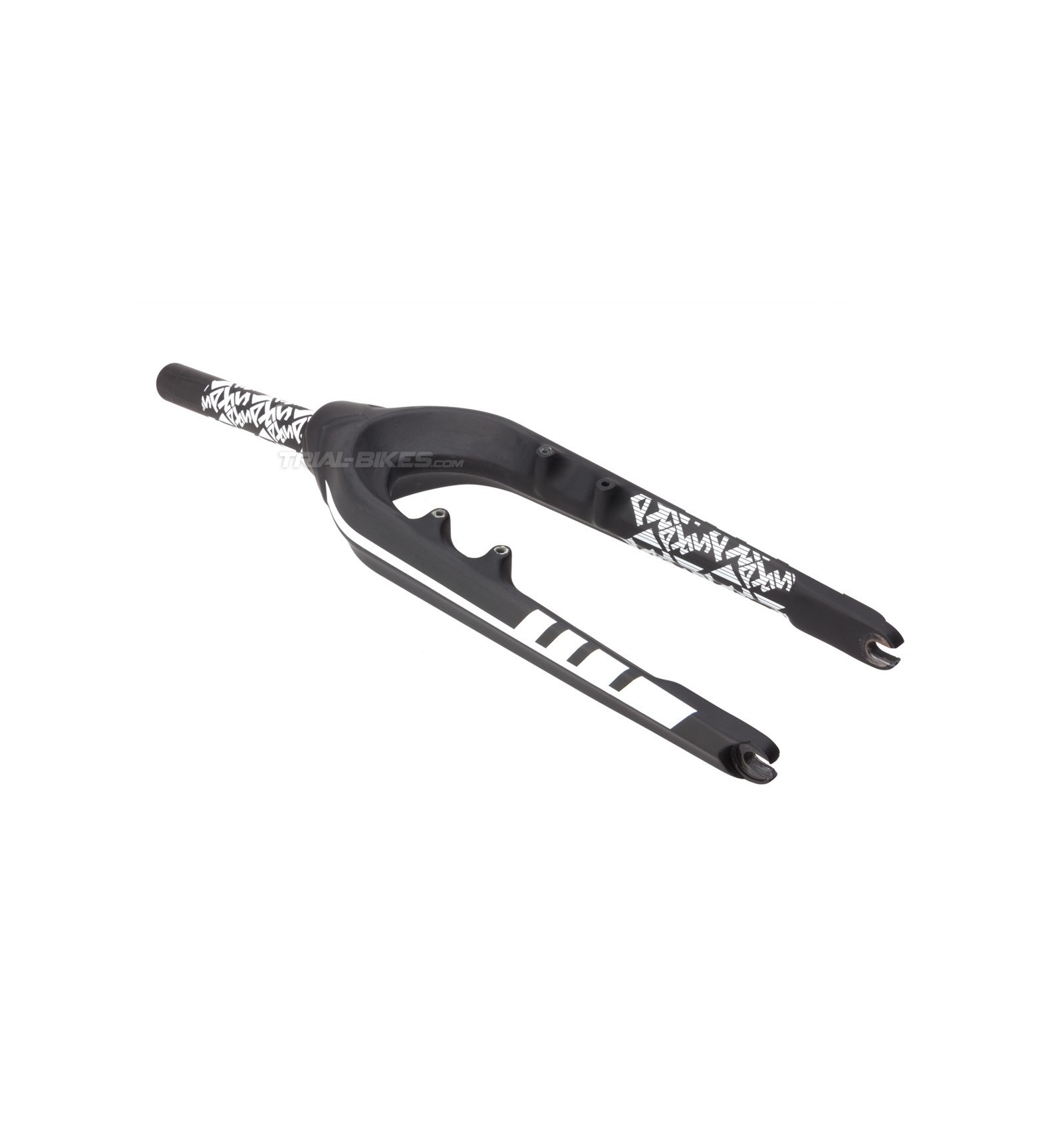

Play KII 20'' Carbon Fork

Description and materials
- New high quality 20” carbon fork from innovative Taiwanese brand Play.
- This is a unique, exclusive fork designed by Play, that has been developed and tested by Benito Ros, Javi Alonso and Alejandro Montalvo for the 2015 season, both in competitions and casual riding.
- Completely made out of high-quality unidirectional carbon fibre (UD), which allows for a safe compromise between low weight and high strength.
- Features a unique design of the legs and crown area that ensure for maximum strength and stiffness.
- Monoblock construction uses unidirectional layers of carbon fiber, which allows for a more compact, stiff, strong and solid design.

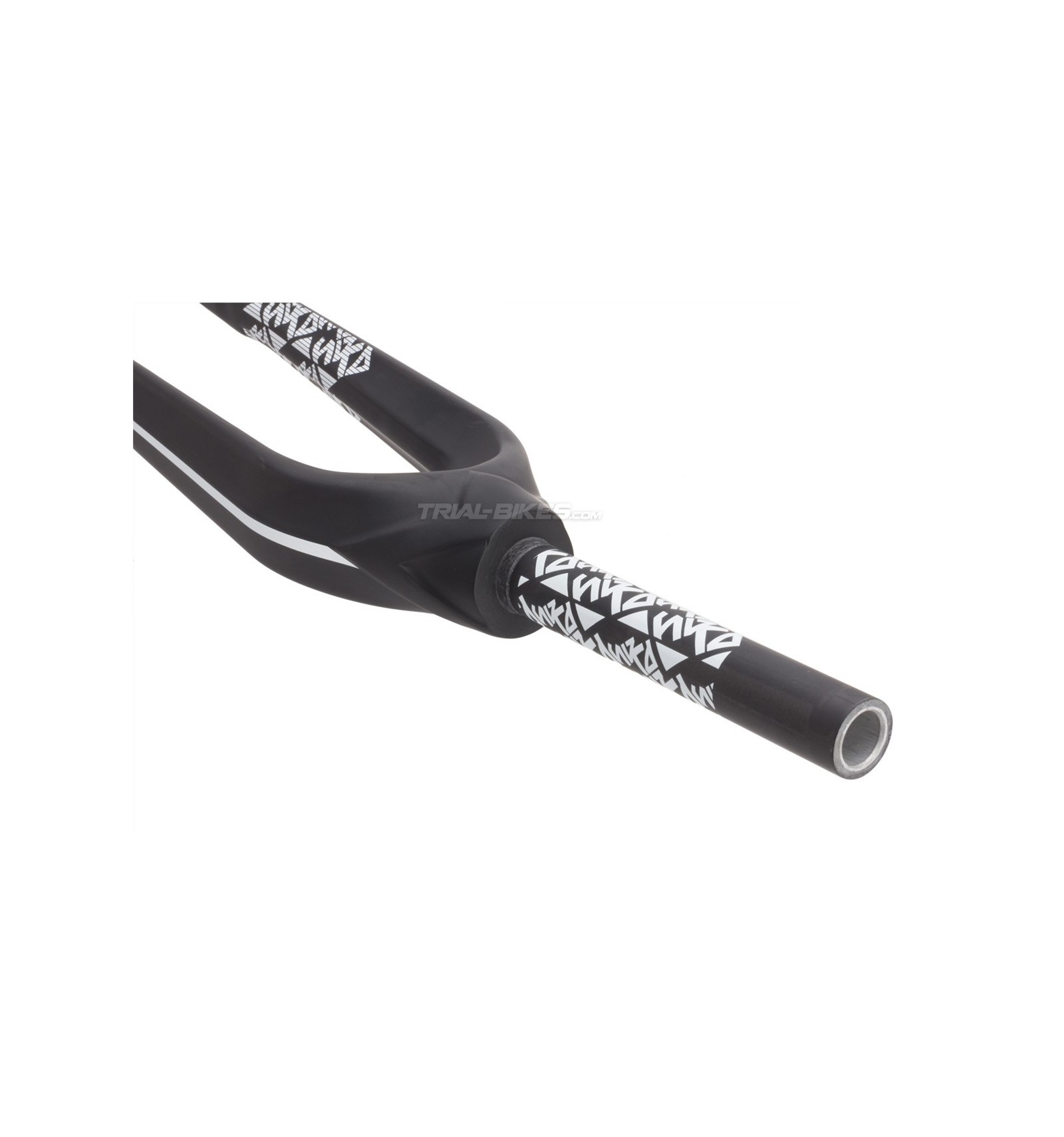

- 180 mm long steerer tube, with a 100 mm-long aluminium tube inserted to provide additional reliability to this critical area of the fork.

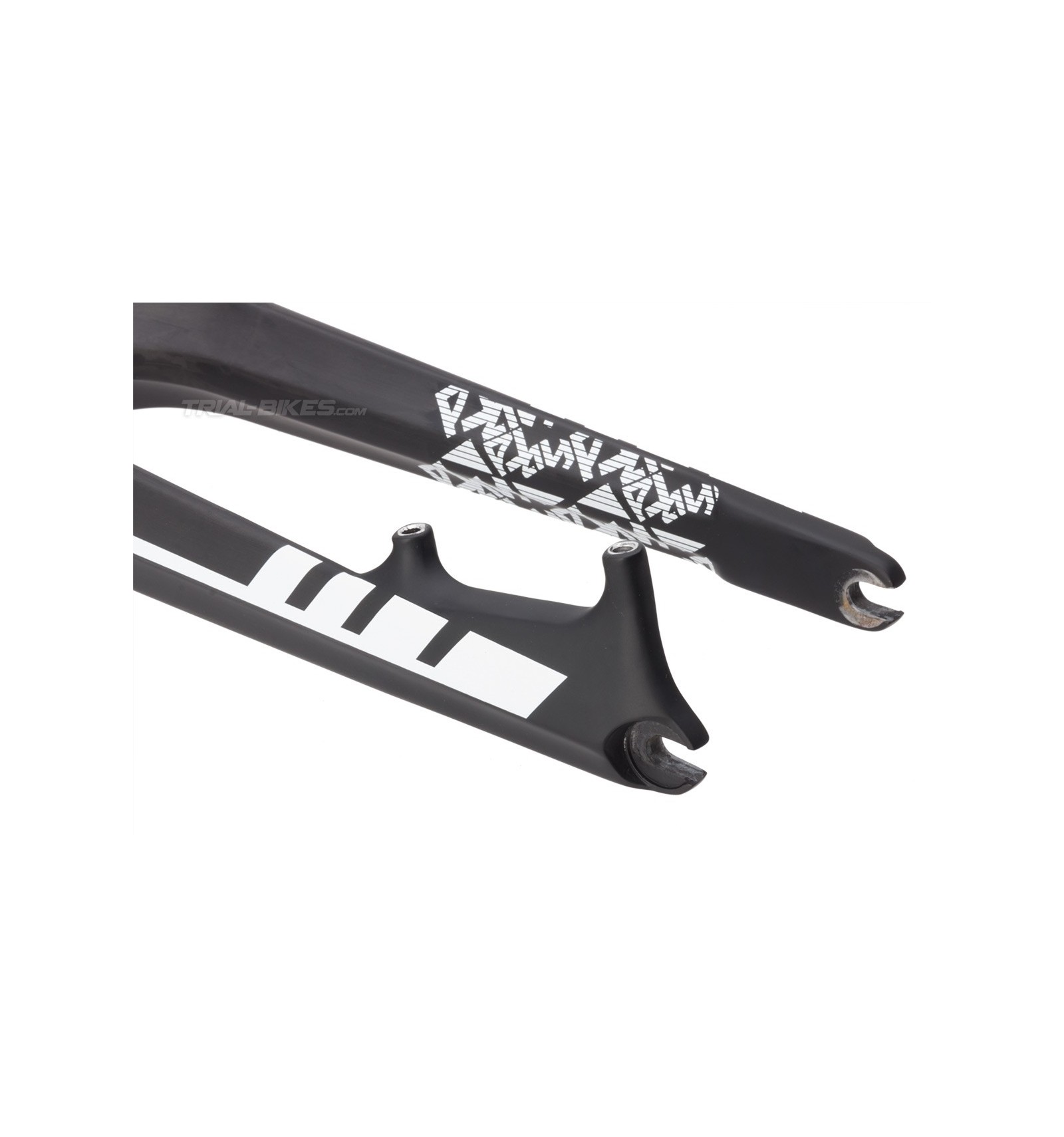

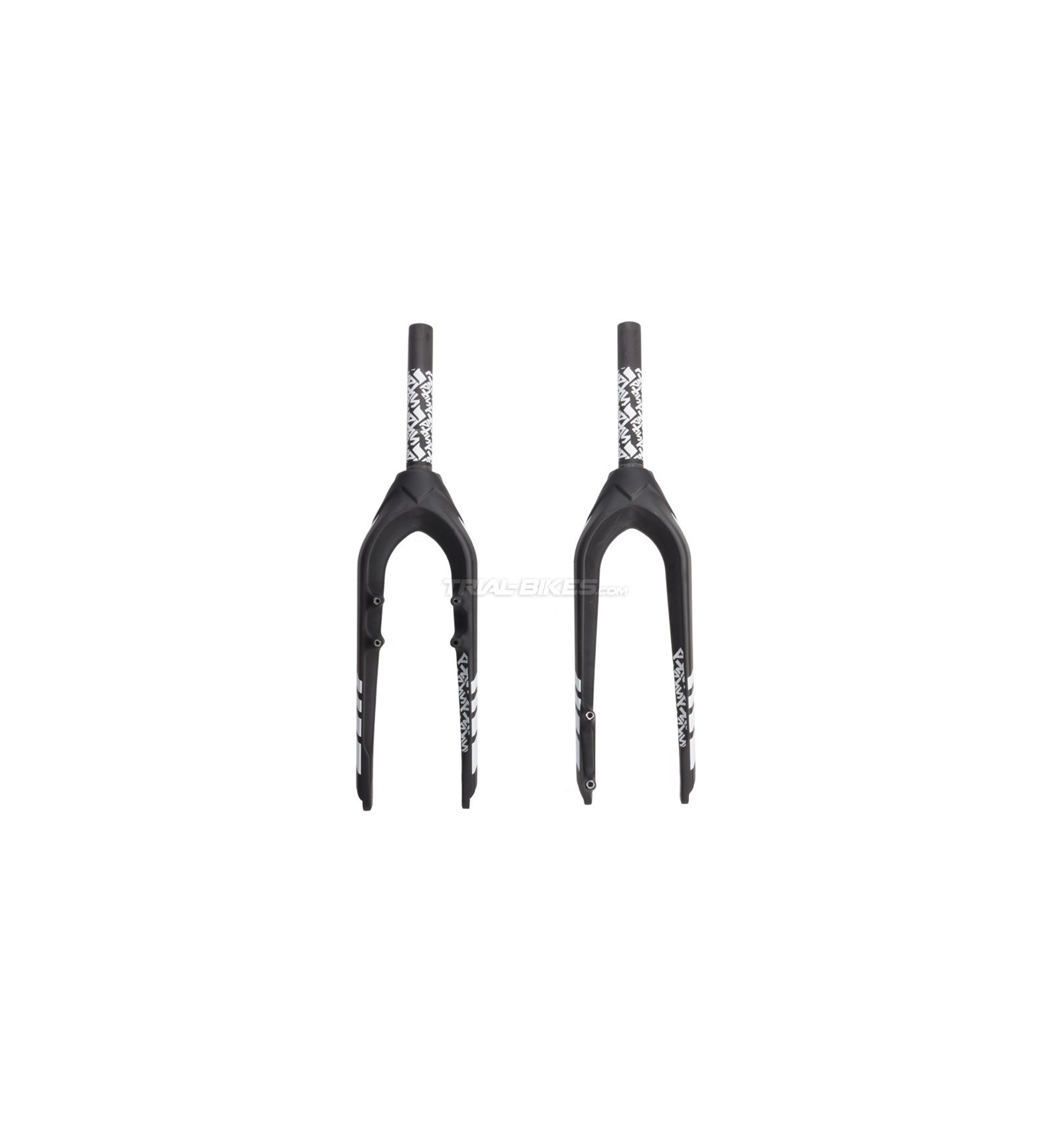

- 2 versions available: with Post Mount disc brake mounts or with 4-bolt rim brake mounts.

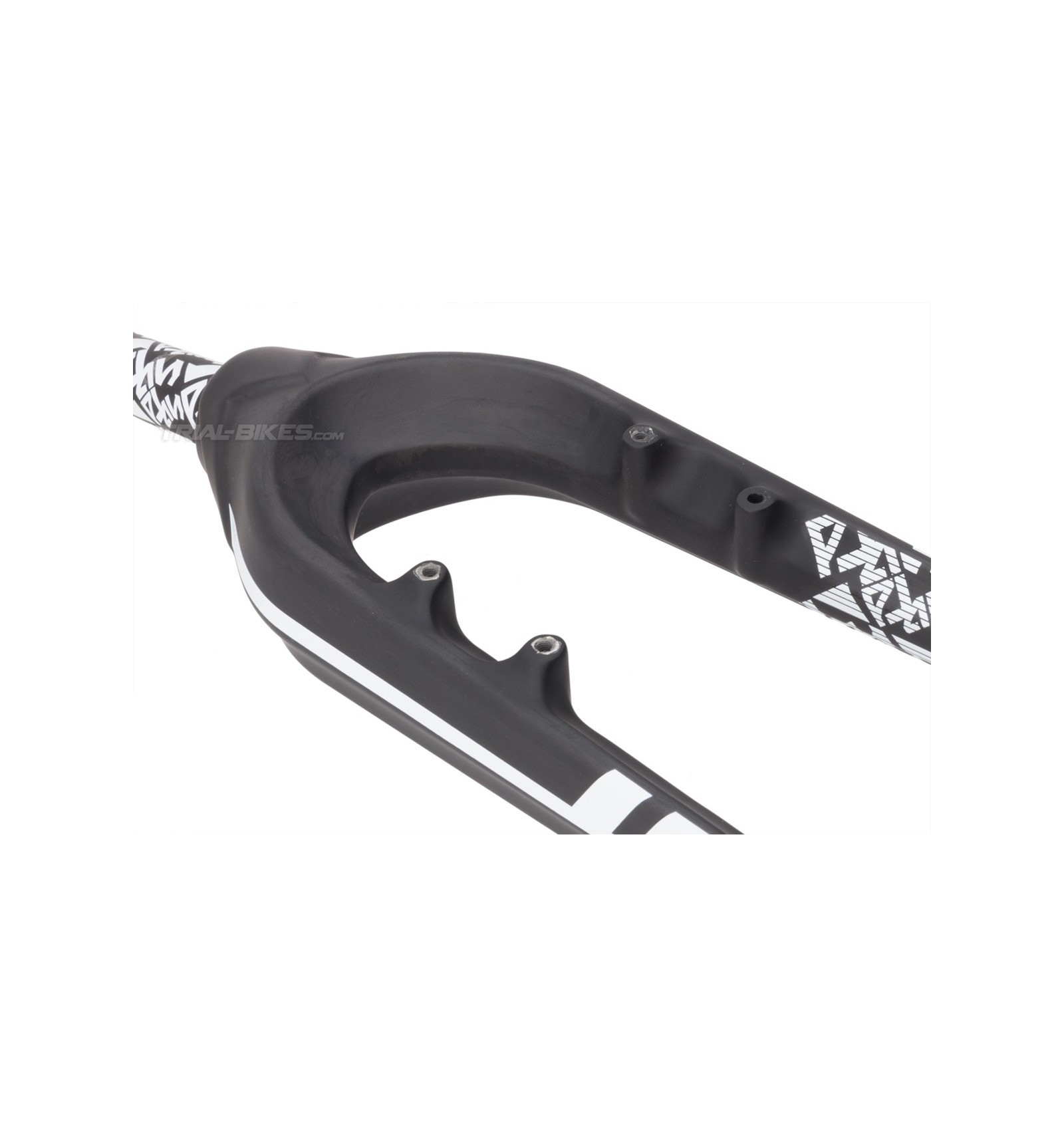

- The rim brake version features 4-bolt mounts integrated at the back of the legs, spaced at 85 mm (ideal for using a 32 mm-wide rim).
- The dropouts are designed for using a 10 mm diameter axle with a 100 mm spacing, so it’s suitable for most front hubs available.
- Supplied with the star nut already inserted.
- UD matt black finish, with white Play graphics.

Dimensions

(1) Length: 365 mm.
-----------------------------------------------
(2) Offset: +45 mm.
-----------------------------------------------
(3) Steerer tube length: 180 mm.
-----------------------------------------------

- 4 bolts mounts spacing: 85 mm.

Finish
- UD matt black finish, with white Play graphics.

Weight
- 502 g (Post Mount version), 518 g (4-bolt version), with a 180 mm long steerer tube and without star nut.

Additional information
This fork comes with a 6 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts will not be covered.
Because of the lower crown race design, it is highly recommended to use an open crown race to ease the set up.
